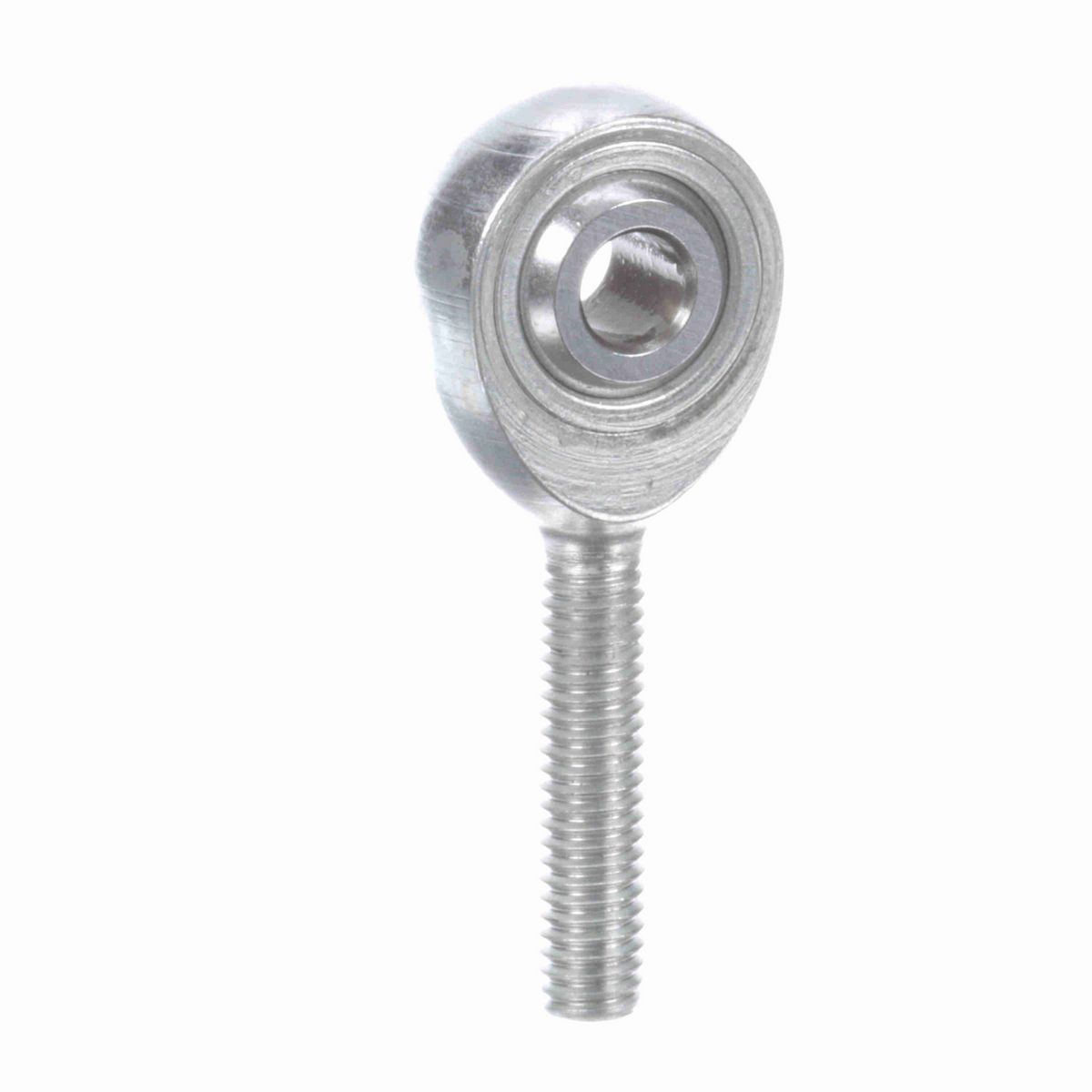

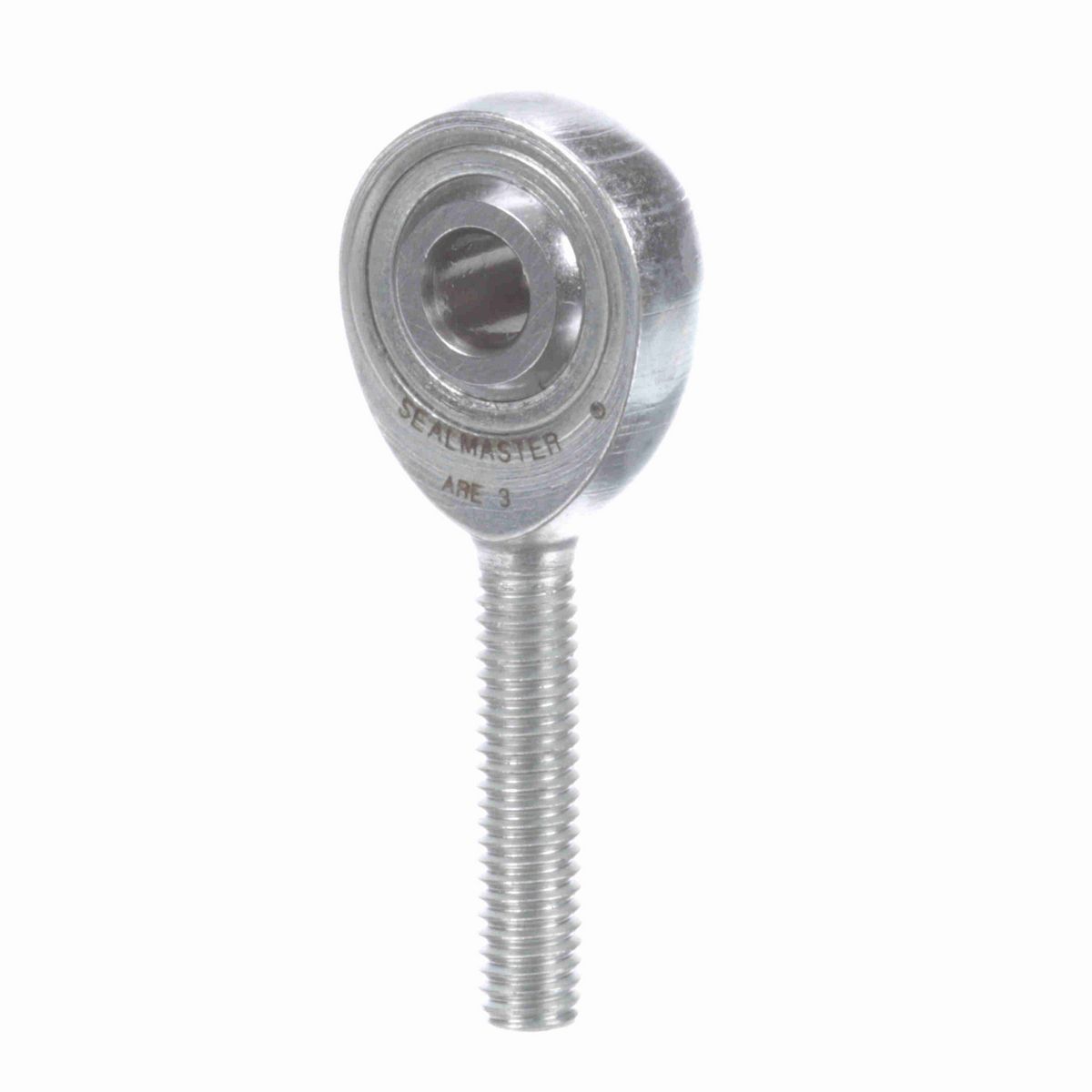

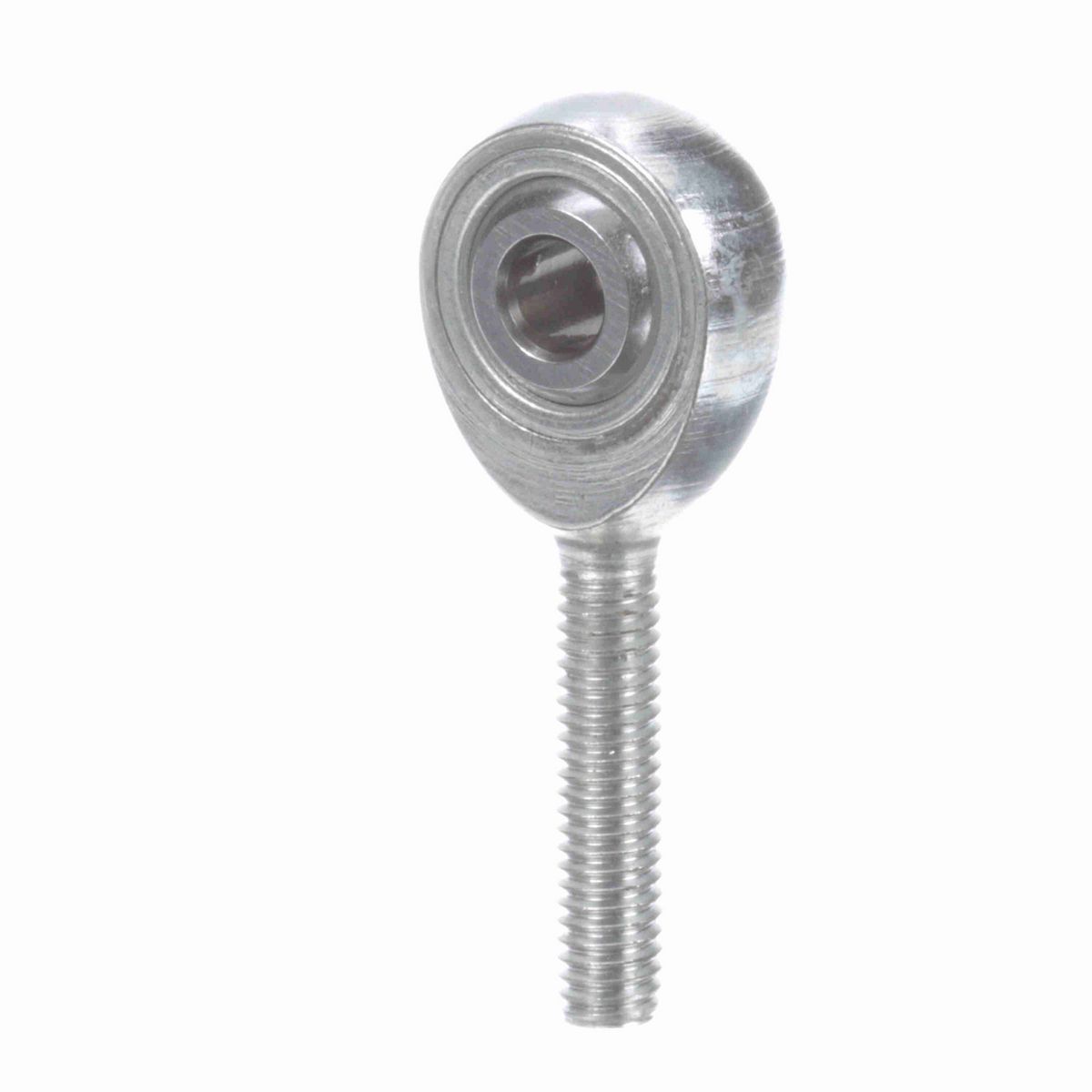

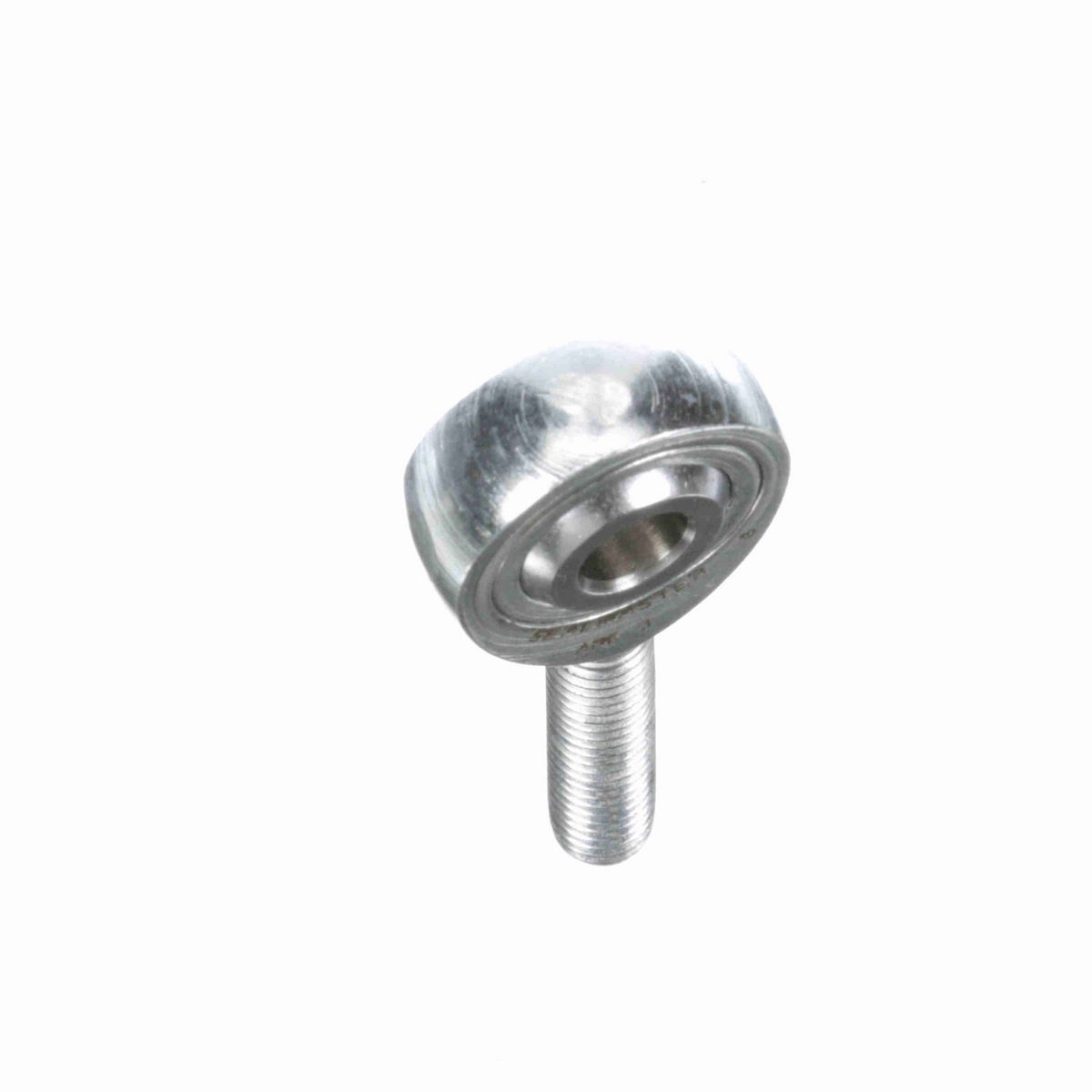

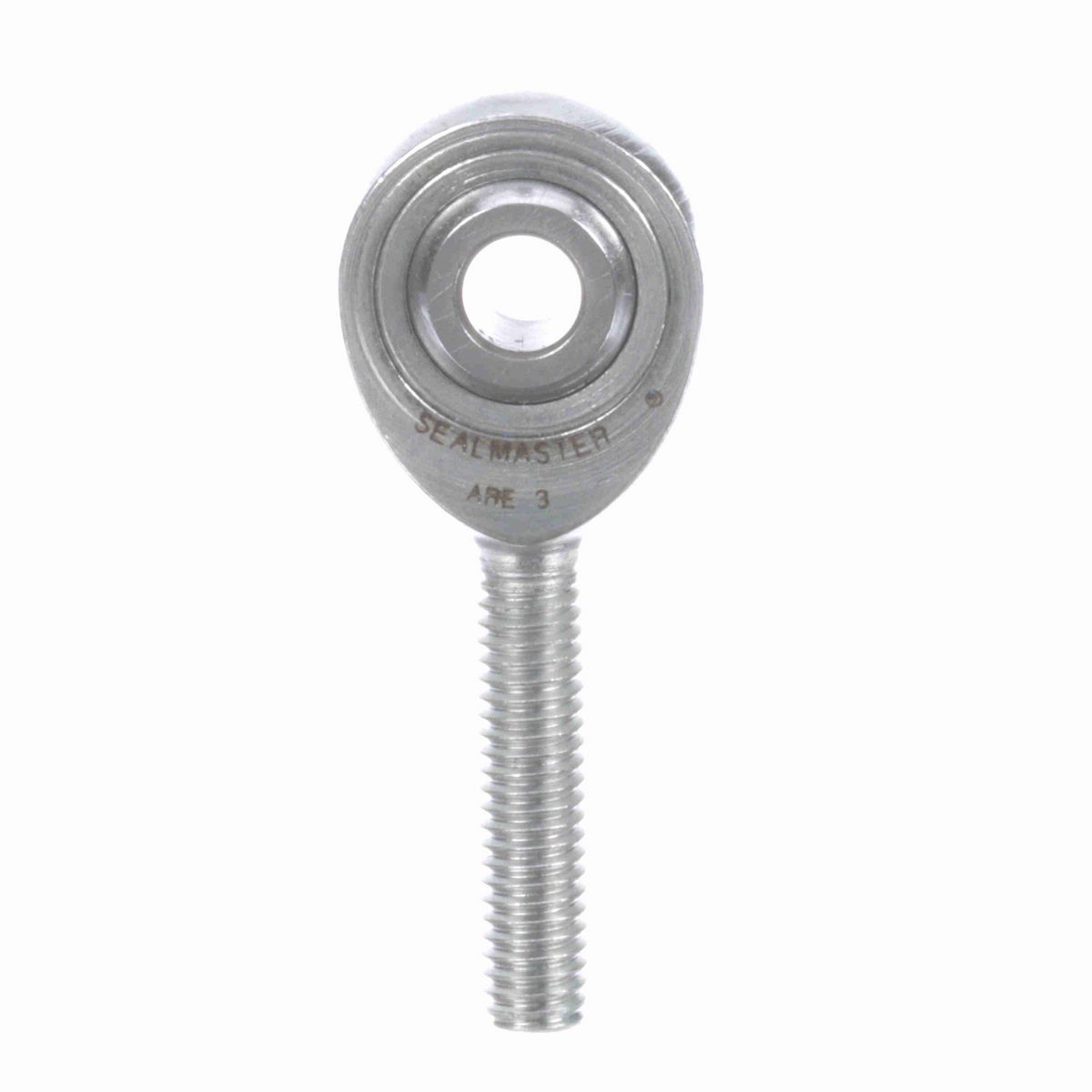

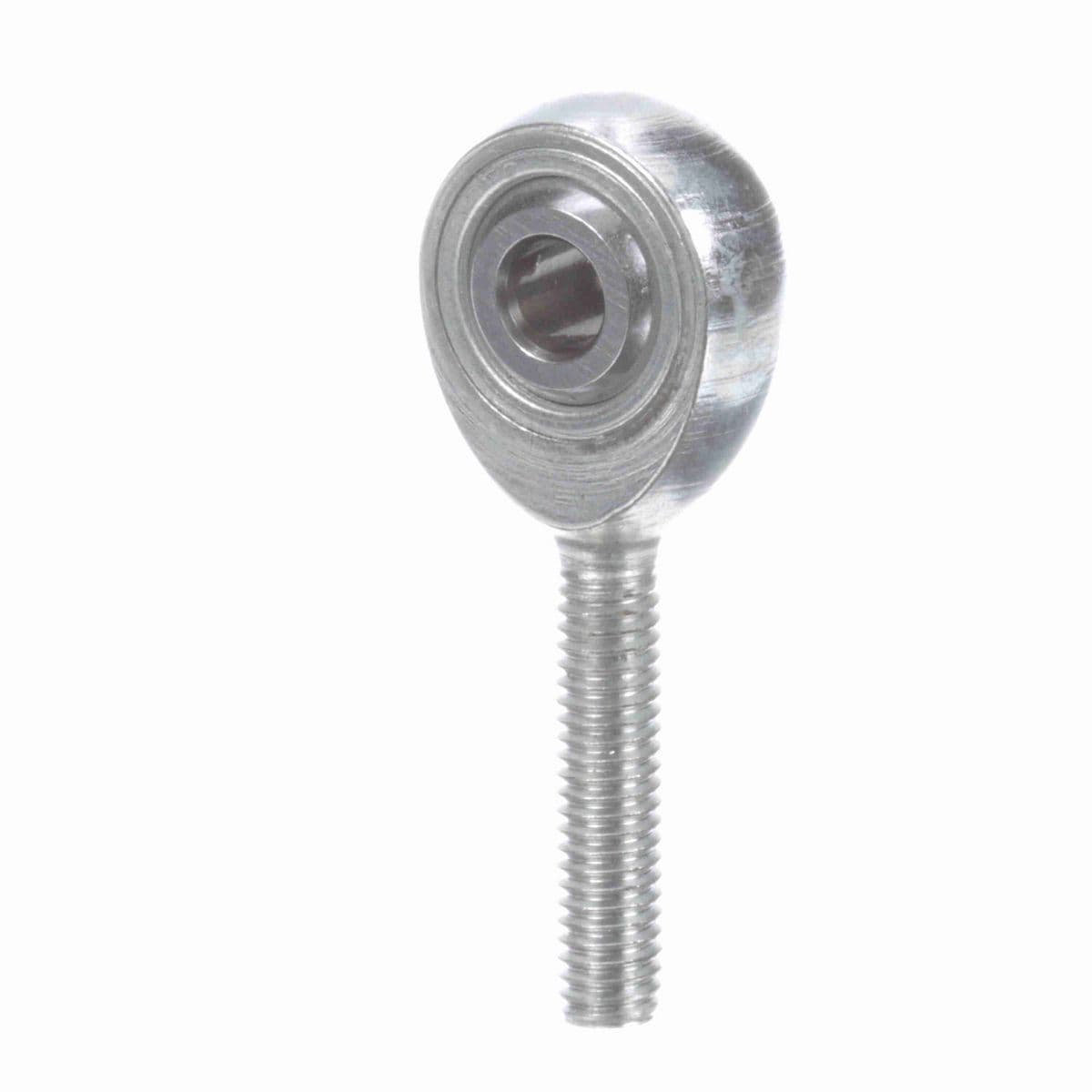

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Head Diameter (in)	0.625 in
Ball Width (in)	0.312 in
Housing Width (in)	0.25 in
Thread Size	#10-32
Ball Flat Diameter (in)	0.306 in
Thread Length (in)	0.719 in
Ball Diameter (in)	0.437 in
Length to Center of Ball (in)	1.25 in

Technical Specifications

Housing Style	Male Rod End
Product Type	ARE
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Selection Available SW	Y
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Series	Precision Extra Capacity
Race Material	Carbon Steel - corrosion resistant plating
Axial Load	285
Construction	Three-Piece Rod End
Misalignment Angle - a Deg. +/-	6.5
Zerk Fitting SW	N
Configuration	Male
Lubrication Type	Grease
Bearing Type	Rod End
Thread Type	UNF
Type	Male Rod End
Max Static Radial Load	2,850
Lubrication	No Zerk Fitting
Thread	RH
Bore Size (in)	0.1875 in
Class	Precision
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288718932
Weight	0.03 LB
Packaged Length	3.05 IN
Packaged Width	2.25 IN
Packaged Height	0.45 IN
HTC	8483.30.8055
Country of Origin	Mexico
