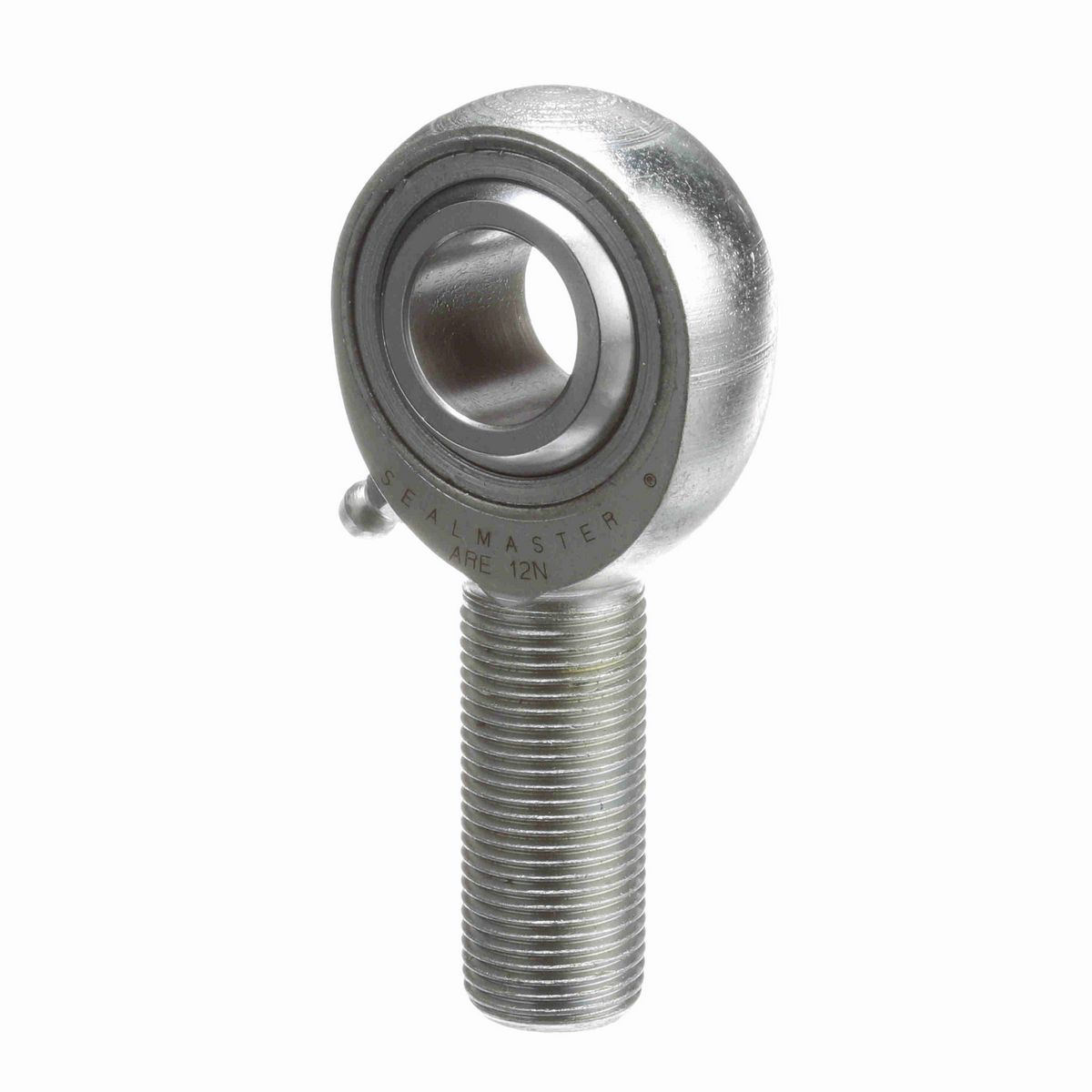

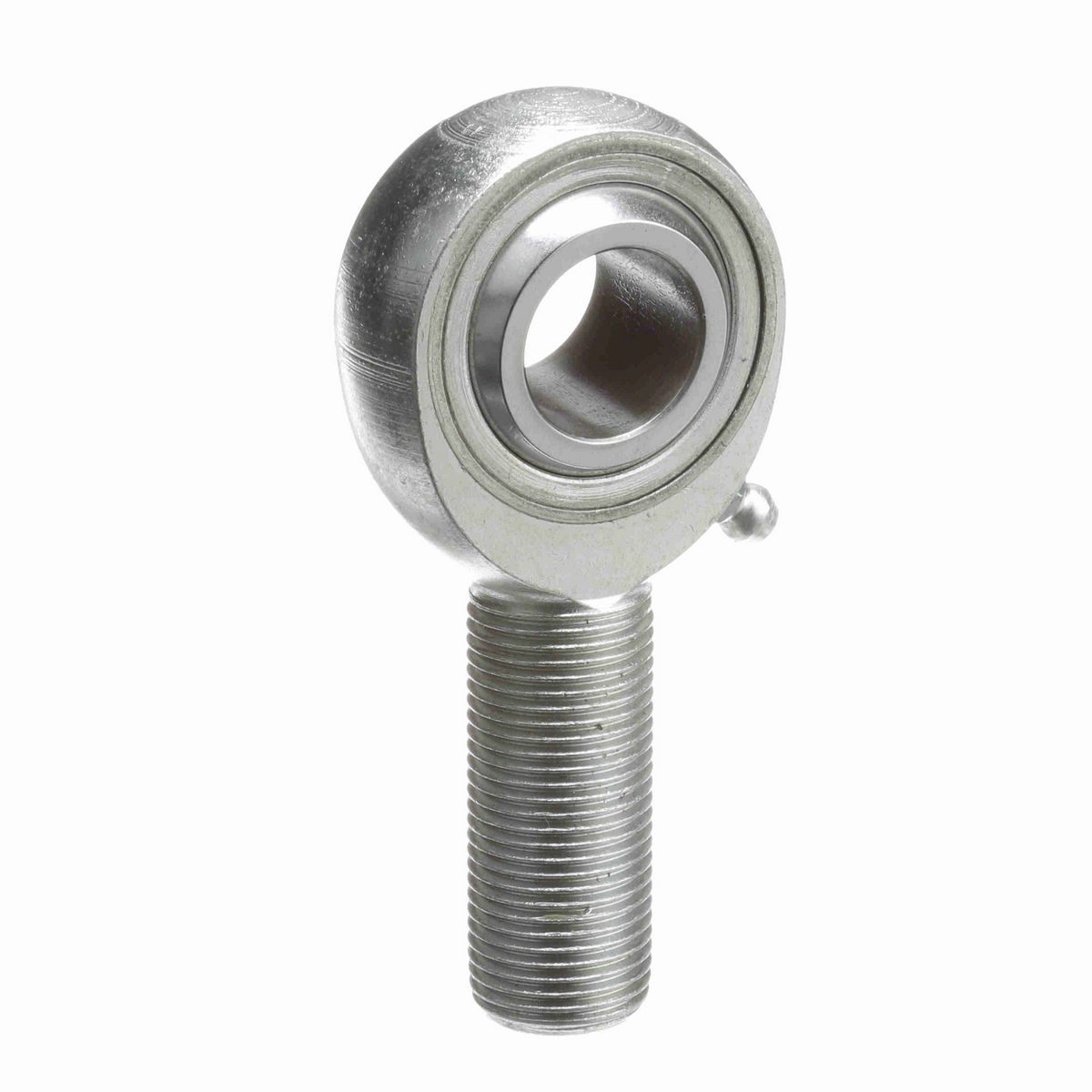

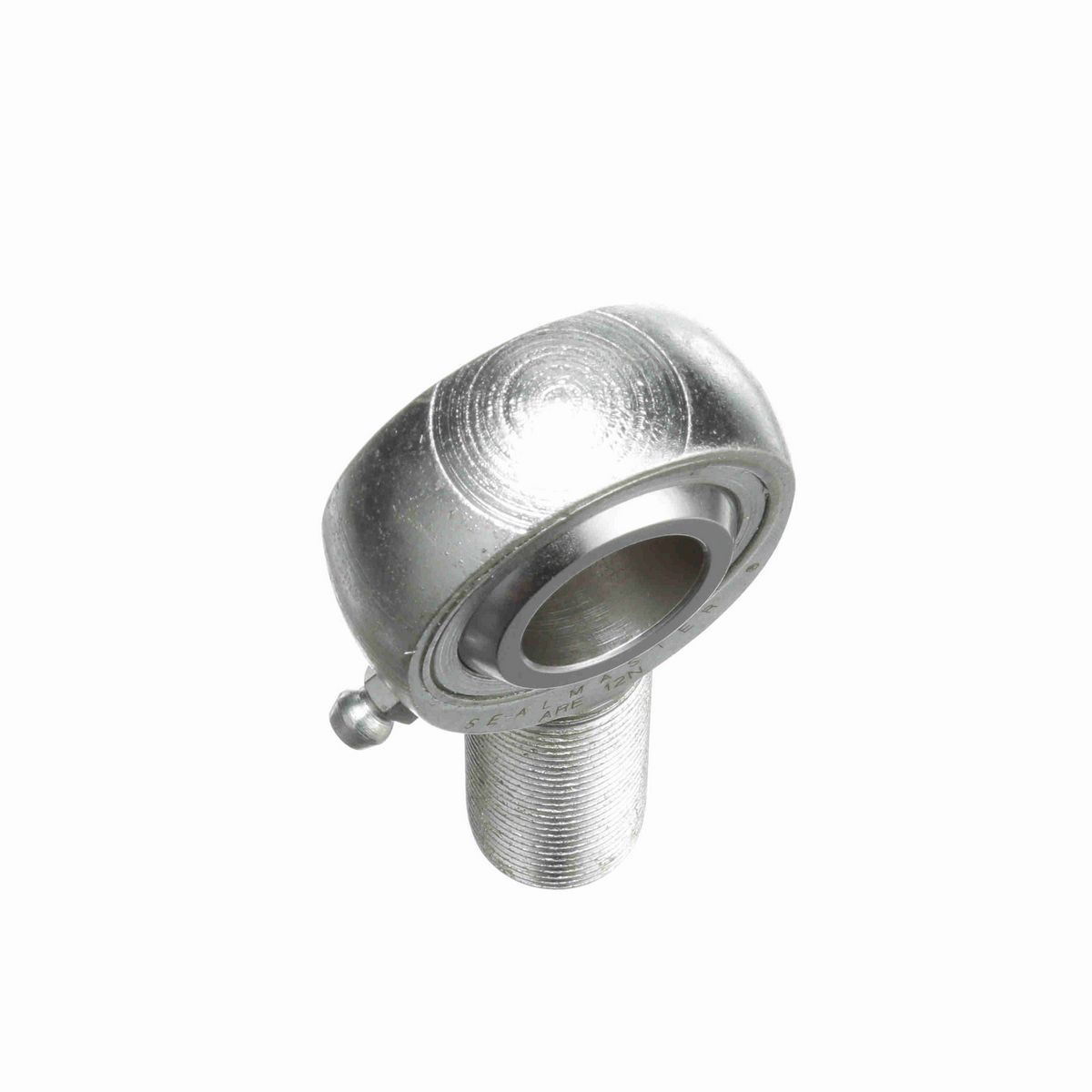

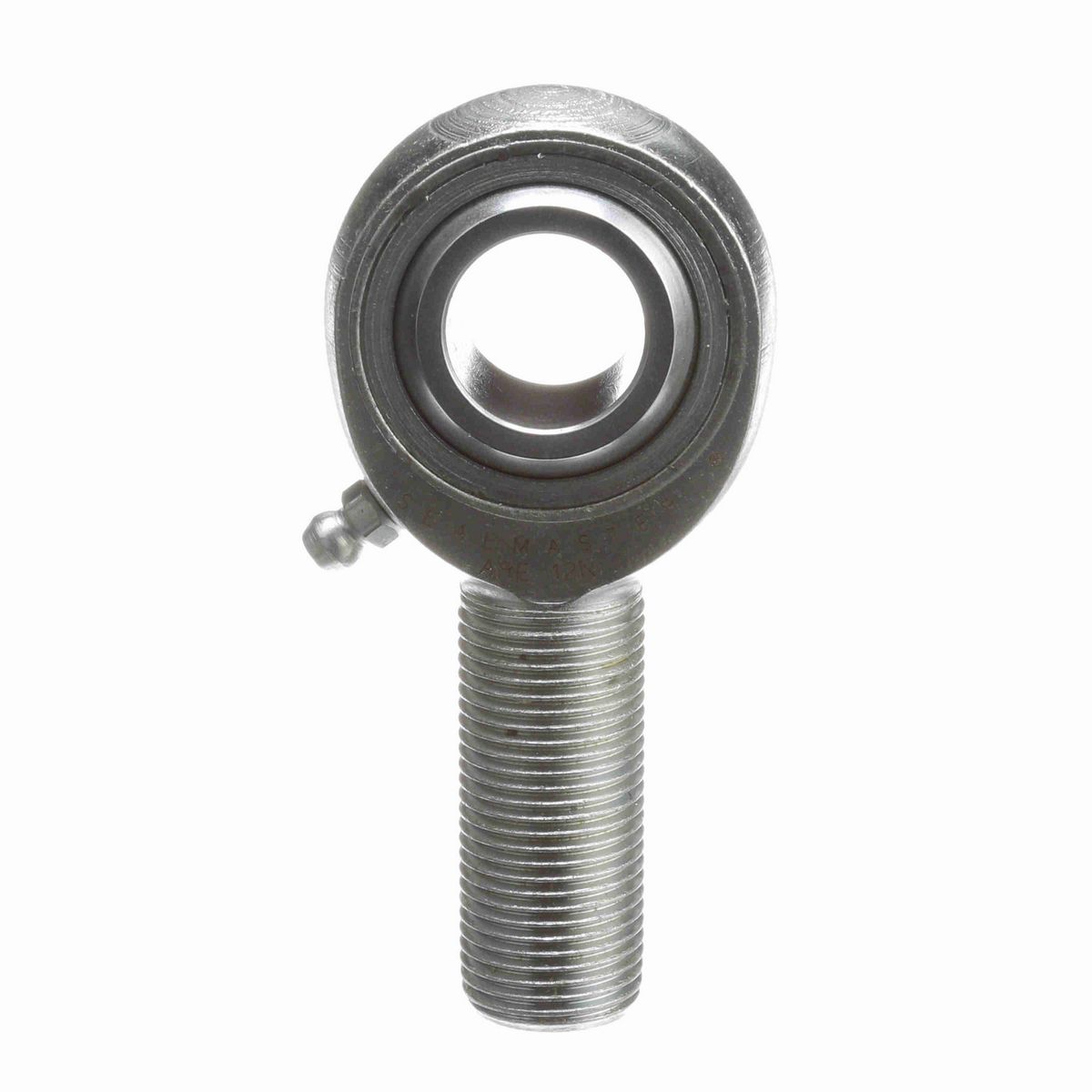

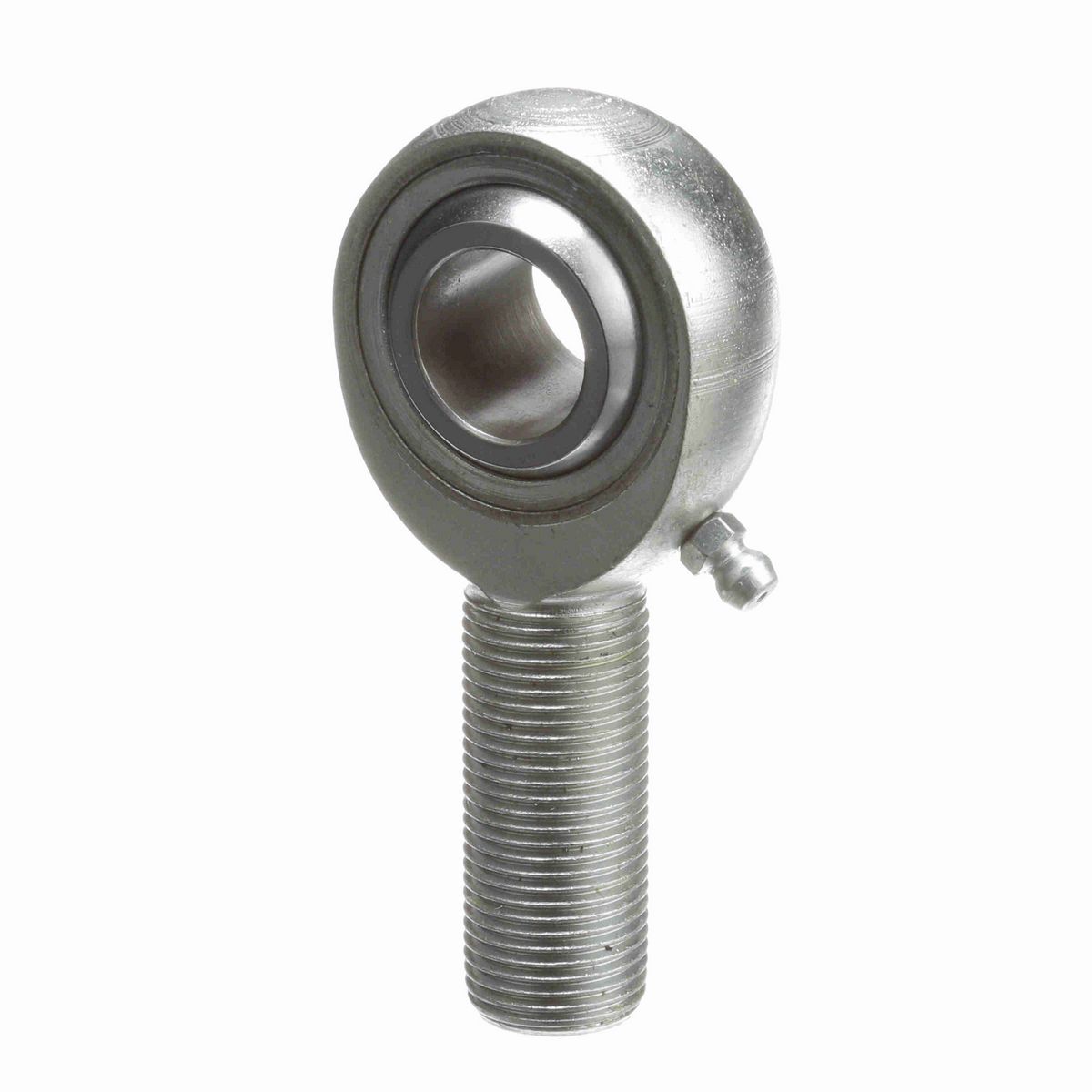

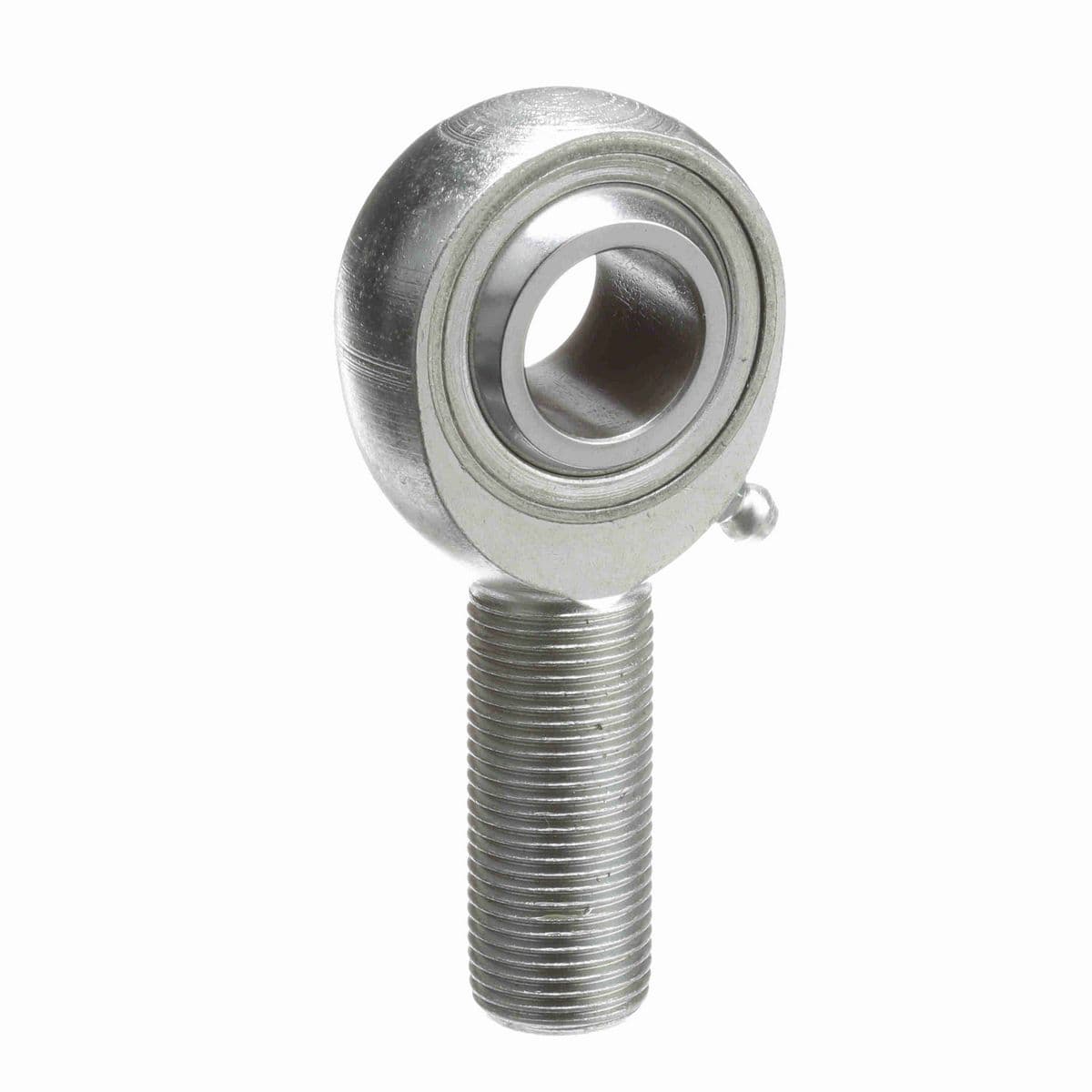

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.978 in
Ball Width (in)	0.875 in
Thread Size	#3/4-16
Housing Width (in)	0.687 in
Head Diameter (in)	1.75 in
Thread Length (in)	1.719 in
Ball Diameter (in)	1.312 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Configuration	Male
Misalignment Angle - a Deg. +/-	7
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Series	Precision Extra Capacity
Product Type	ARE
Lubrication Type	Grease
Housing Style	Male Rod End
Product Selection Available SW	Y
Race Material	Carbon Steel - corrosion resistant plating
Thread Type	UNF
Zerk Fitting SW	Y
Bearing Type	Rod End
Axial Load	2,320
Construction	Three-Piece Rod End with Zerk Fitting
Lubrication	Zerk Fitting
Type	Male Rod End
Max Static Radial Load	23,200
Thread	RH
Class	Precision
Bore Size (in)	0.7500 in
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719762
Weight	0.64 LB
Packaged Length	5.90 IN
Packaged Width	4.35 IN
Packaged Height	1.10 IN
HTC	8483.30.8055
Country of Origin	Mexico
