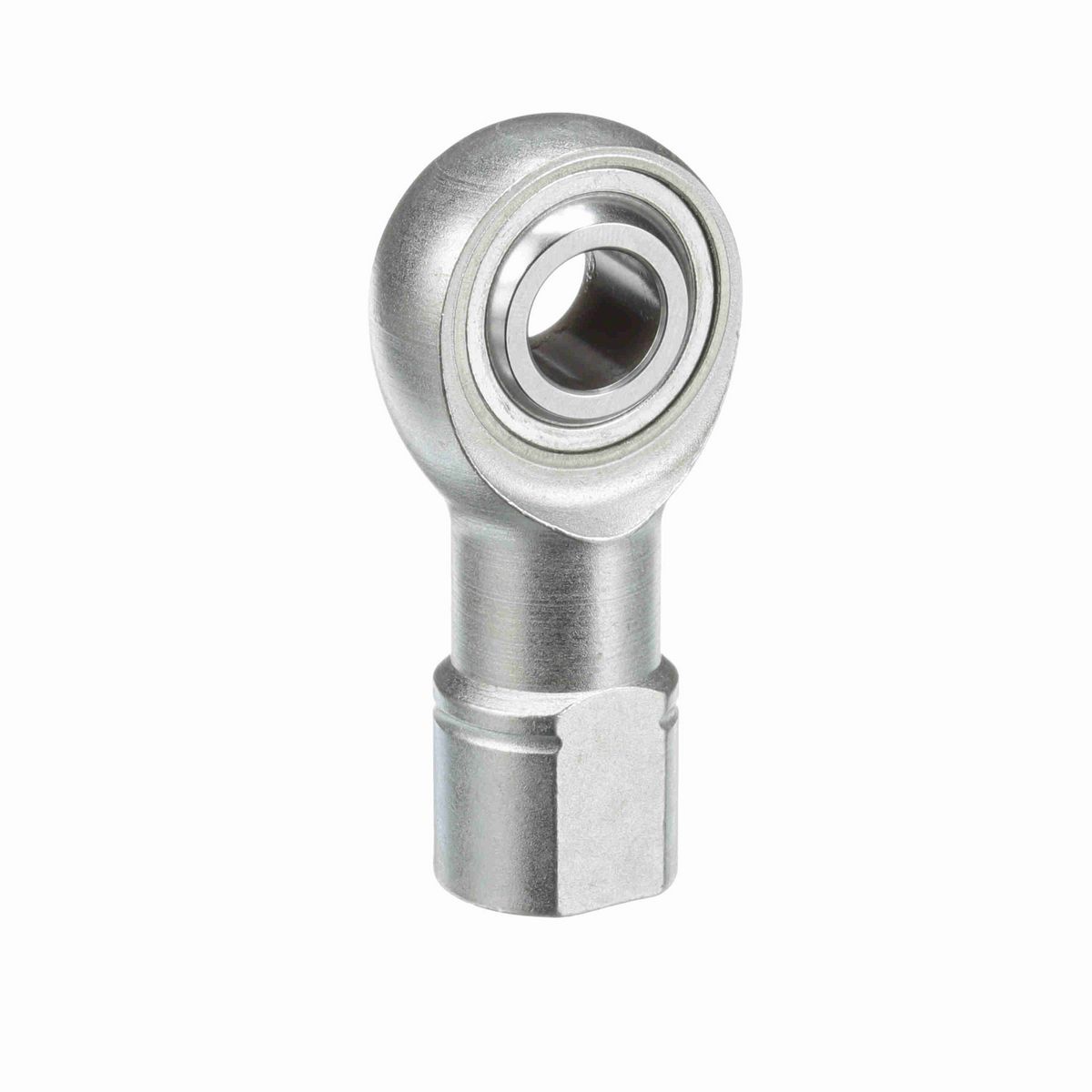

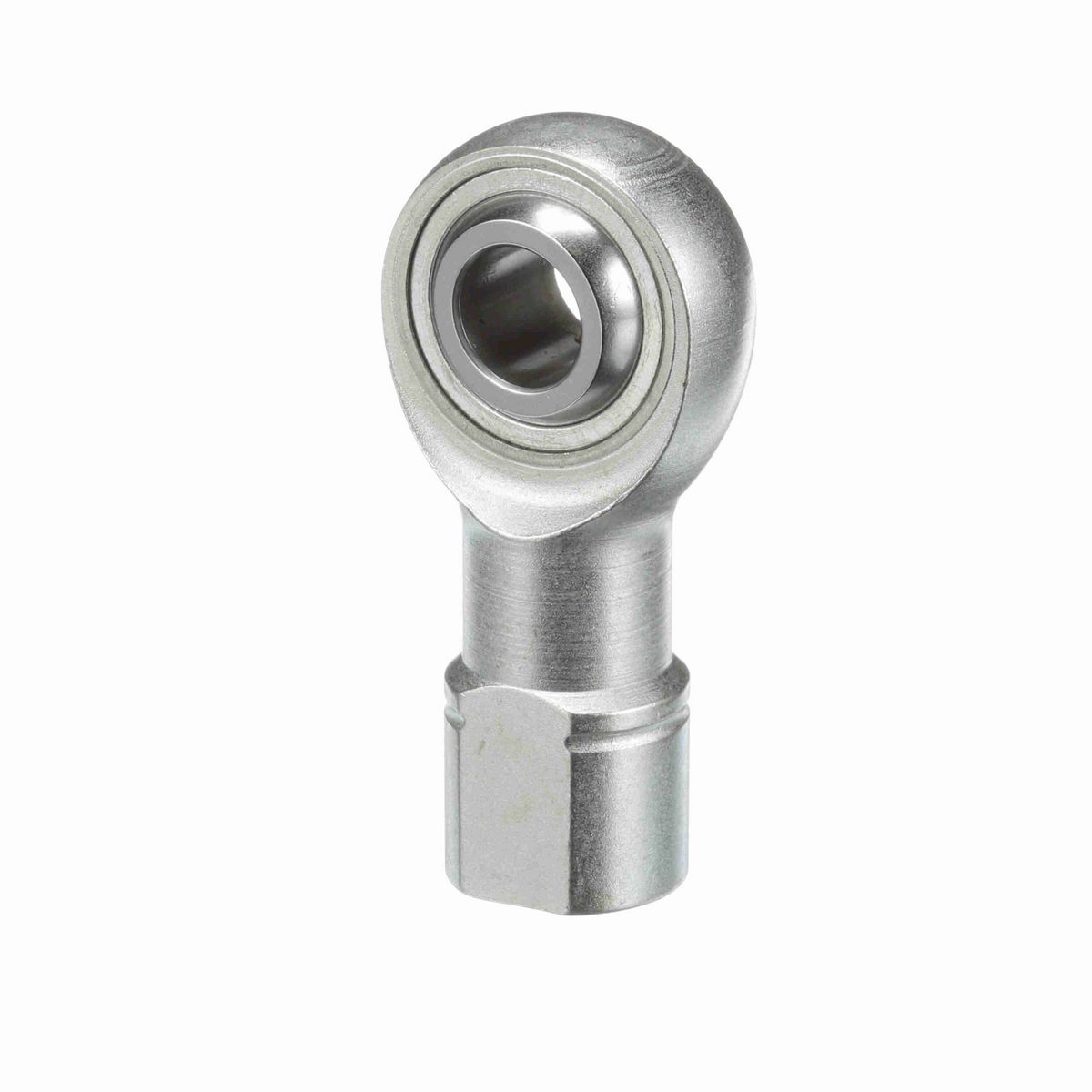

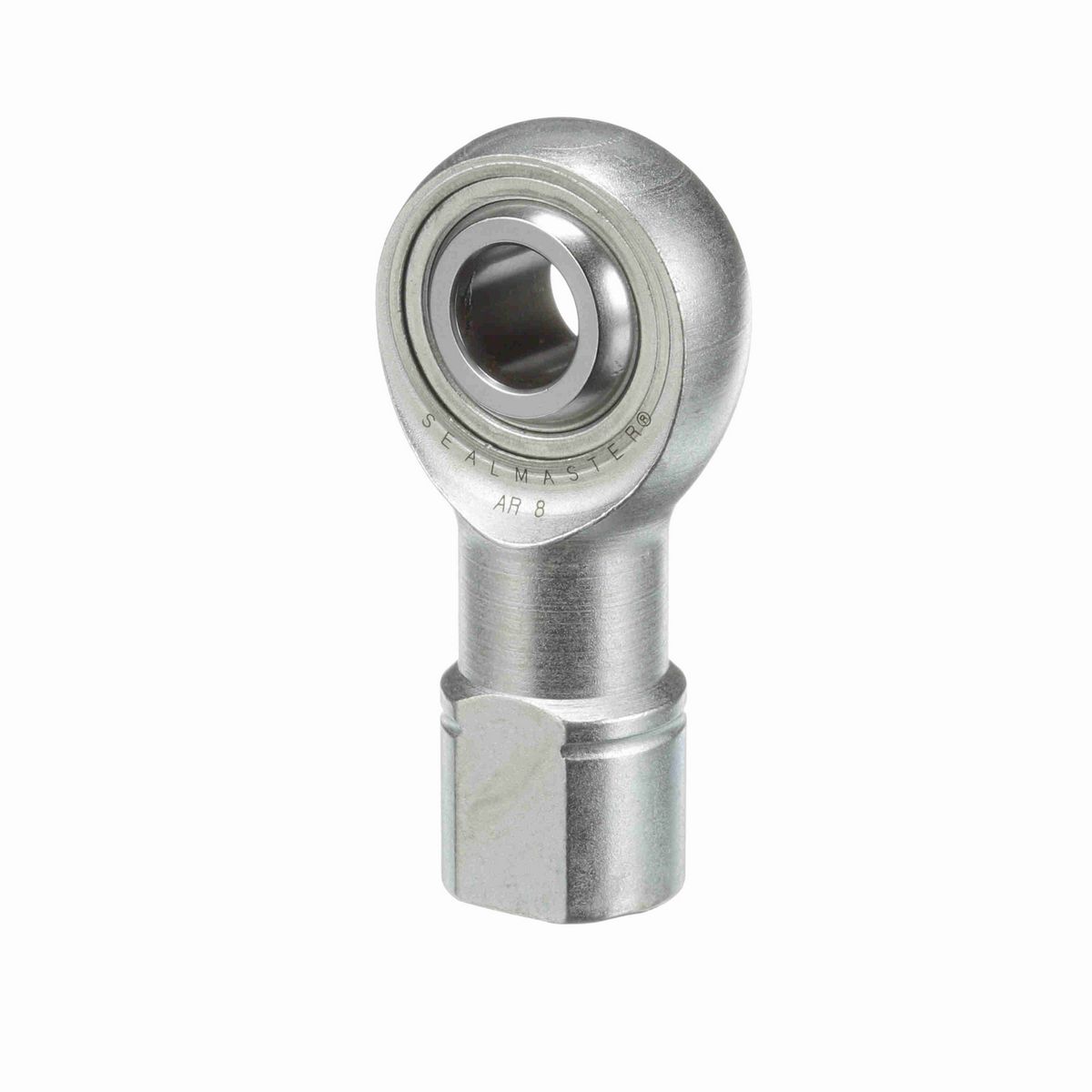

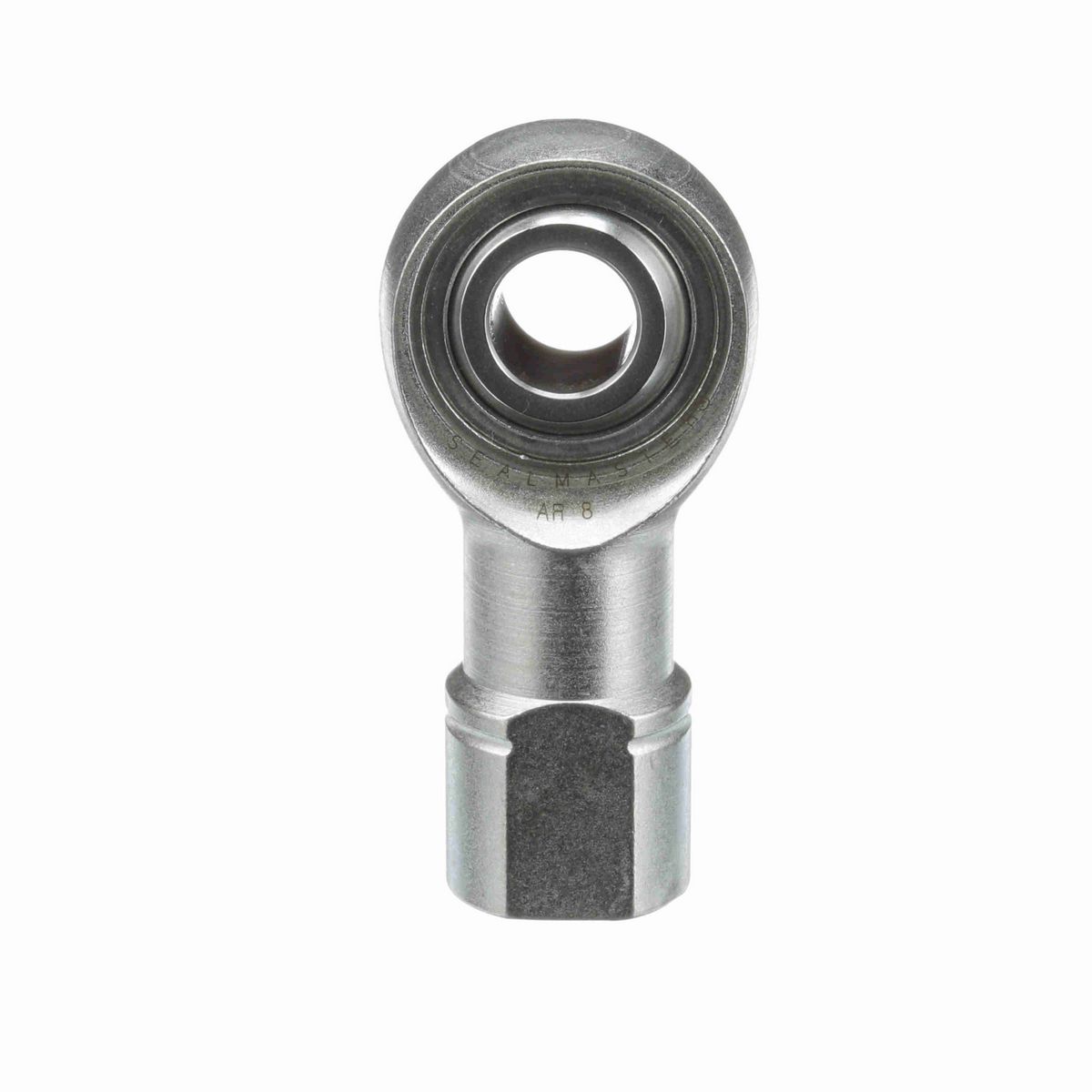

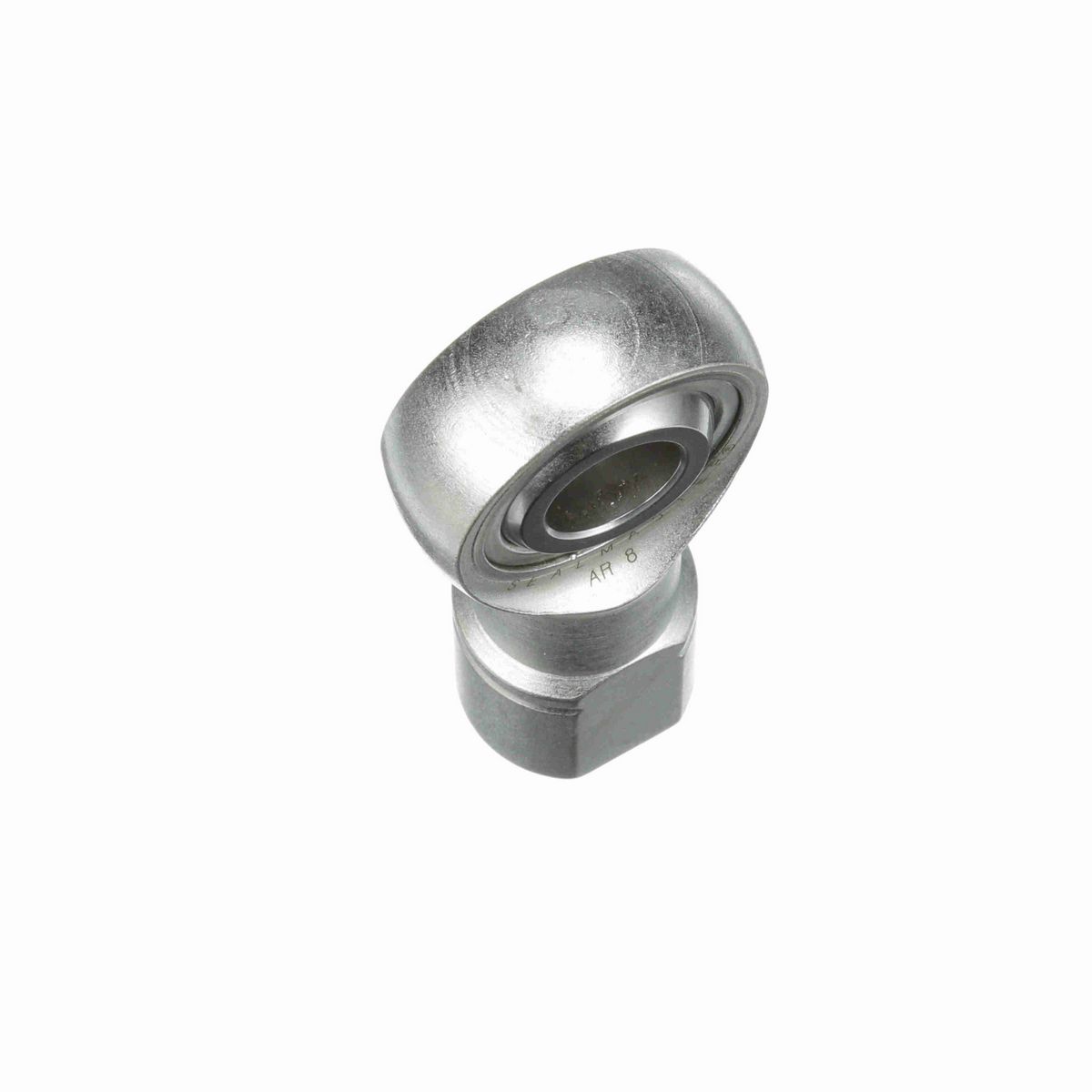

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Housing Width (in)	0.5 in
Thread Length (in)	1.156 in
Base Diameter (in)	0.875 in
Head Diameter (in)	1.312 in
Ball Diameter (in)	0.937 in
Thread Size	#1/2-20
Ball Flat Diameter (in)	0.698 in
Ball Width (in)	0.625 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Product Type	AR
Race Material	Carbon Steel - corrosion resistant plating
Configuration	Female
Lubrication Type	Grease
Thread Type	UNF
Product Selection Available SW	Y
Misalignment Angle - a Deg. +/-	6
Zerk Fitting SW	N
Across Wrench Flats	0.75
Construction	Three-Piece Rod End
Series	Precision Extra Capacity
Housing Style	Female Rod End
Axial Load	1,350
Bearing Type	Rod End
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication	No Zerk Fitting
Thread	RH
Type	Female Rod End
Max Static Radial Load	13,500
Class	Precision
Bore Size (in)	0.5000 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288718901
Weight	0.31 LB
Packaged Length	2.40 IN
Packaged Width	3.35 IN
Packaged Height	1.15 IN
HTC	8483.30.8055
Country of Origin	Mexico
