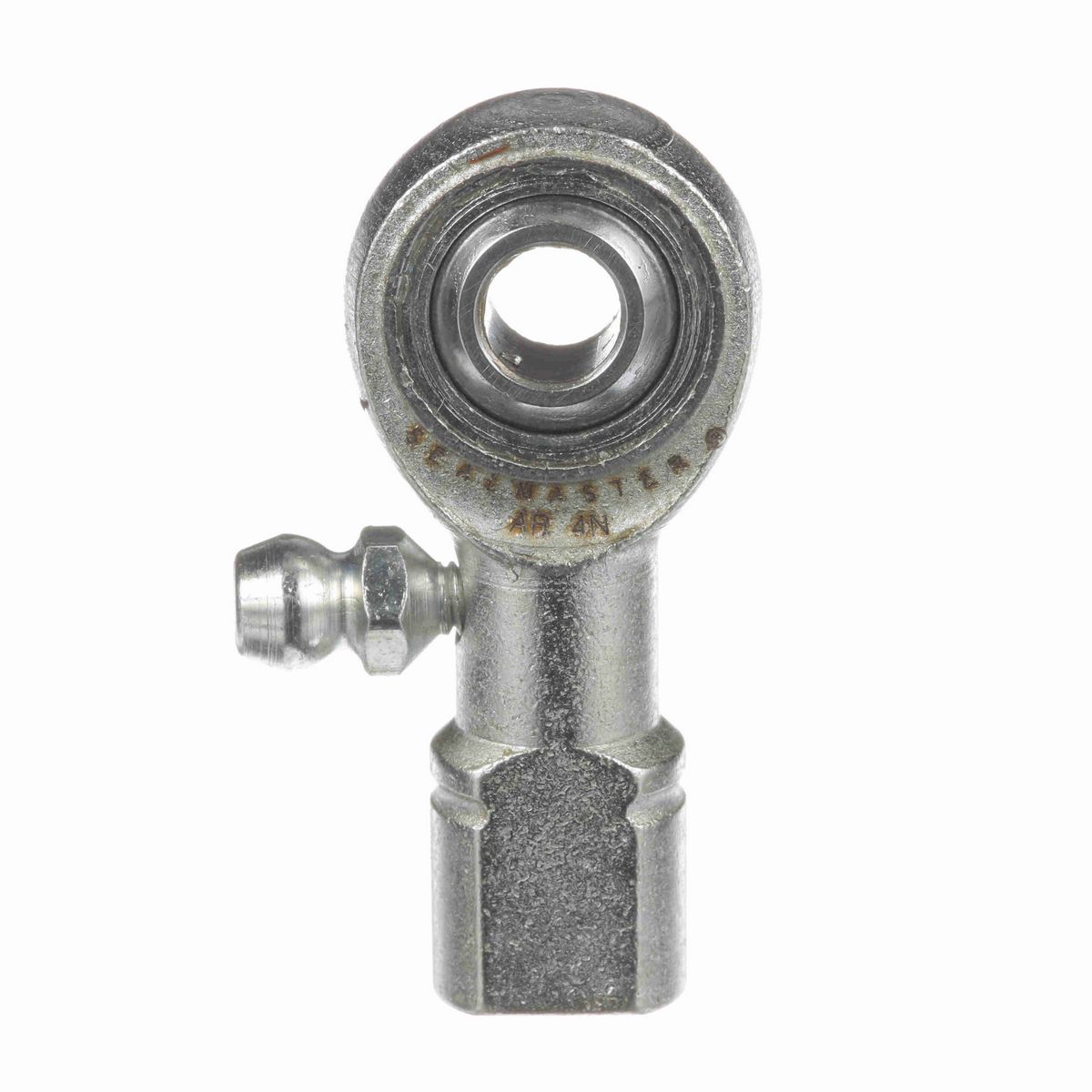

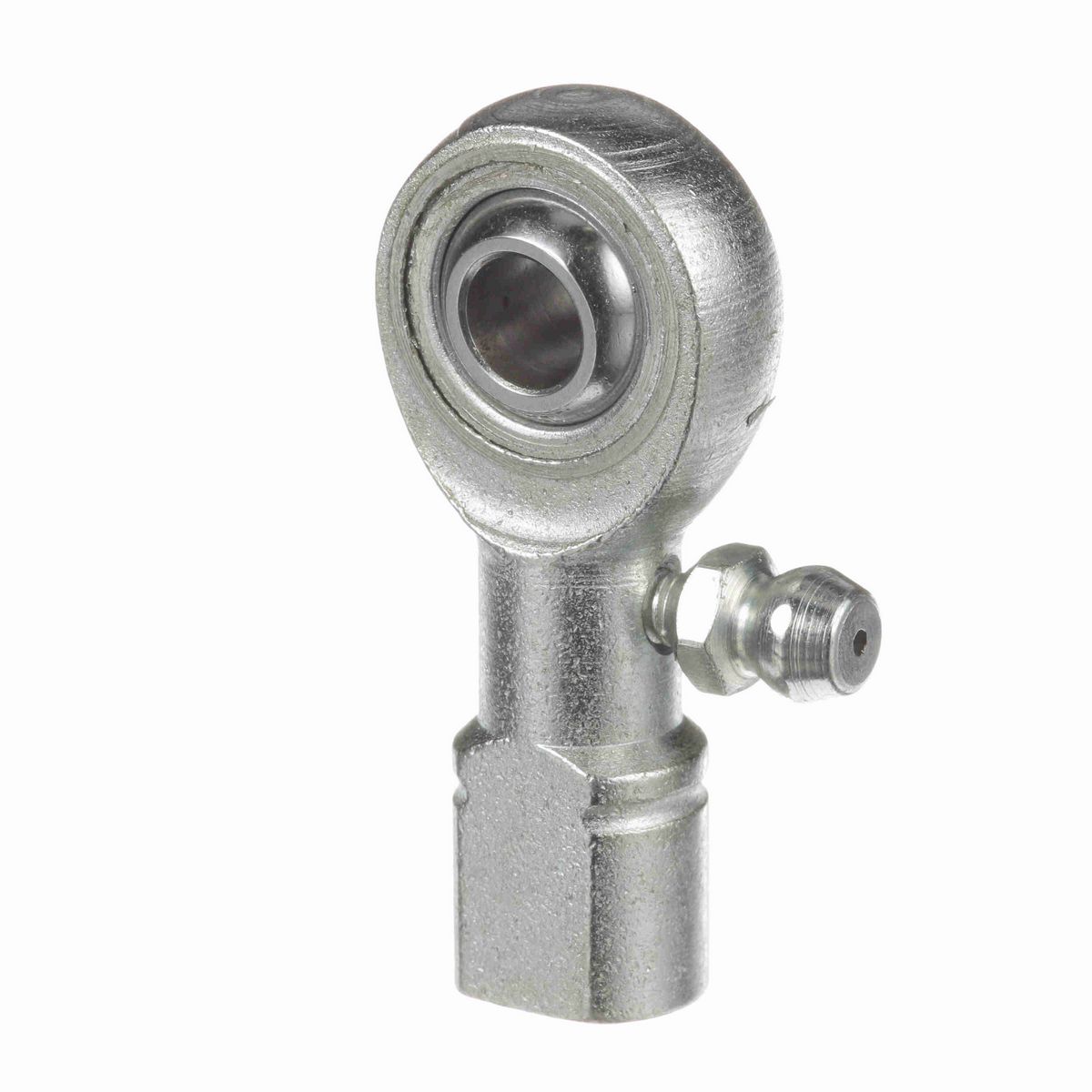

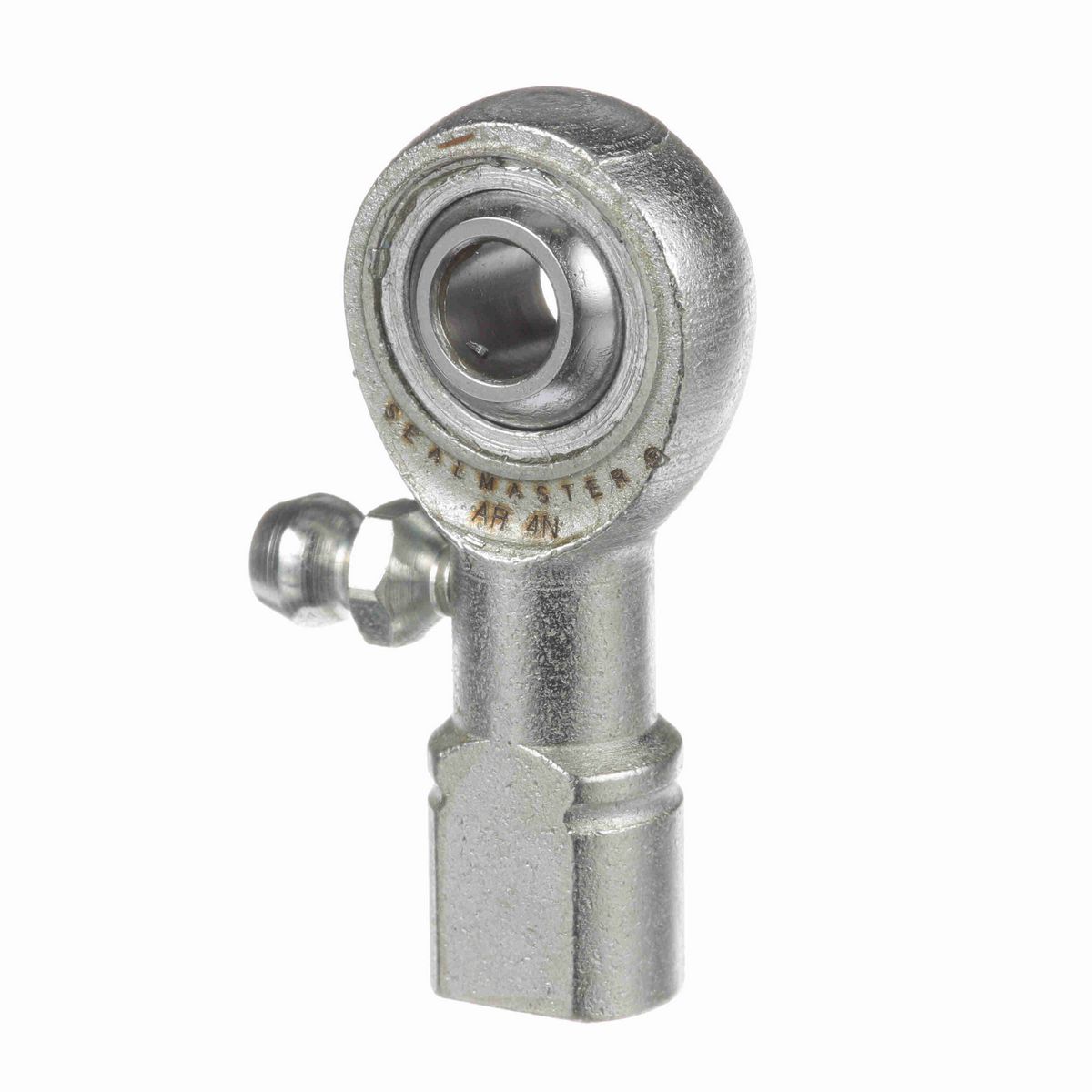

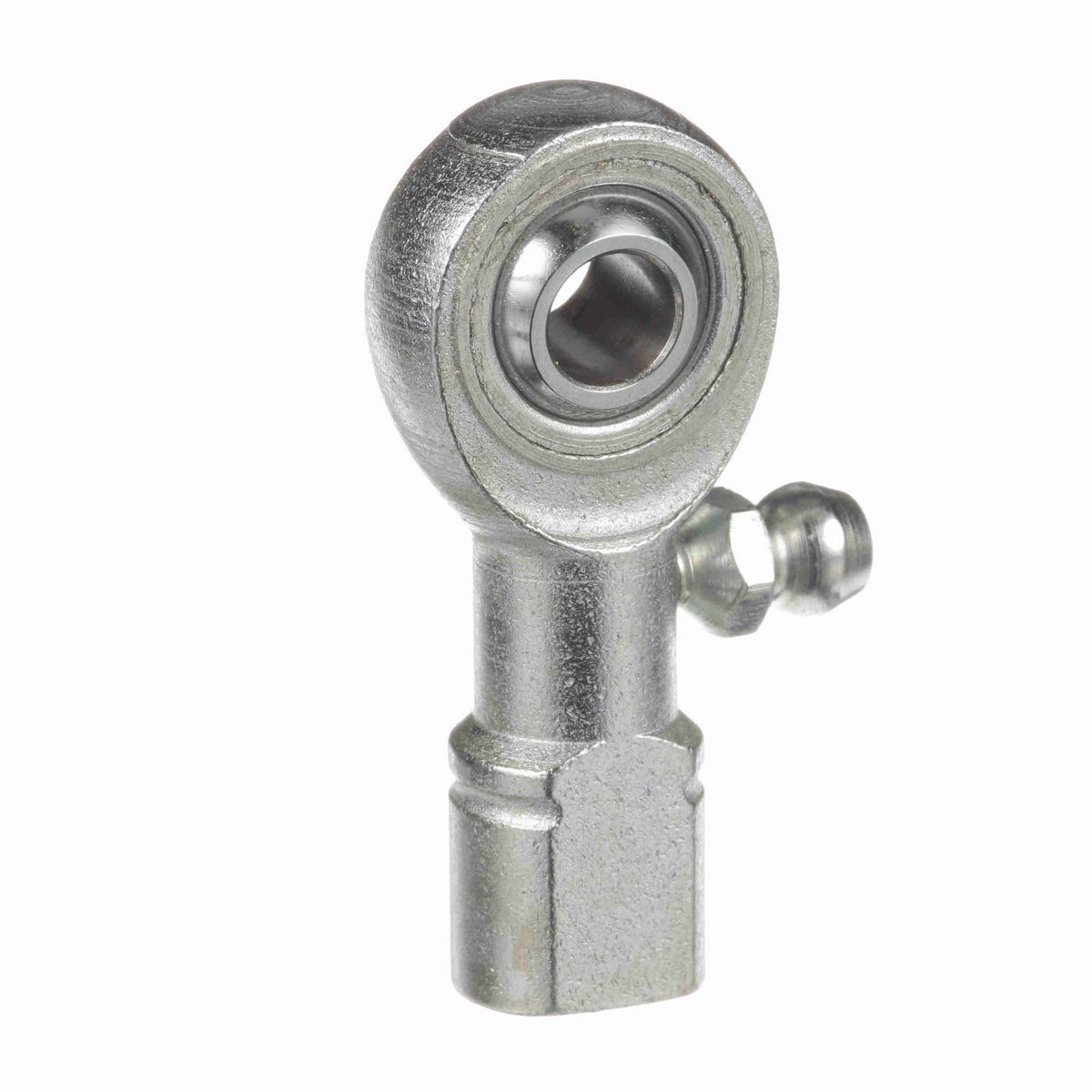

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Head Diameter (in)	0.75 in
Ball Flat Diameter (in)	0.331 in
Thread Length (in)	0.719 in
Ball Width (in)	0.375 in
Ball Diameter (in)	0.5 in
Thread Size	#1/4-28
Base Diameter (in)	0.469 in
Housing Width (in)	0.281 in
Length to Center of Ball (in)	1.31 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Type	AR
Zerk Fitting SW	Y
Across Wrench Flats	0.375
Housing Style	Female Rod End
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	8
Thread Type	UNF
Product Selection Available SW	Y
Configuration	Female
Race Material	Carbon Steel - corrosion resistant plating
Lubrication Type	Grease
Series	Precision Extra Capacity
Bearing Type	Rod End
Axial Load	537
Construction	Three-Piece Rod End with Zerk Fitting
Thread	RH
Lubrication	Zerk Fitting
Max Static Radial Load	5,370
Type	Female Rod End
Class	Precision
Bore Size (in)	0.2500 in
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719649
Weight	0.06 LB
Packaged Length	2.20 IN
Packaged Width	4.85 IN
Packaged Height	0.40 IN
HTC	8483.30.8055
Country of Origin	Mexico
