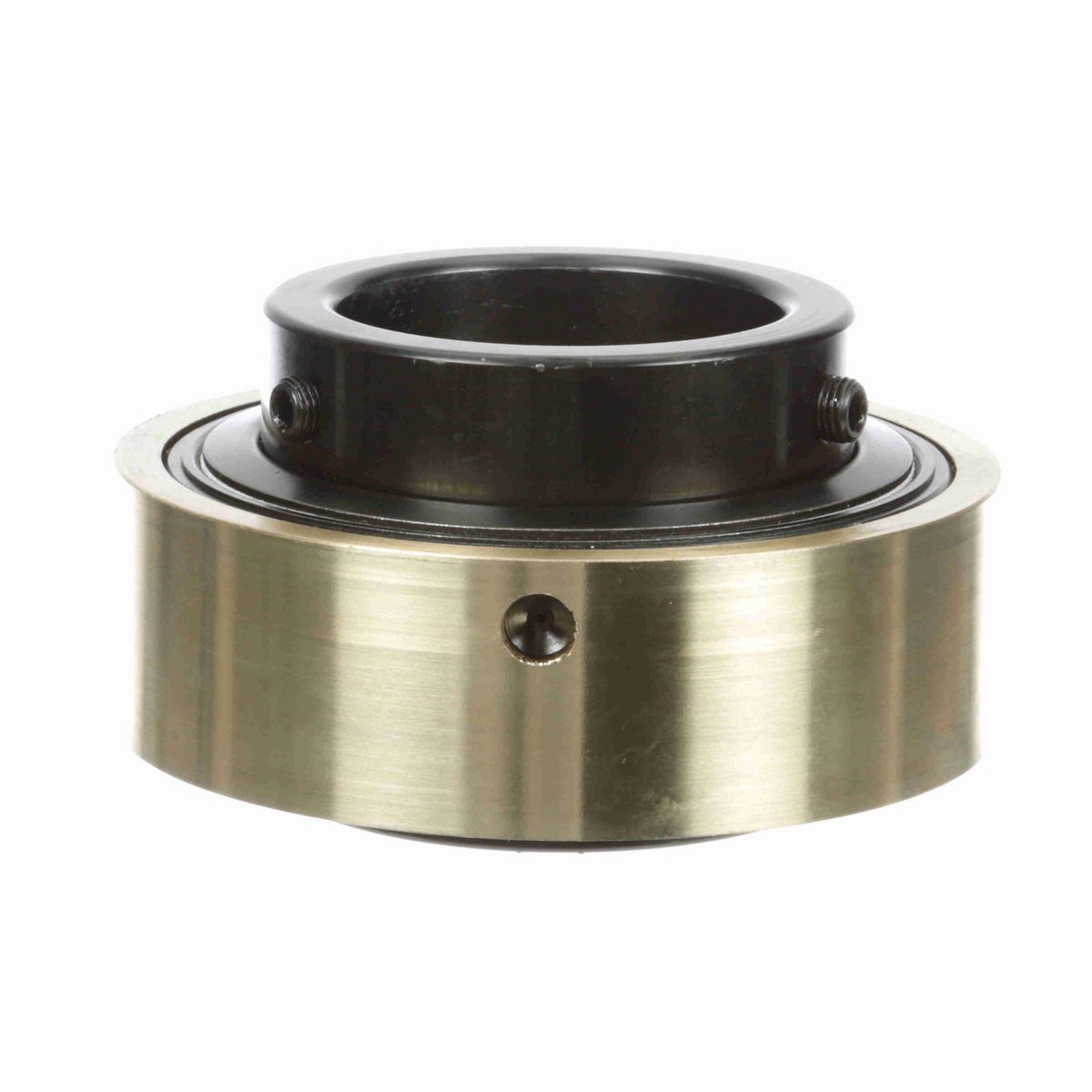

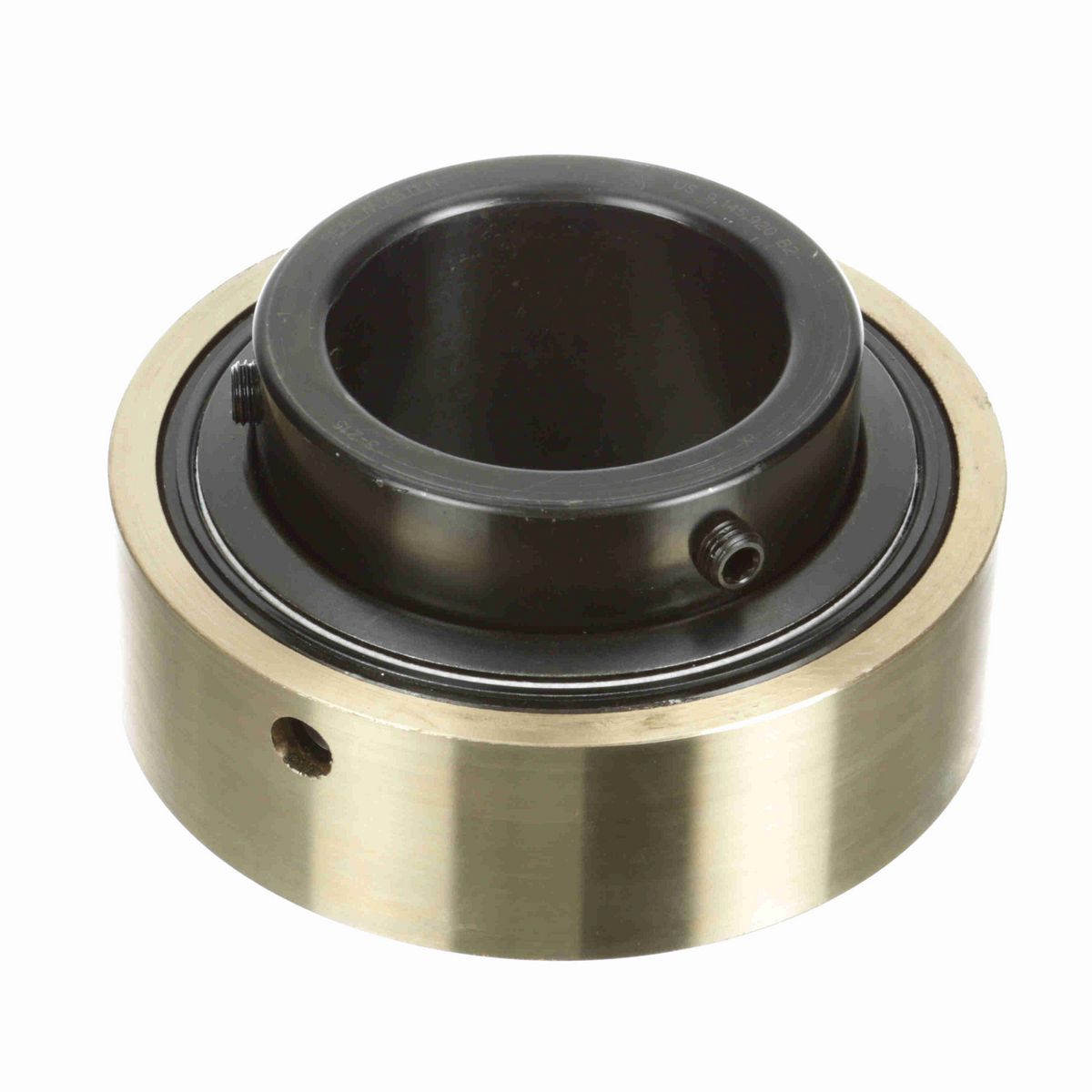

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.25 in
Bore Size (in)	2.9375 in
Outer Race OD (in)	5.875 in
Inner Race Length (in)	3.25 in
Inner Ring OD (in)	3.922 in
Centerline to Front Face (in)	1.938 in
Outer Race Width (in)	1.828 in

Technical Specifications

Set Screw Thread	7/16-20
Rolling Element	Ball Bearing
Bore Shape	Straight
Radius	0.12
Measure Units	Inch
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Speed (Max) (RPM)	2250 rpm
Radial Dynamic Load Capacity (lb)	17,412 lb
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	13,174 lb
Cage Material	Brass
Precision Rating	ABEC 1
Series	AR
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Type of Seal	Felt Labyrinth Seal
Duty/Series	Medium
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No

General Specifications

UPC	662461009925
Weight	12.20 LB
Packaged Length	6.00 IN
Packaged Width	6.00 IN
Packaged Height	4.00 IN
HTC	8482.10.5056
Country of Origin	United States of America
