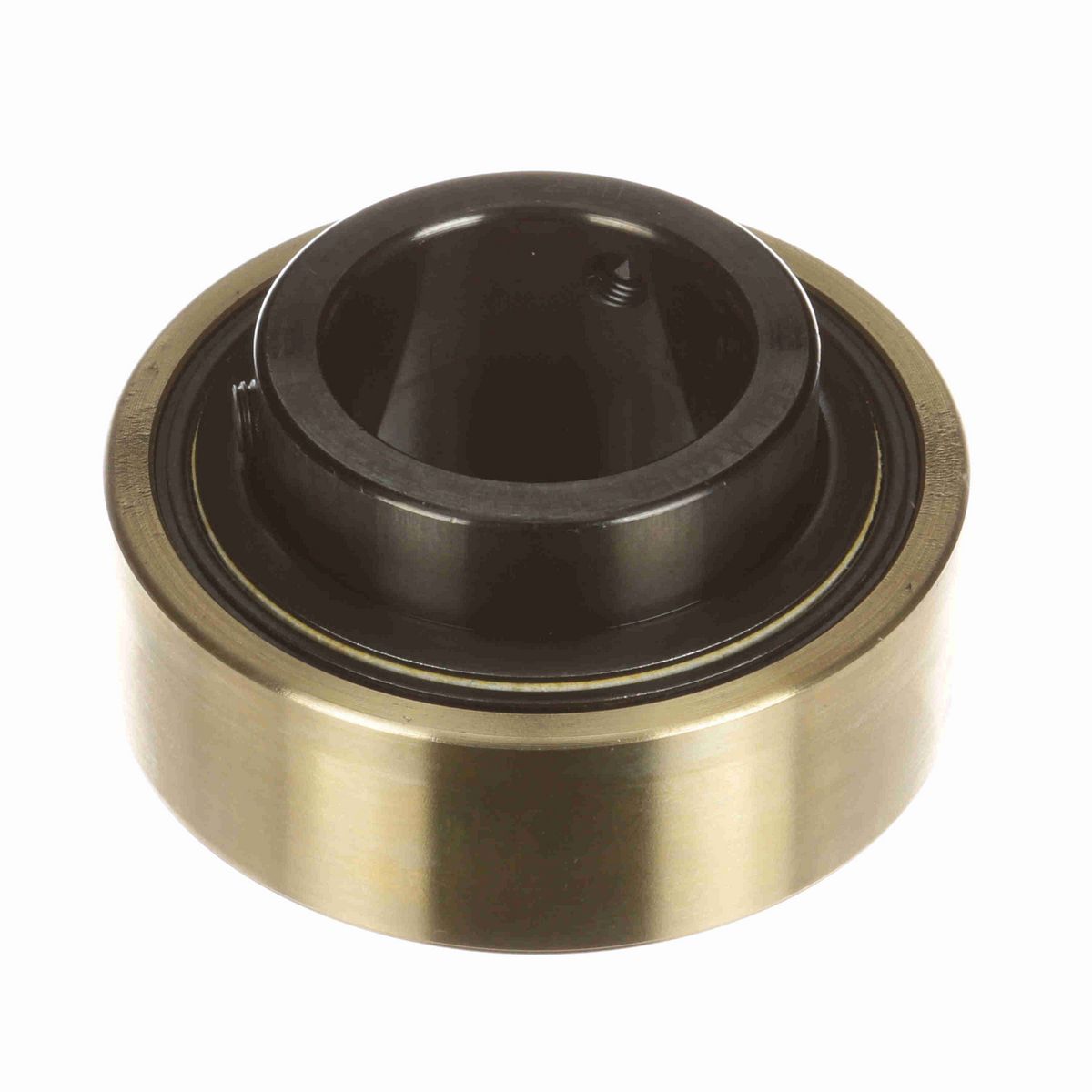

• Bearing insert installed in brass expansion ring
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	60 mm
Outer Race OD (mm)	119.8372 mm
Outer Race Width (in)	1.399 in
Outer Race OD (in)	4.718 in
Inner Race Length (mm)	65.1 mm
Outer Race Width (mm)	33.7 mm

Technical Specifications

Rolling Element	Ball Bearing
Radius	0.08
Bore Shape	Straight
Housing Type	Insert Only
Set Screw Thread	3/8-24
Measure Units	Metric
Insert Material	52100 Bearing Steel, Black Oxided
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	11,789 lb
Speed (Max) (RPM)	3000 rpm
Misalignment	±2.0° Misalignment - Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	8,150 lb
Series	AR
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Locking Type	Set Screw
Ability to Relubricate	Yes

General Specifications

UPC	662461053331
Weight	4.80 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
