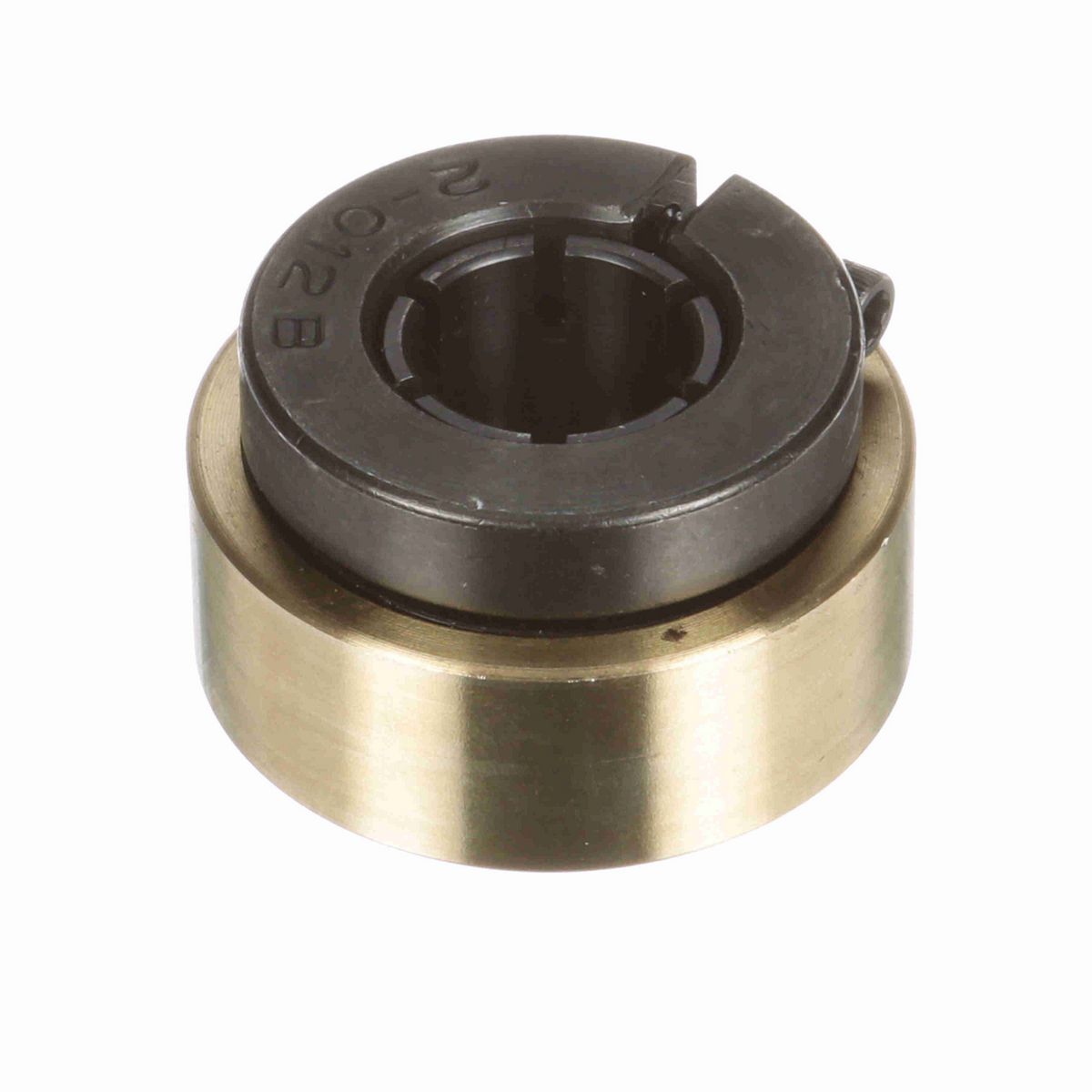

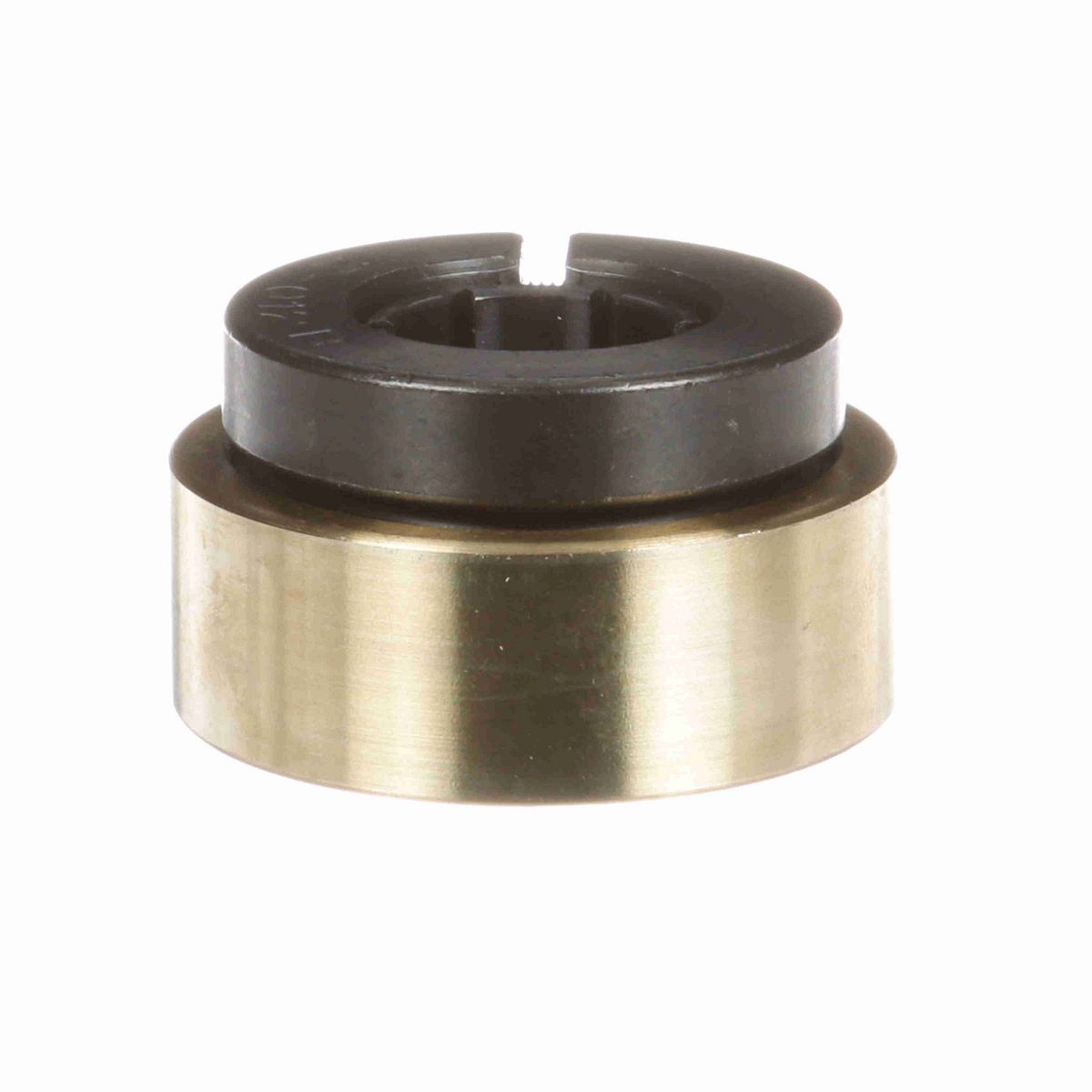

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	20 mm
Outer Race OD (in)	2.062 in
Outer Race OD (mm)	52.3748 mm
Outer Race Width (in)	0.766 in
Outer Race Width (mm)	19.4 mm
Inner Race Length (mm)	35.5 mm

Technical Specifications

Measure Units	Metric
Housing Type	Insert Only
Rolling Element	Ball Bearing
Radius	0.04
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	6450 rpm
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	2,611 lb
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	1,444 lb
Precision Rating	ABEC 1
Cage Material	PPS
Series	AR-T
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Type of Seal	Single Lip Contact Seal
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Locking Type	Concentric
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard

General Specifications

UPC	662461254219
Weight	0.90 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
