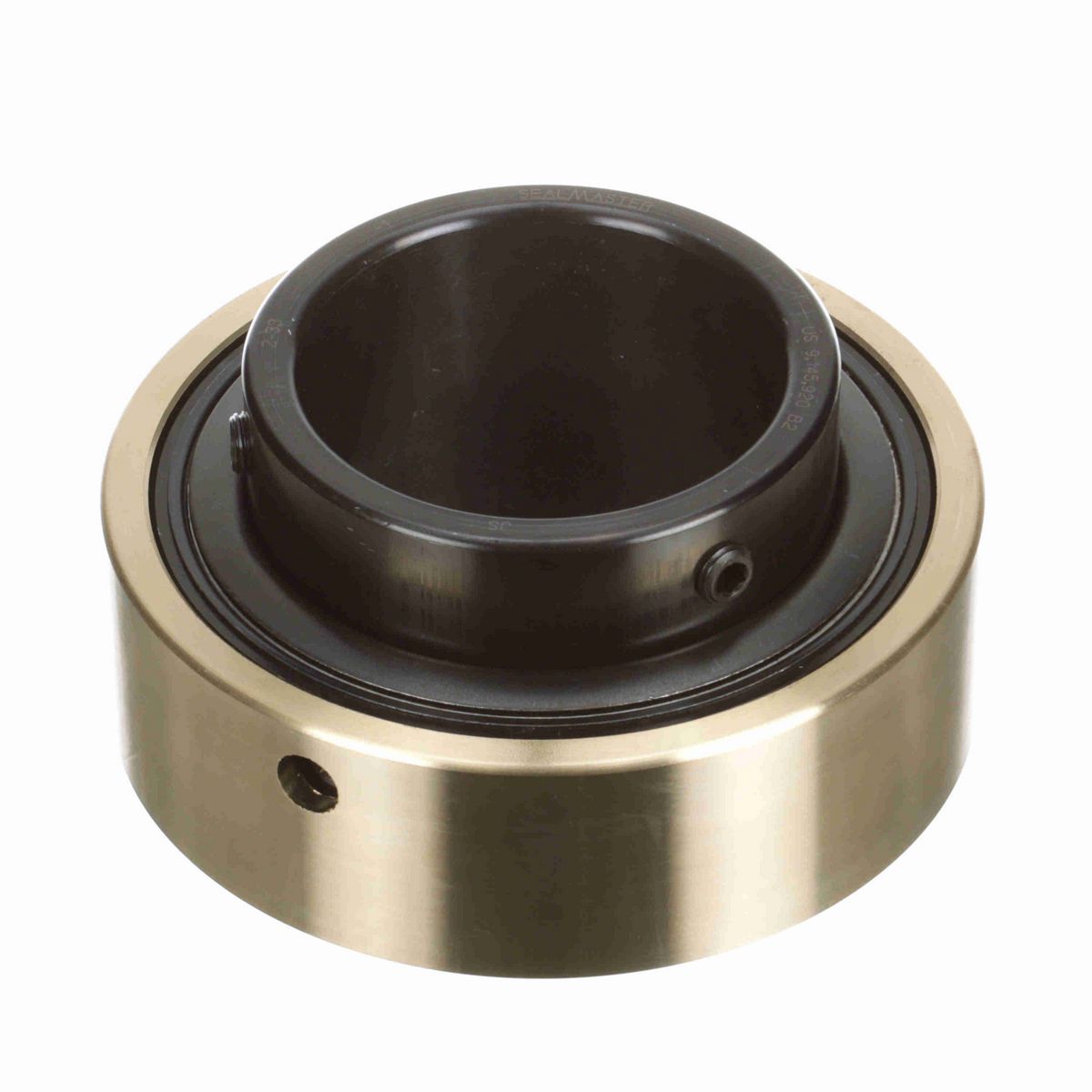

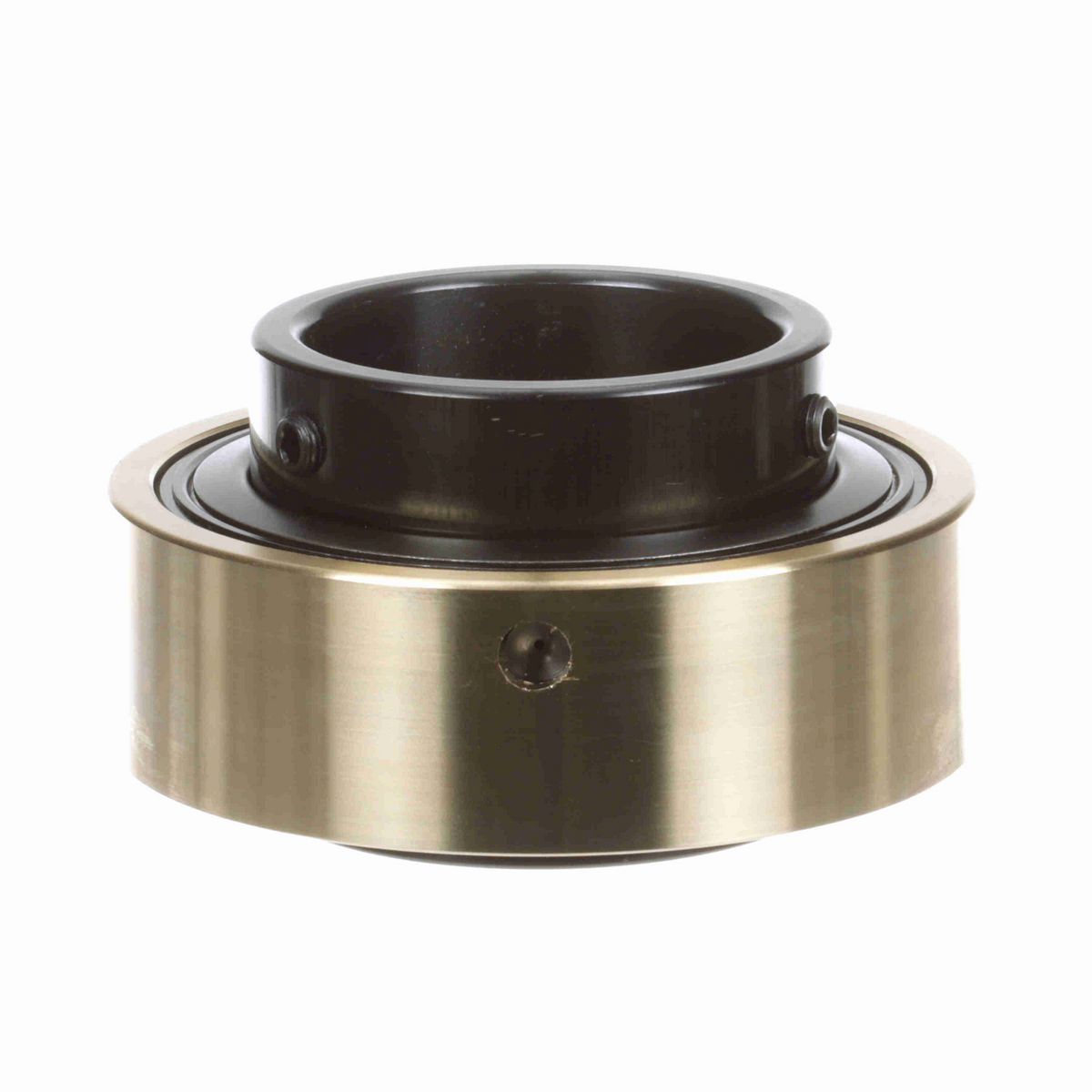

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.25 in
Bore Size (in)	3.1875 in
Inner Ring OD (in)	3.922 in
Outer Race Width (in)	1.828 in
Inner Race Length (in)	3.25 in
Outer Race OD (in)	5.875 in
Centerline to Front Face (in)	1.938 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Set Screw Thread	7/16-20
Housing Type	Insert Only
Radius	0.12
Rolling Element	Ball Bearing
Measure Units	Inch
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Speed (Max) (RPM)	2250 rpm
Radial Dynamic Load Capacity (lb)	17,412 lb
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	13,174 lb
Series	AR
Precision Rating	ABEC 1
Cage Material	Brass
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461009741
Weight	9.30 LB
Packaged Length	6.00 IN
Packaged Width	6.00 IN
Packaged Height	4.00 IN
HTC	8482.10.5056
Country of Origin	United States of America
