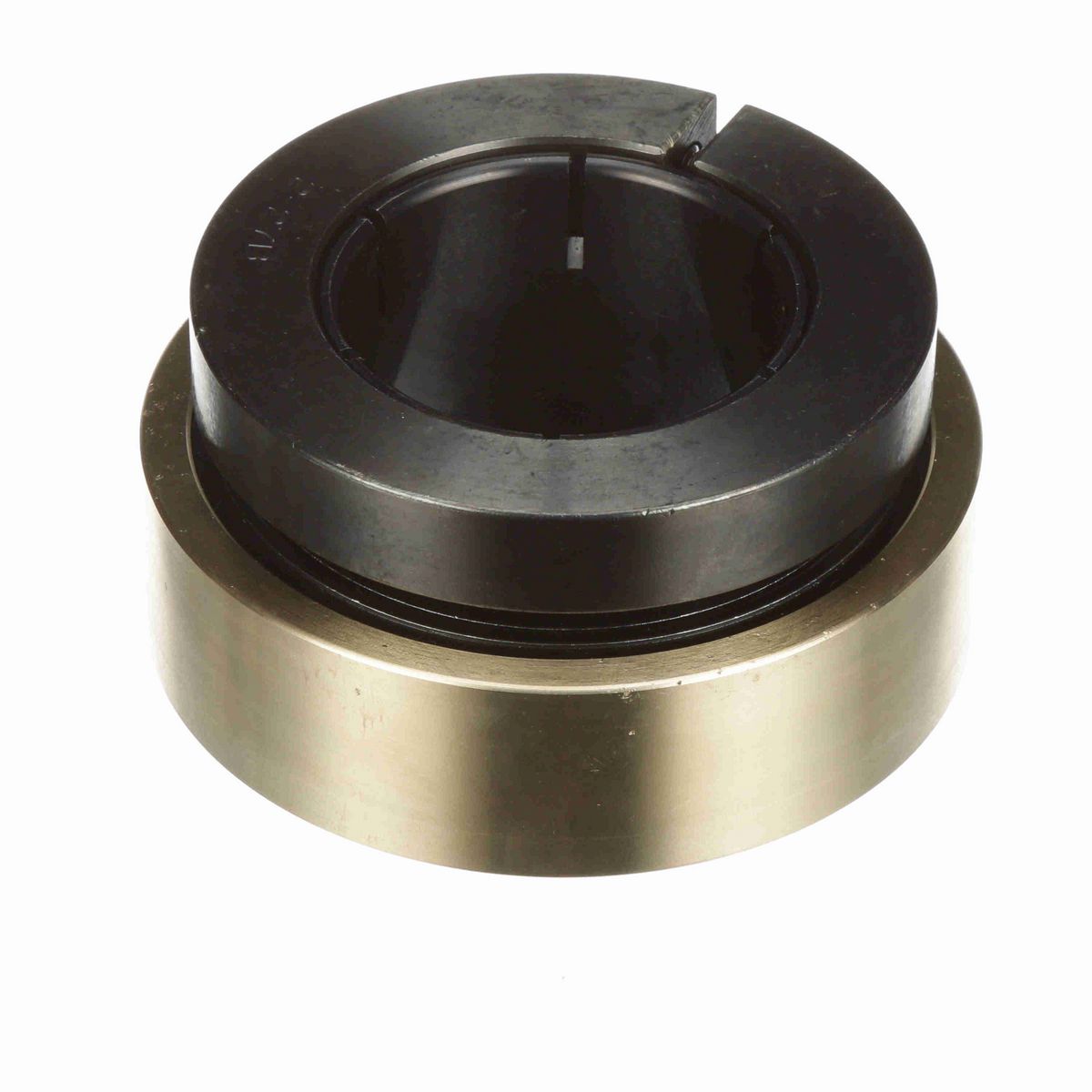

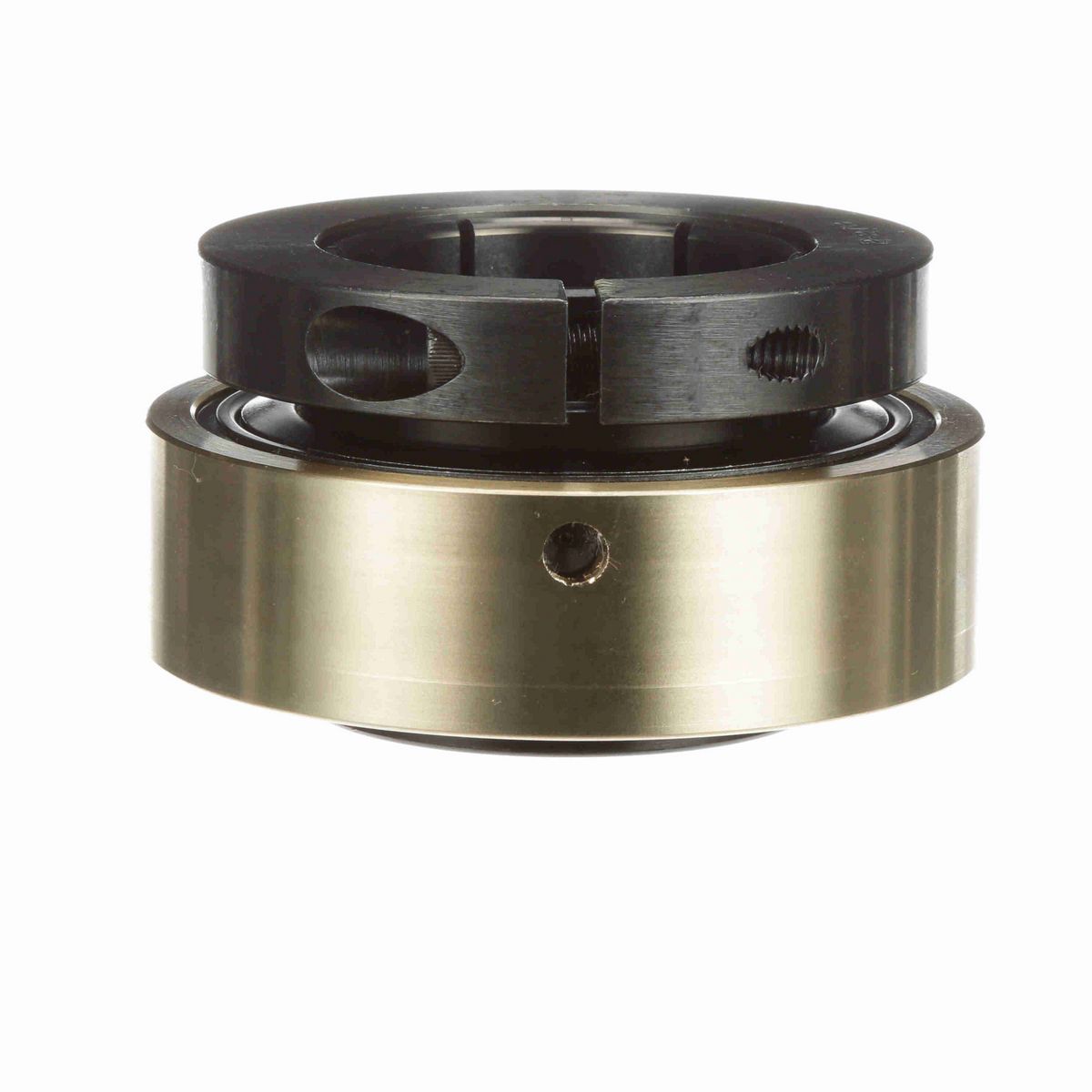

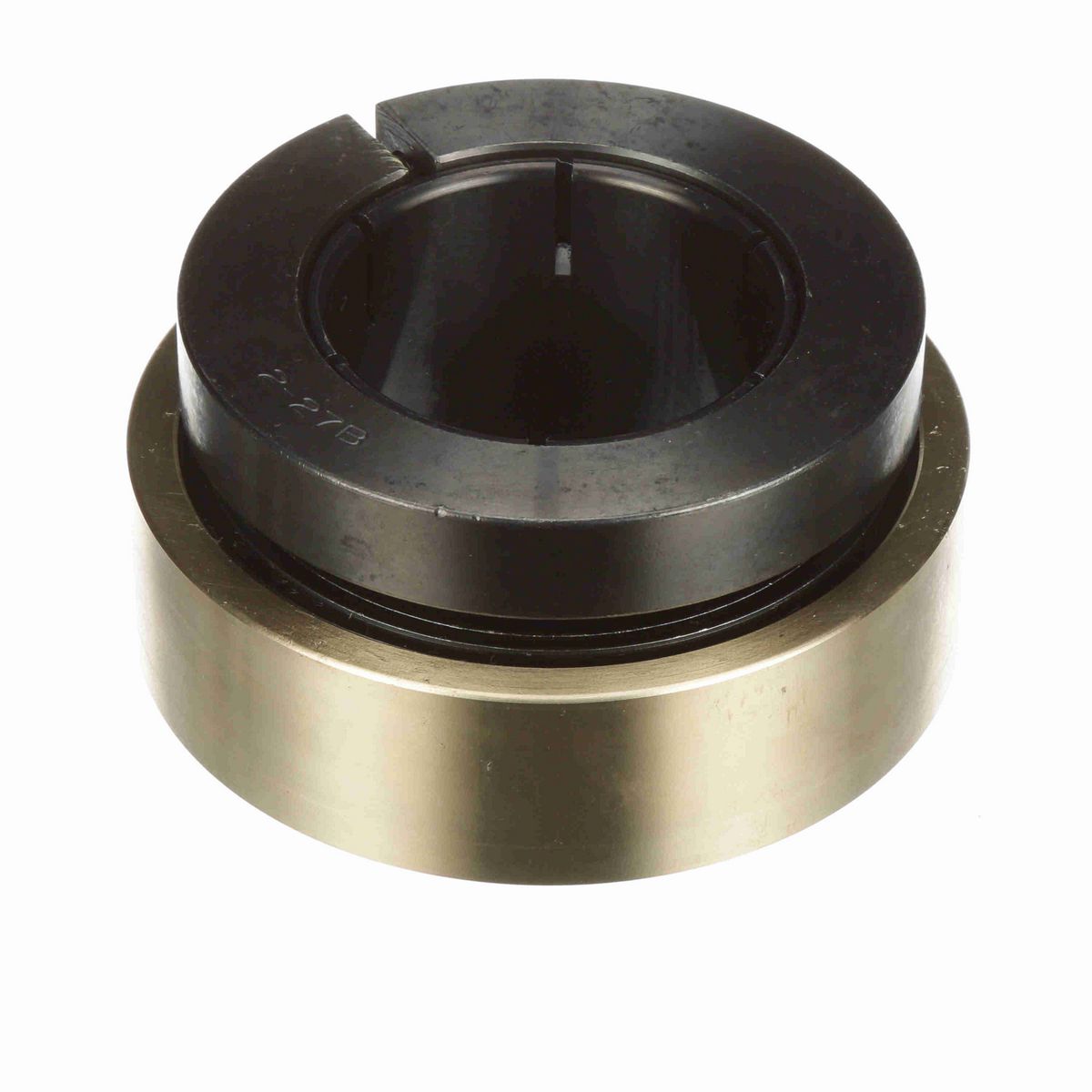

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.625 in
Bore Size (in)	2.4375 in
Inner Race Length (in)	2.625 in
Inner Ring OD (in)	4.125 in
Outer Race Width (in)	1.328 in
Outer Race OD (in)	4.719 in
Collar OD (in)	4.125 in
Centerline to Front Face (in)	1.625 in

Technical Specifications

Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert Only
Radius	0.08
Torx Cap Screw	5/16-18 X 1
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Speed (Max) (RPM)	4100 rpm
Radial Dynamic Load Capacity (lb)	11,789 lb
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	8,150 lb
Series	AR-T
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Locking Type	Concentric
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461031483
Weight	5.85 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	Mexico
