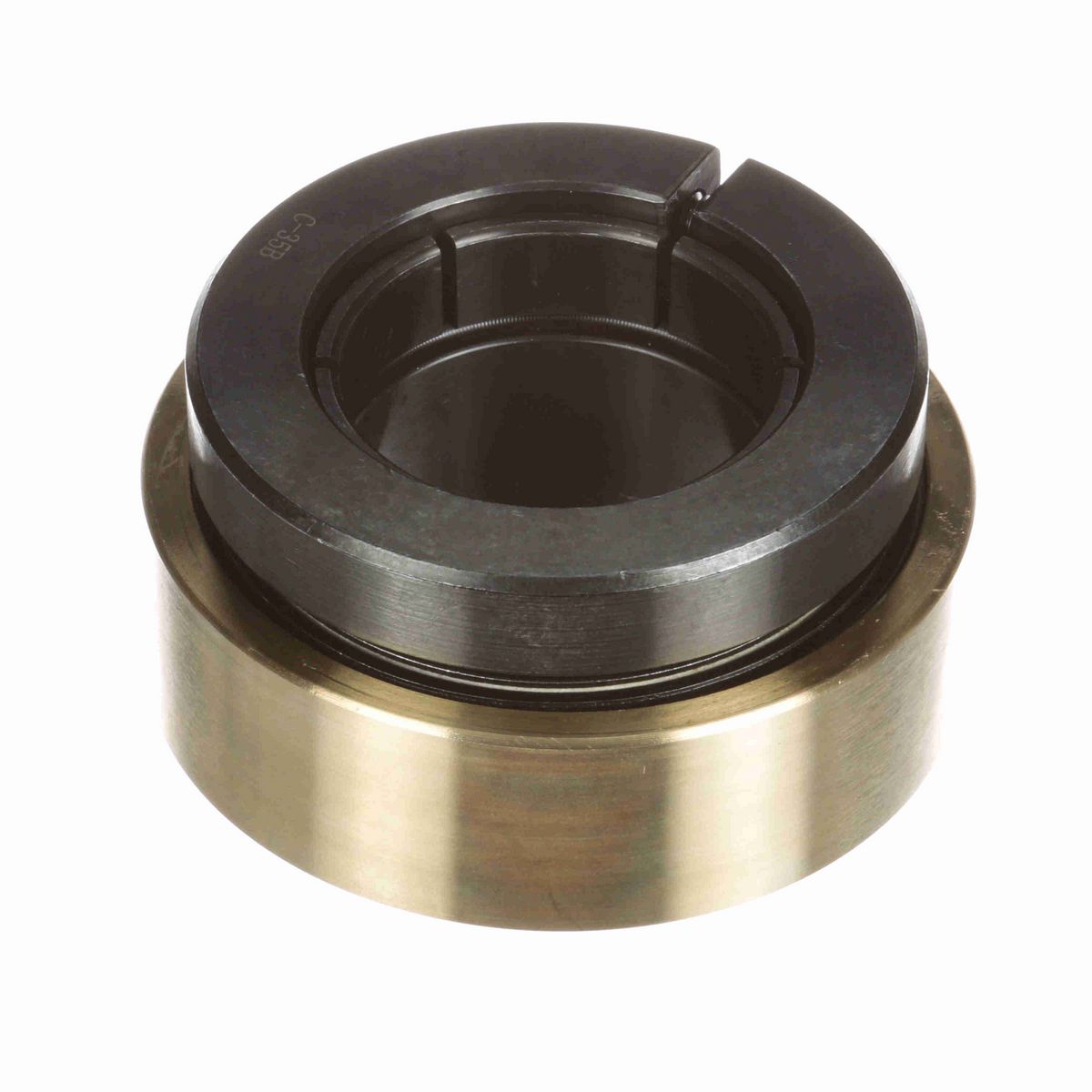

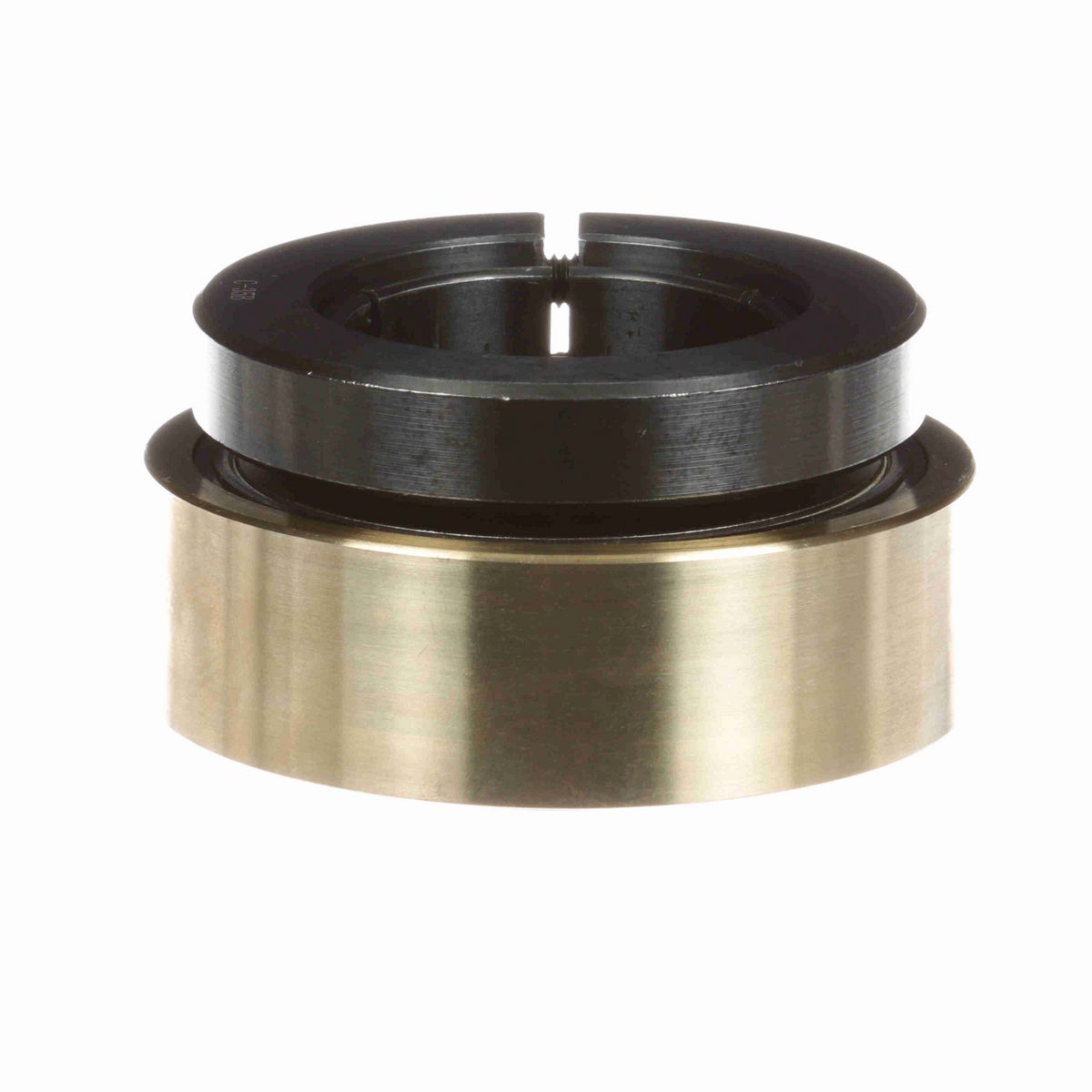

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.25 in
Bore Size (in)	2.1875 in
Inner Ring OD (in)	3.625 in
Outer Race Width (in)	1.266 in
Outer Race OD (in)	4.25 in
Centerline to Front Face (in)	1.375 in
Inner Race Length (in)	2.25 in
Collar OD (in)	3.625 in

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.08
Measure Units	Inch
Torx Cap Screw	1/4-20 X 1
Rolling Element	Ball Bearing
Housing Type	Insert Only
Speed (Max) (RPM)	4500 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	9,752 lb
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	6,601 lb
Cage Material	PPS
Precision Rating	ABEC 1
Series	AR-T
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Fixed vs. Expansion	No
Locking Type	Concentric
Retainer Type	Land Riding Retainer
Lubrication Type	Lithium Complex NLGI 2 Grease
Type of Seal	Felt Labyrinth Seal
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes

General Specifications

UPC	662461031452
Weight	4.15 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
