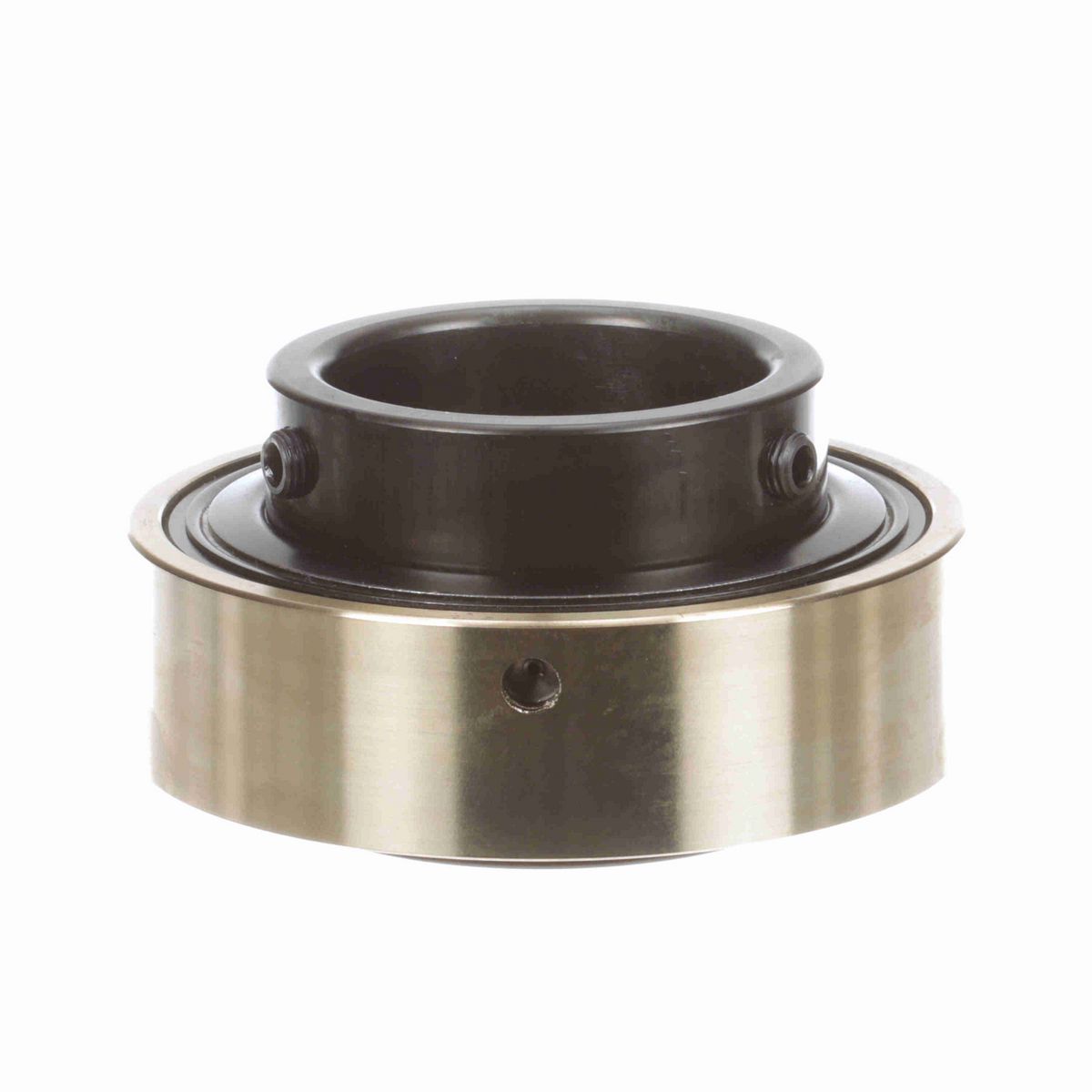

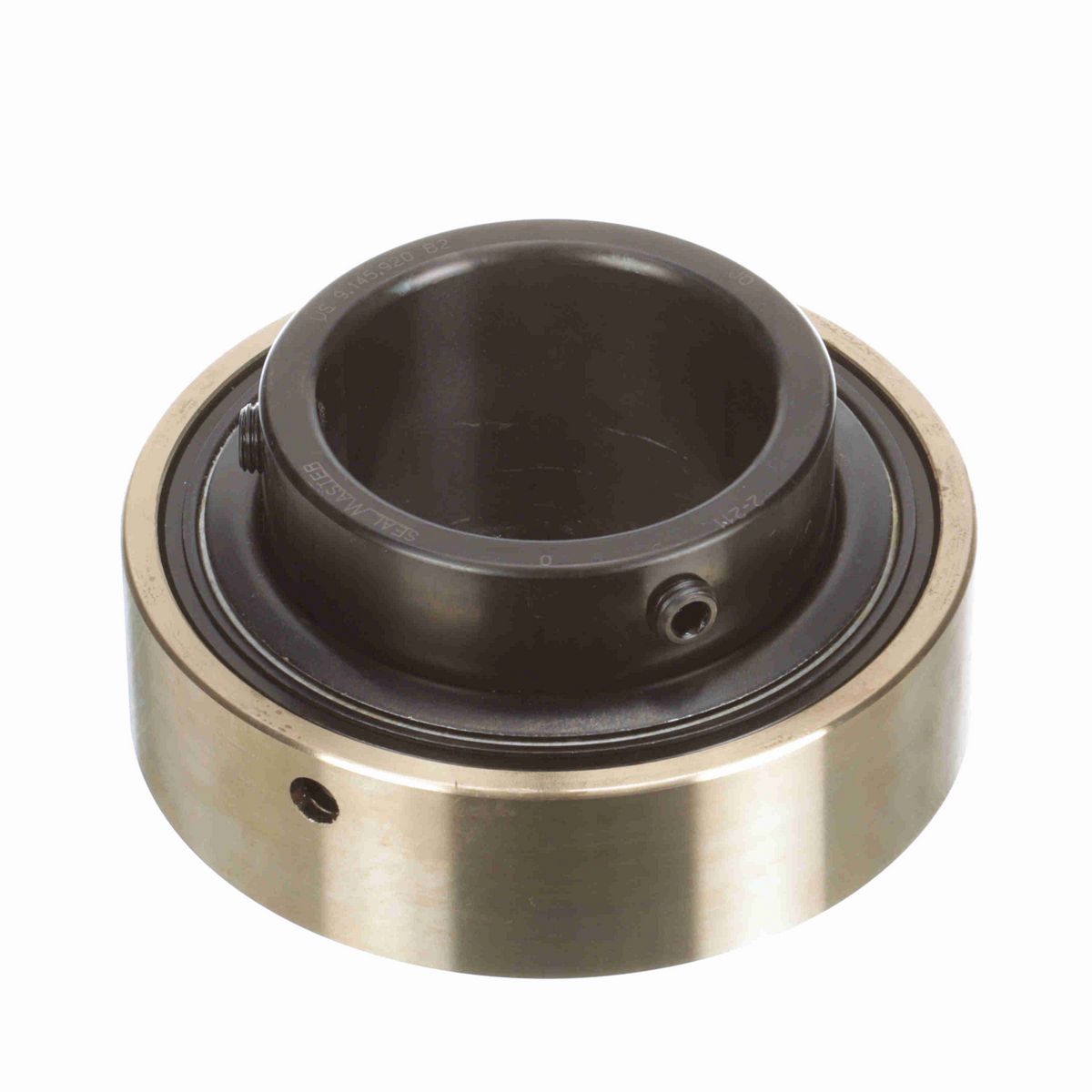

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.75 in
Bore Size (in)	2.6875 in
Inner Ring OD (in)	3.438 in
Inner Race Length (in)	2.75 in
Outer Race OD (in)	5.17 in
Centerline to Front Face (in)	1.688 in
Outer Race Width (in)	1.453 in

Technical Specifications

Set Screw Thread	7/16-20
Rolling Element	Ball Bearing
Housing Type	Insert Only
Measure Units	Inch
Radius	0.08
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	13,971 lb
Speed (Max) (RPM)	2500 rpm
Misalignment	±2.0° Misalignment - Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Radial Static Load Capacity (lb)	10,063 lb
Series	AR
Precision Rating	ABEC 1
Cage Material	Brass
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Duty/Series	Standard
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662461009710
Weight	9.30 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
