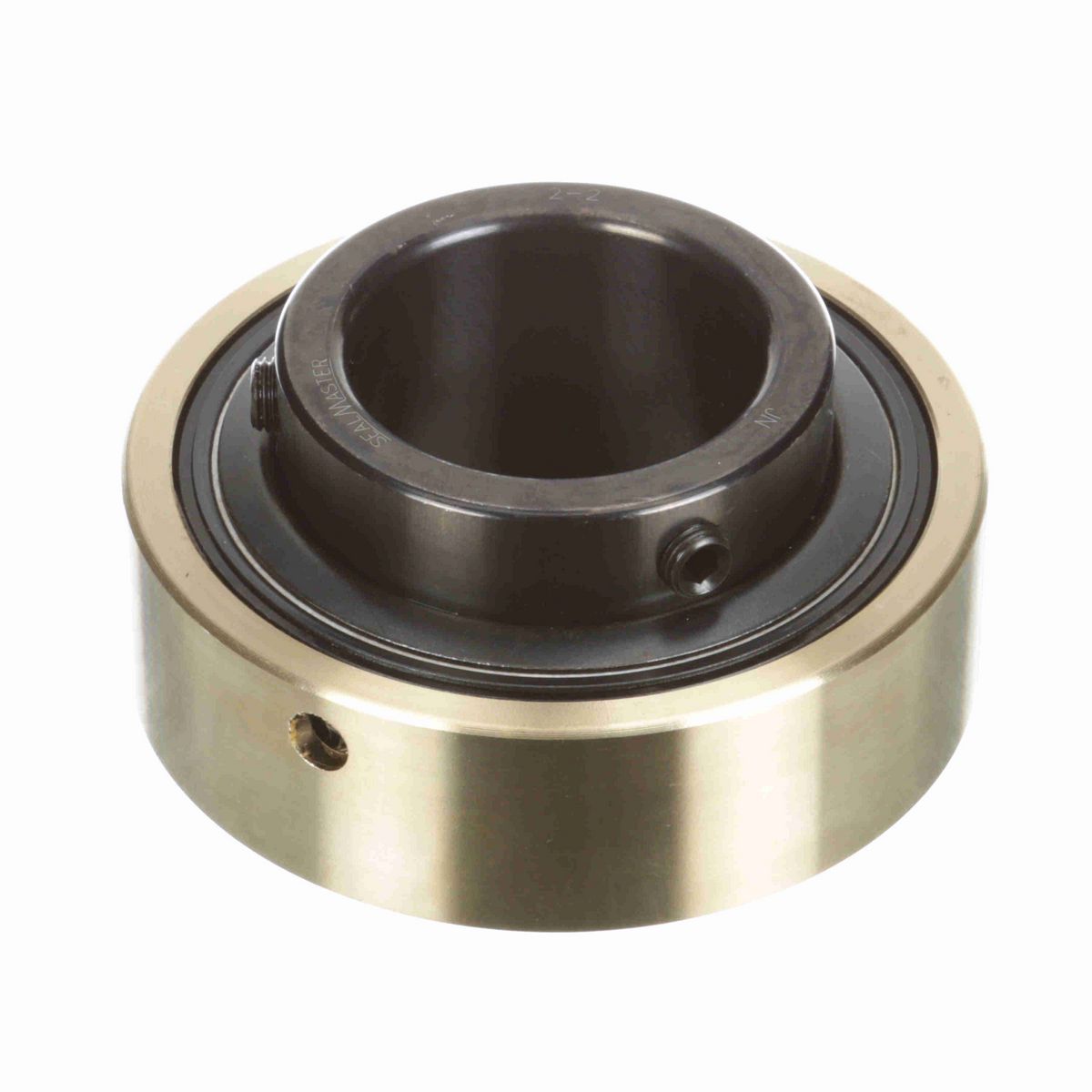

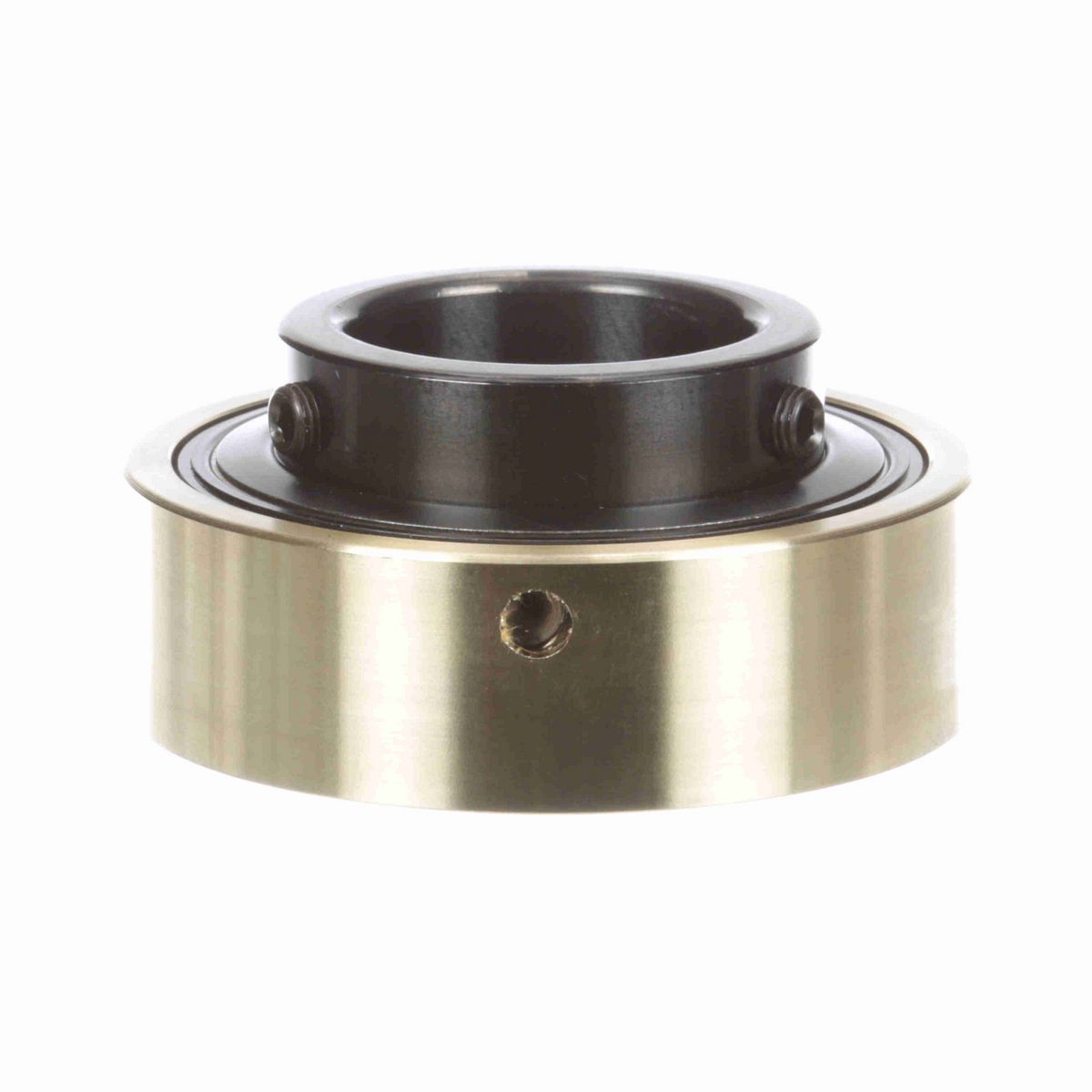

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.188 in
Bore Size (in)	2 in
Centerline to Front Face (in)	1.313 in
Inner Race Length (in)	2.188 in
Inner Ring OD (in)	2.719 in
Outer Race OD (in)	4.25 in
Outer Race Width (in)	1.266 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Measure Units	Inch
Set Screw Thread	3/8-24
Radius	0.08
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Speed (Max) (RPM)	3250 rpm
Radial Dynamic Load Capacity (lb)	9,752 lb
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	6,601 lb
Cage Material	PPS
Series	AR
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	No
Duty/Series	Standard

General Specifications

UPC	662461009642
Weight	3.85 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
