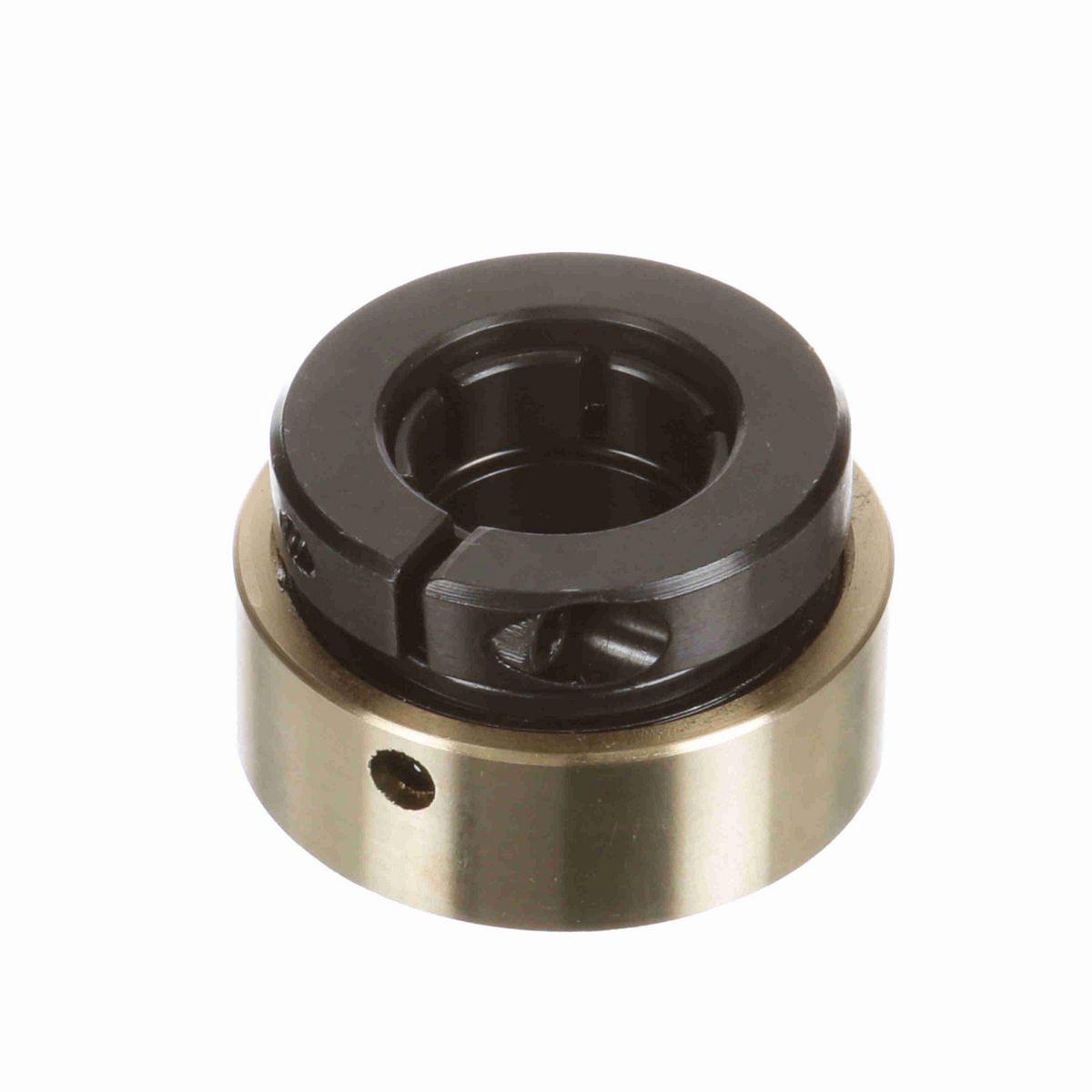

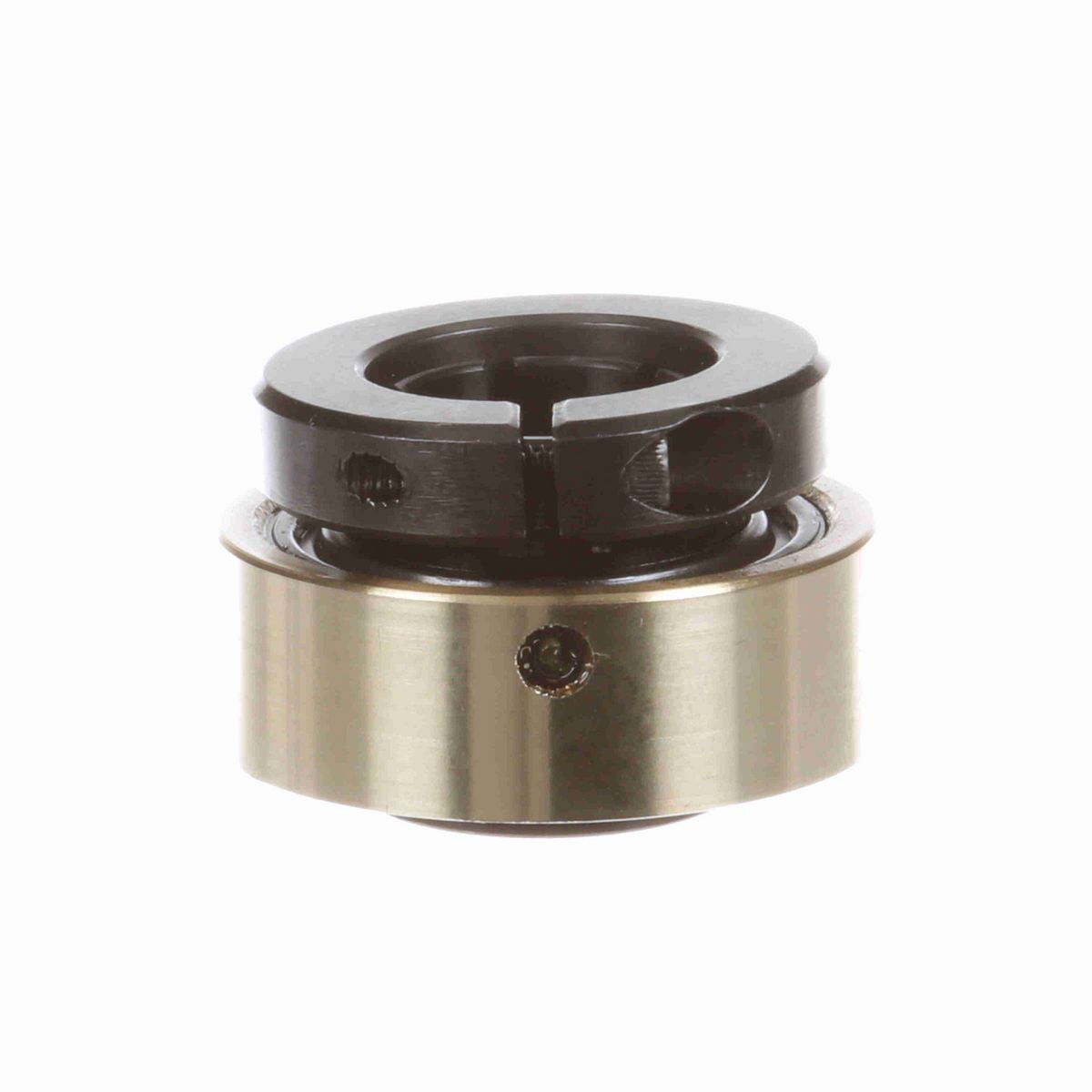

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.438 in
Bore Size (in)	1 in
Inner Ring OD (in)	1.938 in
Centerline to Front Face (in)	0.875 in
Collar OD (in)	1.938 in
Outer Race Width (in)	0.766 in
Inner Race Length (in)	1.438 in
Outer Race OD (in)	2.272 in

Technical Specifications

Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Torx Cap Screw	8-32 X 5/8
Radius	0.04
Radial Dynamic Load Capacity (lb)	2,801 lb
Speed (Max) (RPM)	6350 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
End Cap	No
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	1,651 lb
Series	AR-T
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Locking Type	Concentric
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Type of Seal	Single Lip Contact Seal
Duty/Series	Standard

General Specifications

UPC	662461086100
Weight	0.85 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
