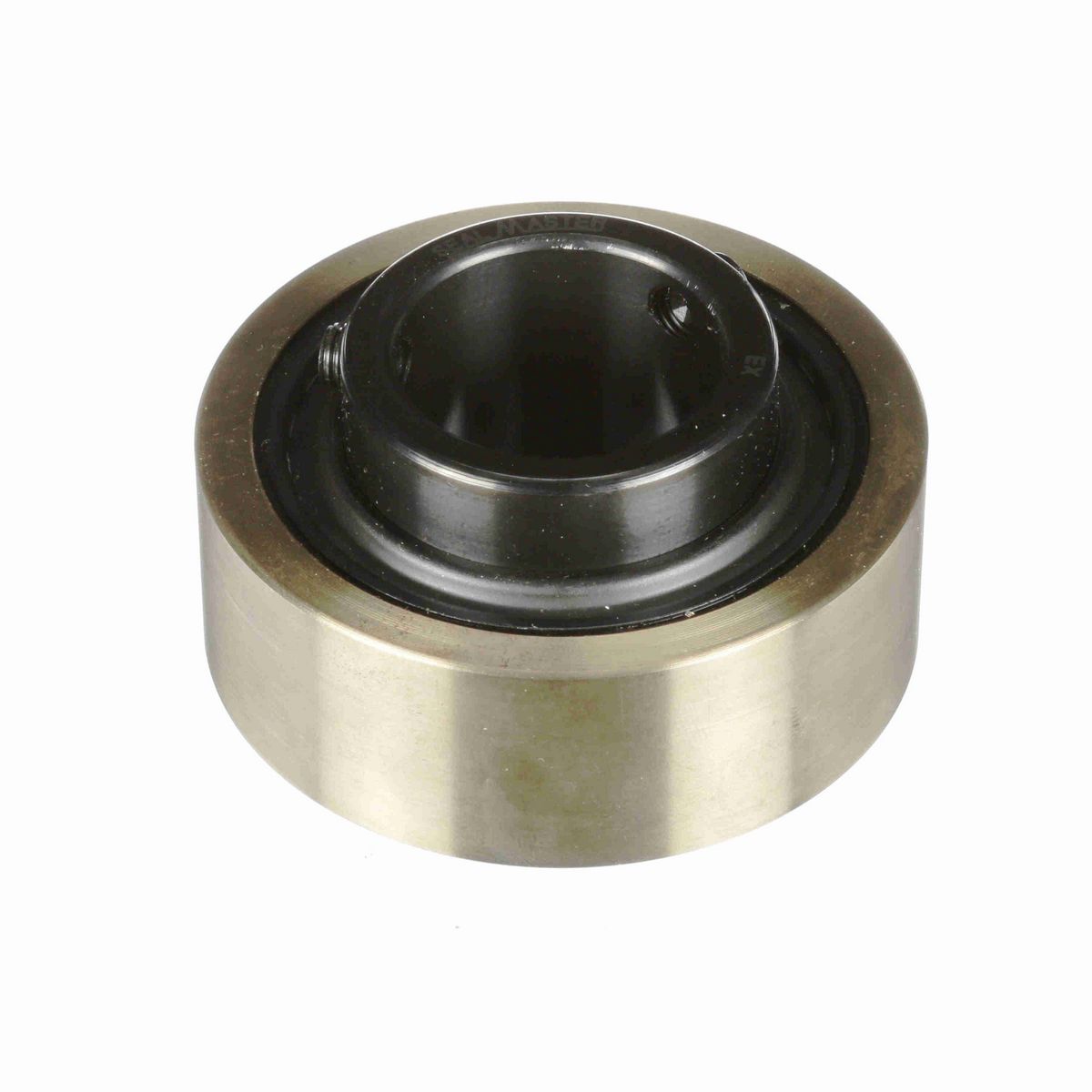

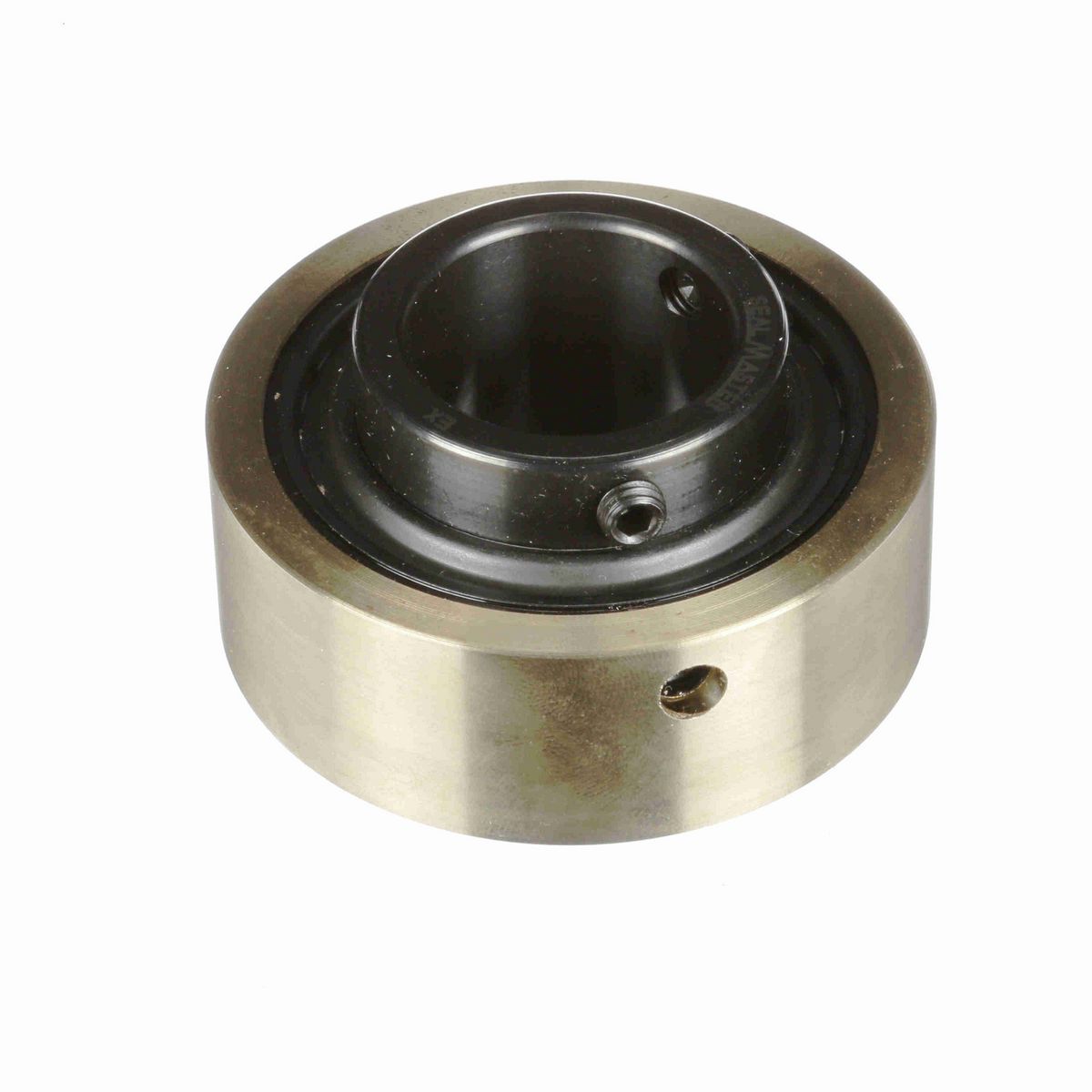

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.5625 in
Outer Race OD (in)	3.375 in
Centerline to Front Face (in)	1.188 in
Inner Ring OD (in)	2.063 in
Outer Race Width (in)	1.172 in
Inner Race Length (in)	1.938 in

Technical Specifications

Housing Type	Insert Only
Rolling Element	Ball Bearing
Set Screw Thread	5/16-24
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.062
Measure Units	Inch
Bore Shape	Straight
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	7,340 lb
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	4150 rpm
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	4,467 lb
Series	AR
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Series	Standard
Type of Seal	Single Lip Contact Seal
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461025468
Weight	2.15 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
