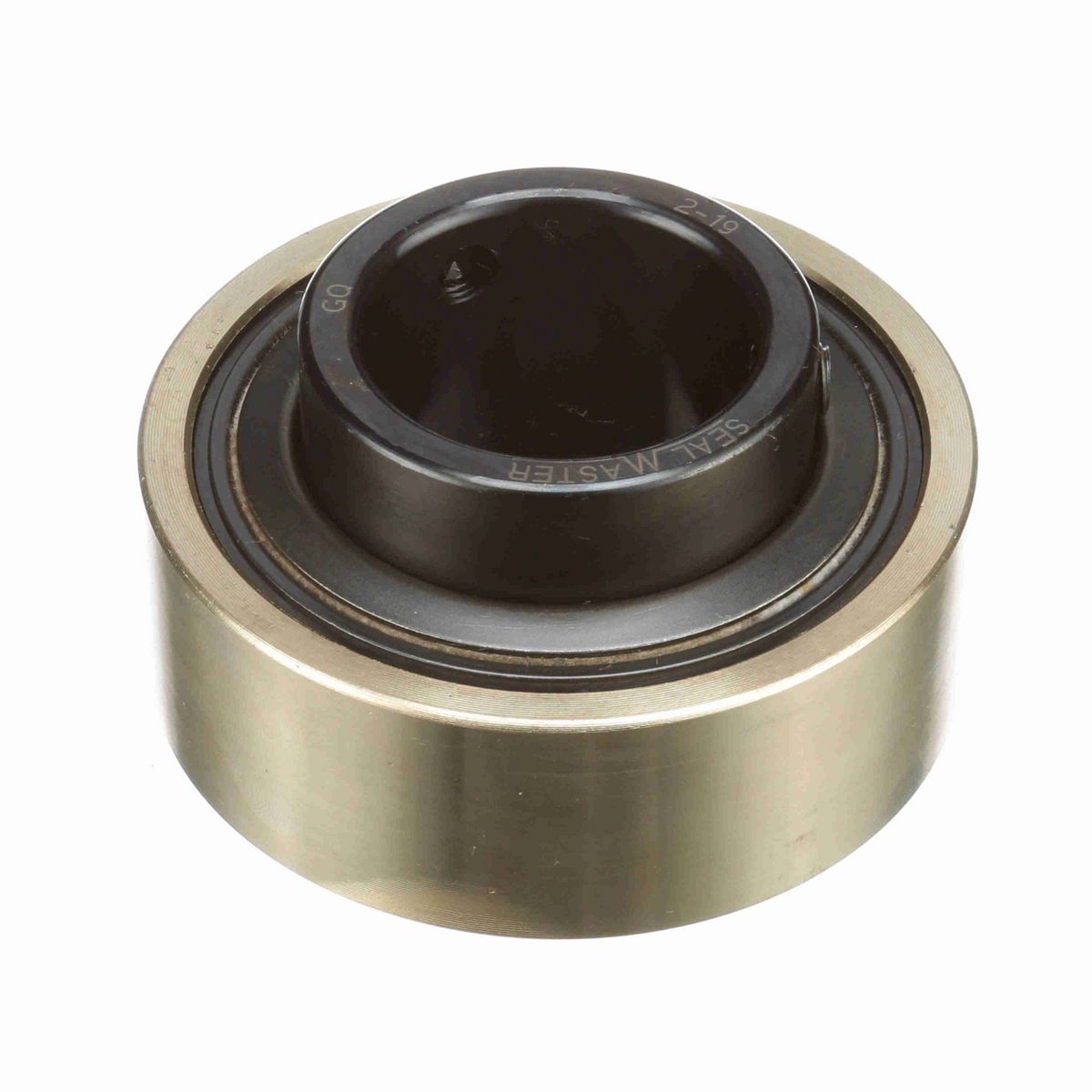

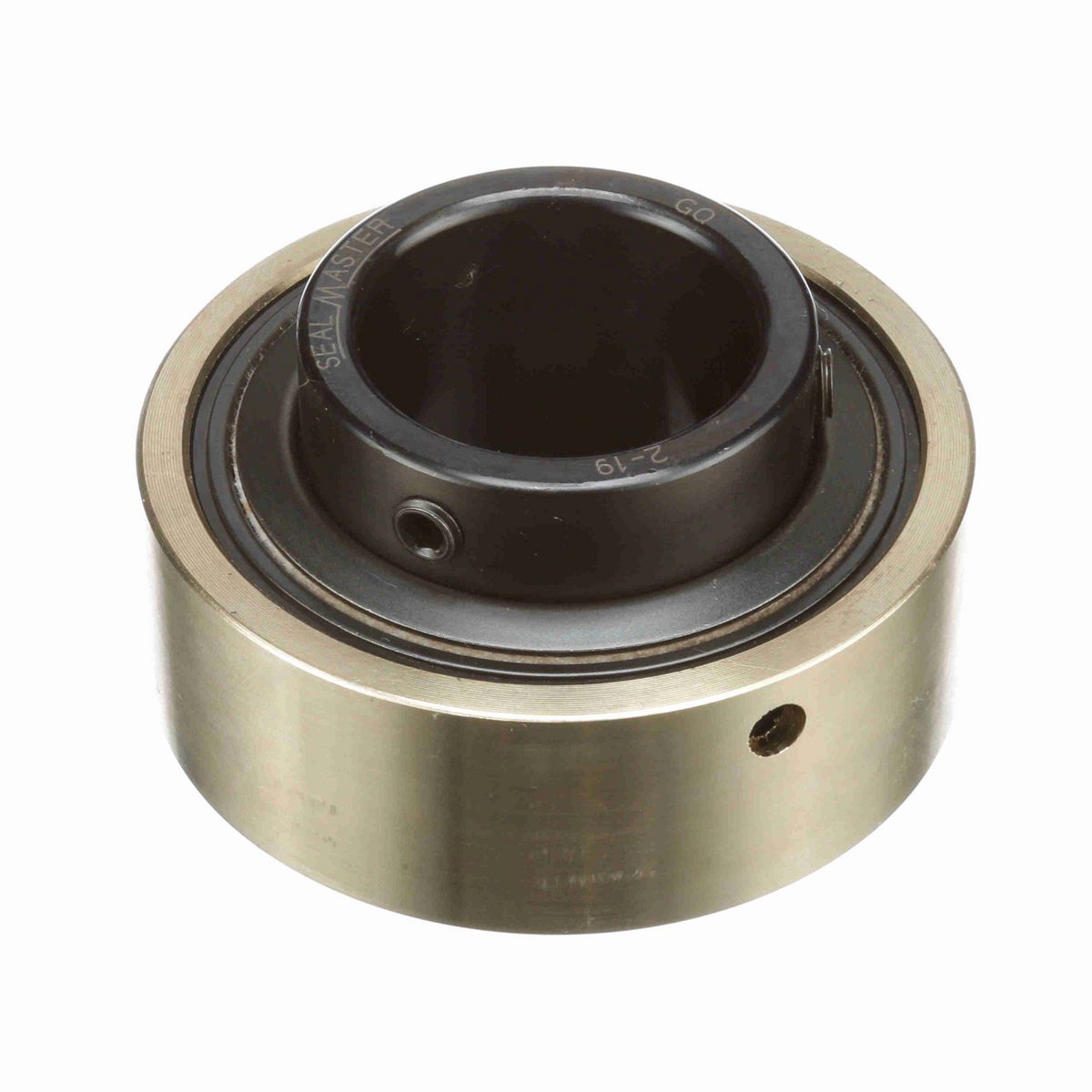

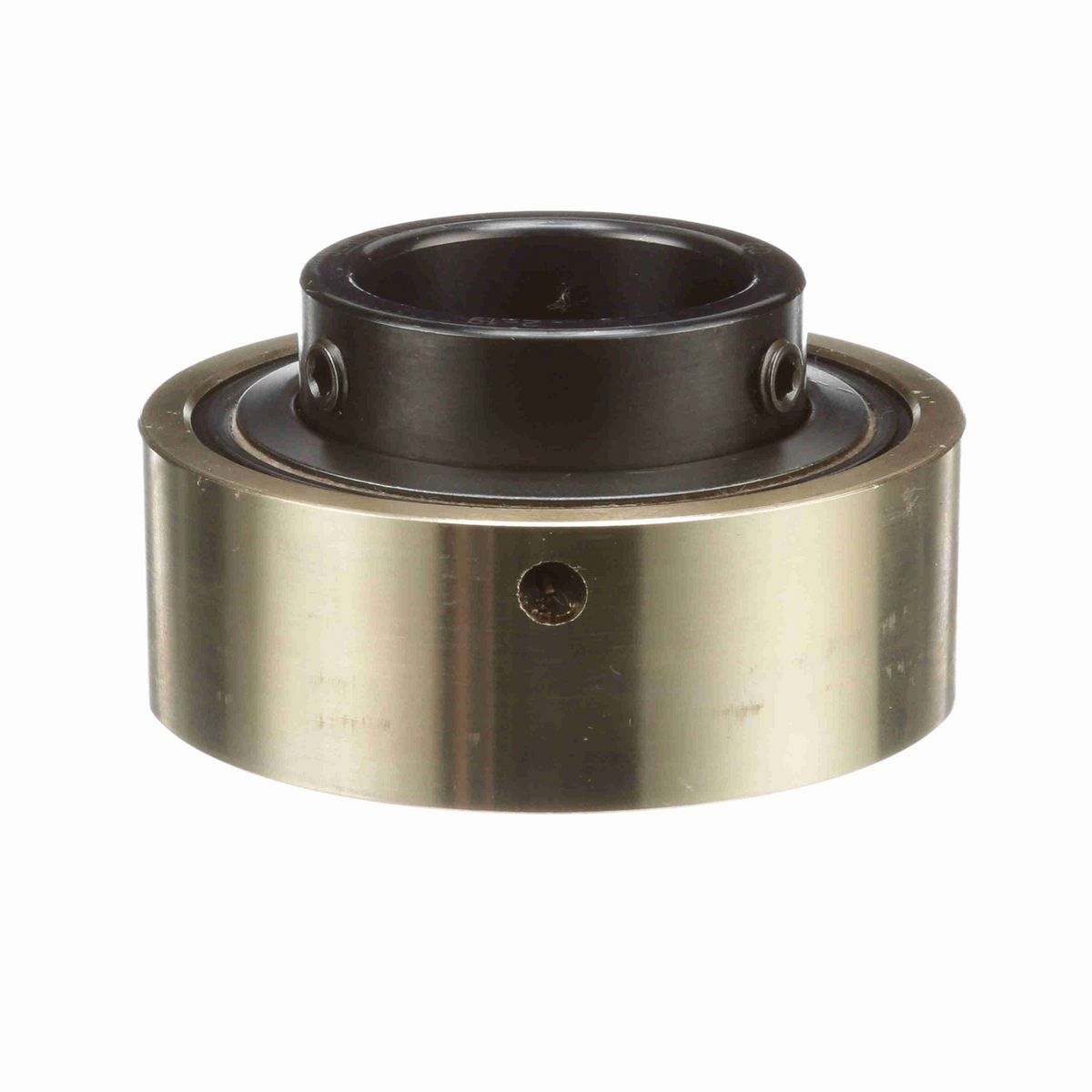

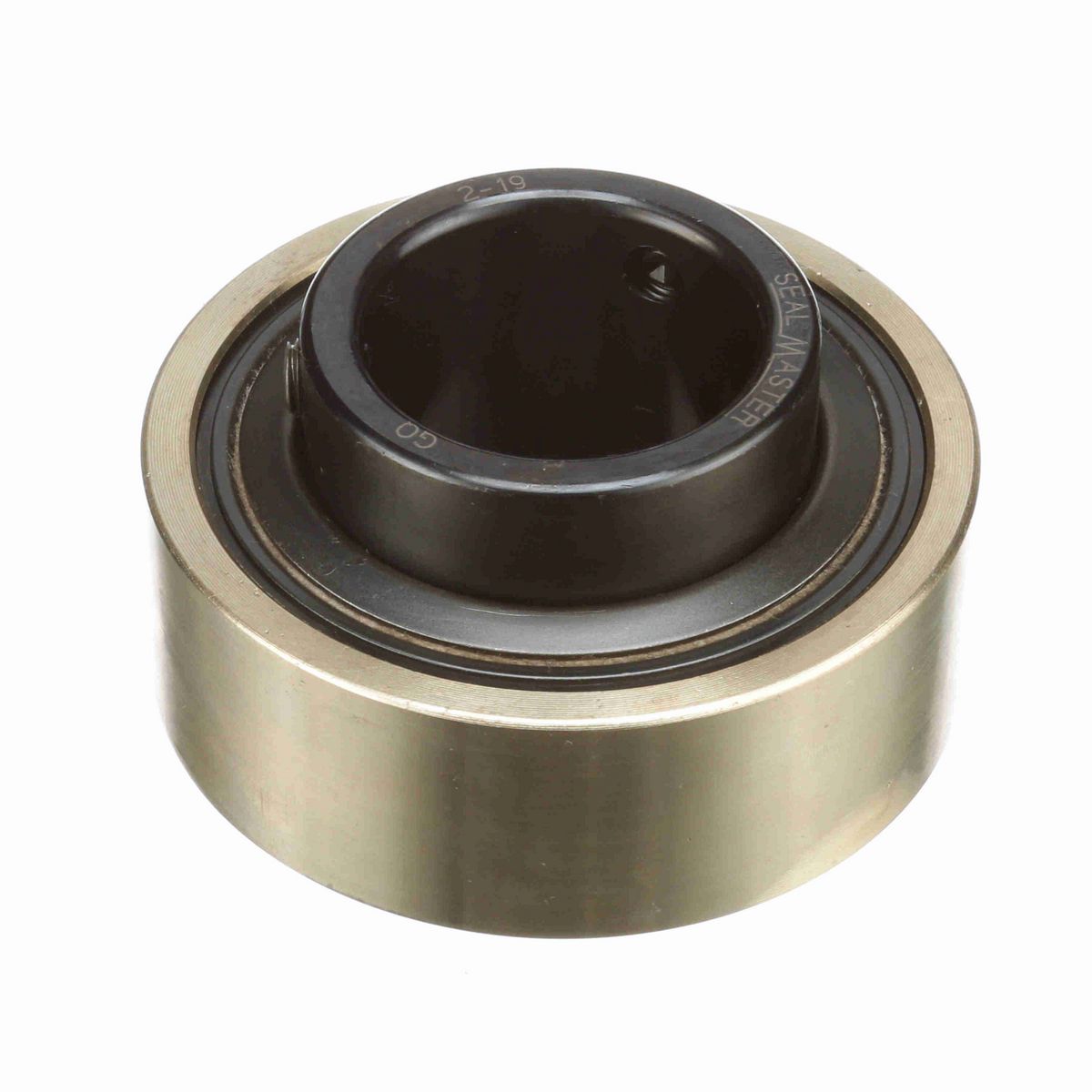

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.5625 in
Outer Race OD (in)	3.375 in
Inner Race Length (in)	1.938 in
Centerline to Front Face (in)	1.188 in
Outer Race Width (in)	1.172 in
Inner Ring OD (in)	2.063 in

Technical Specifications

Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Rolling Element	Ball Bearing
Bore Shape	Straight
Set Screw Thread	5/16-24
Radius	0.062
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,340 lb
Internal Clearance	Standard
Speed (Max) (RPM)	4150 rpm
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	4,467 lb
Series	AR
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal
Locking Type	Set Screw
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461009574
Weight	2.15 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
