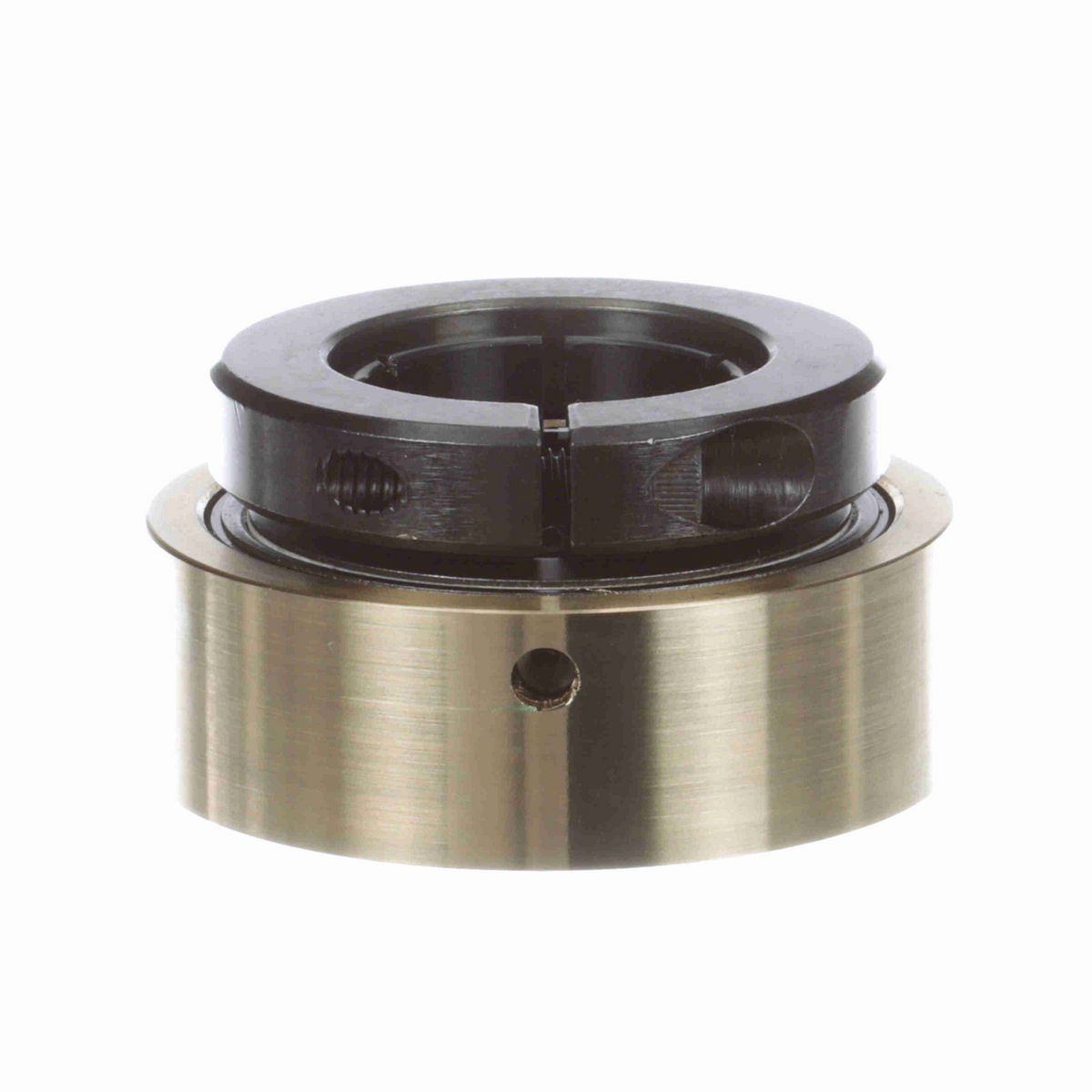

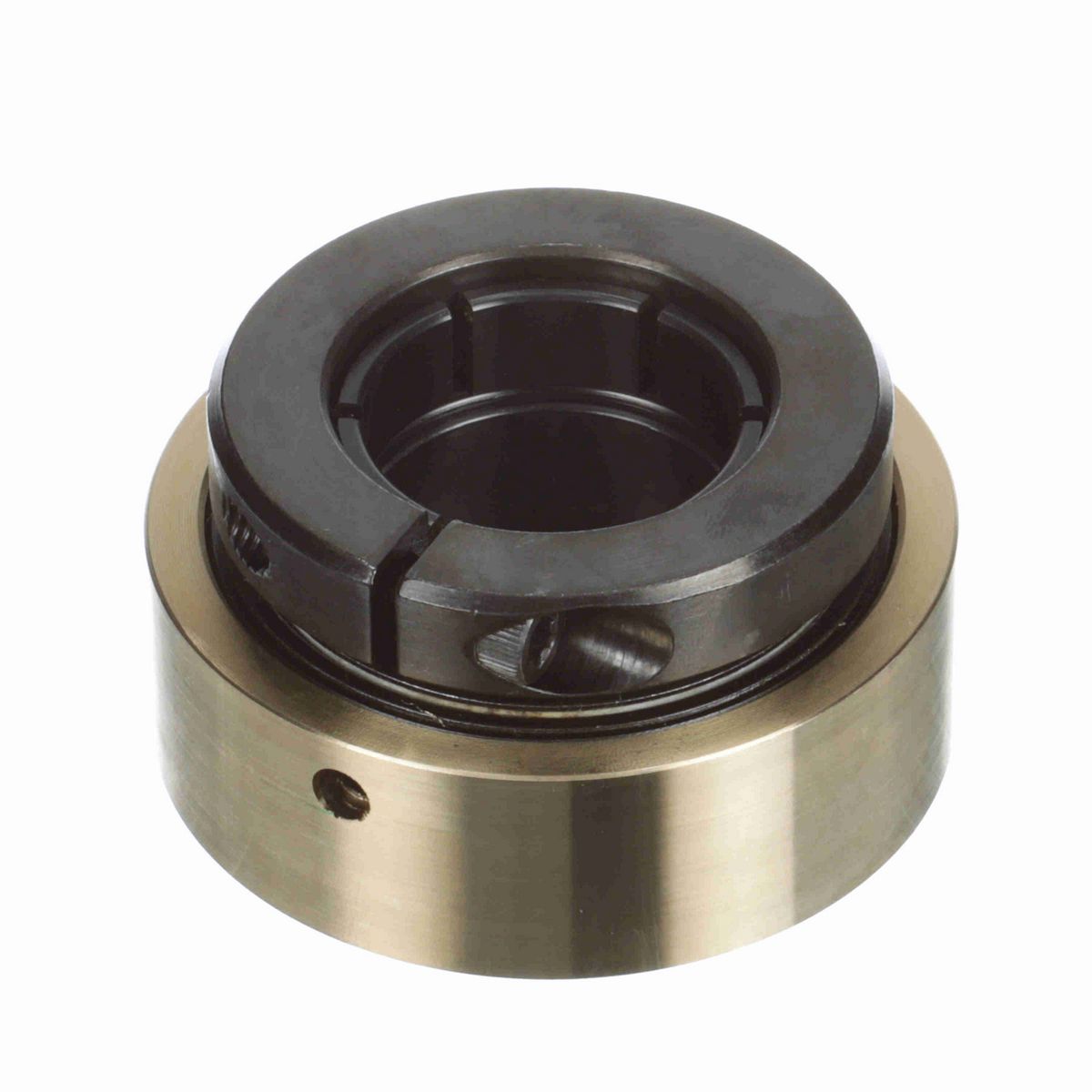

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.4375 in
Centerline to Front Face (in)	1.0625 in
Collar OD (in)	2.5625 in
Outer Race Width (in)	1 in
Inner Race Length (in)	1.75 in
Inner Ring OD (in)	2.5625 in
Outer Race OD (in)	3.14 in

Technical Specifications

Housing Type	Insert Only
Radius	0.04
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Torx Cap Screw	10-24 X 3/4
Bore Shape	Straight
Measure Units	Inch
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	5,782 lb
Speed (Max) (RPM)	6500 rpm
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	3,493 lb
Cage Material	PPS
Series	AR-T
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461031384
Weight	2.40 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
