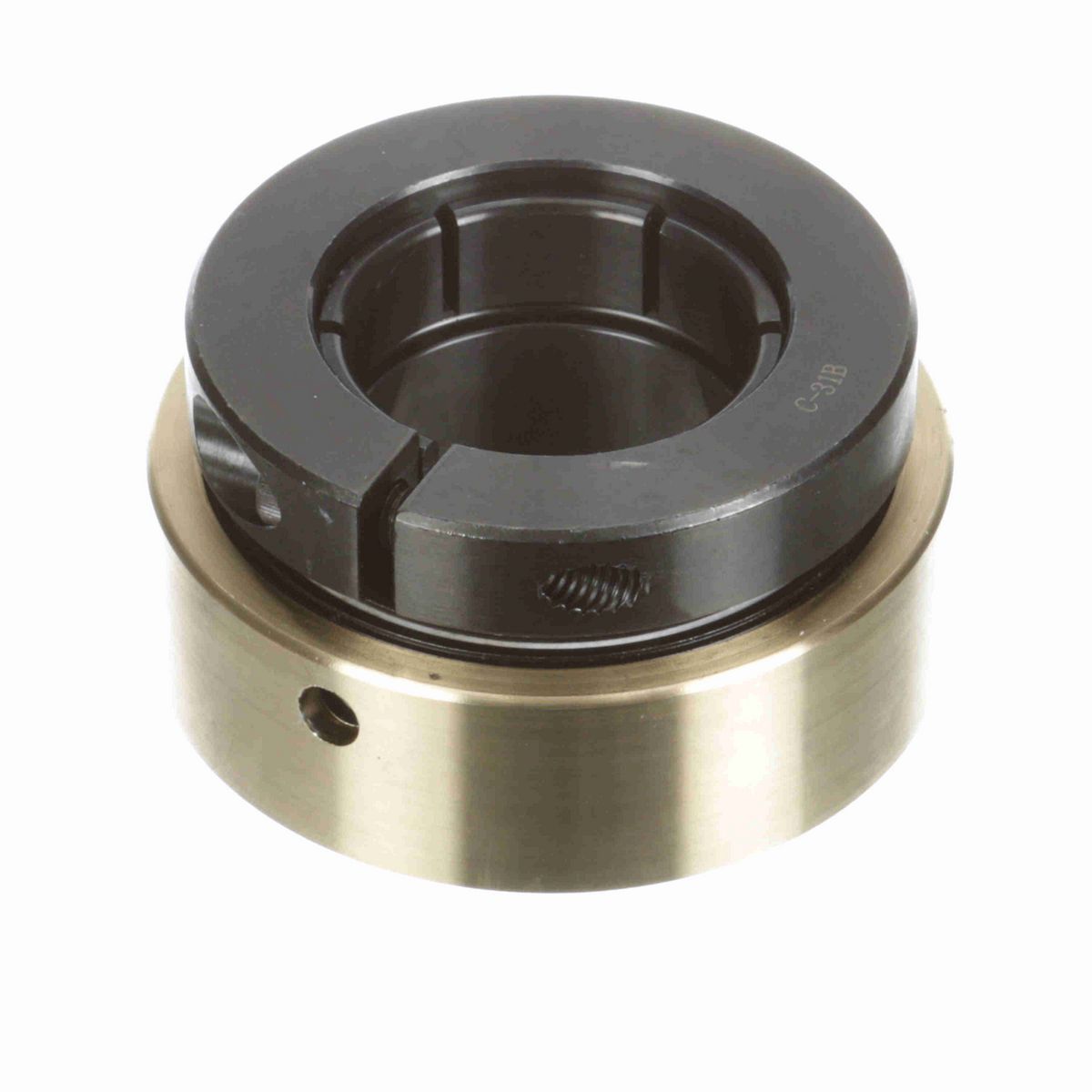

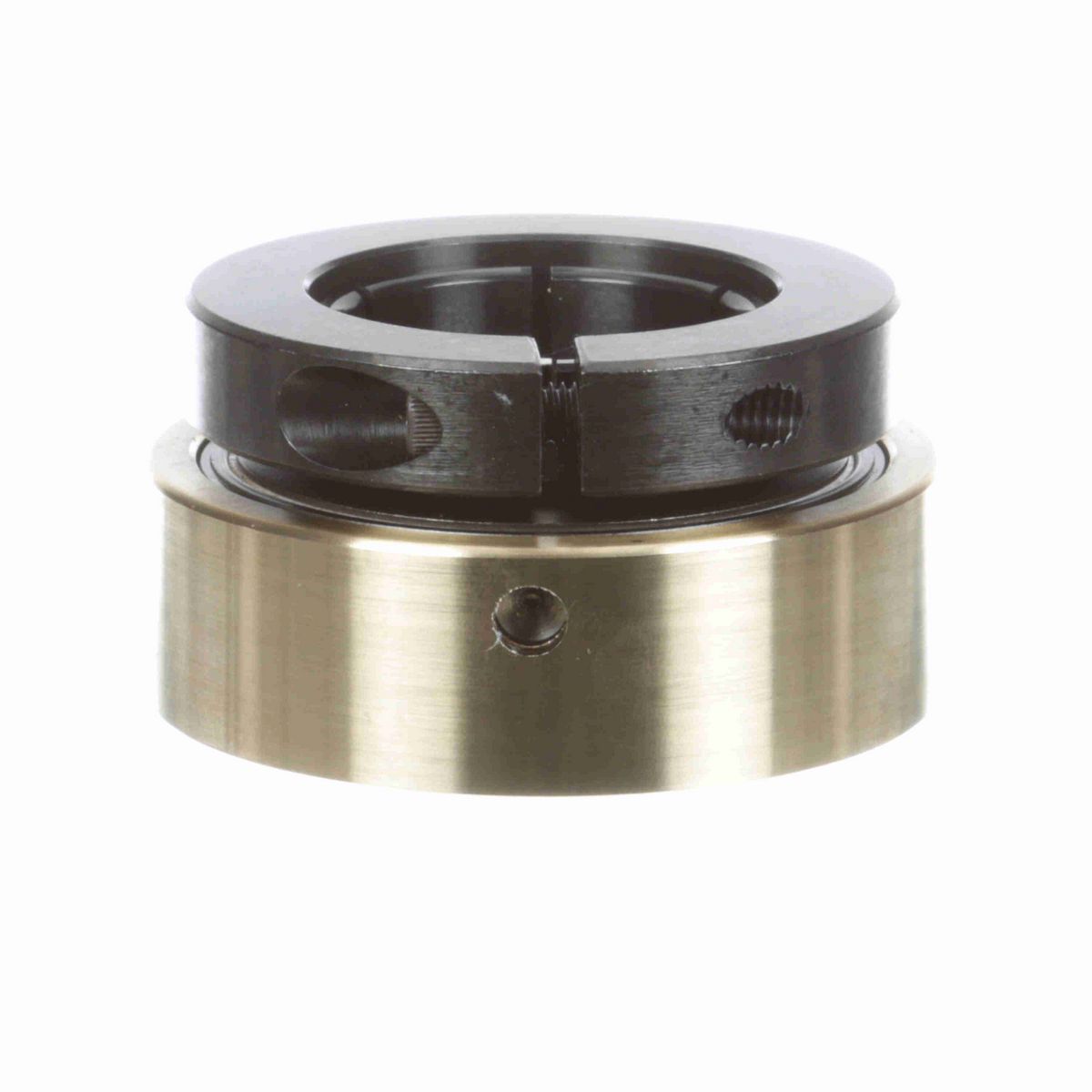

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.094 in
Bore Size (in)	1.9375 in
Inner Race Length (in)	2.094 in
Inner Ring OD (in)	3.375 in
Outer Race OD (in)	3.875 in
Collar OD (in)	3.375 in
Outer Race Width (in)	1.203 in
Centerline to Front Face (in)	1.344 in

Technical Specifications

Rolling Element	Ball Bearing
Torx Cap Screw	1/4-20 X 1
Radius	0.062
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Housing Type	Insert Only
Measure Units	Inch
Speed (Max) (RPM)	5000 rpm
Radial Dynamic Load Capacity (lb)	7,889 lb
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	5,216 lb
Precision Rating	ABEC 1
Series	AR-T
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662461031438
Weight	2.95 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
