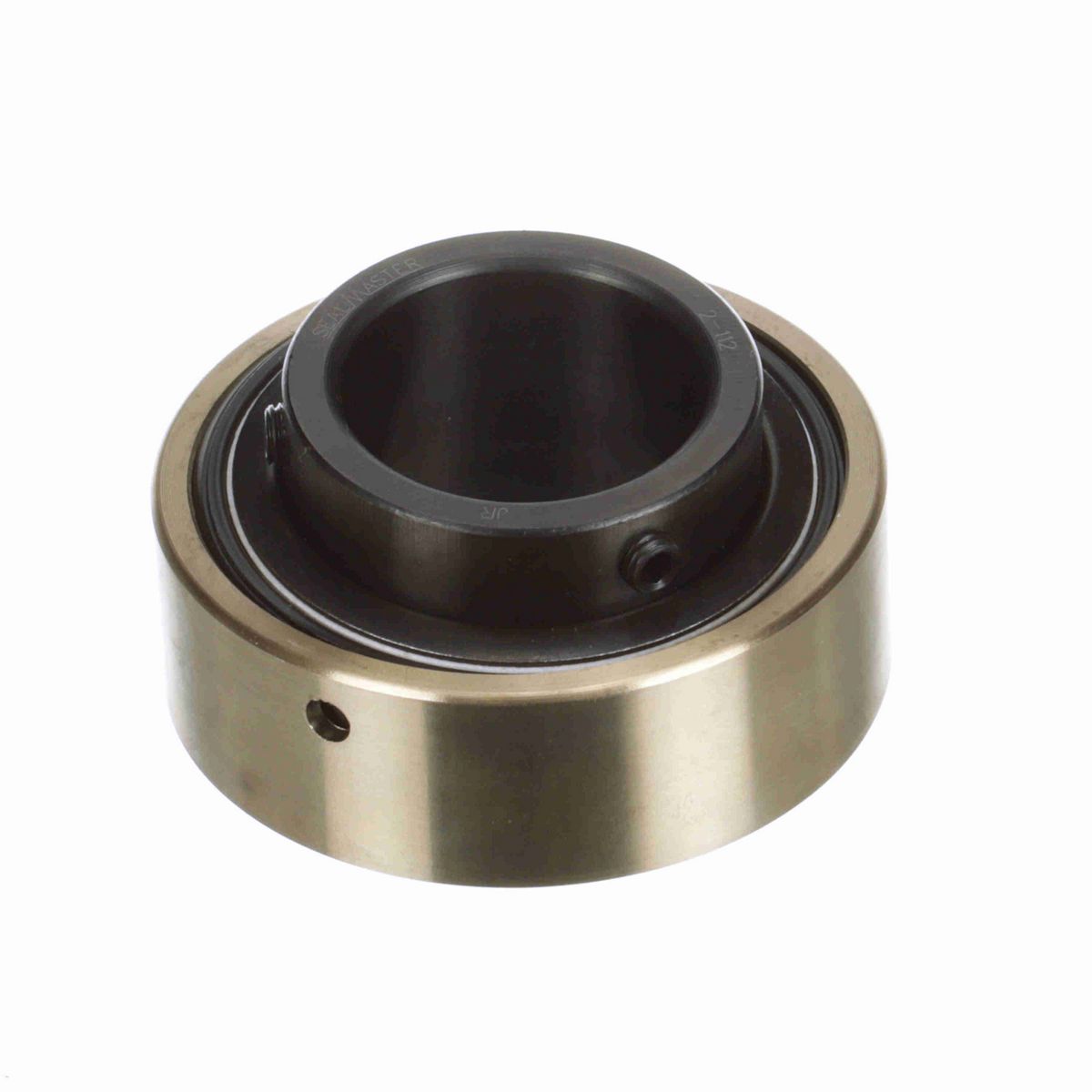

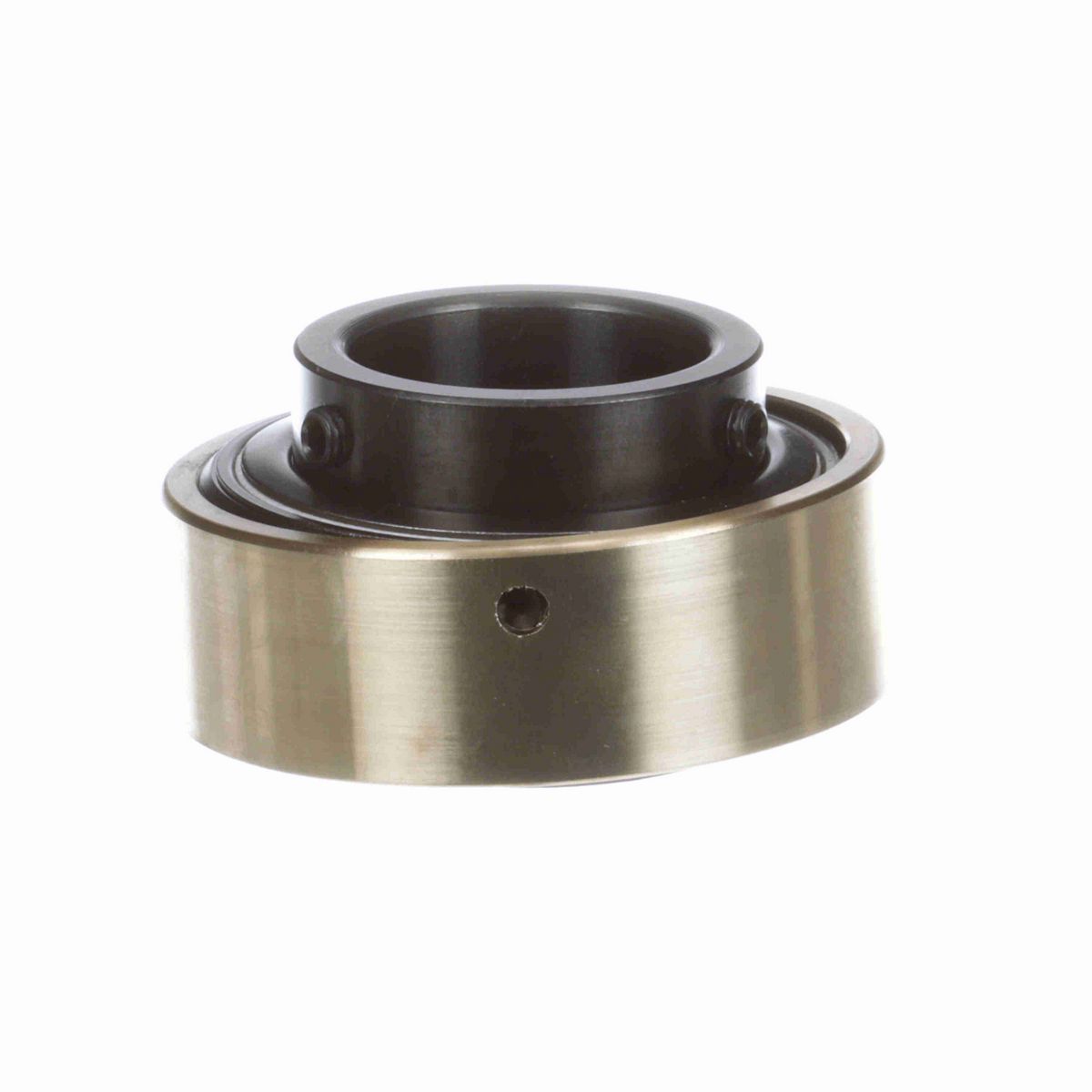

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.7500 in
Outer Race Width (in)	1.172 in
Outer Race OD (in)	3.562 in
Inner Race Length (in)	1.938 in
Inner Ring OD (in)	2.297 in
Centerline to Front Face (in)	1.188 in

Technical Specifications

Set Screw Thread	5/16-24
Measure Units	Inch
Radius	0.062
Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Radial Dynamic Load Capacity (lb)	7,901 lb
Internal Clearance	Standard
Speed (Max) (RPM)	3800 rpm
Misalignment	±2.0° Misalignment - Static Only
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	5,139 lb
Series	AR
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461009604
Weight	2.35 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
