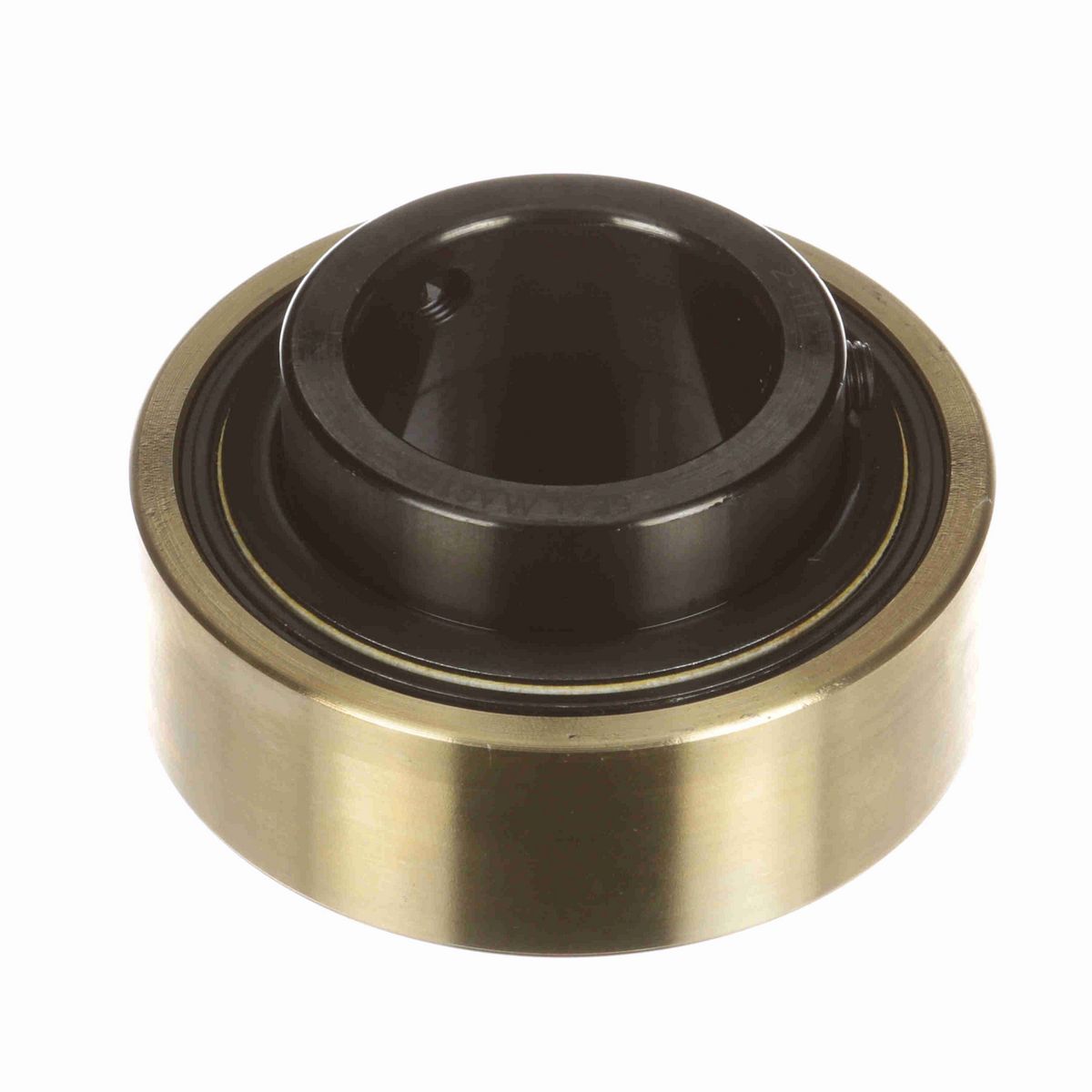

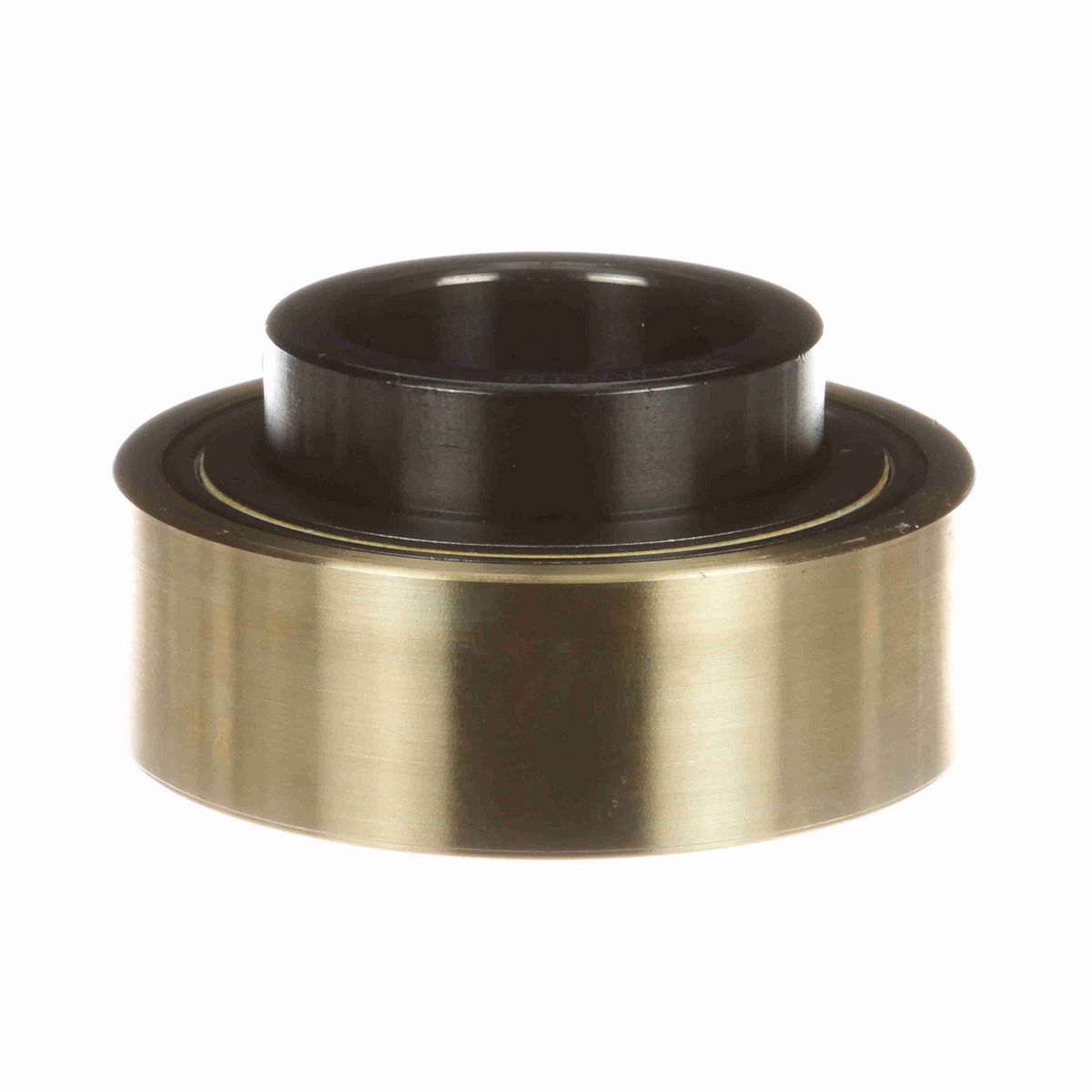

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.6875 in
Outer Race OD (in)	3.562 in
Inner Race Length (in)	1.938 in
Centerline to Front Face (in)	1.188 in
Outer Race Width (in)	1.172 in
Inner Ring OD (in)	2.297 in

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert Only
Radius	0.062
Set Screw Thread	5/16-24
Insert Material	52100 Bearing Steel, Black Oxided
Speed (Max) (RPM)	3800 rpm
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,901 lb
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Radial Static Load Capacity (lb)	5,139 lb
Precision Rating	ABEC 1
Series	AR
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Lubrication Type	Lithium Complex NLGI 2 Grease
Locking Type	Set Screw
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No

General Specifications

UPC	662461009598
Weight	2.90 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
