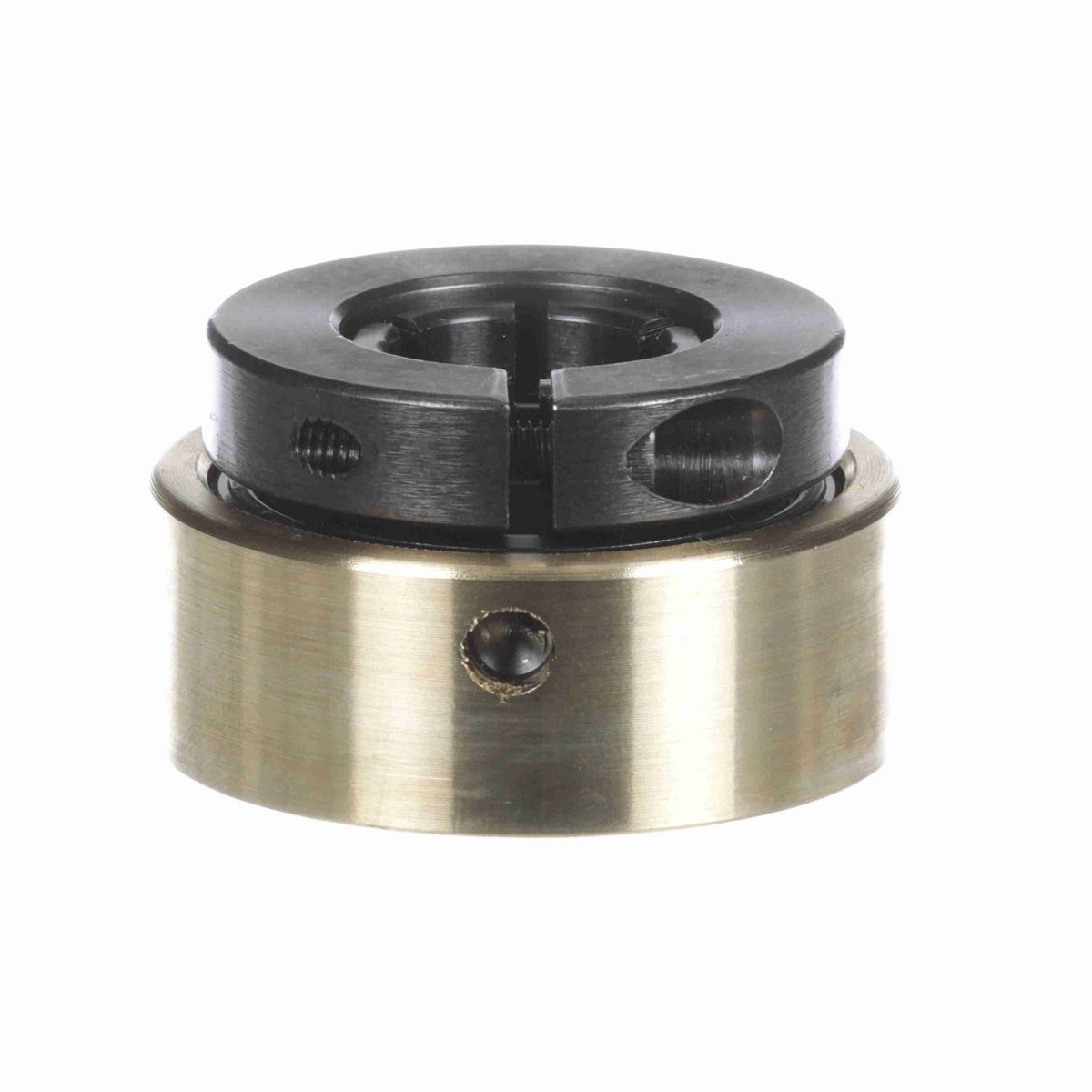

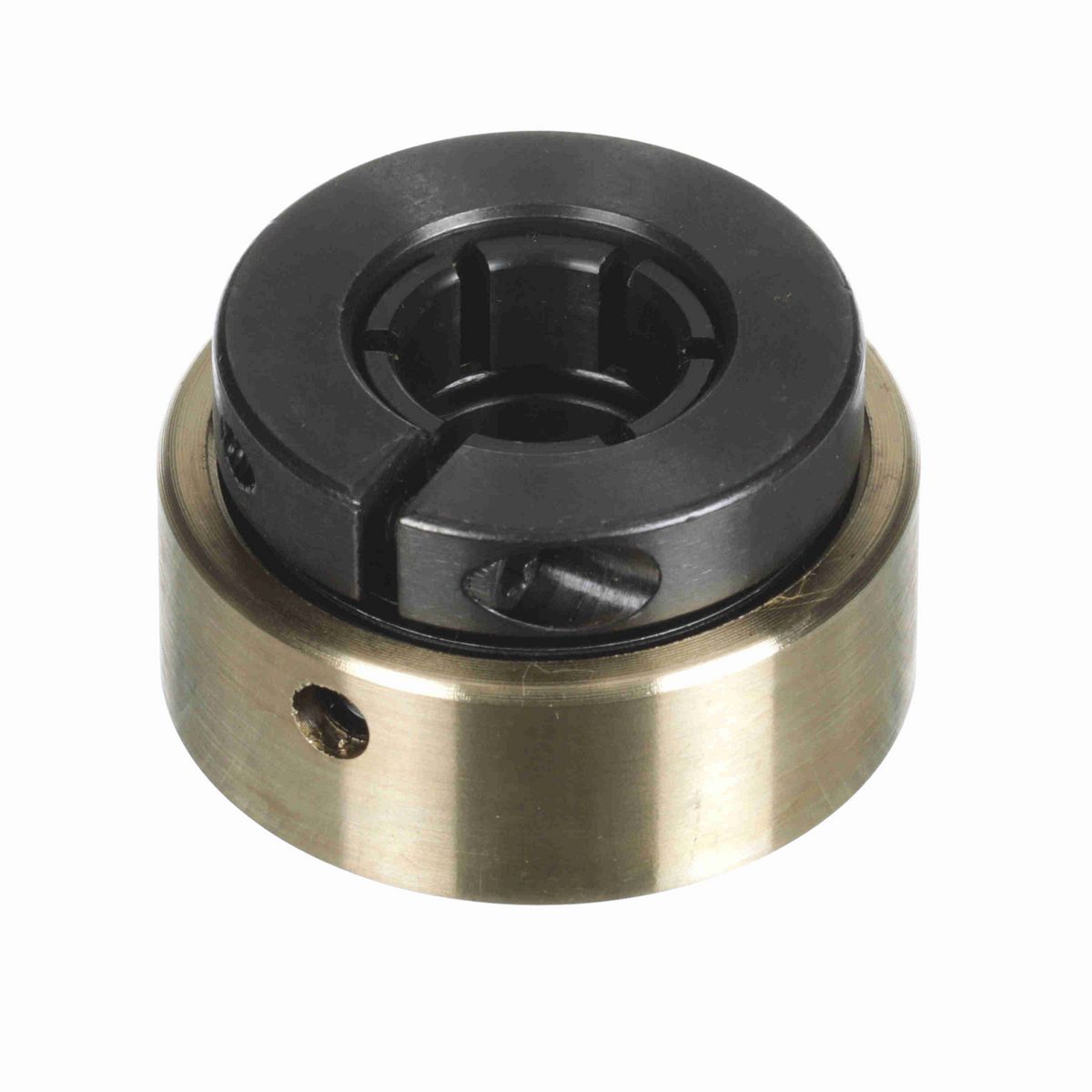

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.281 in
Bore Size (in)	0.7500 in
Centerline to Front Face (in)	2 in
Collar OD (in)	1.75 in
Outer Race OD (in)	2.062 in
Inner Ring OD (in)	1.75 in
Outer Race Width (in)	0.766 in
Inner Race Length (in)	1.281 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Housing Type	Insert Only
Bore Shape	Straight
Torx Cap Screw	8-32 X 5/8
Radius	0.04
Measure Units	Inch
Speed (Max) (RPM)	10200 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	2,611 lb
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Radial Static Load Capacity (lb)	1,444 lb
Series	AR-T
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	No

General Specifications

UPC	662461031322
Weight	0.72 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
