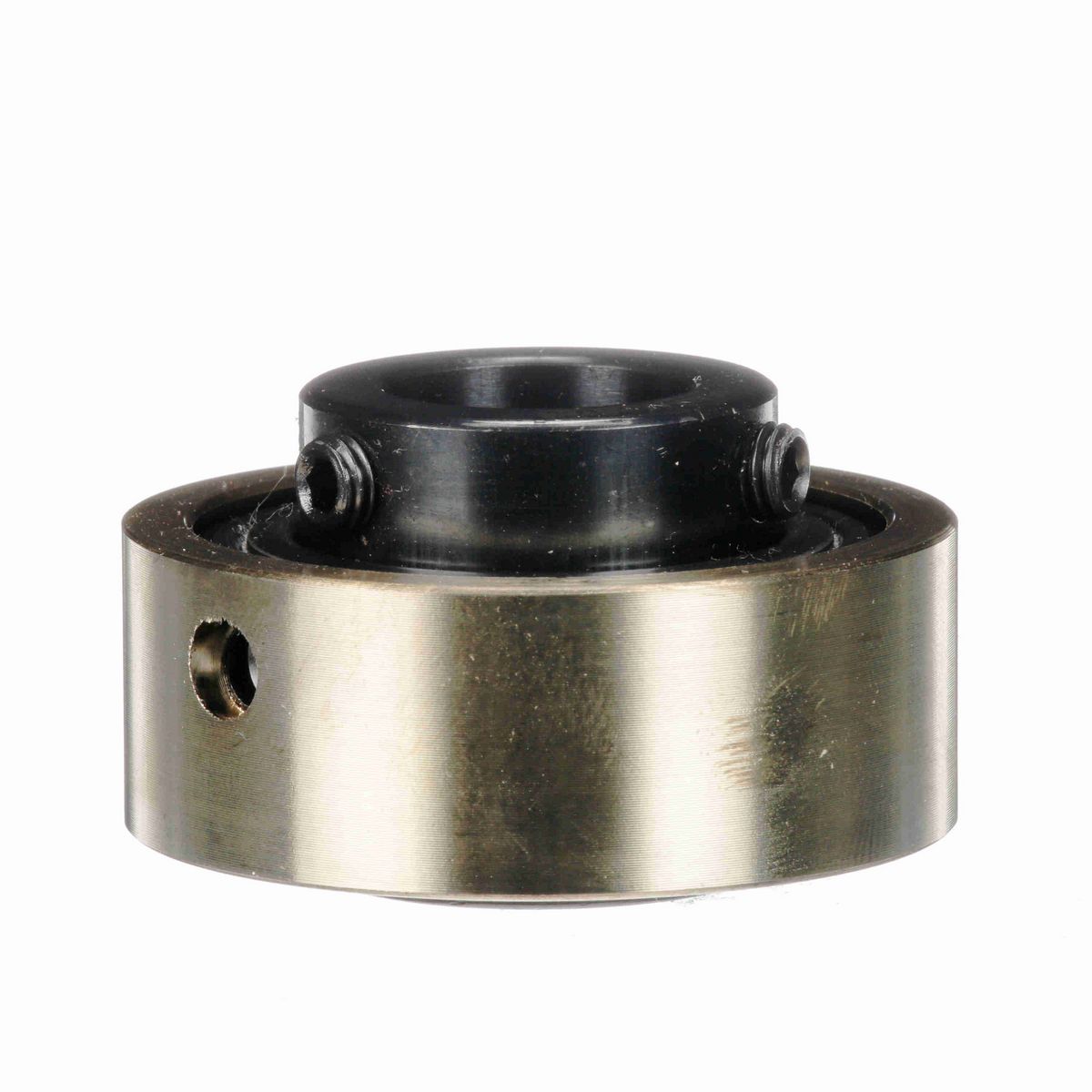

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.219 in
Bore Size (in)	0.7500 in
Inner Ring OD (in)	1.188 in
Inner Race Length (in)	1.219 in
Outer Race Width (in)	0.766 in
Centerline to Front Face (in)	0.719 in
Outer Race OD (in)	2.062 in

Technical Specifications

Radius	0.04
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Bore Shape	Straight
Measure Units	Inch
Set Screw Thread	1/4-28
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	2,611 lb
Speed (Max) (RPM)	7300 rpm
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Radial Static Load Capacity (lb)	1,444 lb
Precision Rating	ABEC 1
Series	AR
Cage Material	PPS
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Locking Type	Set Screw
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461009451
Weight	0.59 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
