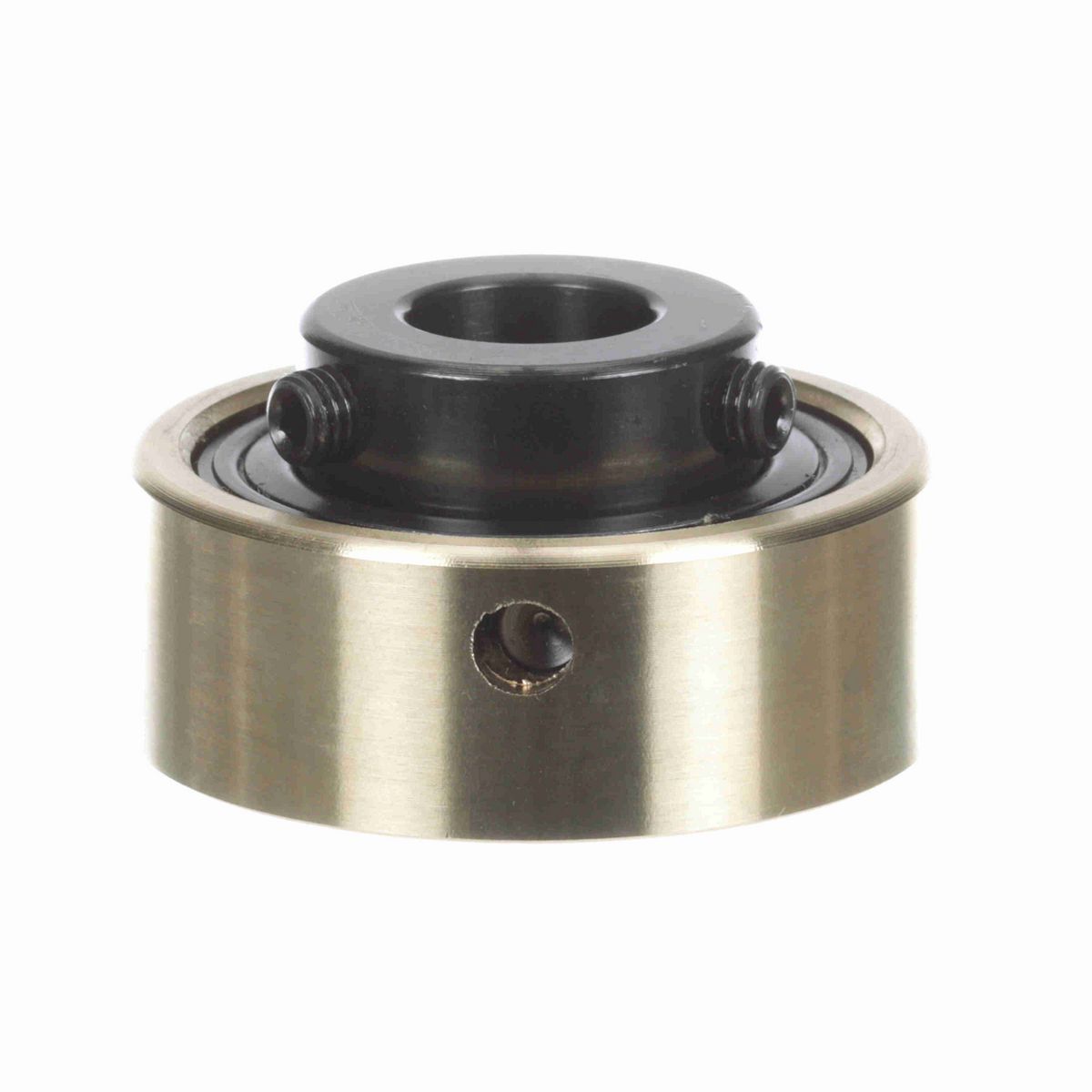

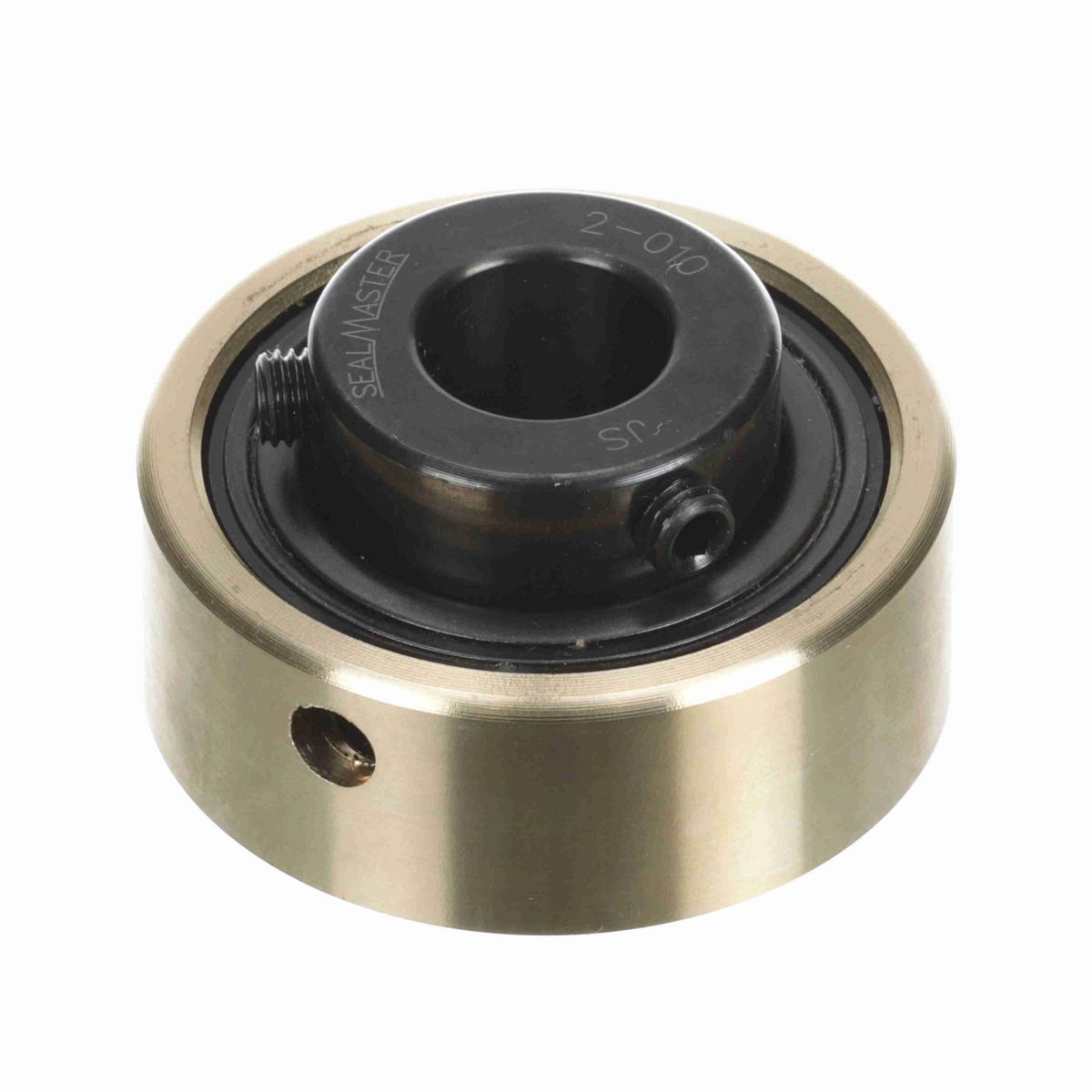

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.219 in
Bore Size (in)	0.6250 in
Inner Race Length (in)	1.219 in
Outer Race OD (in)	2.062 in
Inner Ring OD (in)	1.188 in
Centerline to Front Face (in)	0.719 in
Outer Race Width (in)	0.766 in

Technical Specifications

Measure Units	Inch
Radius	0.04
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Bore Shape	Straight
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28
Radial Dynamic Load Capacity (lb)	2,611 lb
Internal Clearance	Standard
Speed (Max) (RPM)	7300 rpm
Misalignment	±2.0° Misalignment - Static Only
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	1,444 lb
Precision Rating	ABEC 1
Series	AR
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Locking Type	Set Screw
Ability to Relubricate	Yes
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662461009437
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
