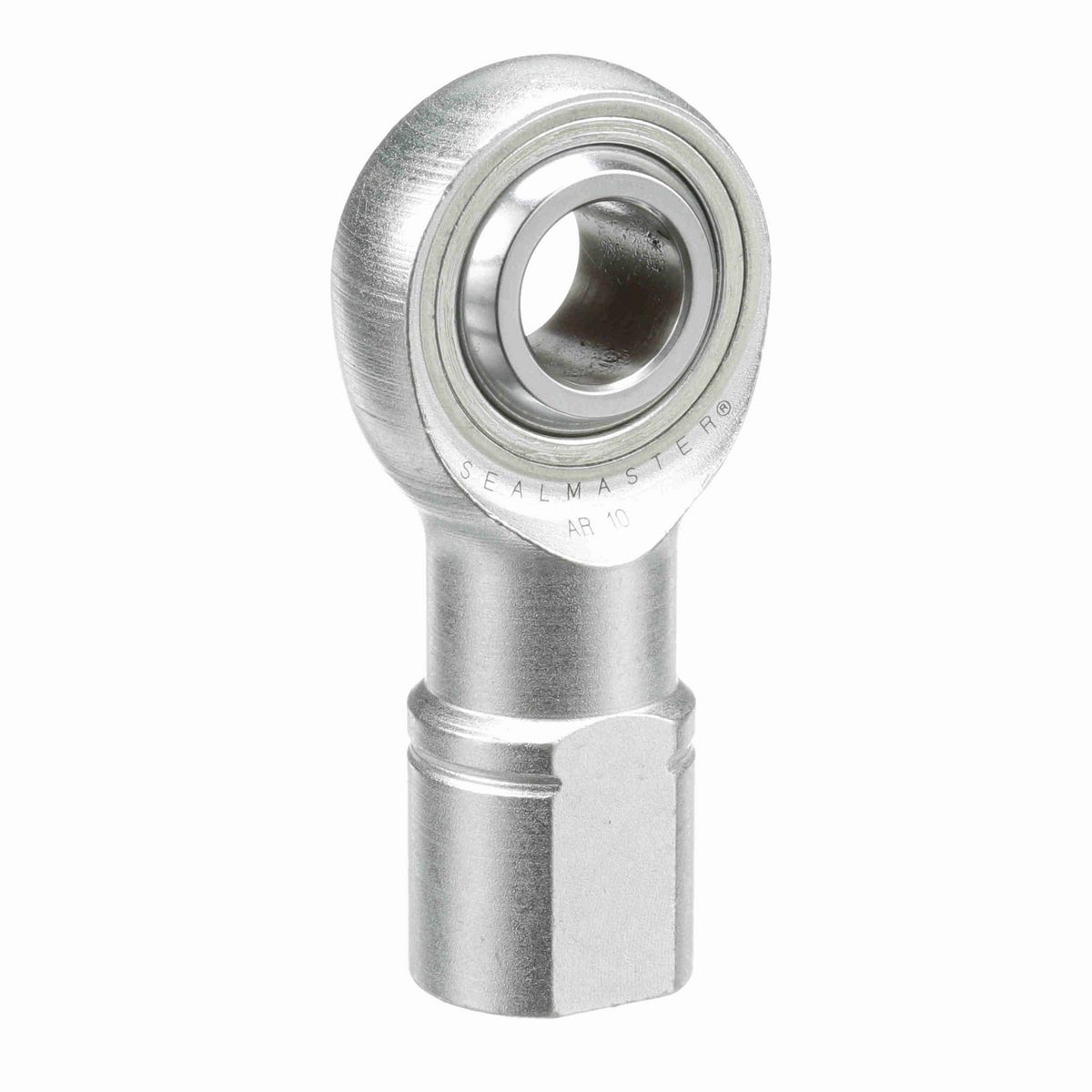

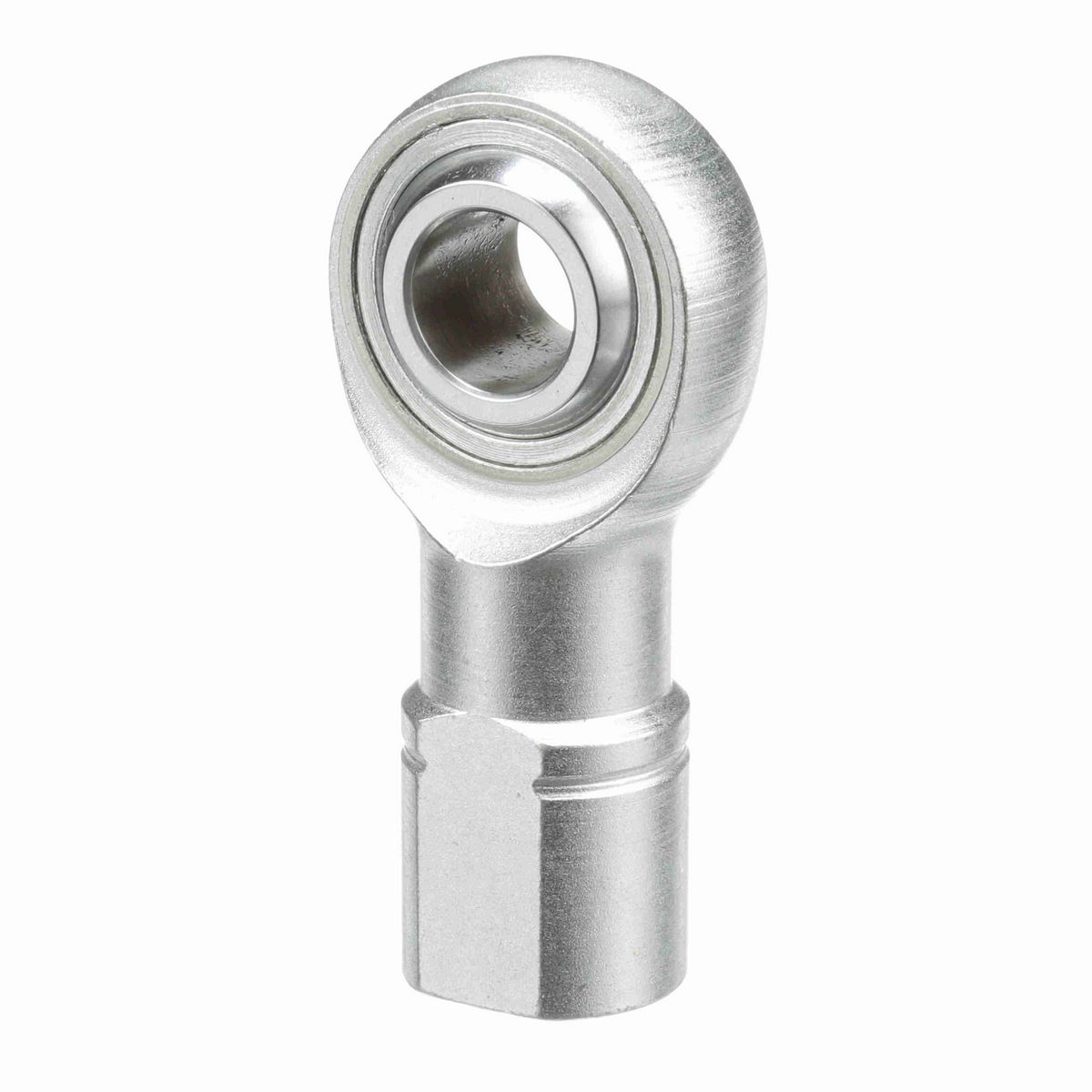

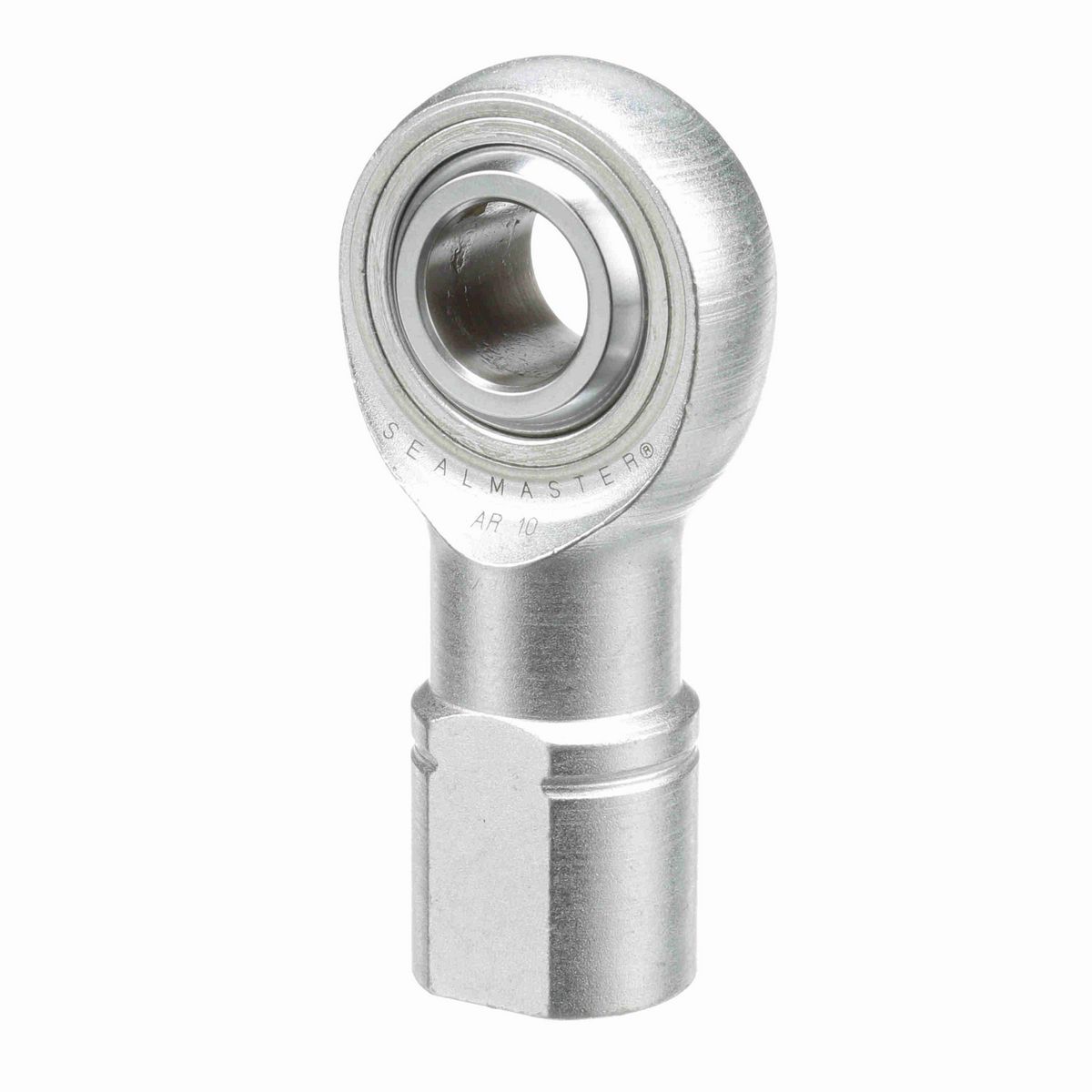

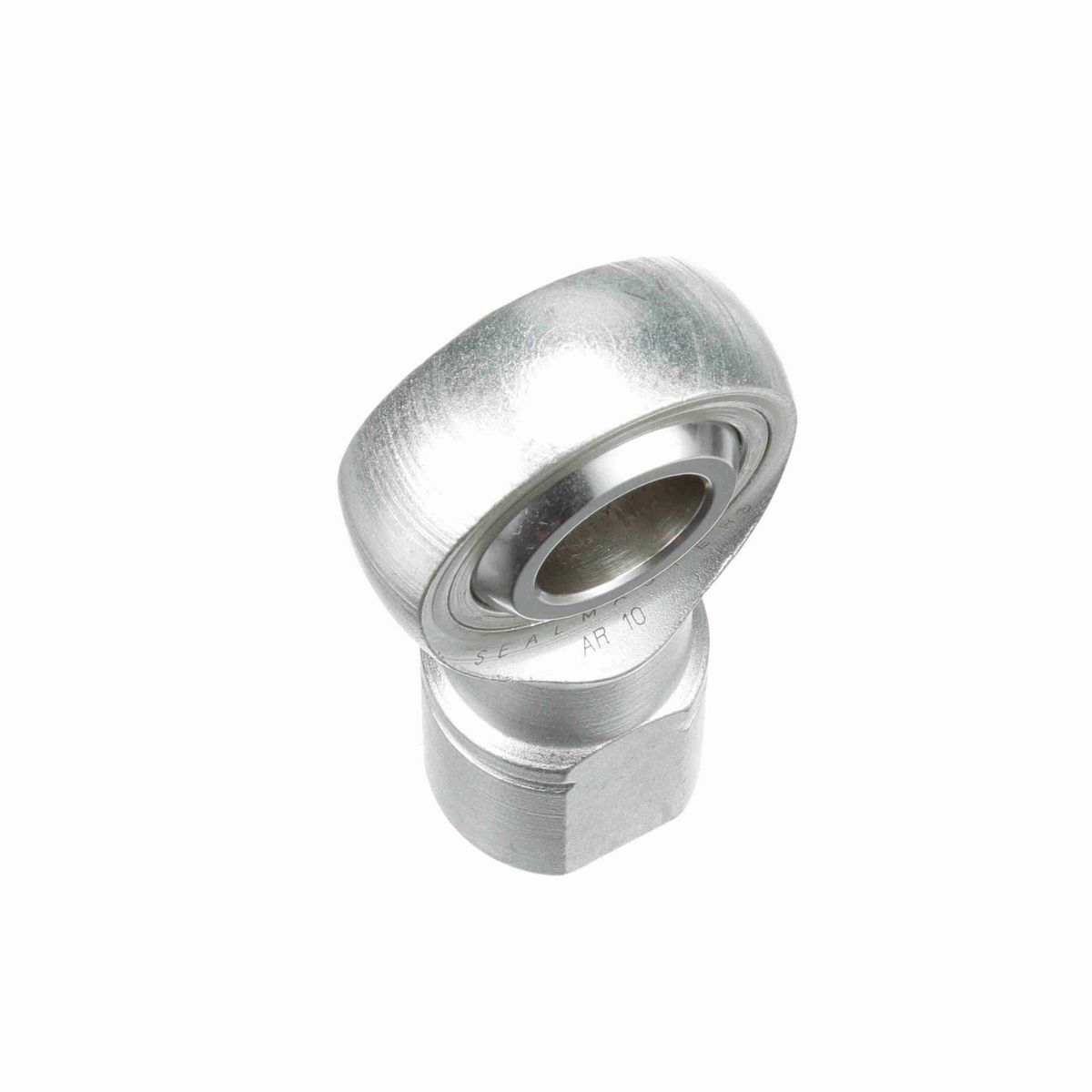

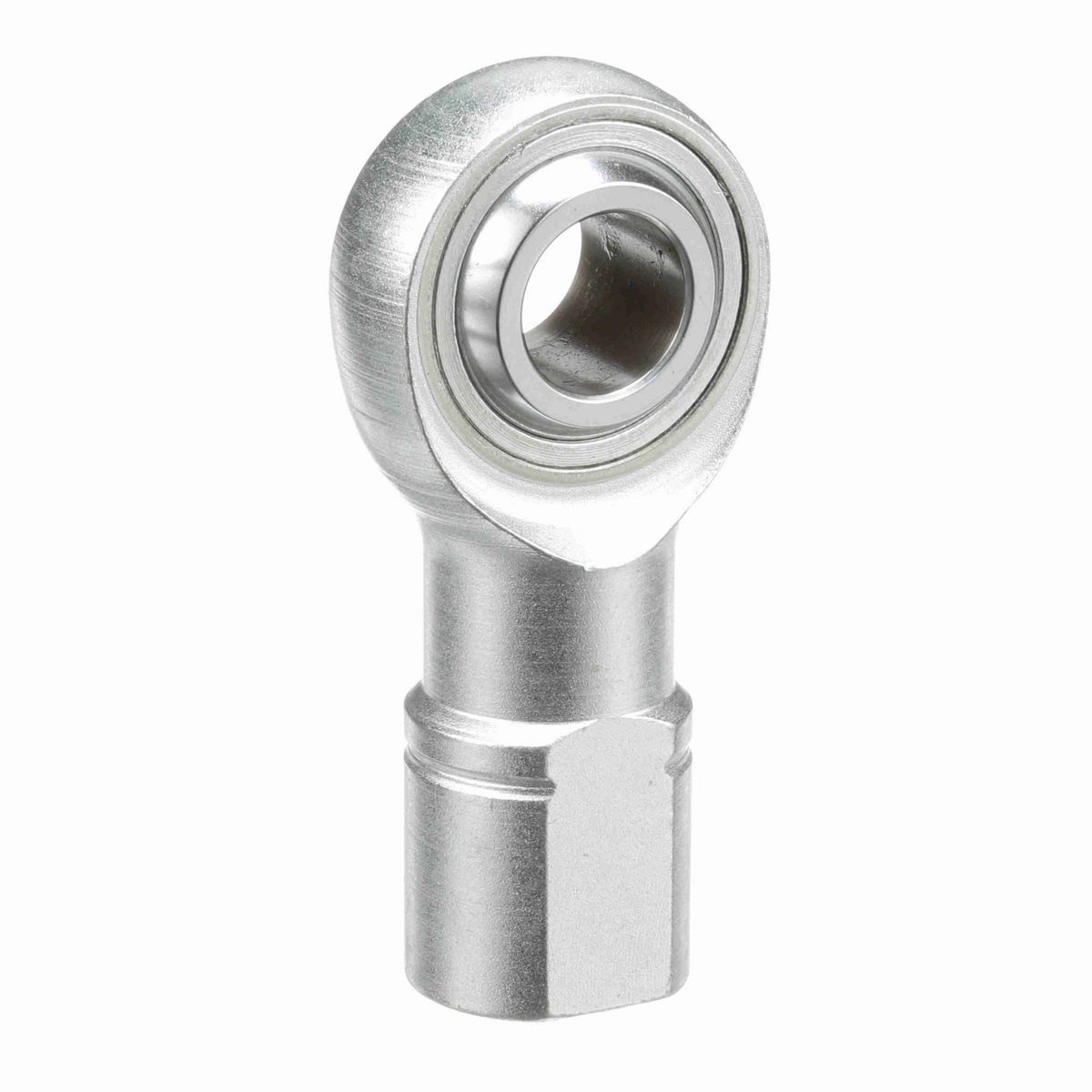

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Width (in)	0.75 in
Thread Size	#5/8-18
Ball Flat Diameter (in)	0.839 in
Ball Diameter (in)	1.125 in
Housing Width (in)	0.562 in
Head Diameter (in)	1.5 in
Thread Length (in)	1.469 in
Base Diameter (in)	1 in
Length to Center of Ball (in)	2.5 in

Technical Specifications

Configuration	Female
Product Selection Available SW	Y
Axial Load	1,730
Series	Precision Extra Capacity
Bearing Type	Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Housing Style	Female Rod End
Across Wrench Flats	0.875
Product Type	AR
Zerk Fitting SW	N
Race Material	Carbon Steel - corrosion resistant plating
Lubrication Type	Grease
Thread Type	UNF
Construction	Three-Piece Rod End
Misalignment Angle - a Deg. +/-	8
Type	Female Rod End
Max Static Radial Load	17,300
Thread	RH
Lubrication	No Zerk Fitting
Bore Size (in)	0.6250 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288718918
Weight	0.45 LB
Packaged Length	2.88 IN
Packaged Width	0.88 IN
Packaged Height	3.25 IN
HTC	8483.30.8055
Country of Origin	Mexico
