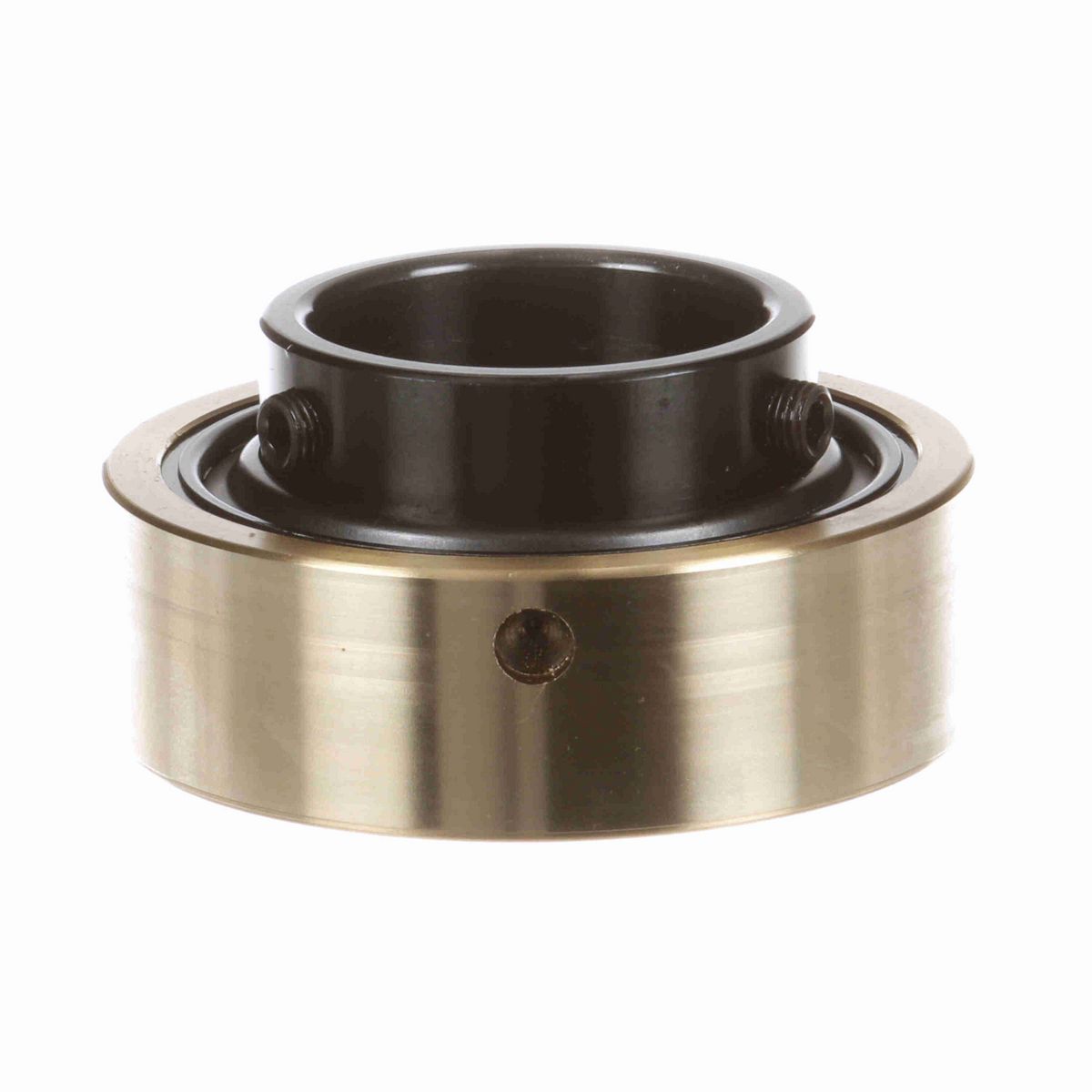

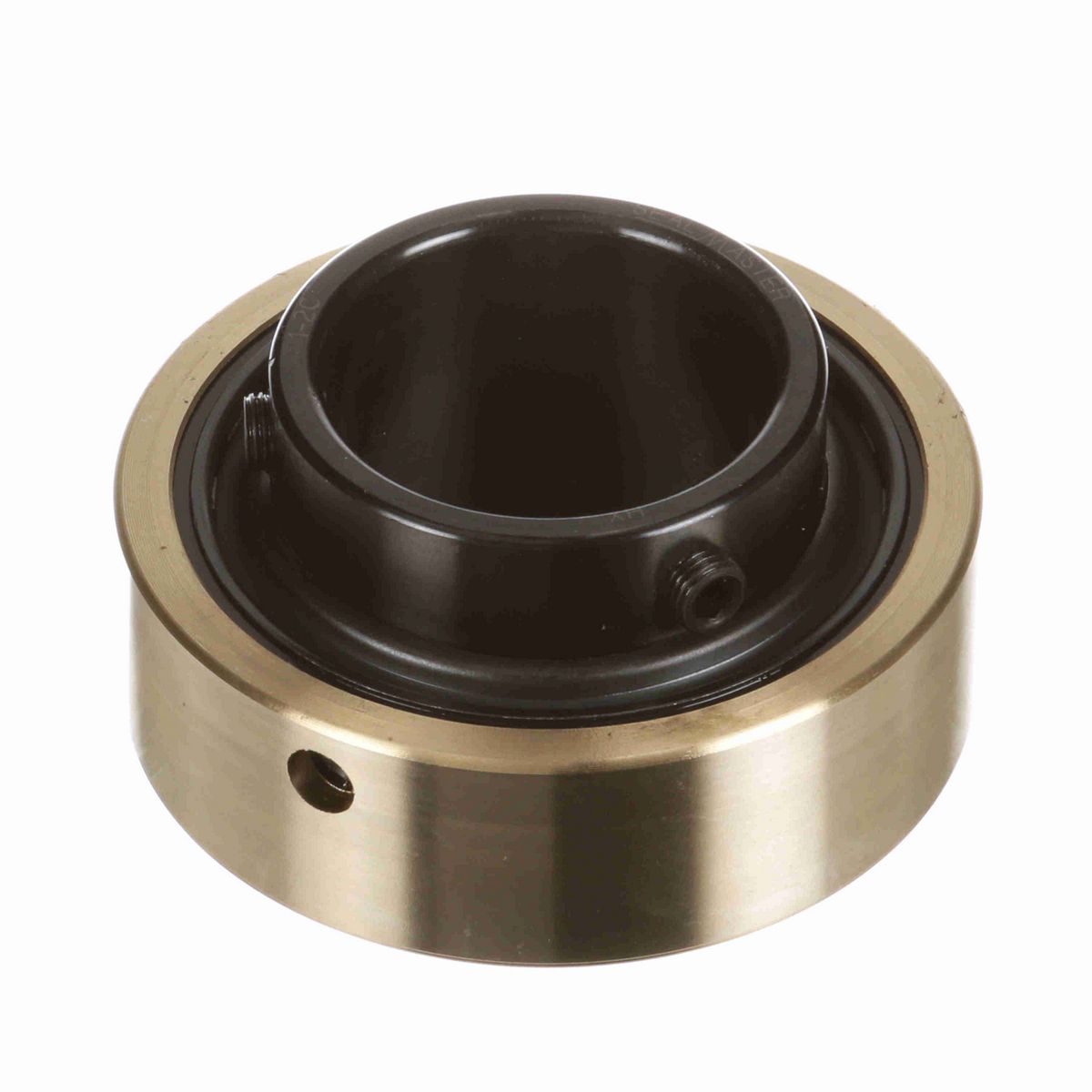

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.031 in
Bore Size (in)	2 in
Inner Race Length (in)	2.031 in
Inner Ring OD (in)	2.469 in
Outer Race OD (in)	3.875 in
Outer Race Width (in)	1.203 in
Centerline to Front Face (in)	1.281 in

Technical Specifications

Set Screw Thread	3/8-24
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Measure Units	Inch
Rolling Element	Ball Bearing
Radius	0.062
Housing Type	Insert Only
Radial Dynamic Load Capacity (lb)	7,889 lb
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	3550 rpm
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	5,216 lb
Series	AR
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Type of Seal	Single Lip Contact Seal
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No

General Specifications

UPC	662461025291
Weight	2.10 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
