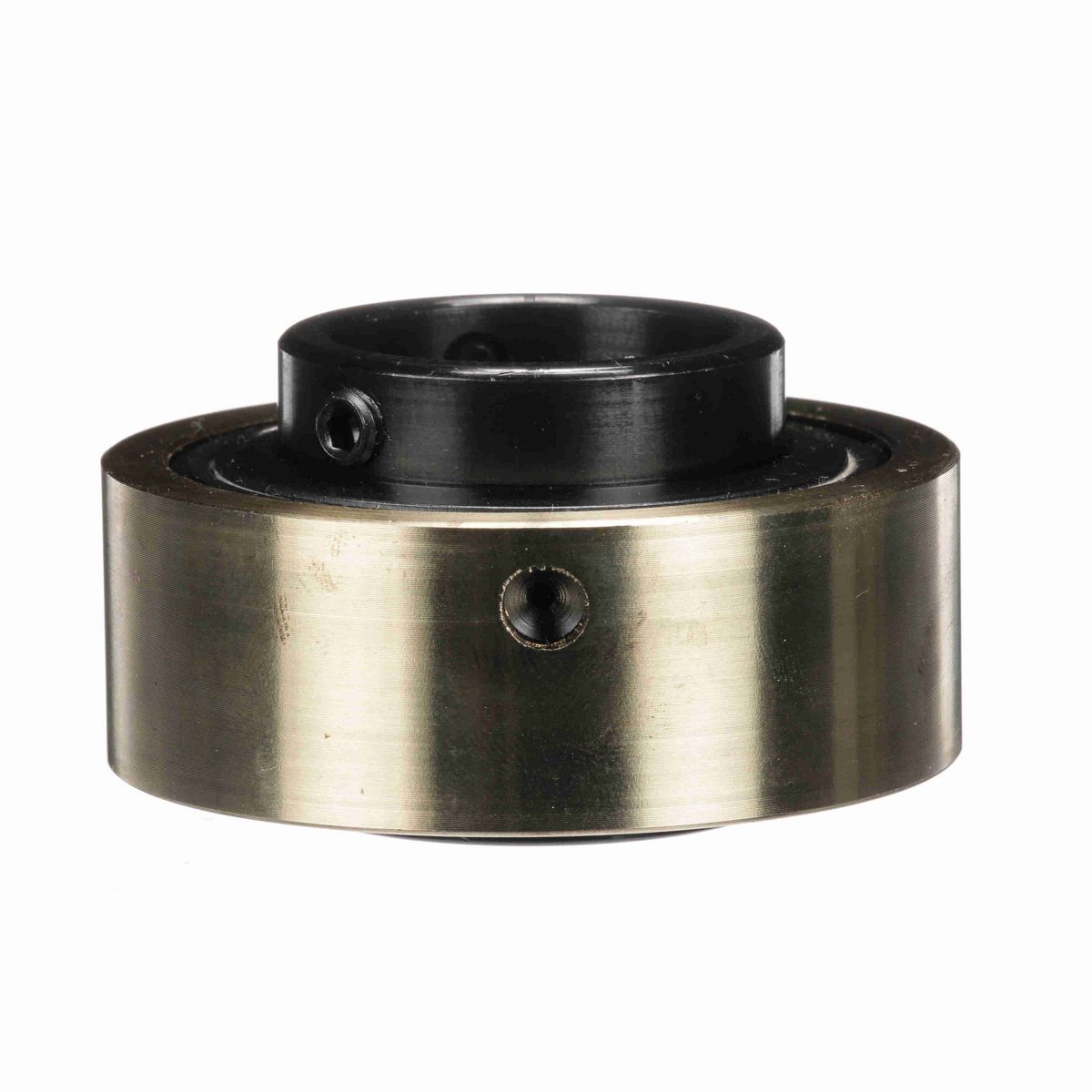

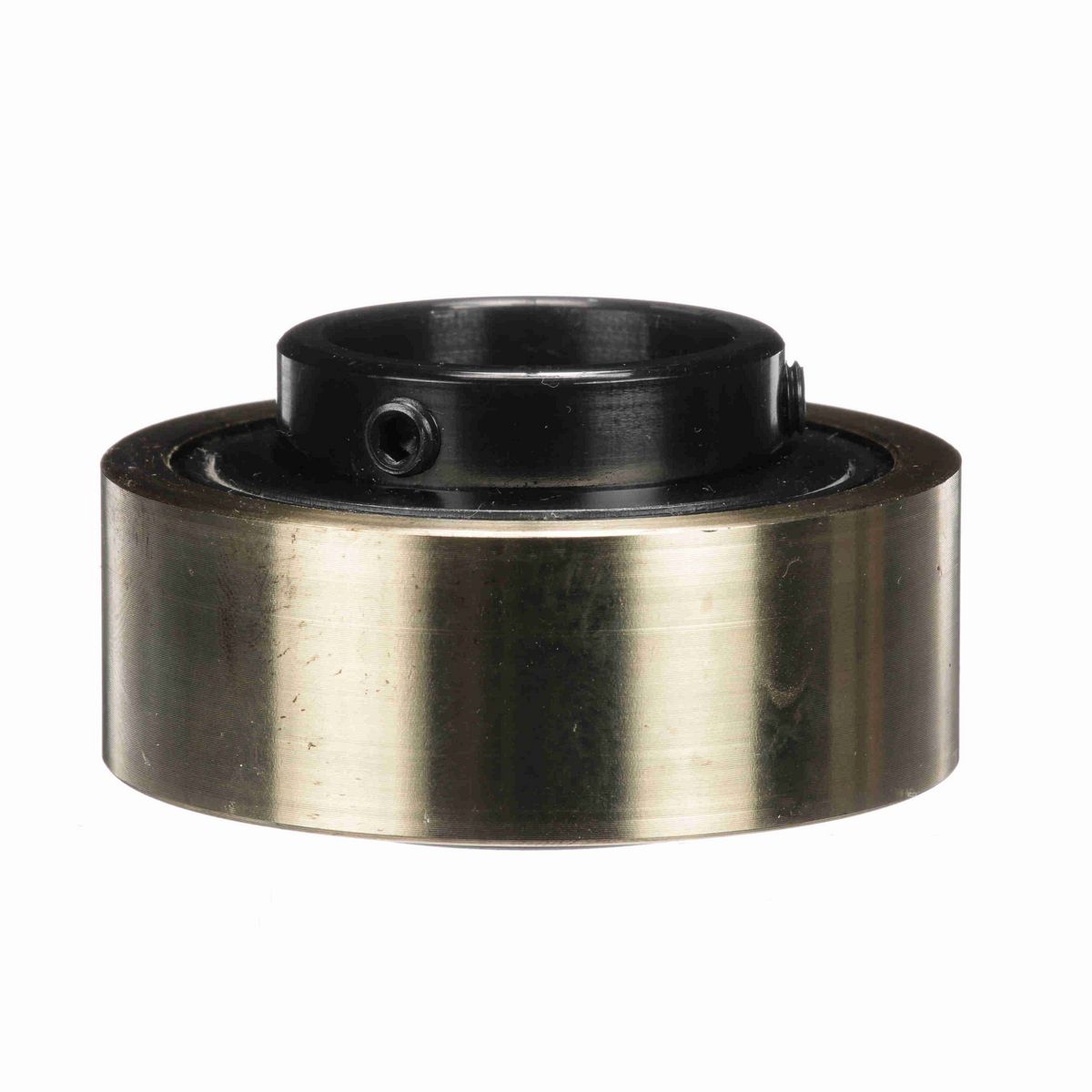

• Bearing insert installed in brass expansion ring
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.2500 in
Outer Race OD (in)	2.687 in
Outer Race Width (in)	0.953 in
Inner Race Length (in)	1.5 in
Centerline to Front Face (in)	0.875 in
Inner Ring OD (in)	1.594 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Measure Units	Inch
Radius	0.04
Set Screw Thread	1/4-28
Internal Clearance	Standard
Speed (Max) (RPM)	5450 rpm
Radial Dynamic Load Capacity (lb)	4,381 lb
Misalignment	±2.0° Misalignment - Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	2,567 lb
Series	AR
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461009390
Weight	1.48 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
