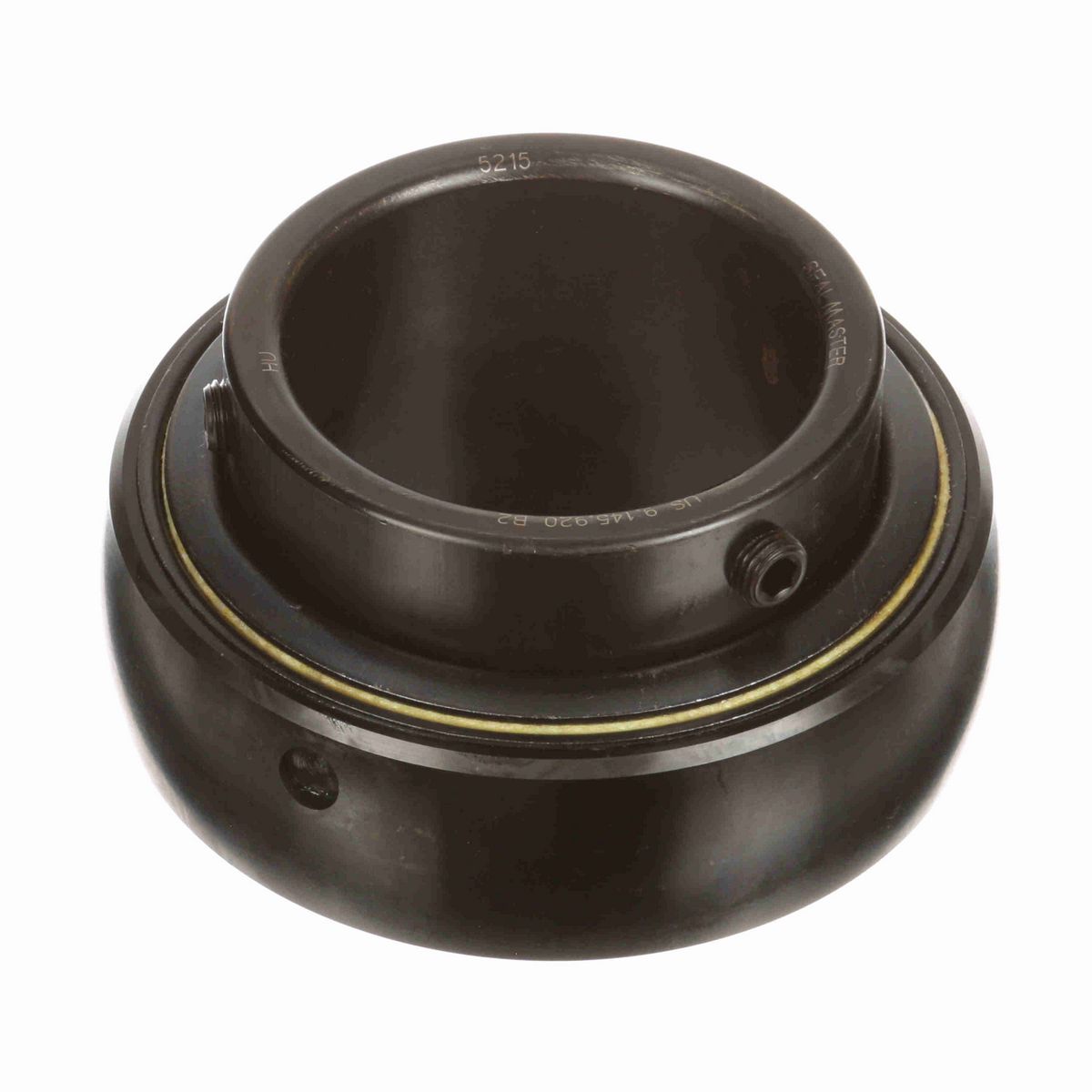

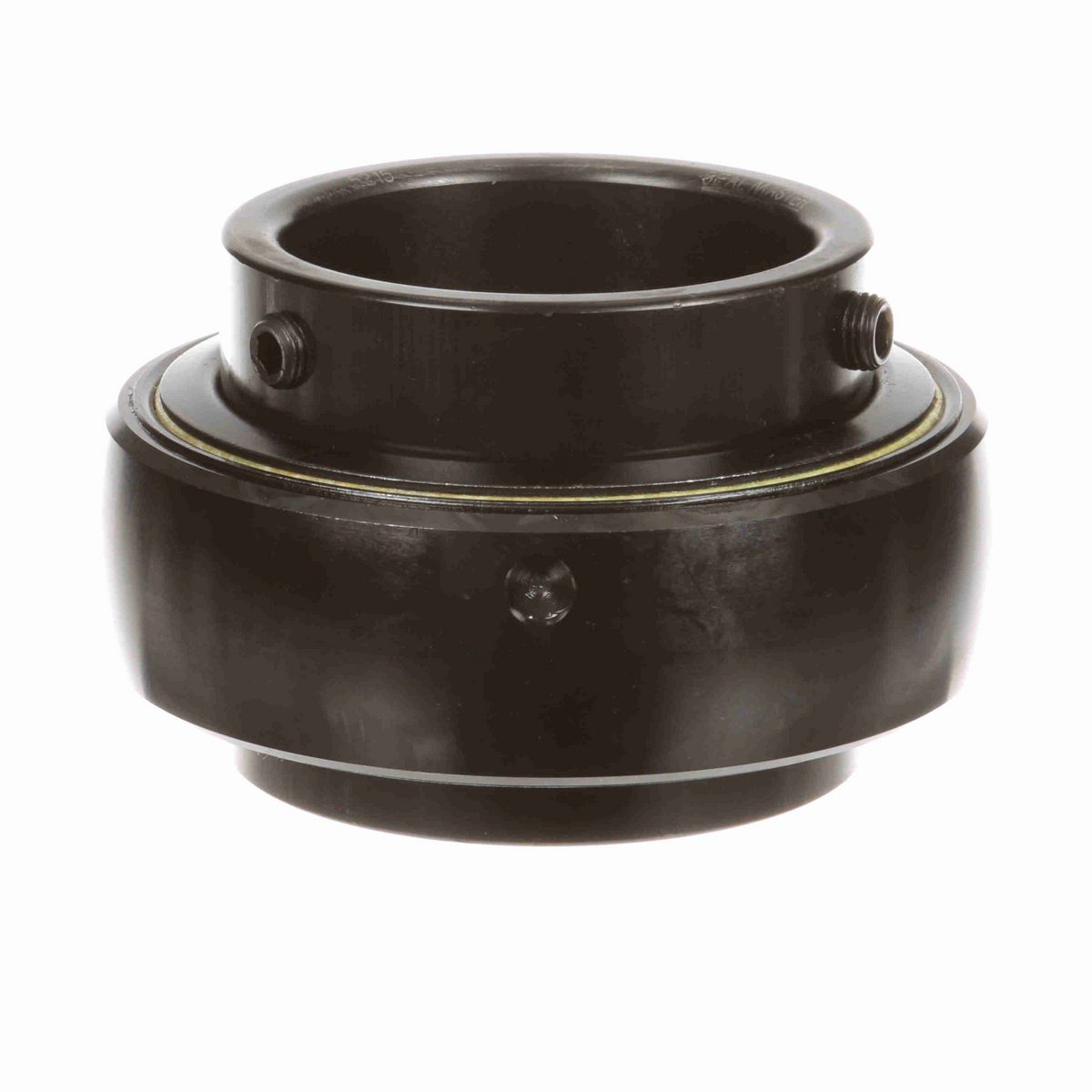

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	75 mm
Outer Race OD (in)	5.1181 in
Outer Race Width (in)	1.5 in
Outer Race OD (mm)	130 mm
Outer Race Width (mm)	38.1 mm
Inner Race Length (mm)	77.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Insert Only
Set Screw Thread	7/16-20
Measure Units	Metric
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.08
Radial Dynamic Load Capacity (lb)	14,839 lb
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	2450 rpm
Internal Clearance	Standard
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	11,224 lb
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw

General Specifications

UPC	662461000502
Weight	5.80 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
