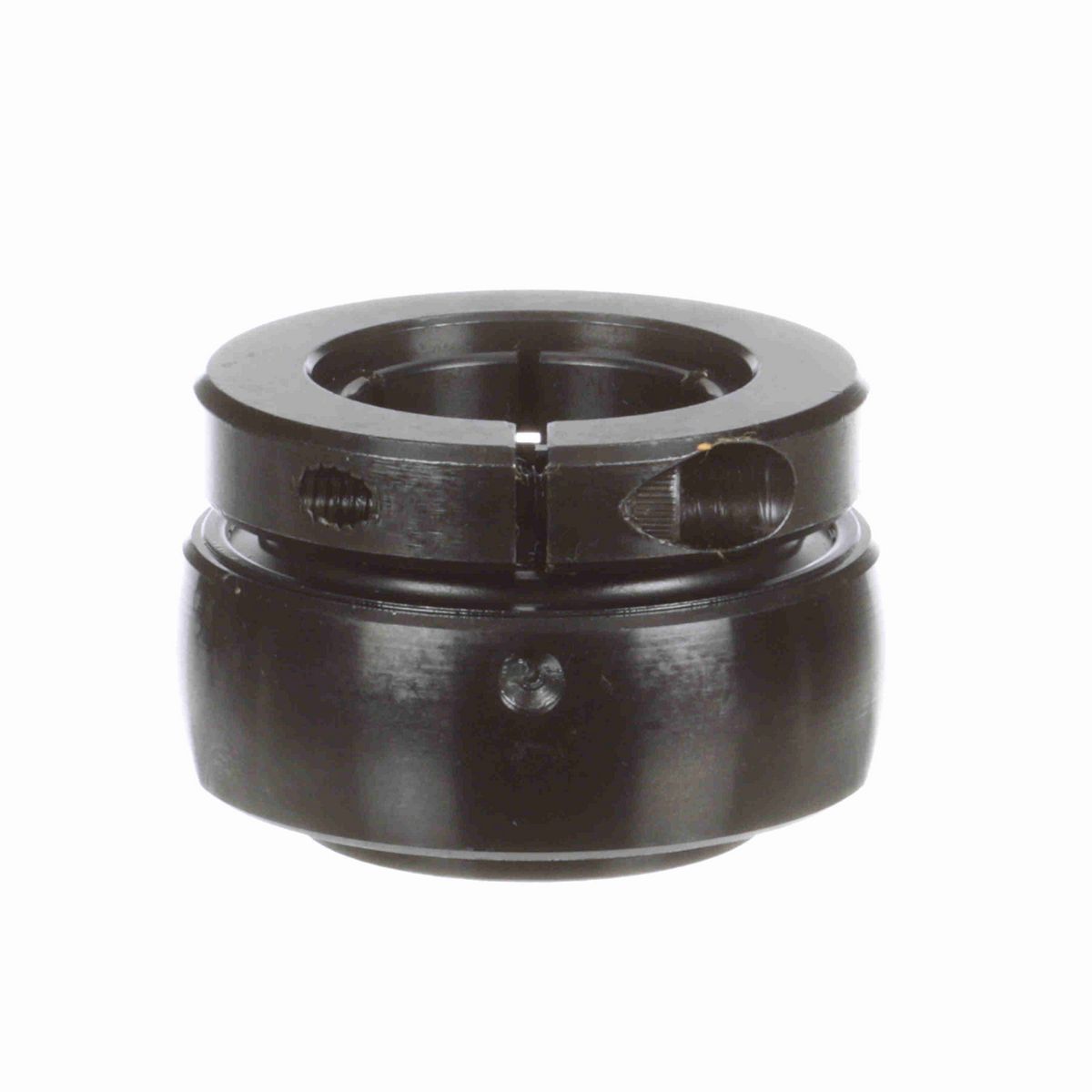

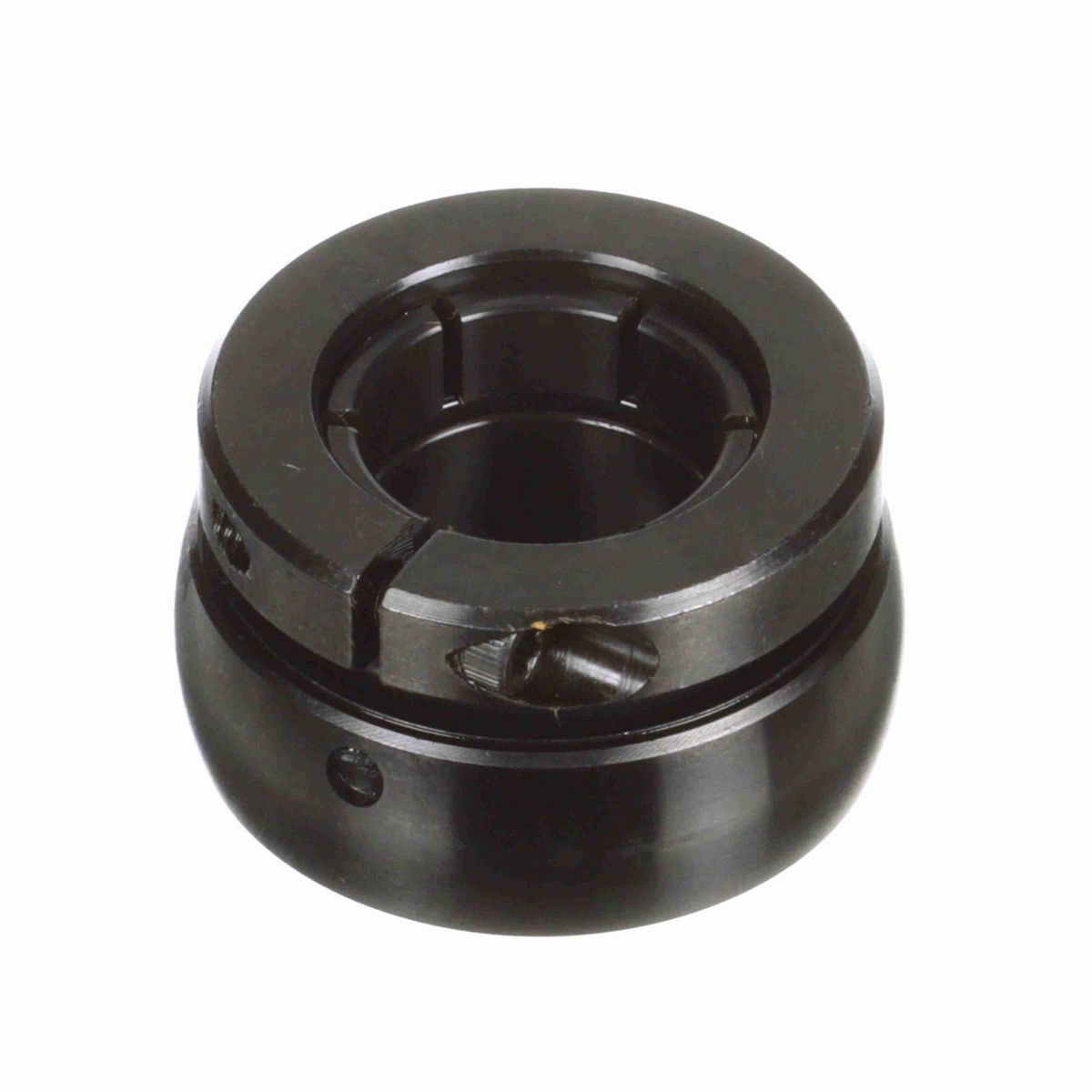

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	35 mm
Outer Race Width (in)	0.945 in
Outer Race OD (in)	2.8346 in
Outer Race OD (mm)	72 mm
Inner Race Length (mm)	44.5 mm
Outer Race Width (mm)	23.8 mm

Technical Specifications

Housing Type	Insert Only
Radius	0.04
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Measure Units	Metric
Speed (Max) (RPM)	4650 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	5,782 lb
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	3,493 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Type of Seal	Single Lip Contact Seal
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Locking Type	Concentric

General Specifications

UPC	662461257951
Weight	1.80 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
