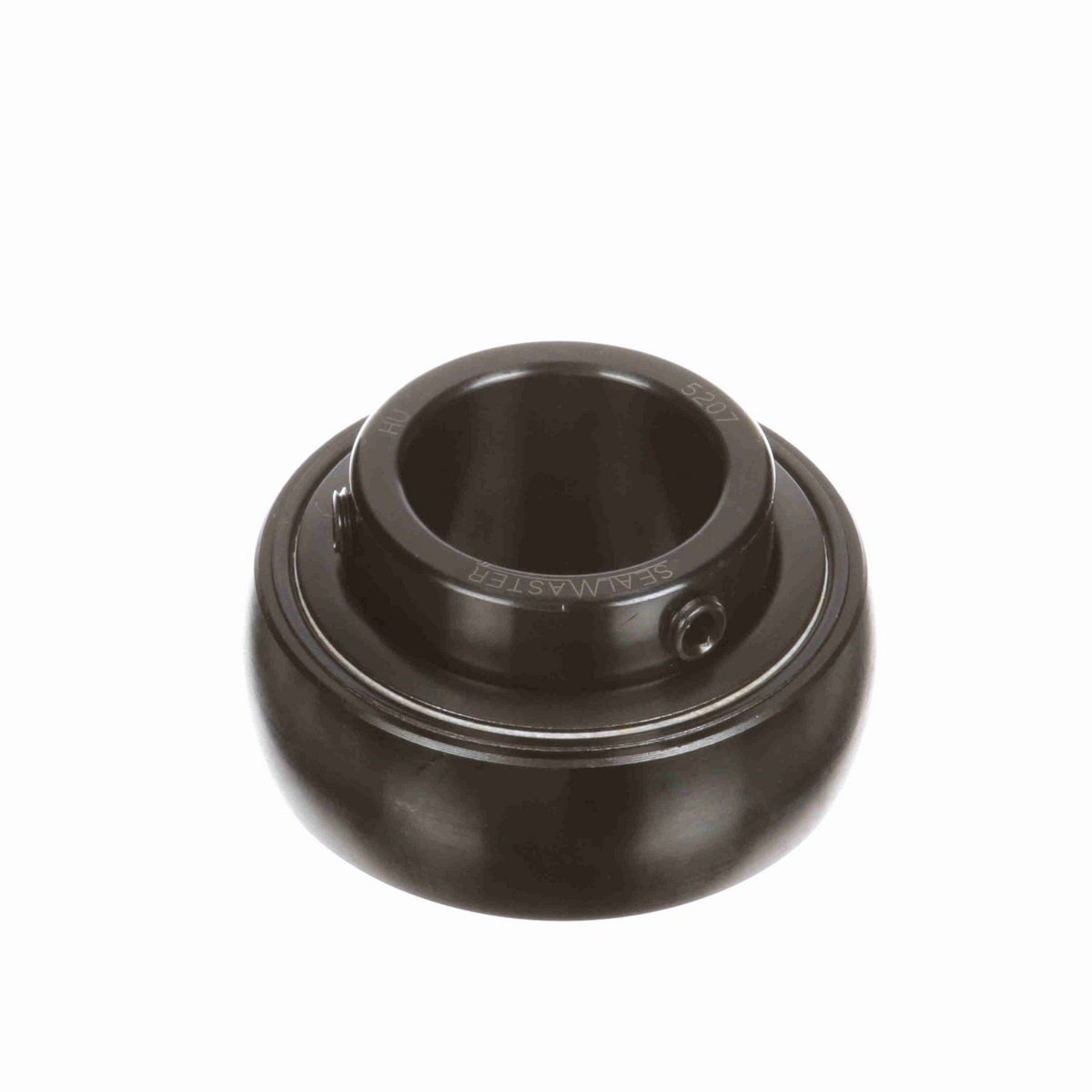

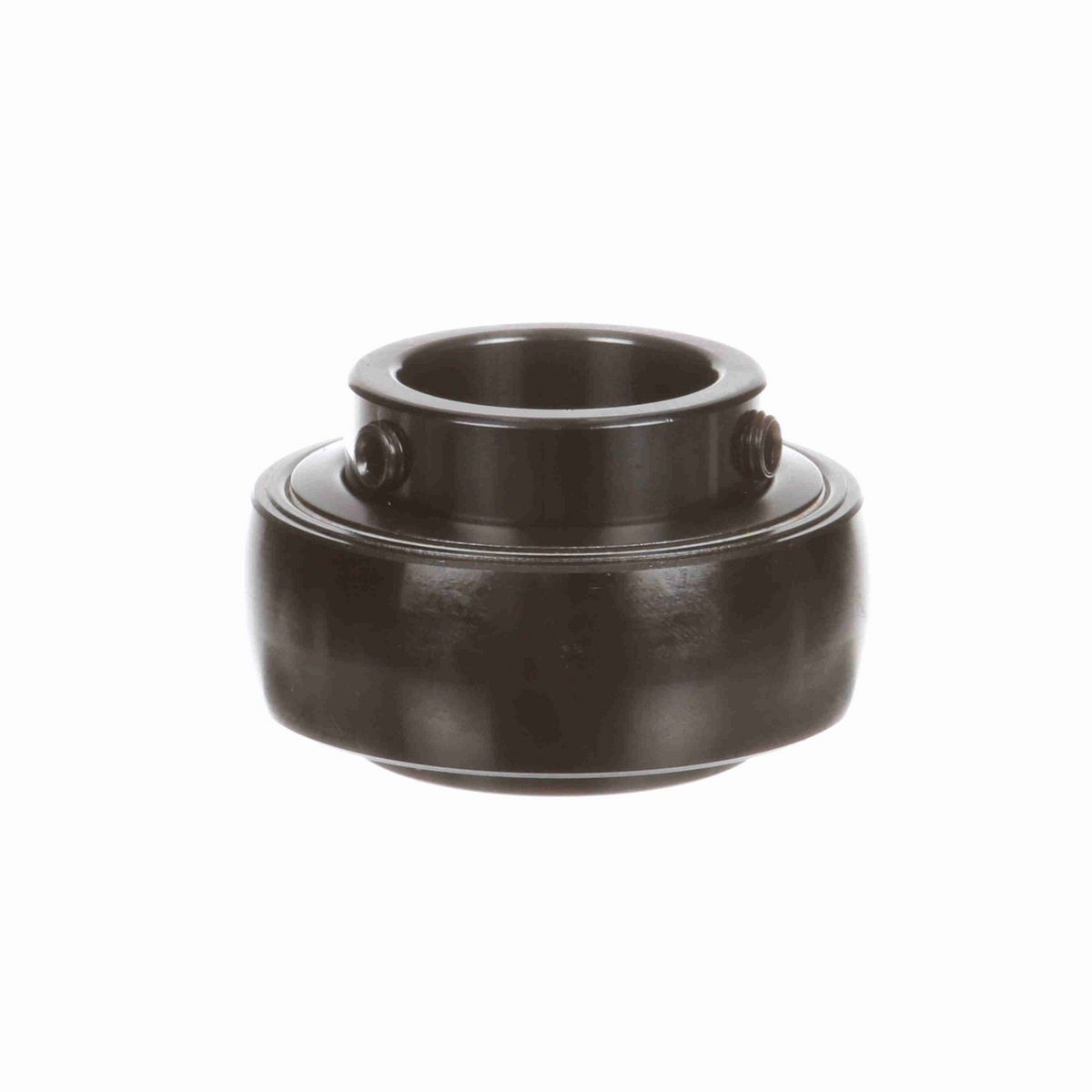

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	35 mm
Outer Race OD (in)	2.8346 in
Outer Race OD (mm)	72 mm
Outer Race Width (in)	0.94 in
Inner Race Length (mm)	42.9 mm
Outer Race Width (mm)	23.8 mm

Technical Specifications

Bore Shape	Straight
Housing Type	Insert Only
Set Screw Thread	5/16-24
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.04
Measure Units	Metric
Rolling Element	Ball Bearing
Radial Dynamic Load Capacity (lb)	5,782 lb
Internal Clearance	Standard
Speed (Max) (RPM)	4650 rpm
Misalignment	±2.0° Misalignment - Static Only
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	3,493 lb
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Locking Type	Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461000199
Weight	1.50 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
