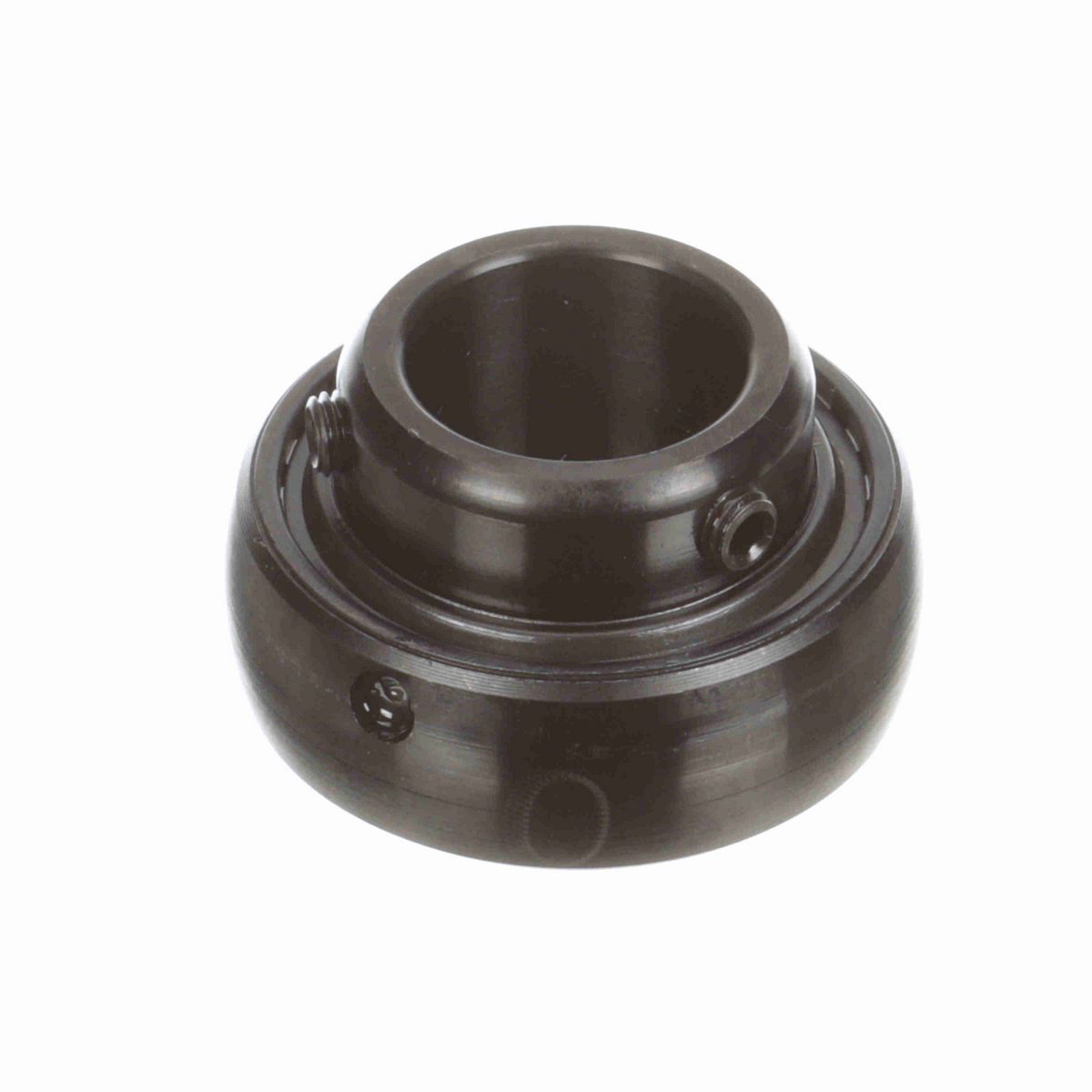

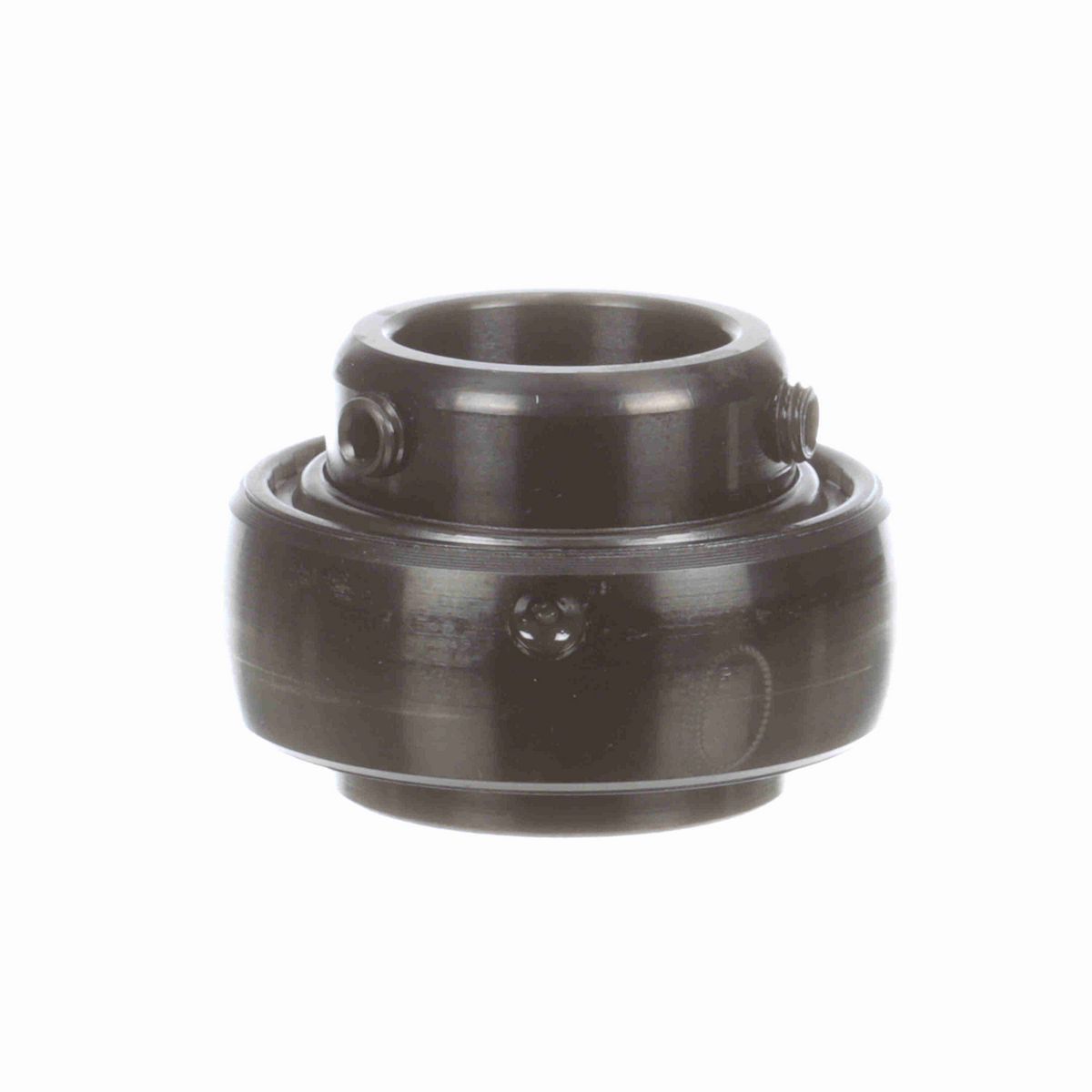

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	25 mm
Outer Race Width (in)	0.688 in
Outer Race OD (mm)	52 mm
Outer Race OD (in)	2.0472 in
Outer Race Width (mm)	17.5 mm
Inner Race Length (mm)	34.9 mm

Technical Specifications

Rolling Element	Ball Bearing
Set Screw Thread	1/4-28
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Radius	0.04
Measure Units	Metric
Bore Shape	Straight
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	6350 rpm
Radial Dynamic Load Capacity (lb)	2,801 lb
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	1,651 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Ability to Relubricate	Yes
Locking Type	Set Screw
Duty/Series	Standard
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Type of Seal	Single Lip Contact Seal
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461019528
Weight	0.53 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
