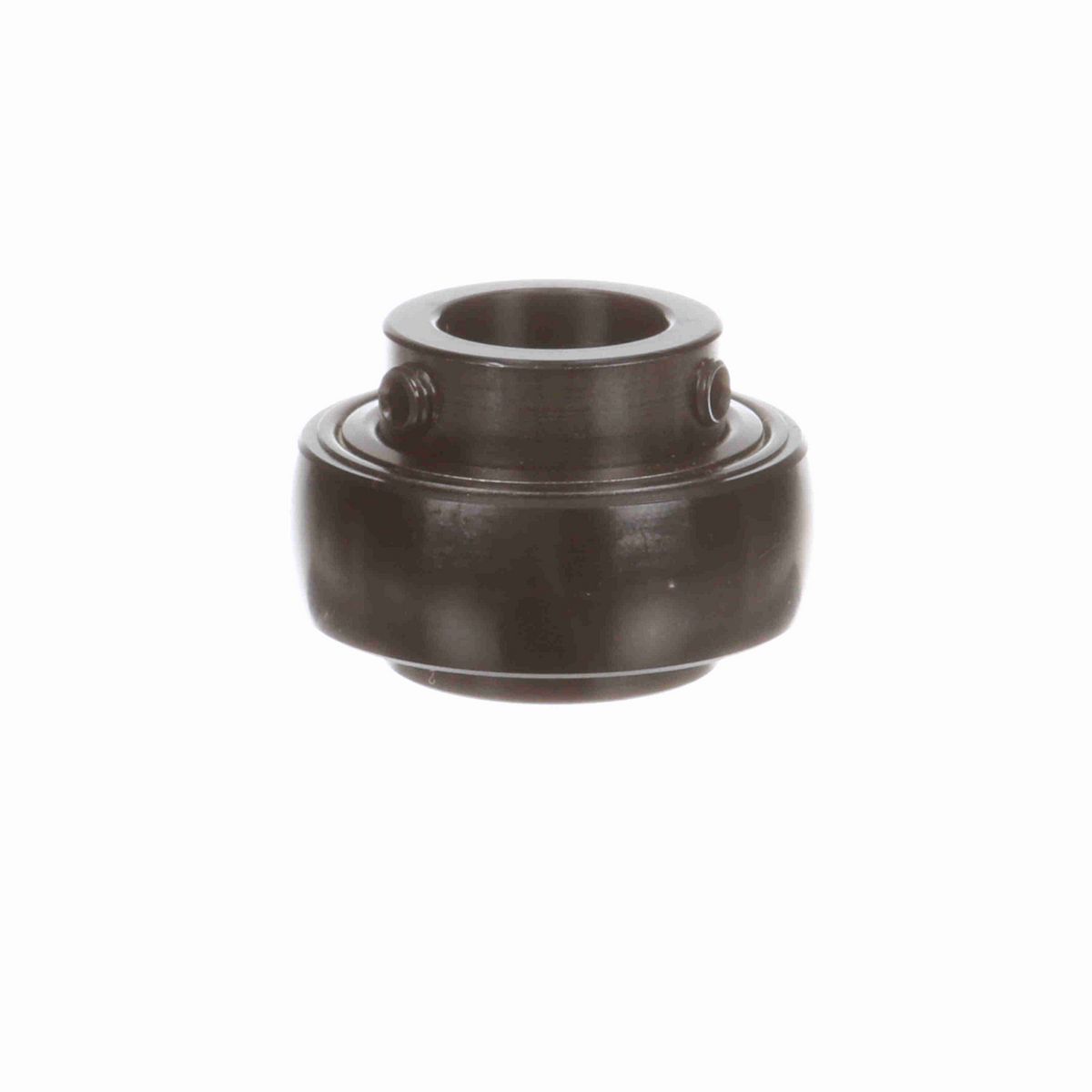

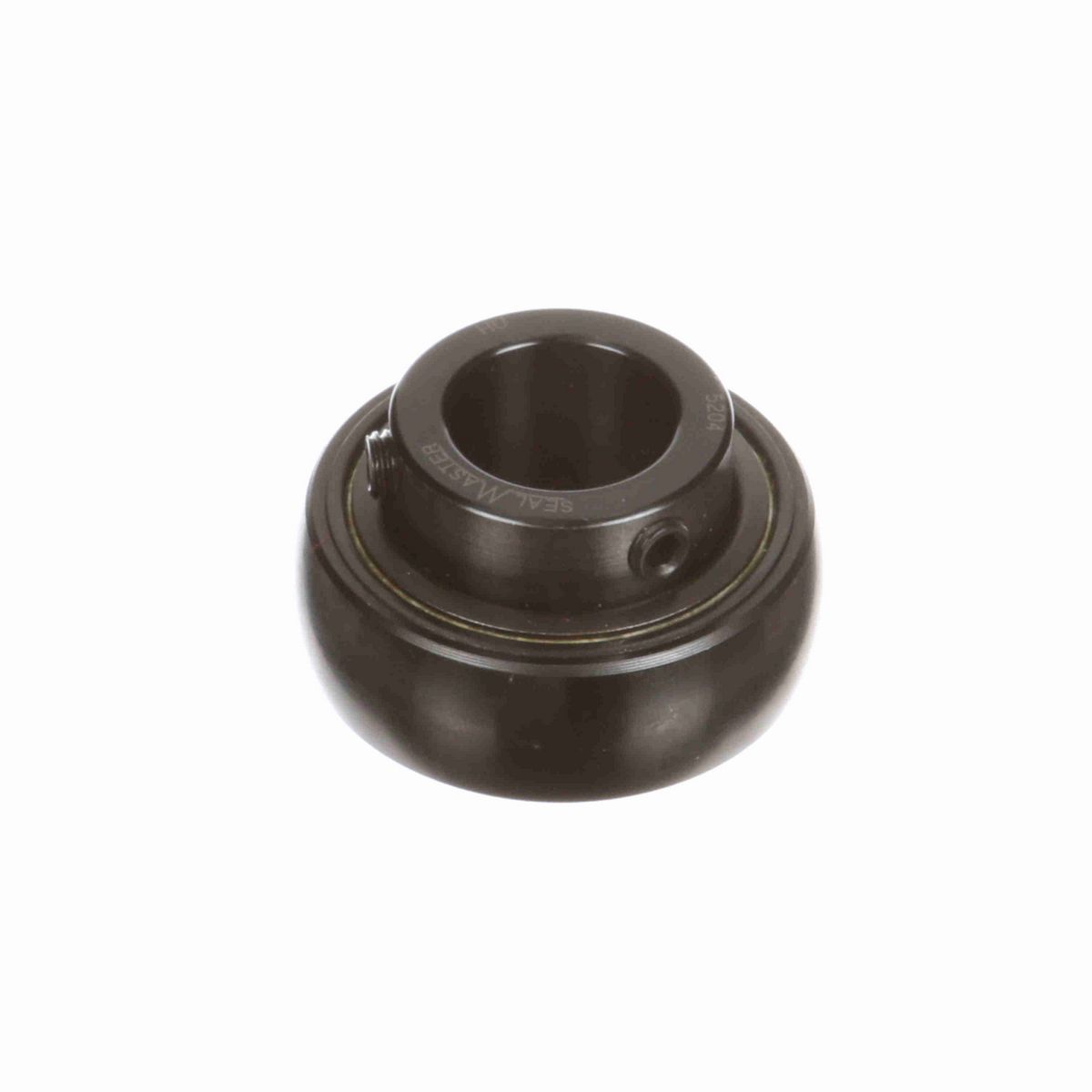

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Bore Size (mm)	20 mm
Outer Race Width (in)	0.625 in
Outer Race OD (mm)	47 mm
Outer Race OD (in)	1.8504 in
Outer Race Width (mm)	15.9 mm
Inner Race Length (mm)	31 mm

Technical Specifications

Measure Units	Metric
Rolling Element	Ball Bearing
Radius	0.04
Set Screw Thread	1/4-28
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	2,611 lb
Speed (Max) (RPM)	7300 rpm
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	1,444 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461000083
Weight	0.50 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
