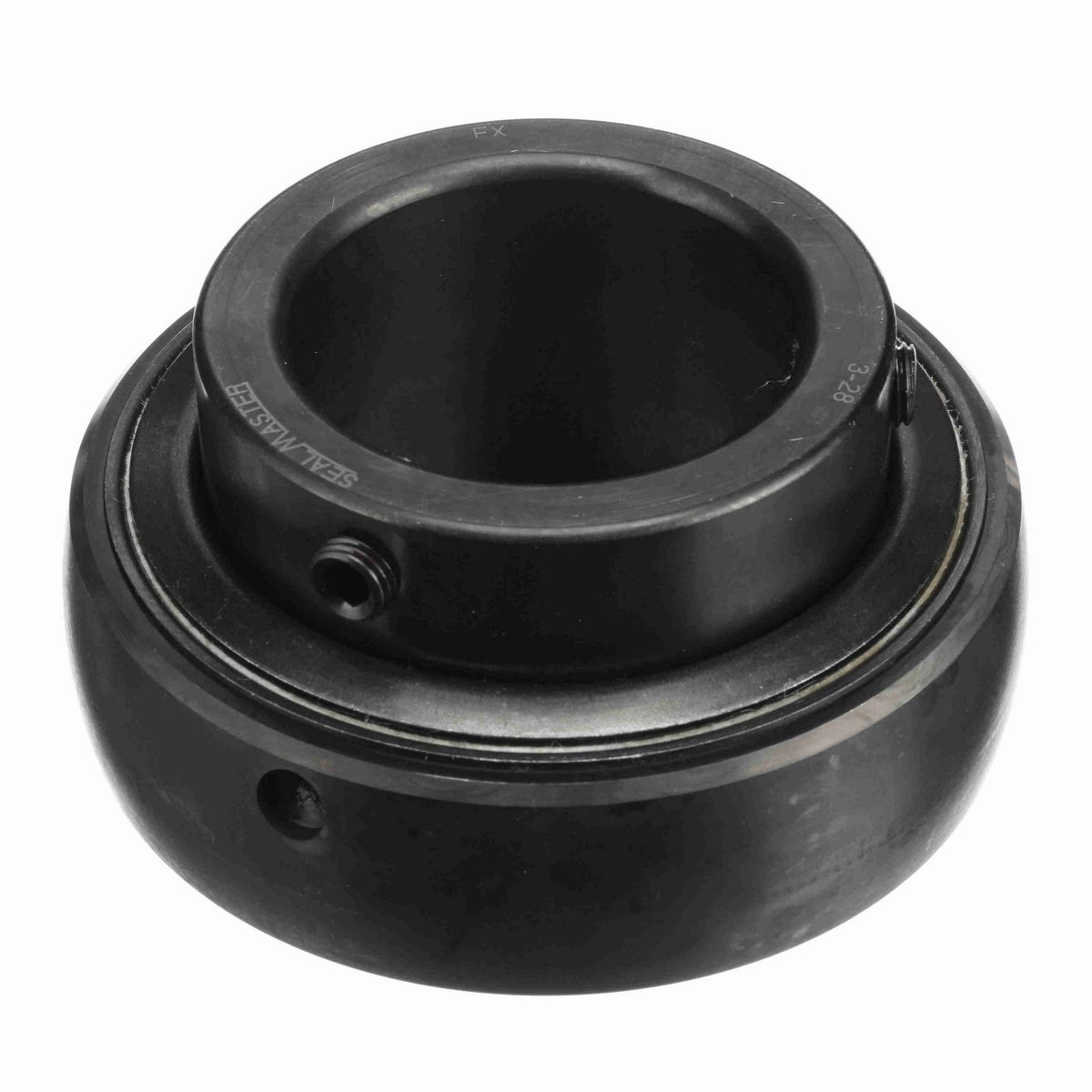

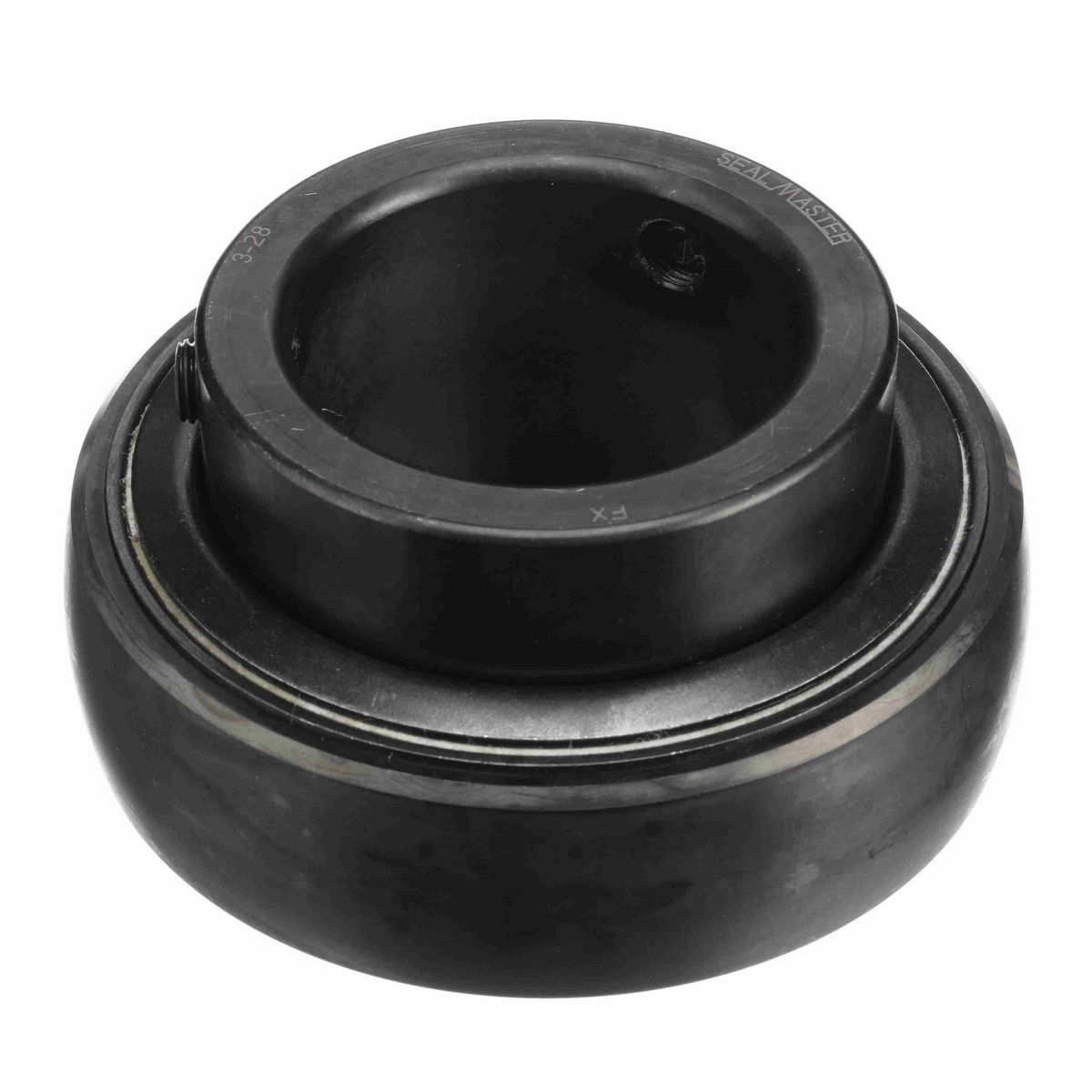

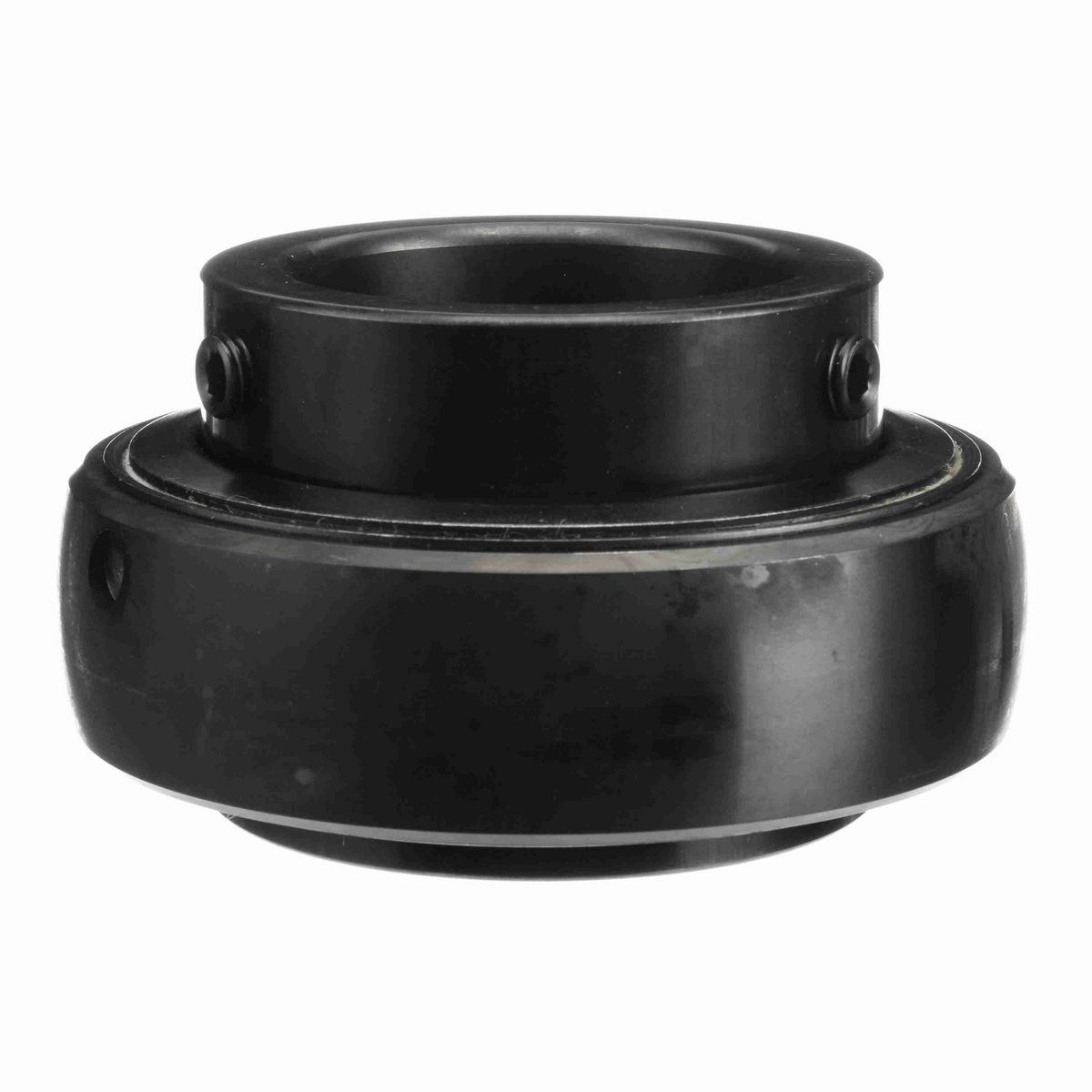

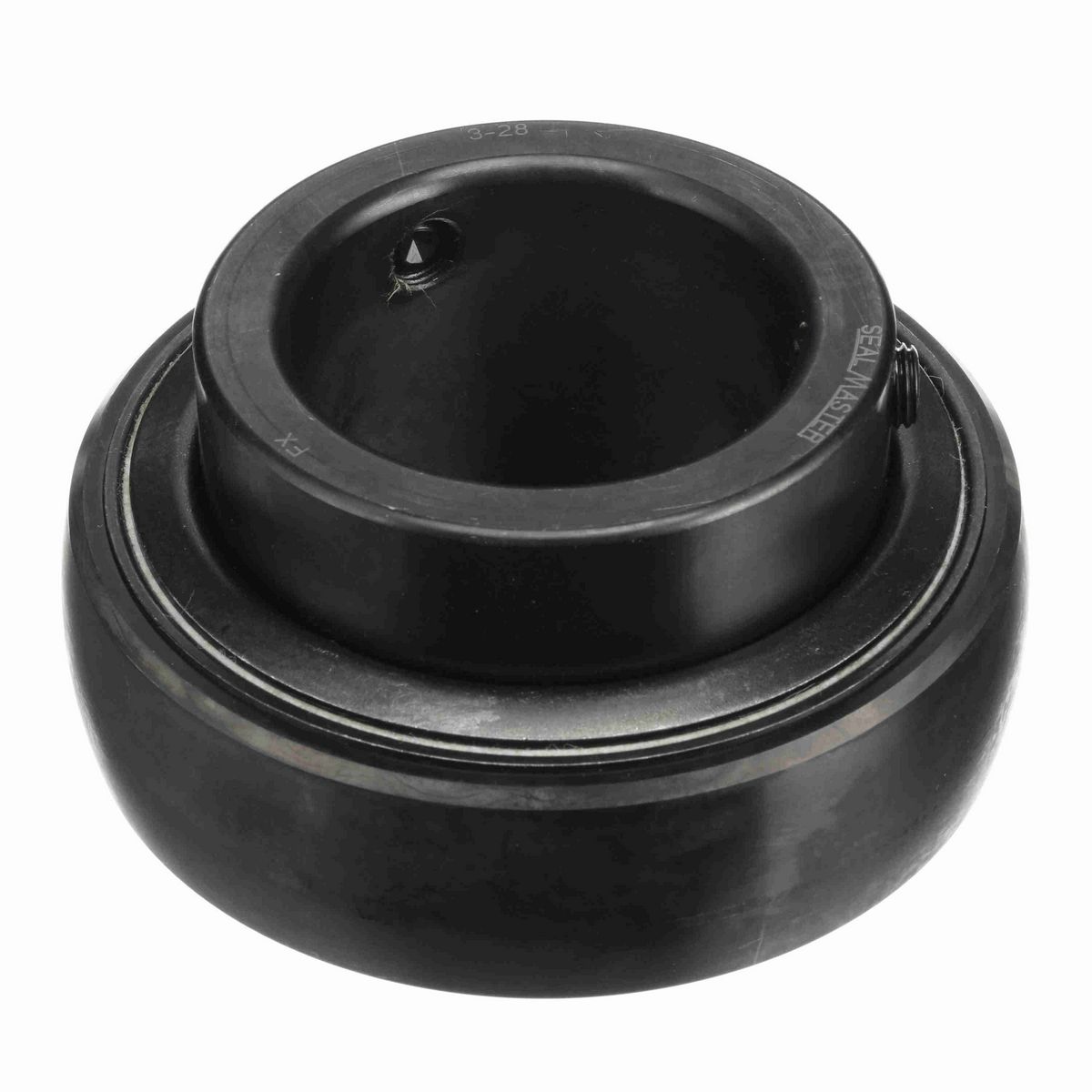

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.75 in
Bore Size (in)	2.5000 in
Outer Race OD (in)	4.921 in
Inner Race Length (in)	2.75 in
Inner Ring OD (in)	3.438 in
Outer Race Width (in)	1.375 in
Centerline to Front Face (in)	1.688 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Insert Only
Radius	0.08
Bore Shape	Straight
Set Screw Thread	7/16-20
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	13,971 lb
Speed (Max) (RPM)	2500 rpm
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	10,065 lb
Precision Rating	ABEC 1
Cage Material	Brass
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Duty/Series	Medium
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Locking Type	Set Screw
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes

General Specifications

UPC	662461000779
Weight	5.89 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
