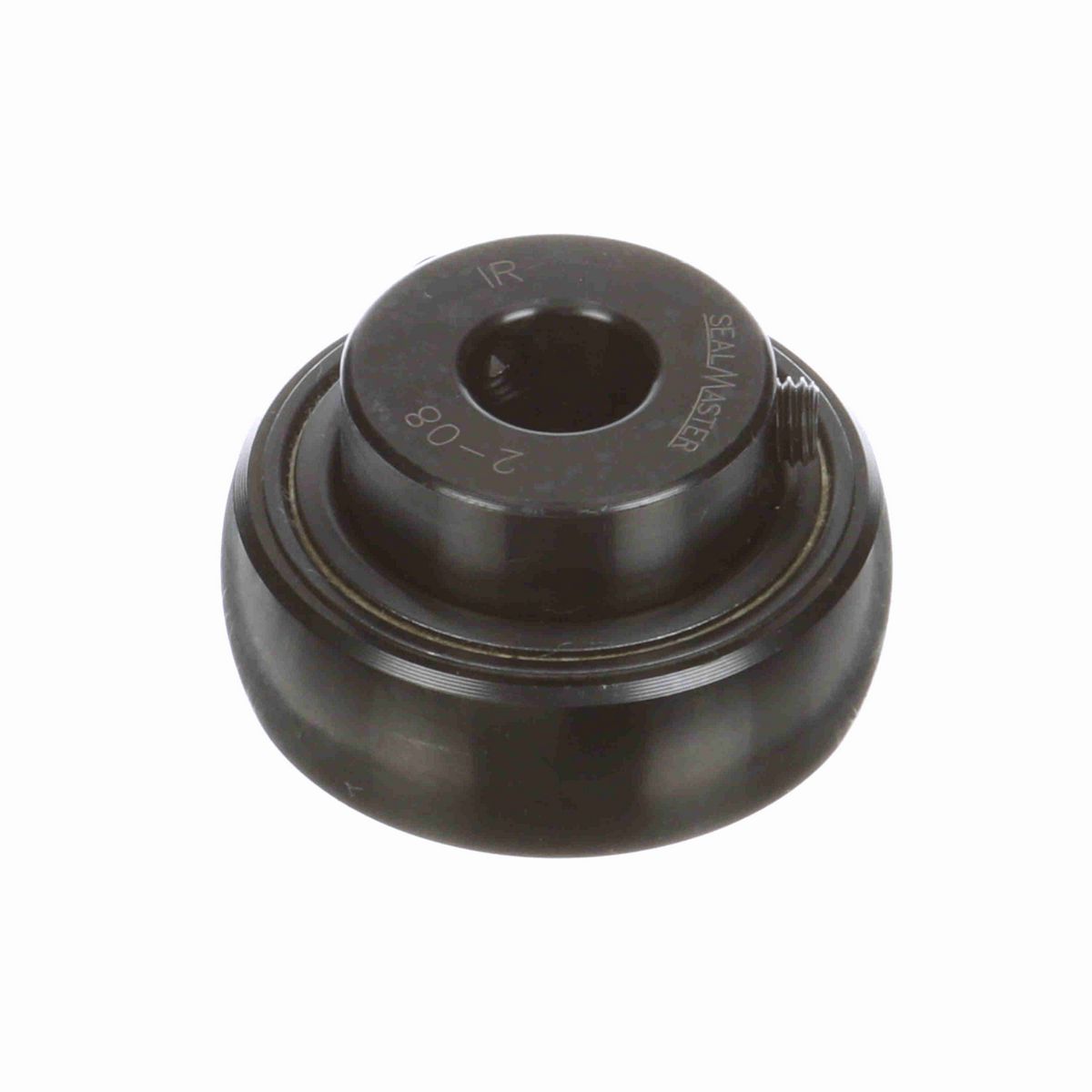

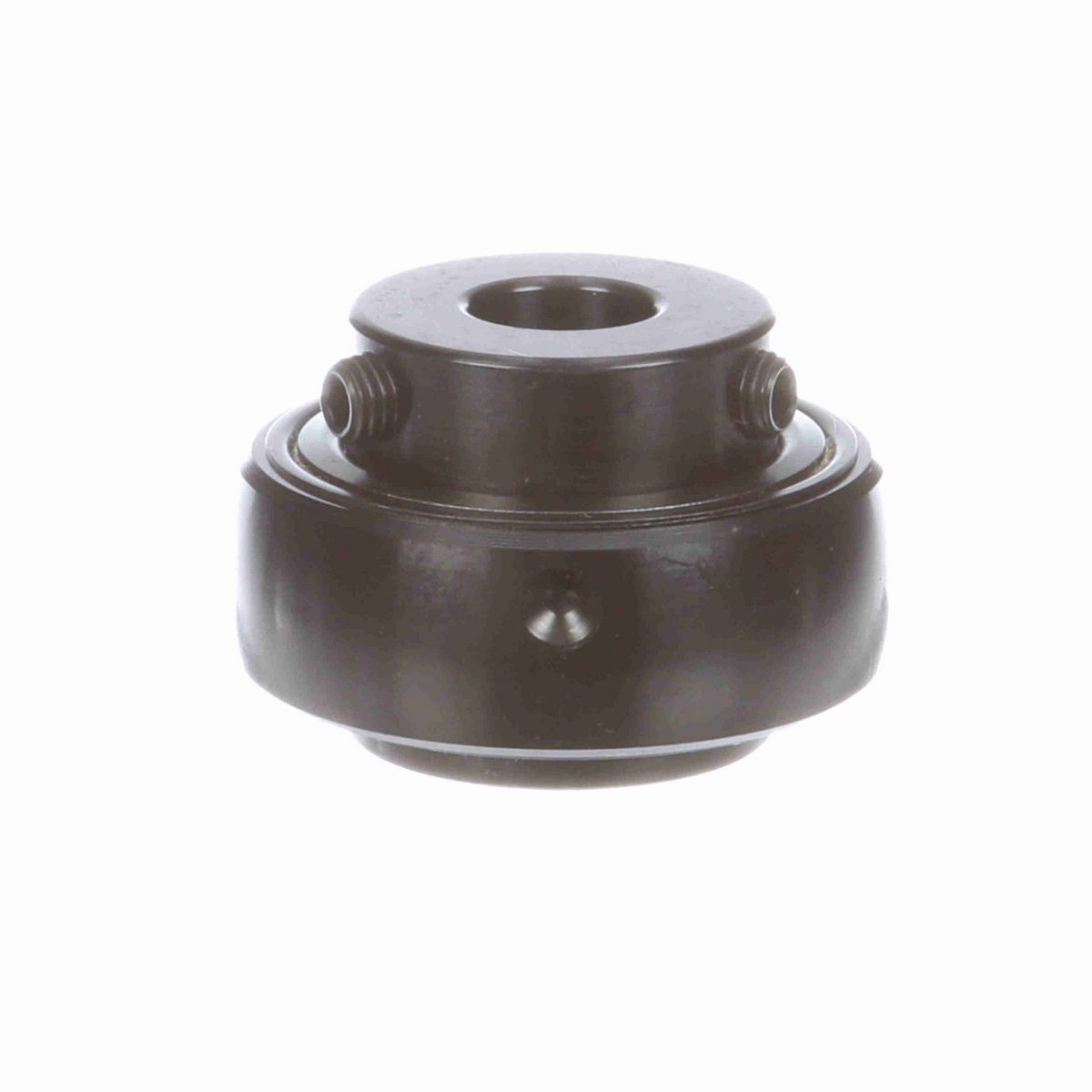

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.219 in
Bore Size (in)	0.5000 in
Inner Race Length (in)	1.219 in
Outer Race Width (in)	0.625 in
Inner Ring OD (in)	1.188 in
Outer Race OD (in)	1.85 in
Centerline to Front Face (in)	0.719 in

Technical Specifications

Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.04
Housing Type	Insert Only
Bore Shape	Straight
Set Screw Thread	1/4-28
Measure Units	Inch
Radial Dynamic Load Capacity (lb)	2,611 lb
Speed (Max) (RPM)	7300 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	1,444 lb
Precision Rating	ABEC 1
Cage Material	Brass
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Locking Type	Set Screw
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461000038
Weight	0.50 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
