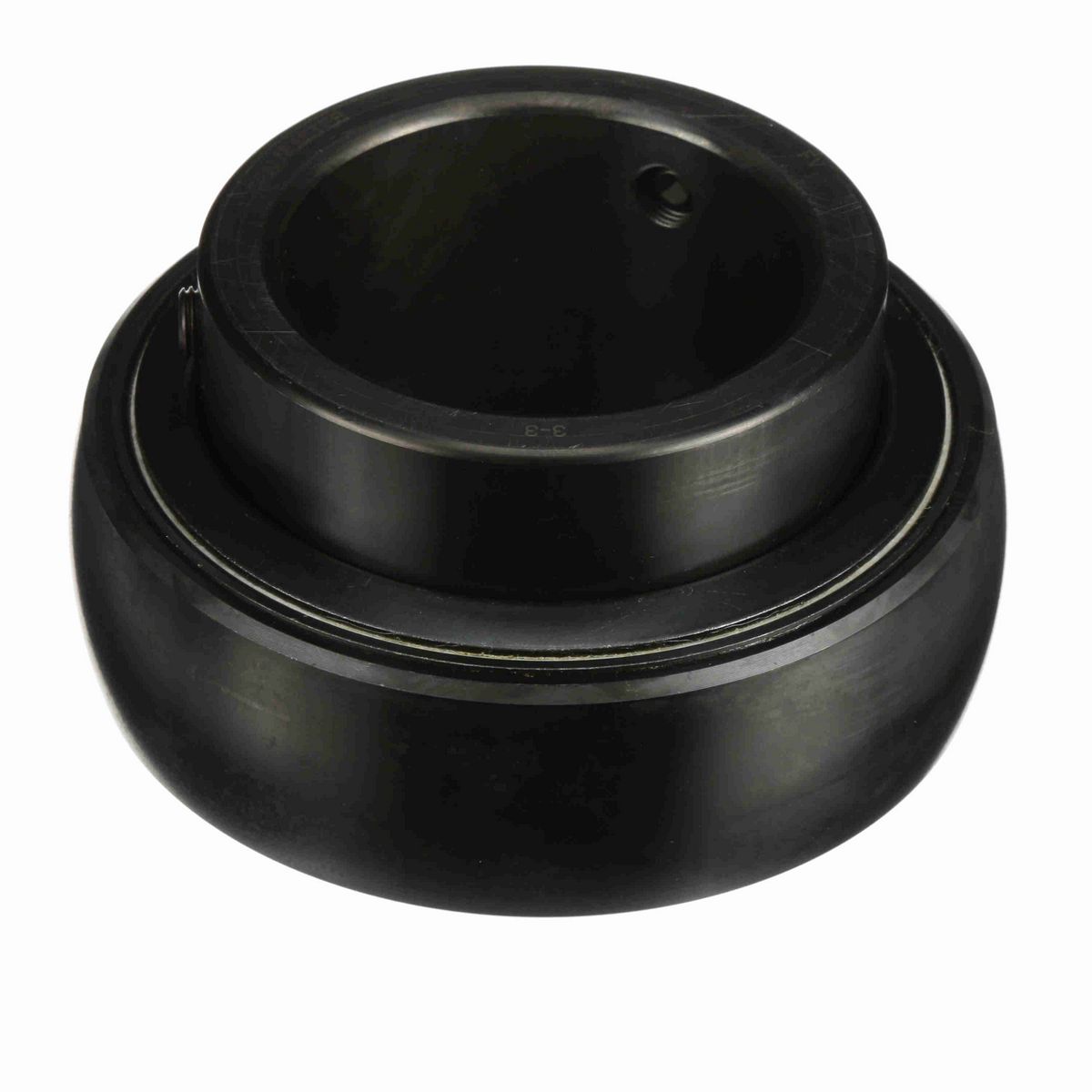

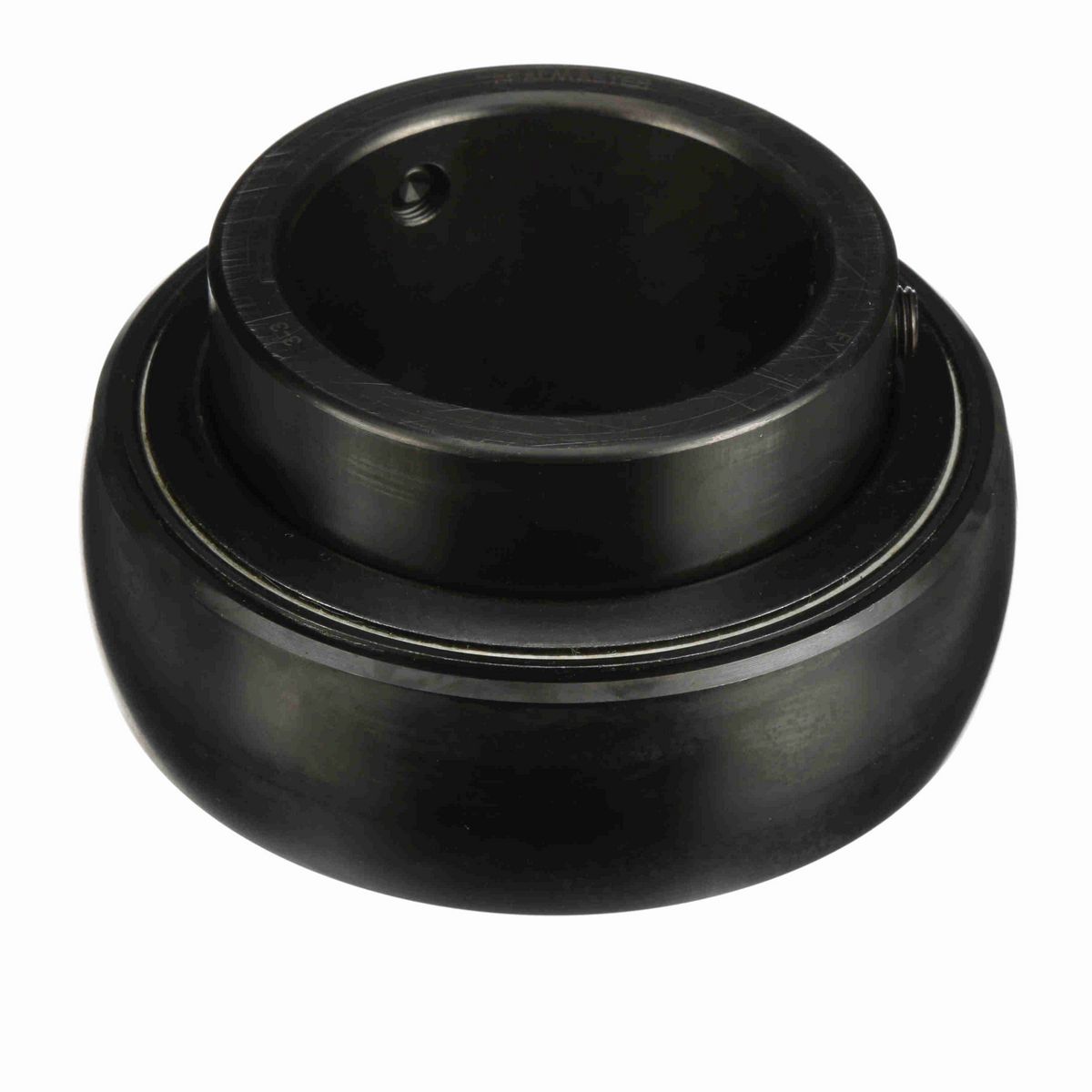

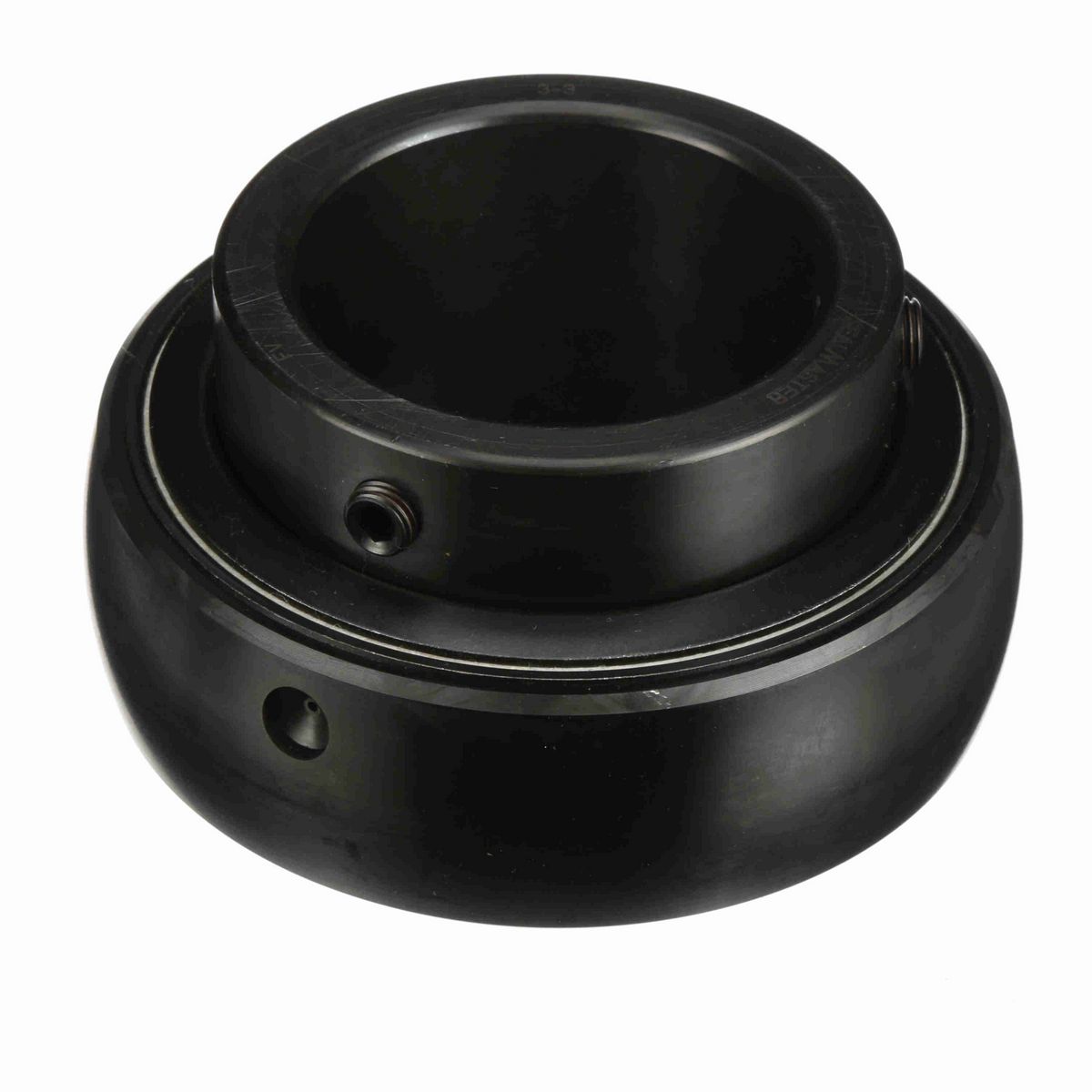

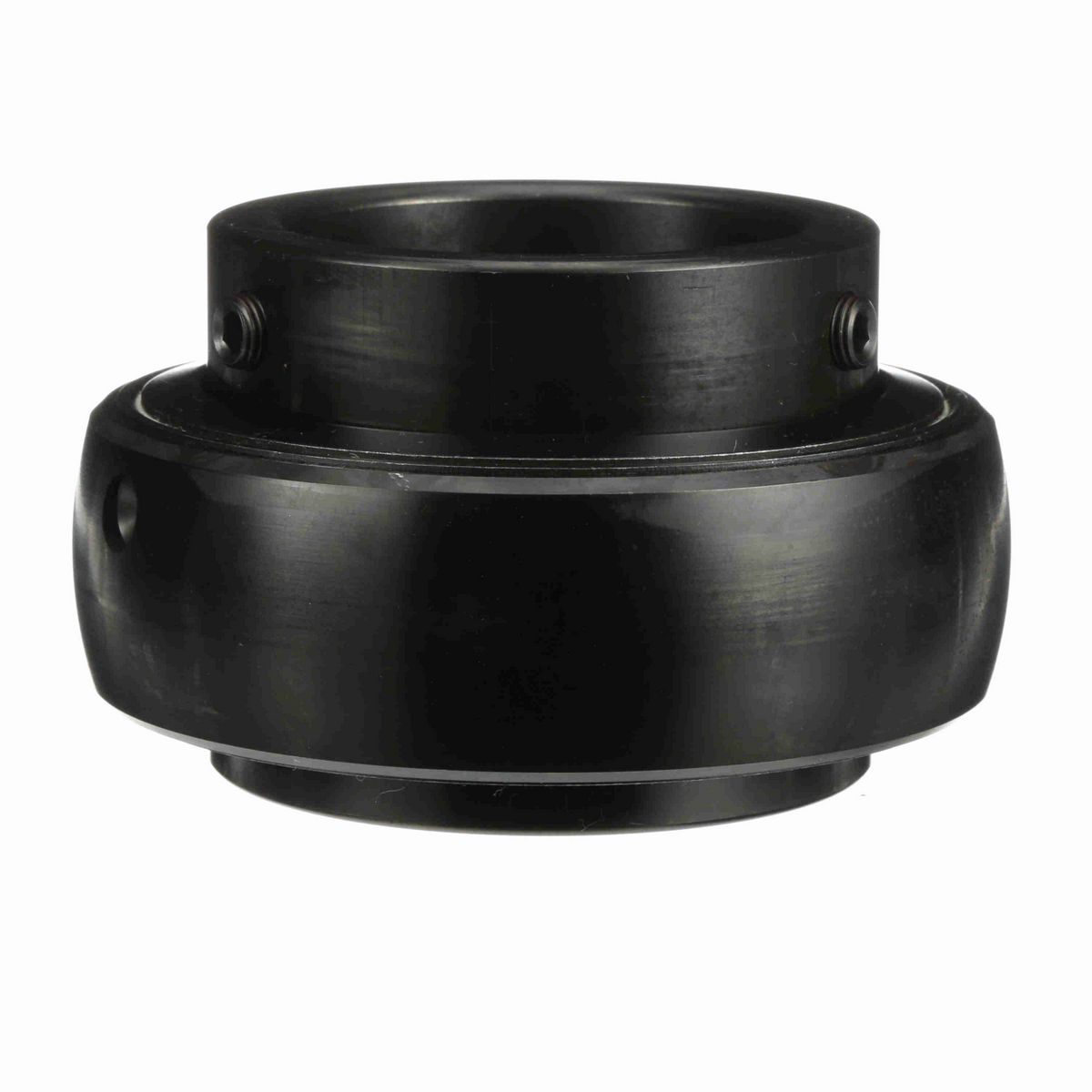

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.063 in
Bore Size (in)	3 in
Inner Race Length (in)	3.25 in
Inner Ring OD (in)	3.641 in
Outer Race OD (in)	5.512 in
Centerline to Front Face (in)	1.75 in
Outer Race Width (in)	1.688 in

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Inch
Radius	0.12
Bore Shape	Straight
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Set Screw Thread	7/16-20
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	17,412 lb
Speed (Max) (RPM)	2250 rpm
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	13,174 lb
Precision Rating	ABEC 1
Cage Material	Brass
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Medium
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No

General Specifications

UPC	662461000847
Weight	8.21 LB
Packaged Length	5.75 IN
Packaged Width	5.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
