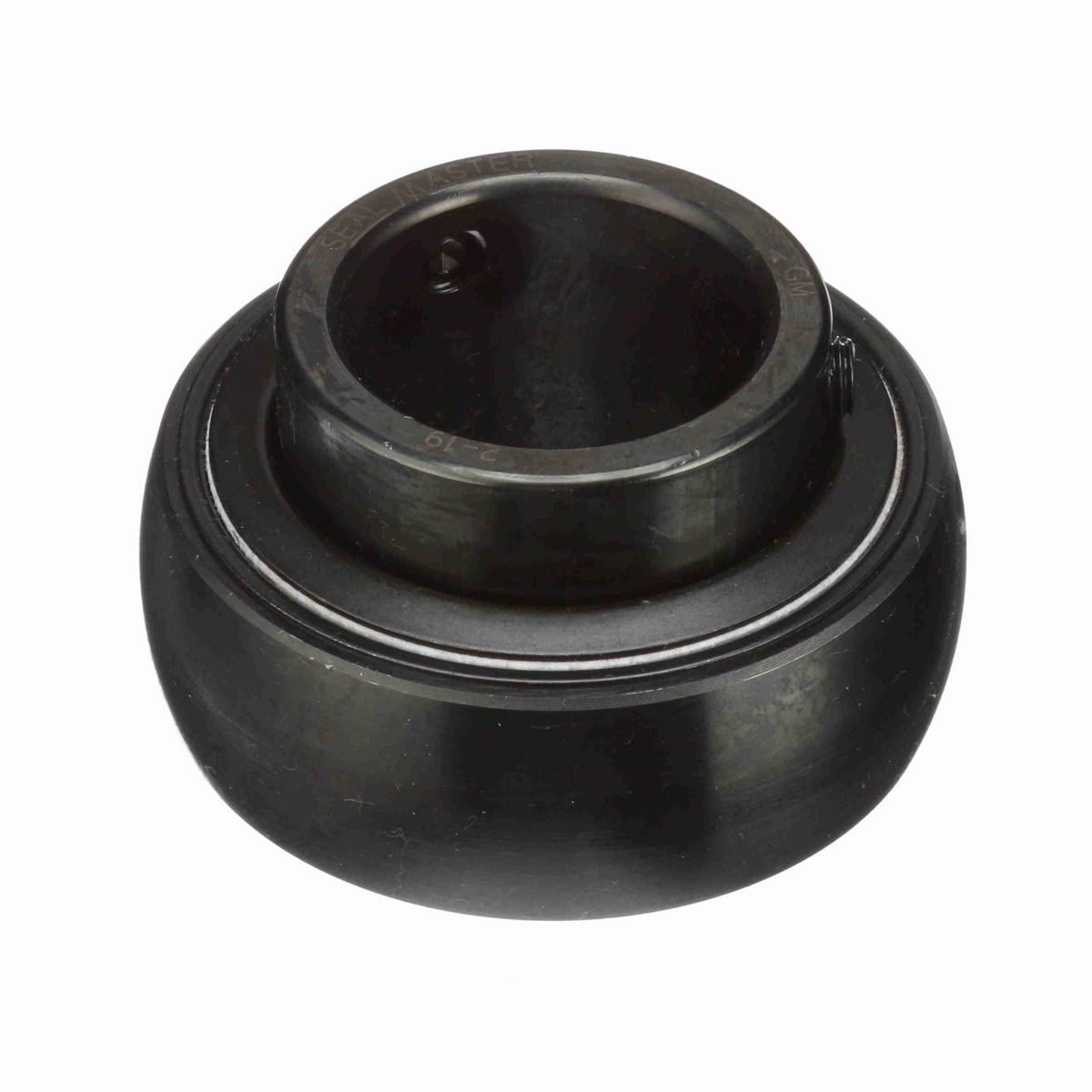

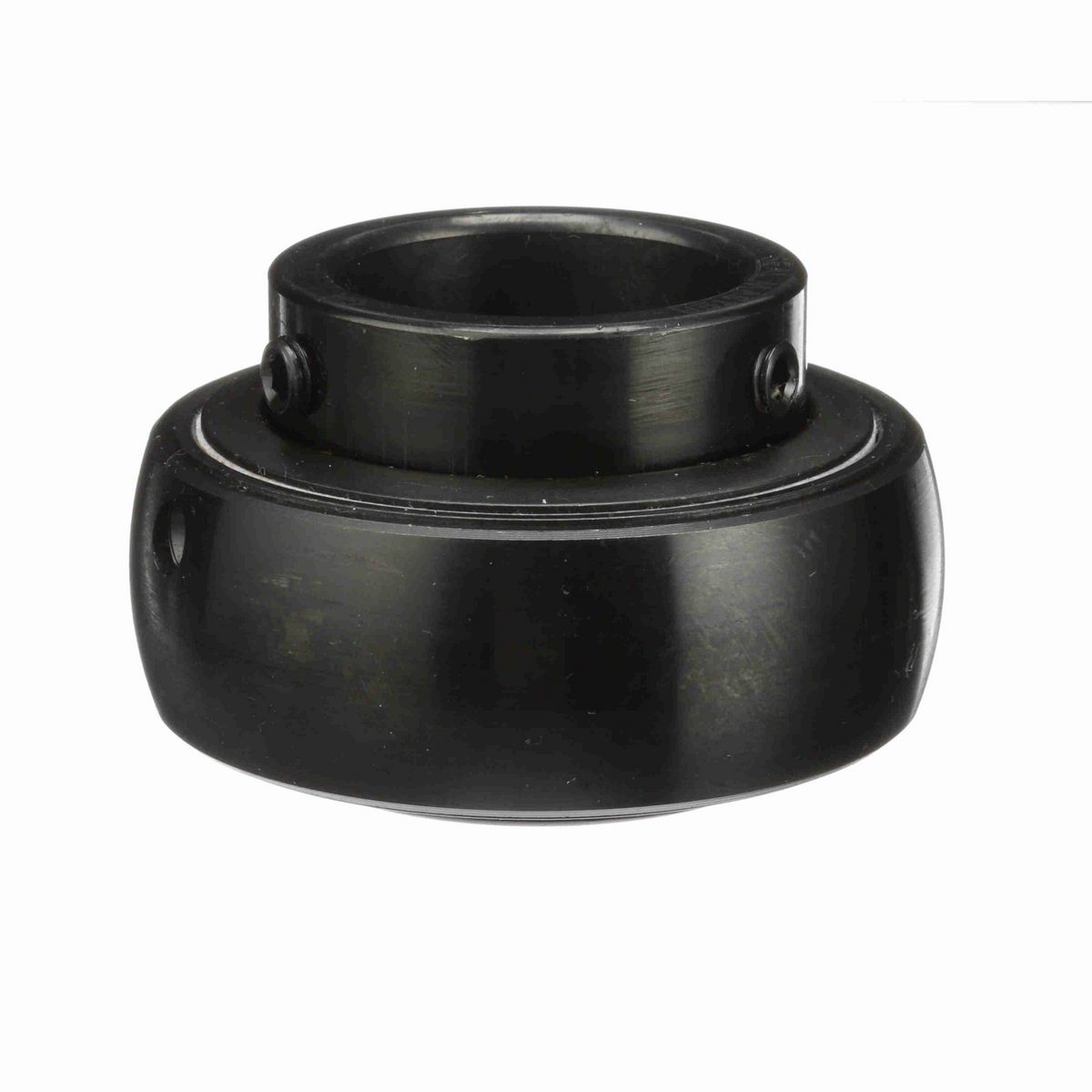

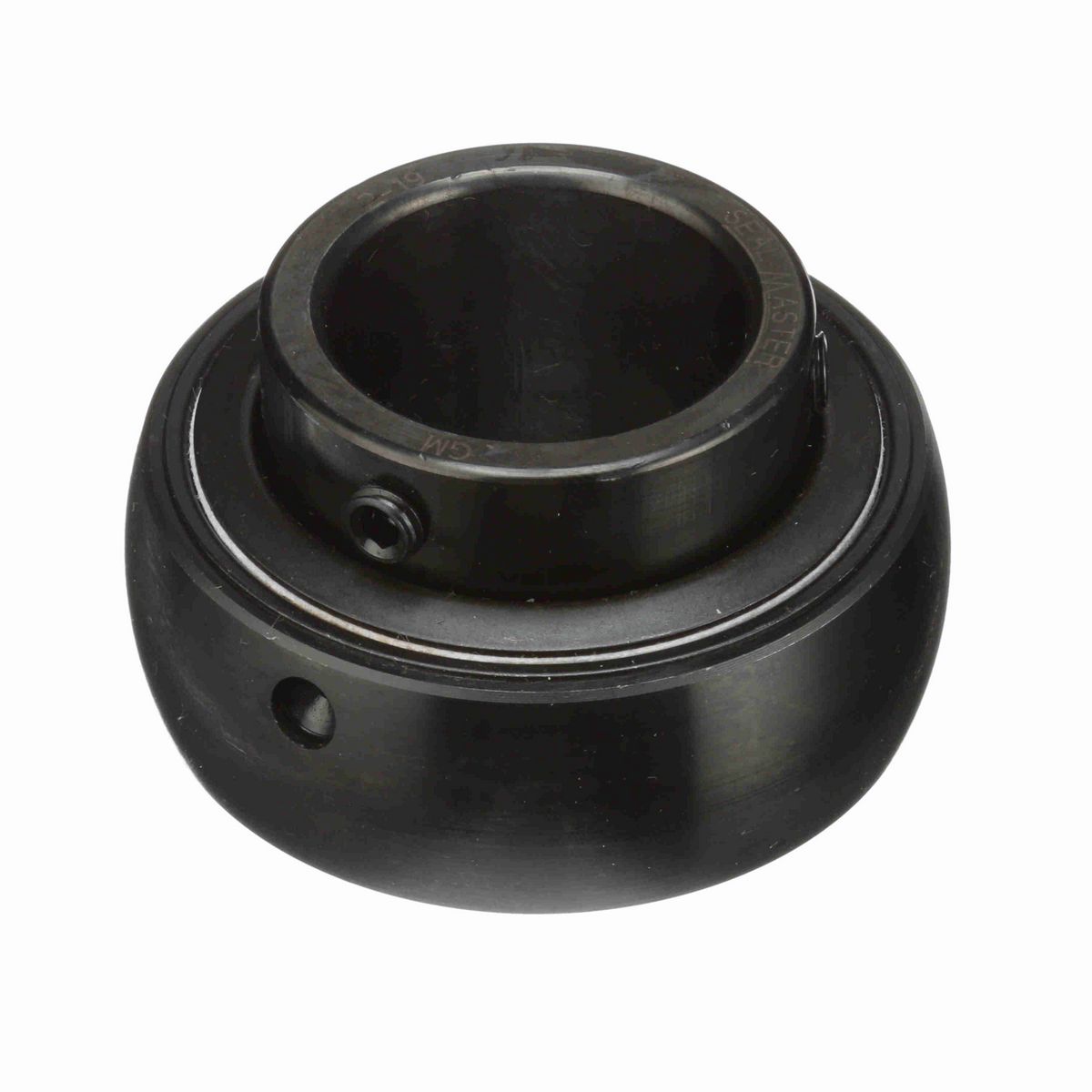

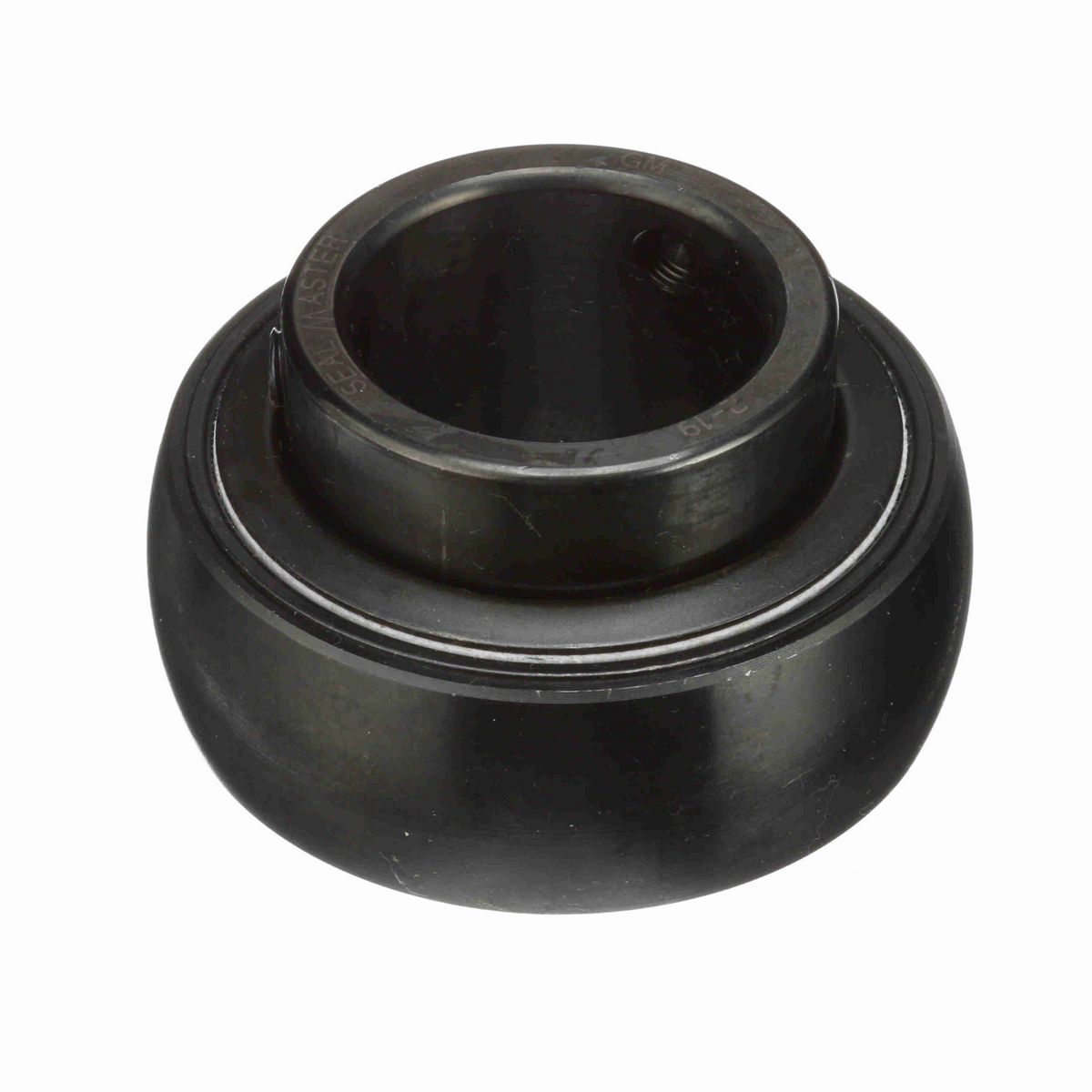

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.5625 in
Centerline to Front Face (in)	1.188 in
Outer Race OD (in)	3.15 in
Outer Race Width (in)	1.094 in
Inner Ring OD (in)	2.063 in
Inner Race Length (in)	1.938 in

Technical Specifications

Set Screw Thread	5/16-24
Radius	0.062
Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Internal Clearance	Standard
Speed (Max) (RPM)	4150 rpm
Radial Dynamic Load Capacity (lb)	7,340 lb
Misalignment	±2.0° Misalignment - Static Only
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	4,467 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461000250
Weight	1.68 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
