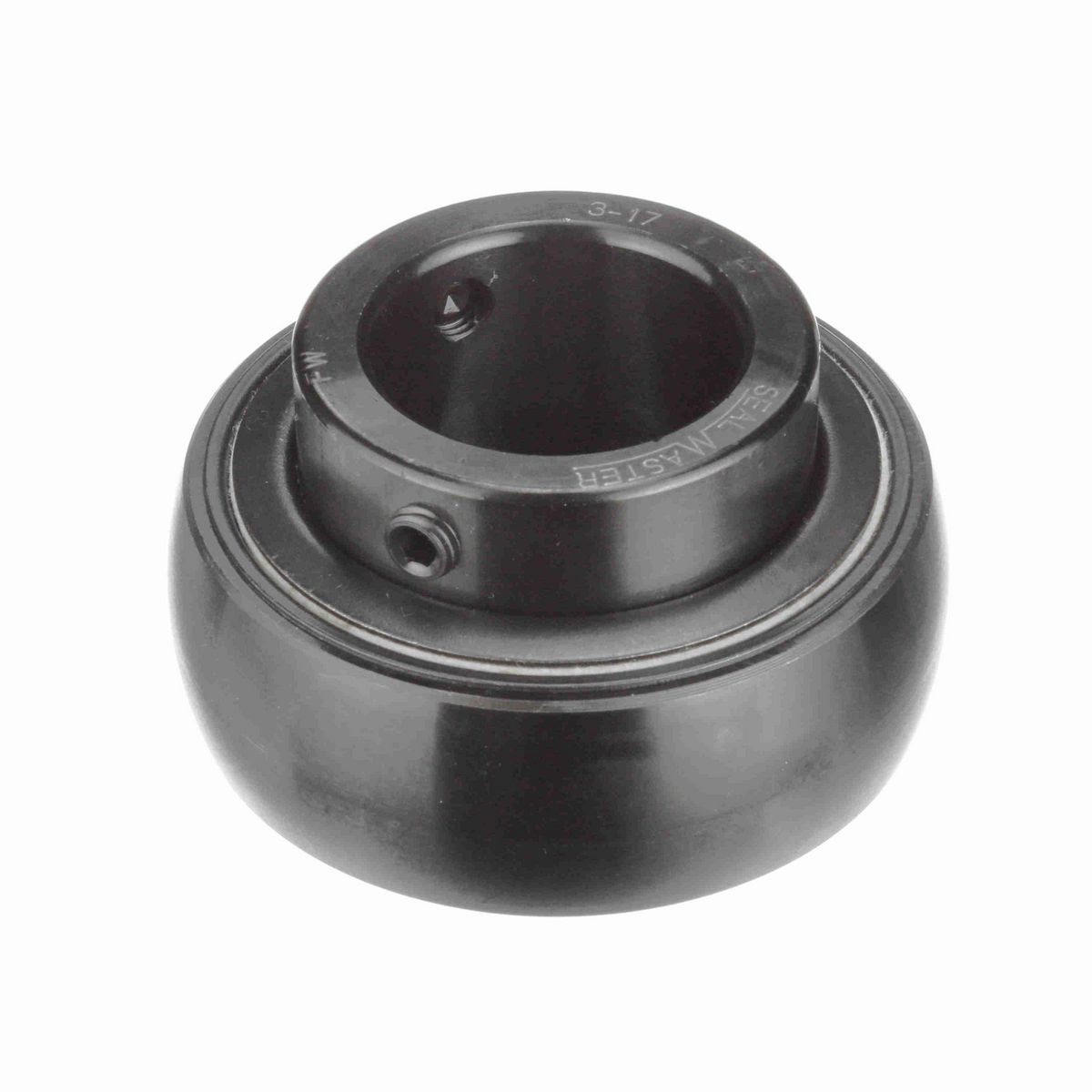

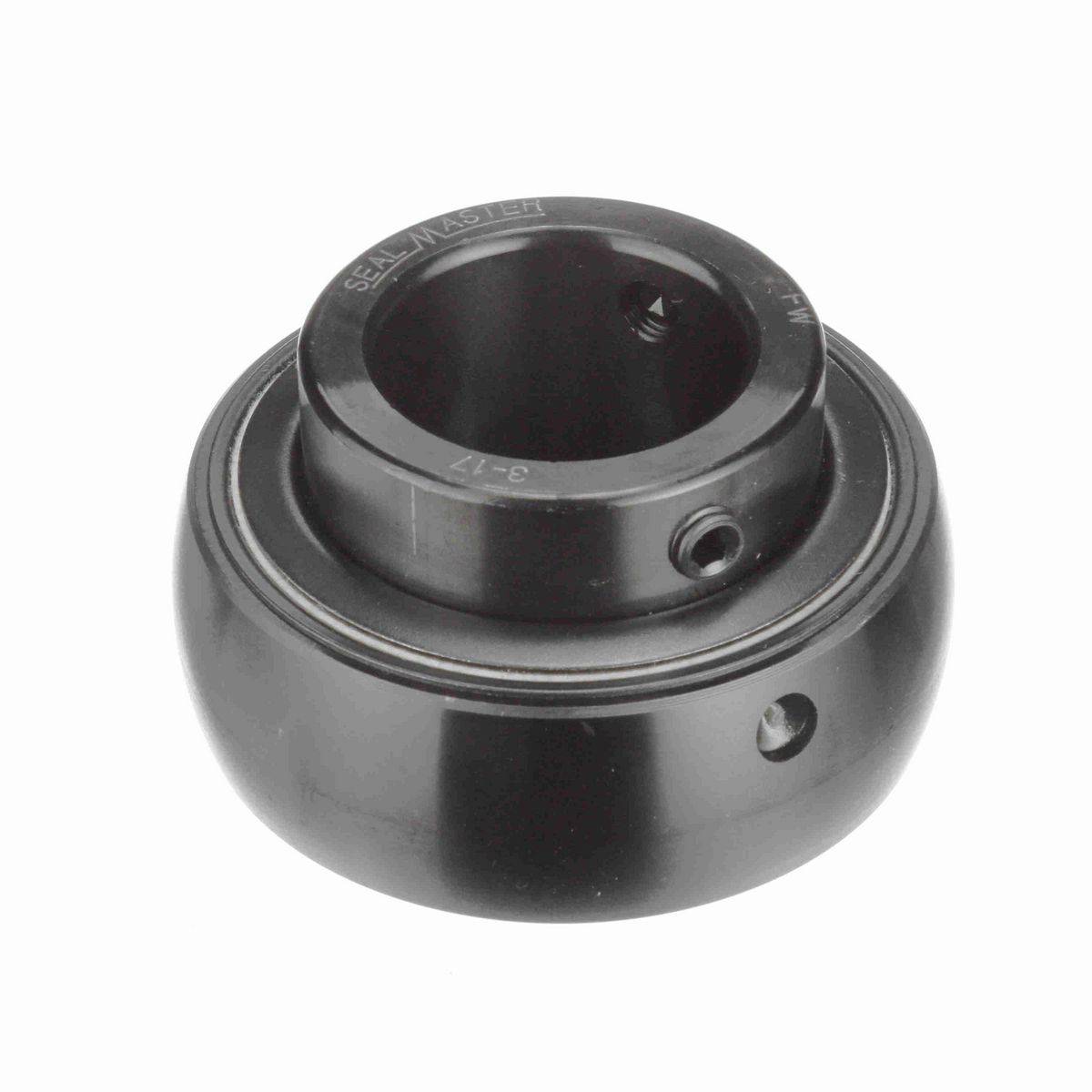

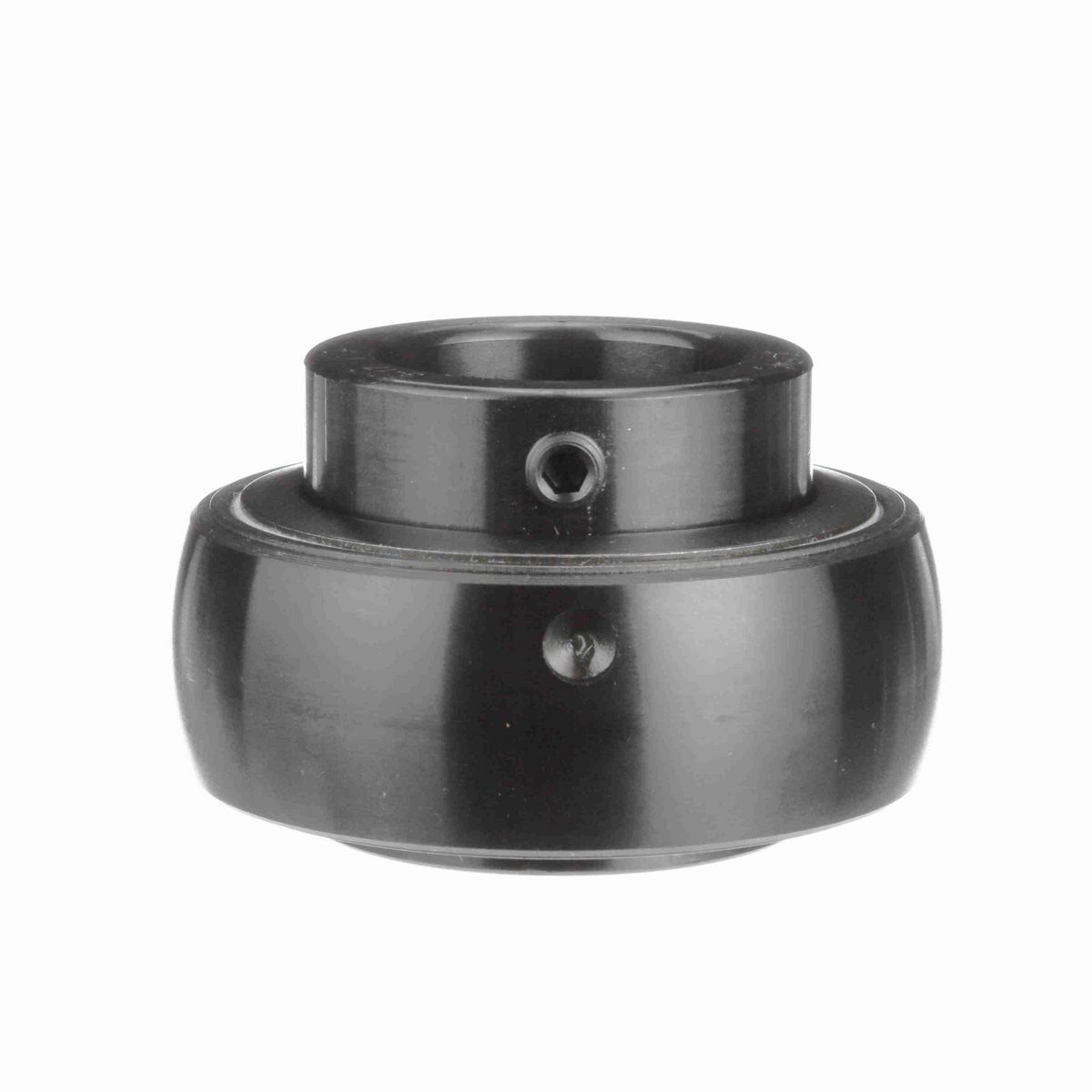

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.4375 in
Centerline to Front Face (in)	1.188 in
Inner Race Length (in)	1.938 in
Inner Ring OD (in)	2.063 in
Outer Race Width (in)	1.094 in
Outer Race OD (in)	3.15 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Set Screw Thread	5/16-24
Housing Type	Insert Only
Measure Units	Inch
Radius	0.062
Insert Material	52100 Bearing Steel, Black Oxided
Internal Clearance	Standard
Speed (Max) (RPM)	4150 rpm
Radial Dynamic Load Capacity (lb)	7,340 lb
Misalignment	±2.0° Misalignment - Static Only
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	4,467 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Maximum Operating Temperature (F)	220 °F
Type of Seal	Felt Labyrinth Seal
Locking Type	Set Screw
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Medium
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461000656
Weight	1.83 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
