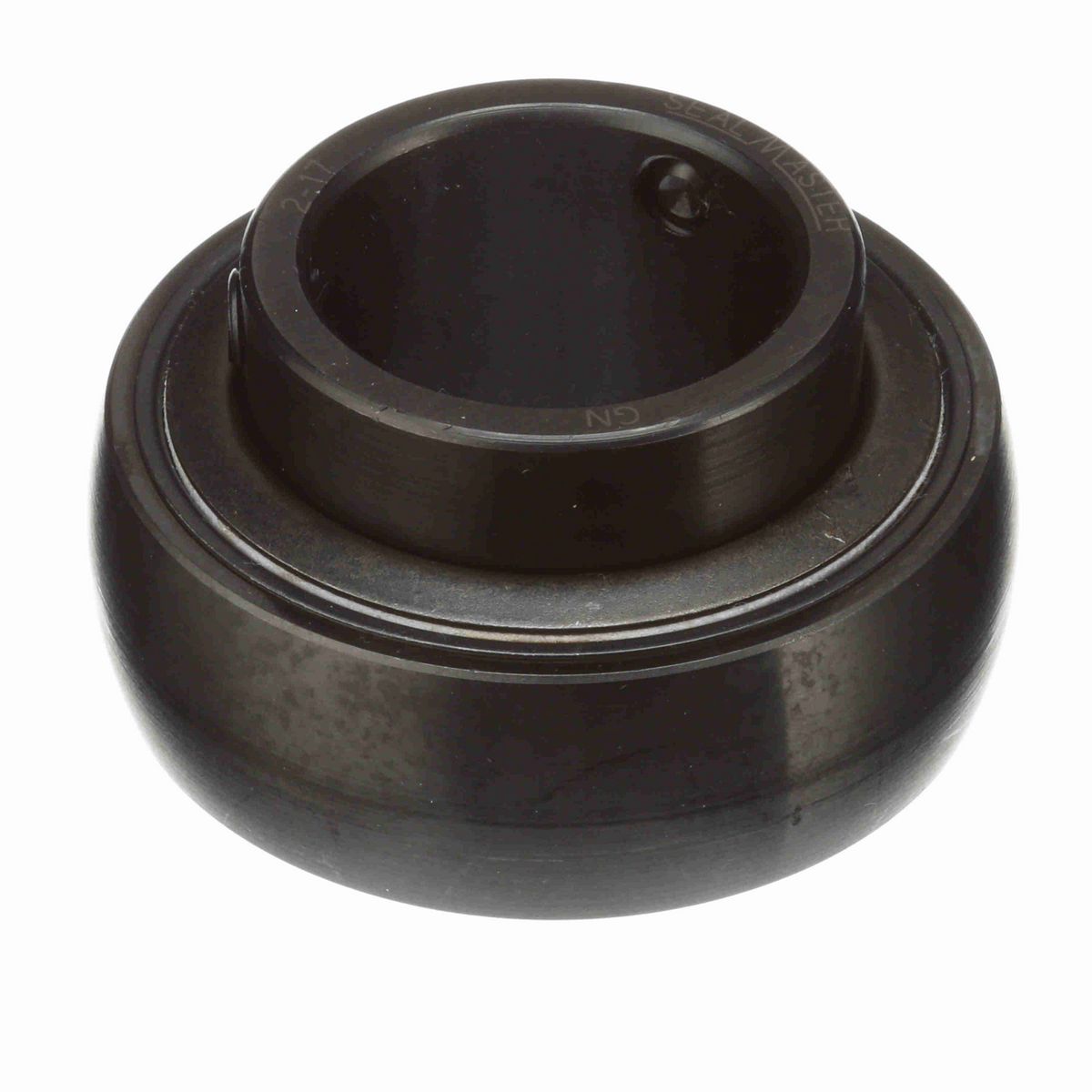

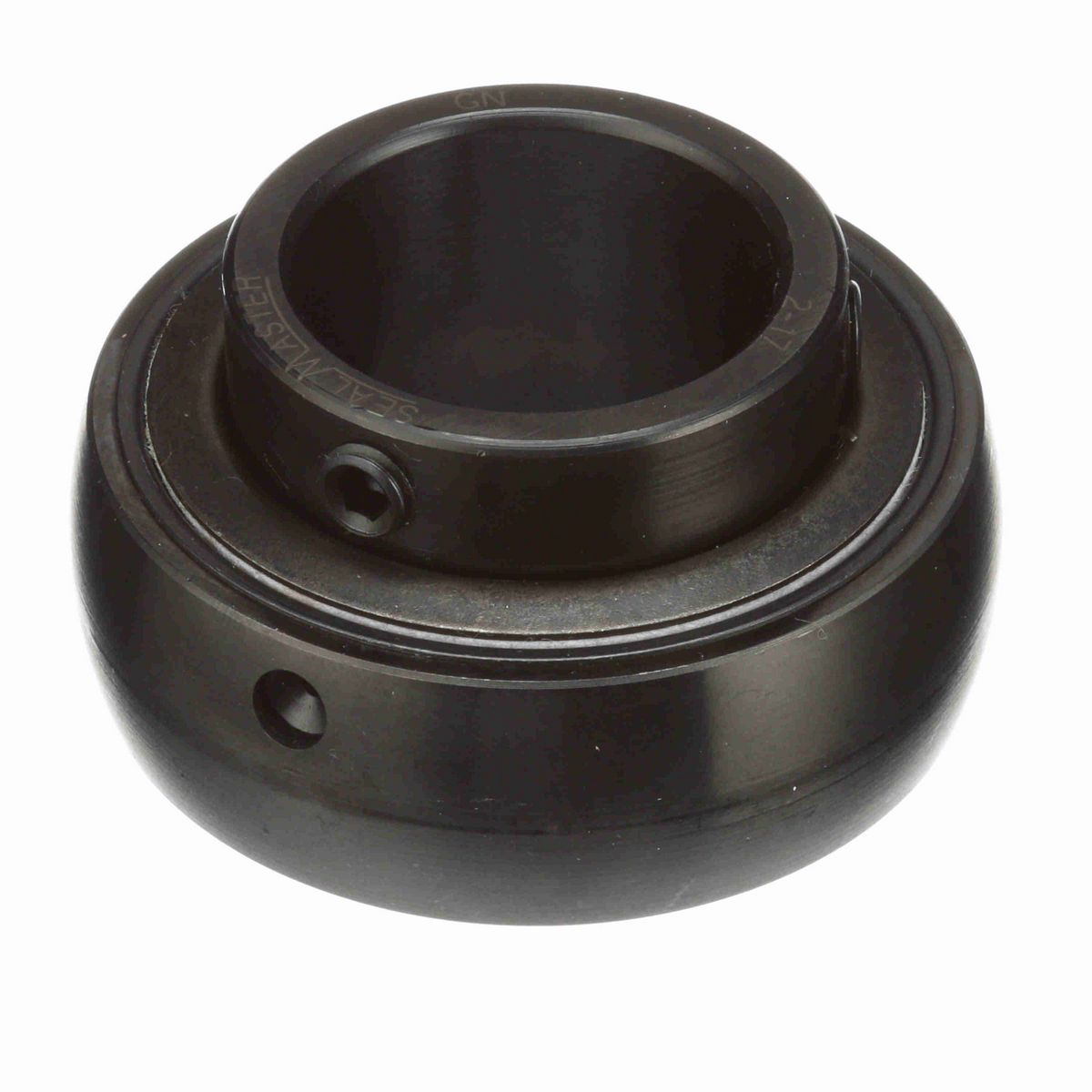

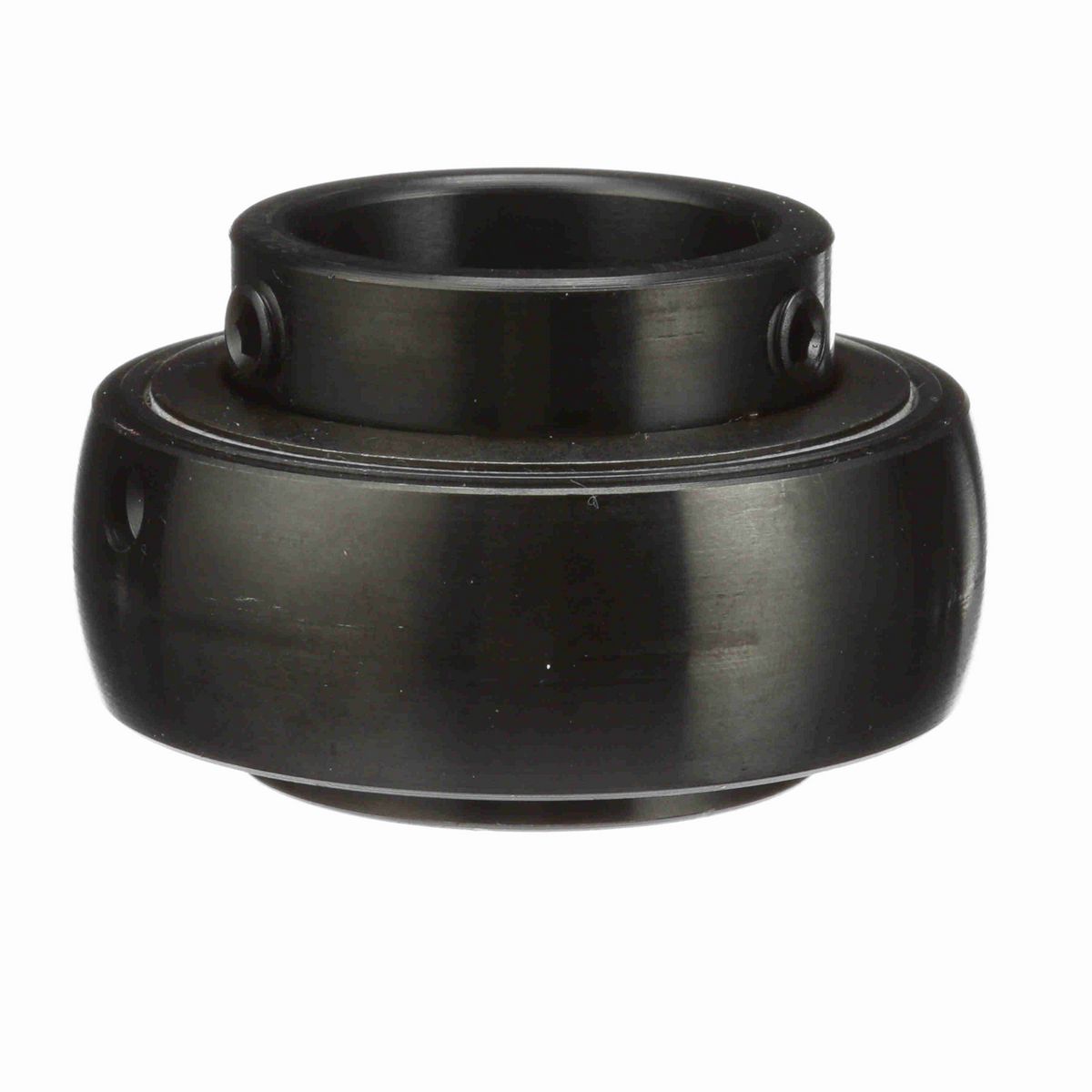

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.688 in
Bore Size (in)	1.4375 in
Inner Race Length (in)	1.688 in
Outer Race Width (in)	0.938 in
Centerline to Front Face (in)	1 in
Outer Race OD (in)	2.835 in
Inner Ring OD (in)	1.859 in

Technical Specifications

Radius	0.04
Rolling Element	Ball Bearing
Set Screw Thread	5/16-24
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Housing Type	Insert Only
Bore Shape	Straight
Speed (Max) (RPM)	4650 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	5,782 lb
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	3,493 lb
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Fixed vs. Expansion	No
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461000229
Weight	1.14 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
