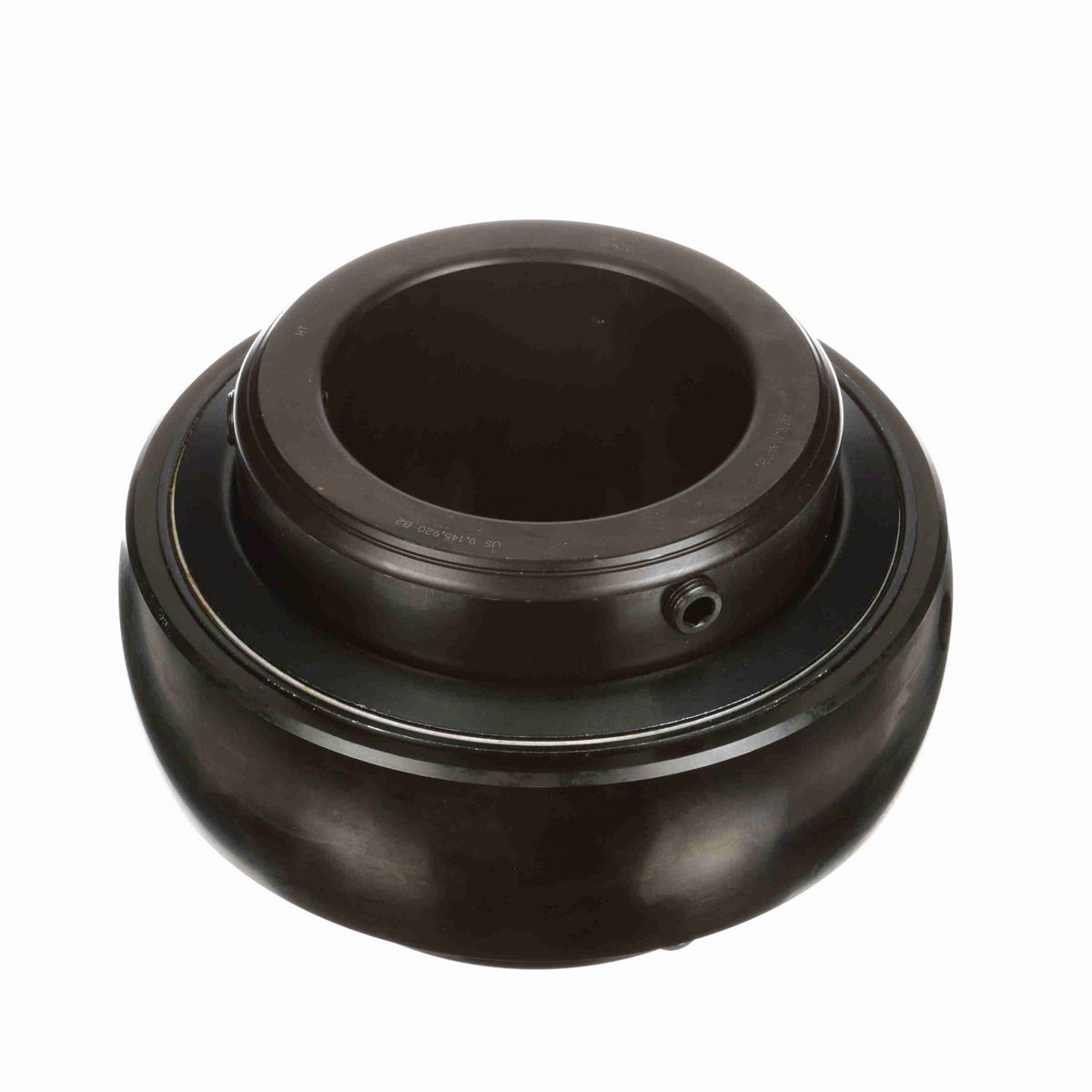

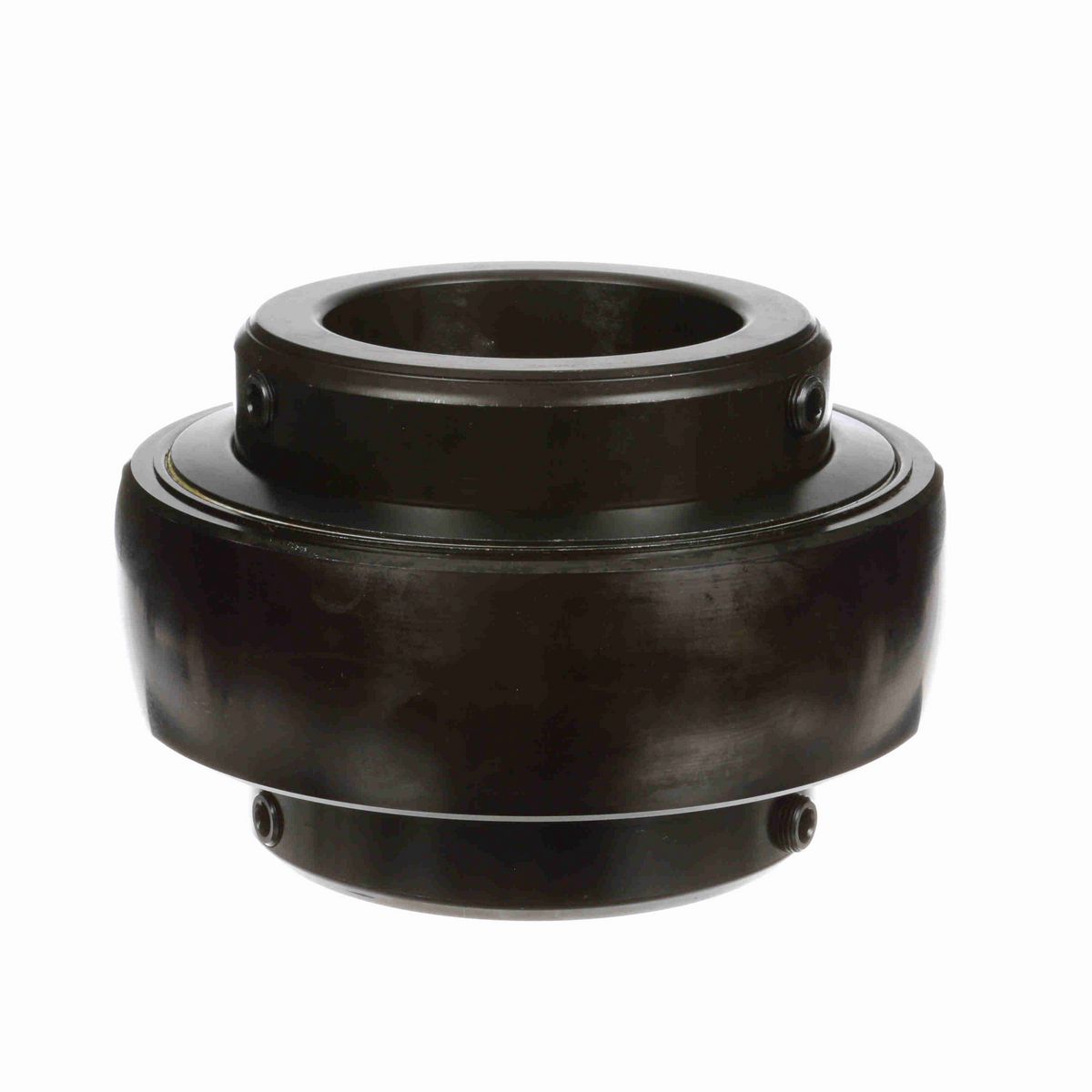

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	5.75 in
Bore Size (in)	4.4375 in
Outer Race OD (in)	9.055 in
Inner Ring OD (in)	6.344 in
Inner Race Length (in)	5.75 in
Outer Race Width (in)	2.625 in
Centerline to Front Face (in)	2.875 in

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Rolling Element	Ball Bearing
Radius	0.12
Set Screw Thread	5/8-18
Measure Units	Inch
Internal Clearance	Standard
Speed (Max) (RPM)	1950 rpm
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	37,482 lb
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	33,267 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Duty/Series	Medium
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Double Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461015308
Weight	40.40 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
