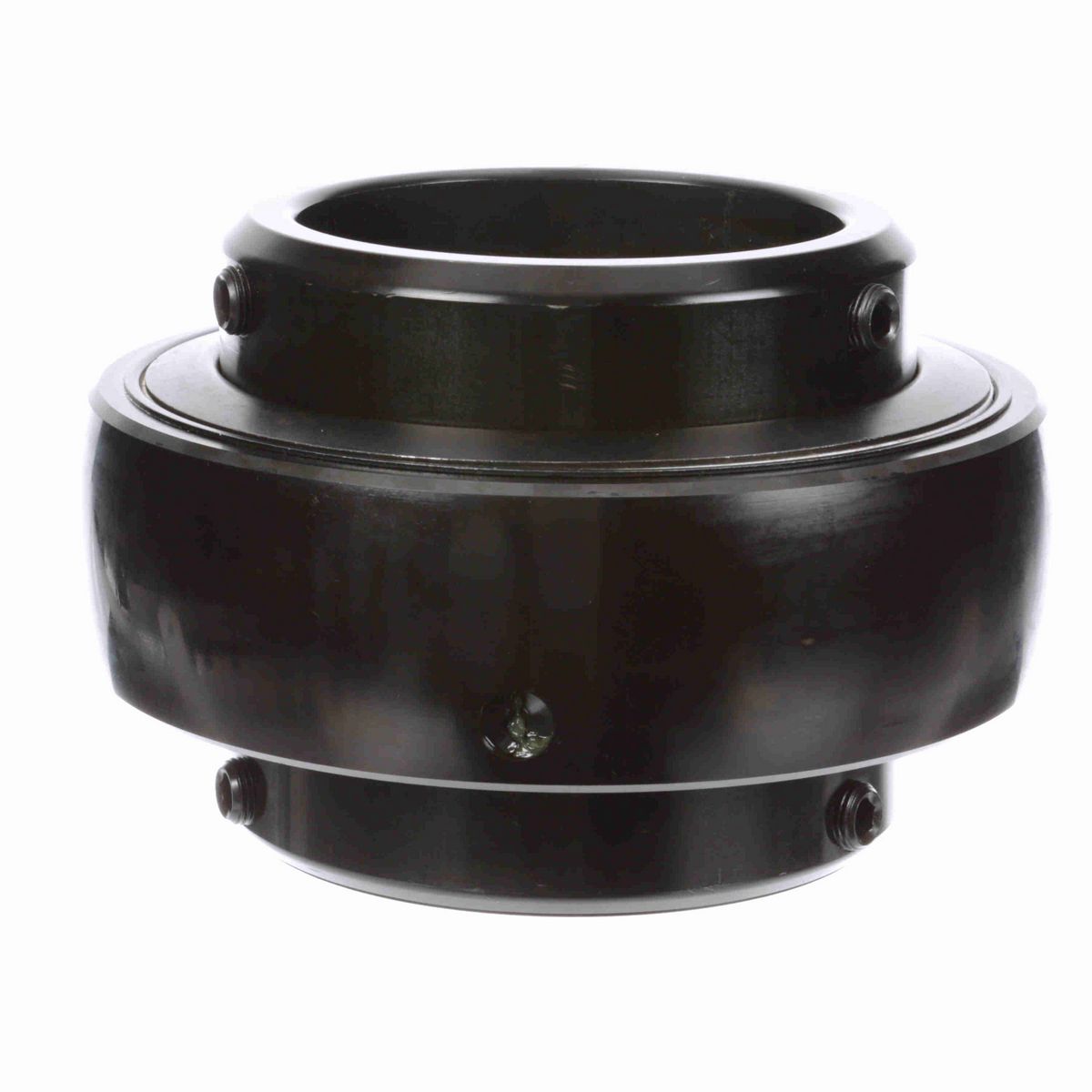

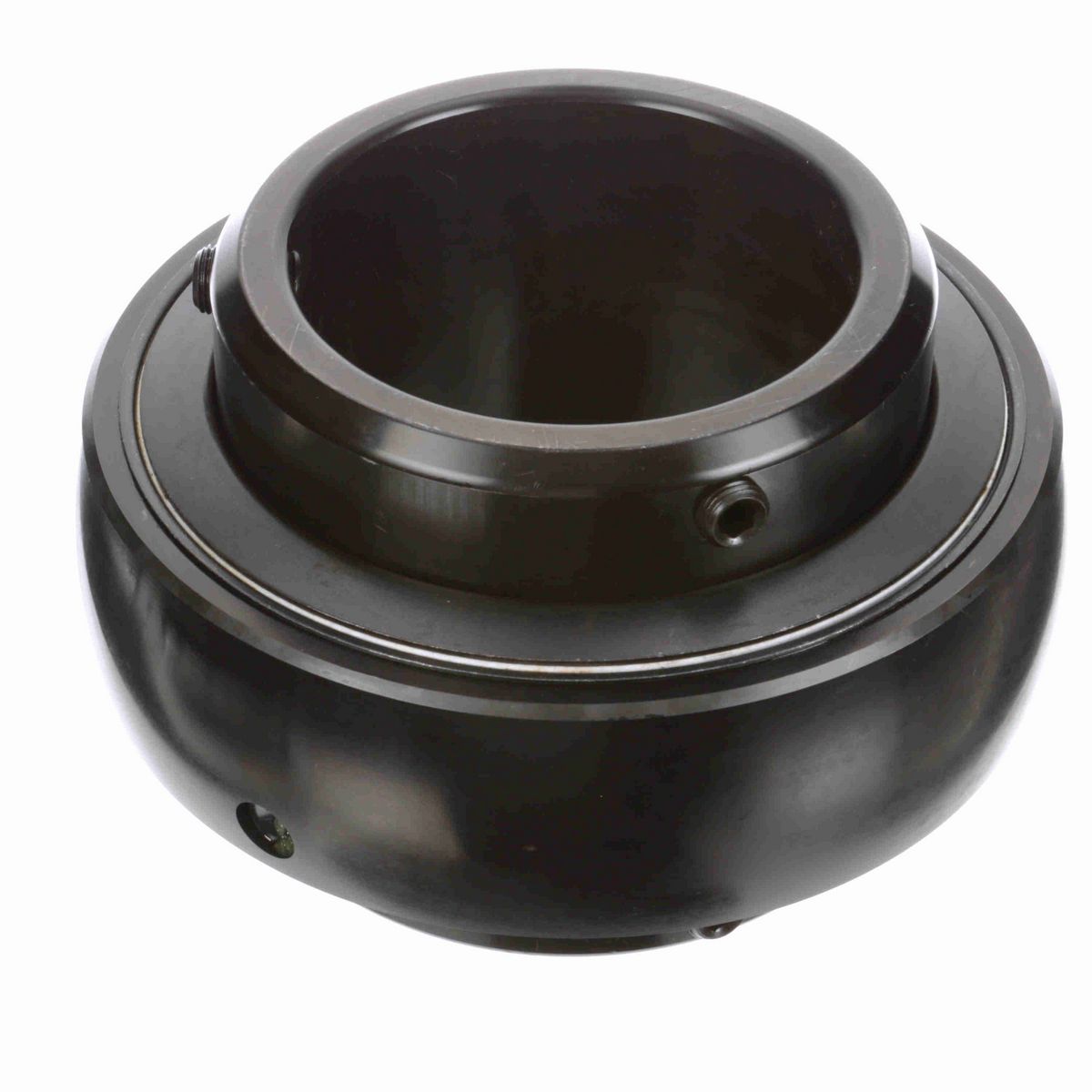

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	5.75 in
Bore Size (in)	4.9375 in
Centerline to Front Face (in)	2.875 in
Inner Race Length (in)	5.75 in
Outer Race OD (in)	9.055 in
Outer Race Width (in)	2.625 in
Inner Ring OD (in)	6.344 in

Technical Specifications

Measure Units	Inch
Radius	0.12
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Housing Type	Insert Only
Set Screw Thread	5/8-18
Rolling Element	Ball Bearing
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	37,482 lb
Speed (Max) (RPM)	1950 rpm
End Cap	No
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	33,267 lb
Precision Rating	ABEC 1
Cage Material	Brass
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Duty/Series	Medium
Type of Seal	Felt Labyrinth Seal
Locking Type	Double Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461015315
Weight	34.40 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
