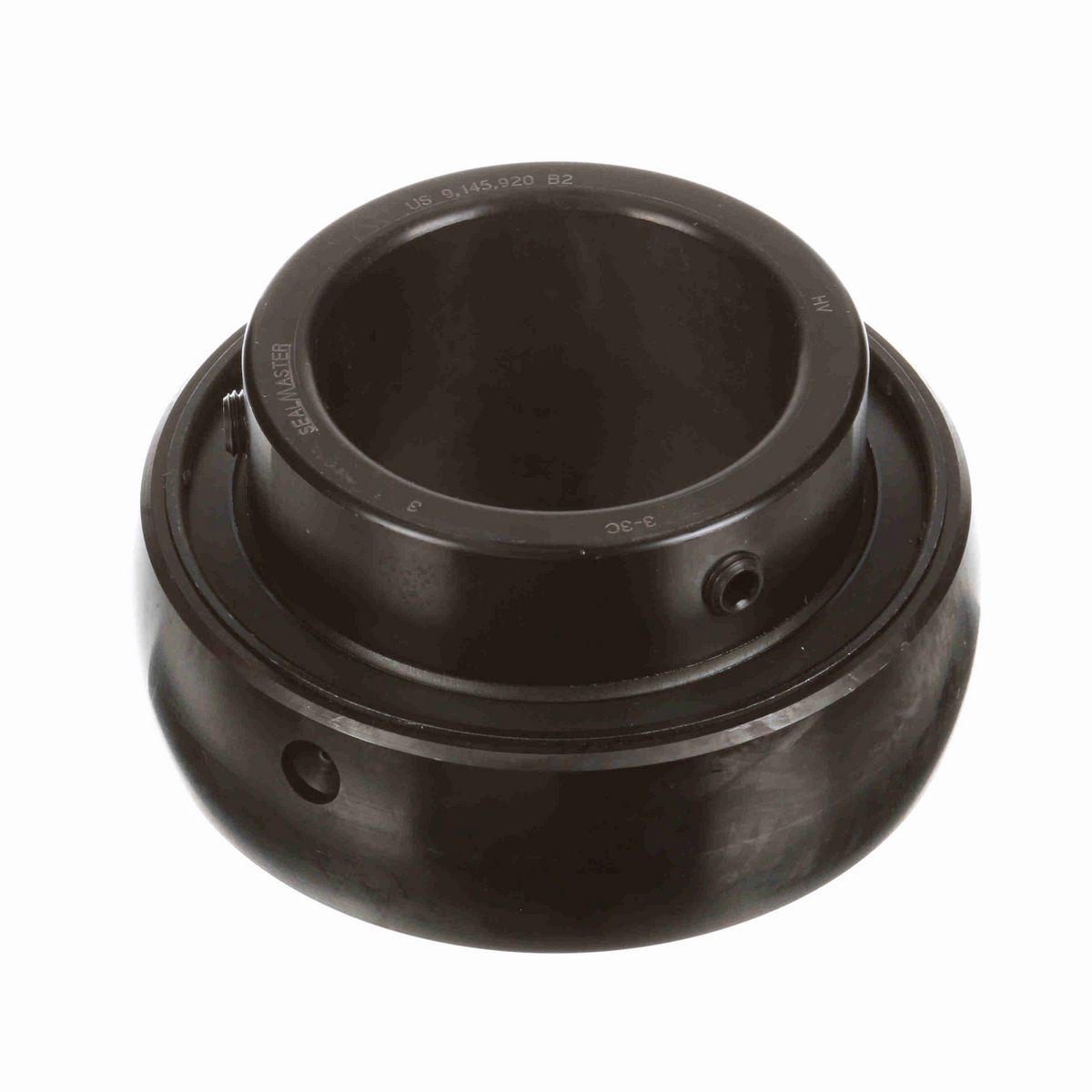

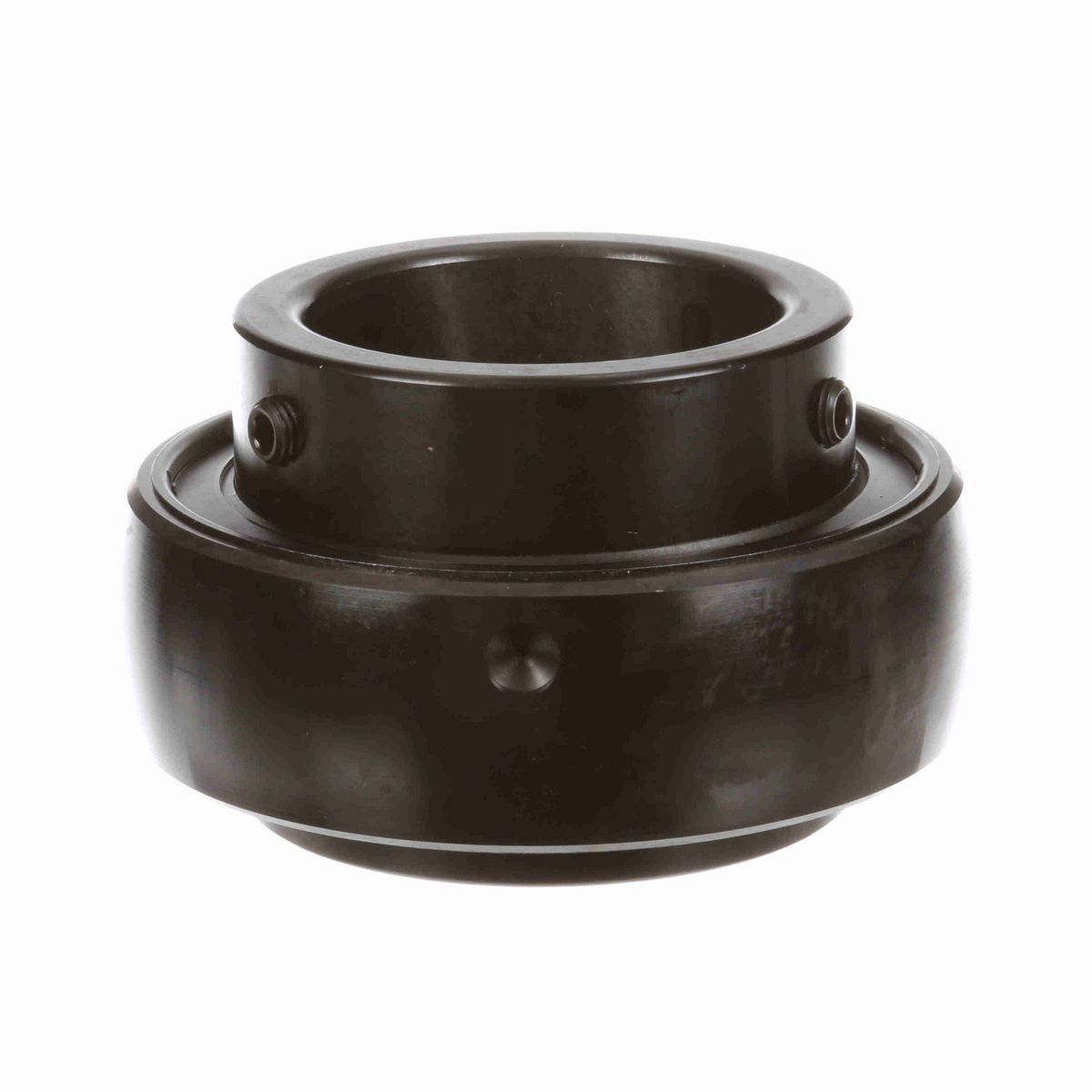

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.063 in
Bore Size (in)	3 in
Outer Race Width (in)	1.688 in
Inner Race Length (in)	3.25 in
Inner Ring OD (in)	3.641 in
Centerline to Front Face (in)	1.75 in
Outer Race OD (in)	5.512 in

Technical Specifications

Set Screw Thread	7/16-20
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert Only
Radius	0.12
Rolling Element	Ball Bearing
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	1950 rpm
Radial Dynamic Load Capacity (lb)	17,412 lb
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Radial Static Load Capacity (lb)	13,174 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Duty/Series	Medium
Ability to Relubricate	Yes
Locking Type	Set Screw
Type of Seal	Single Lip Contact Seal
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461020159
Weight	8.05 LB
Packaged Length	5.75 IN
Packaged Width	5.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
