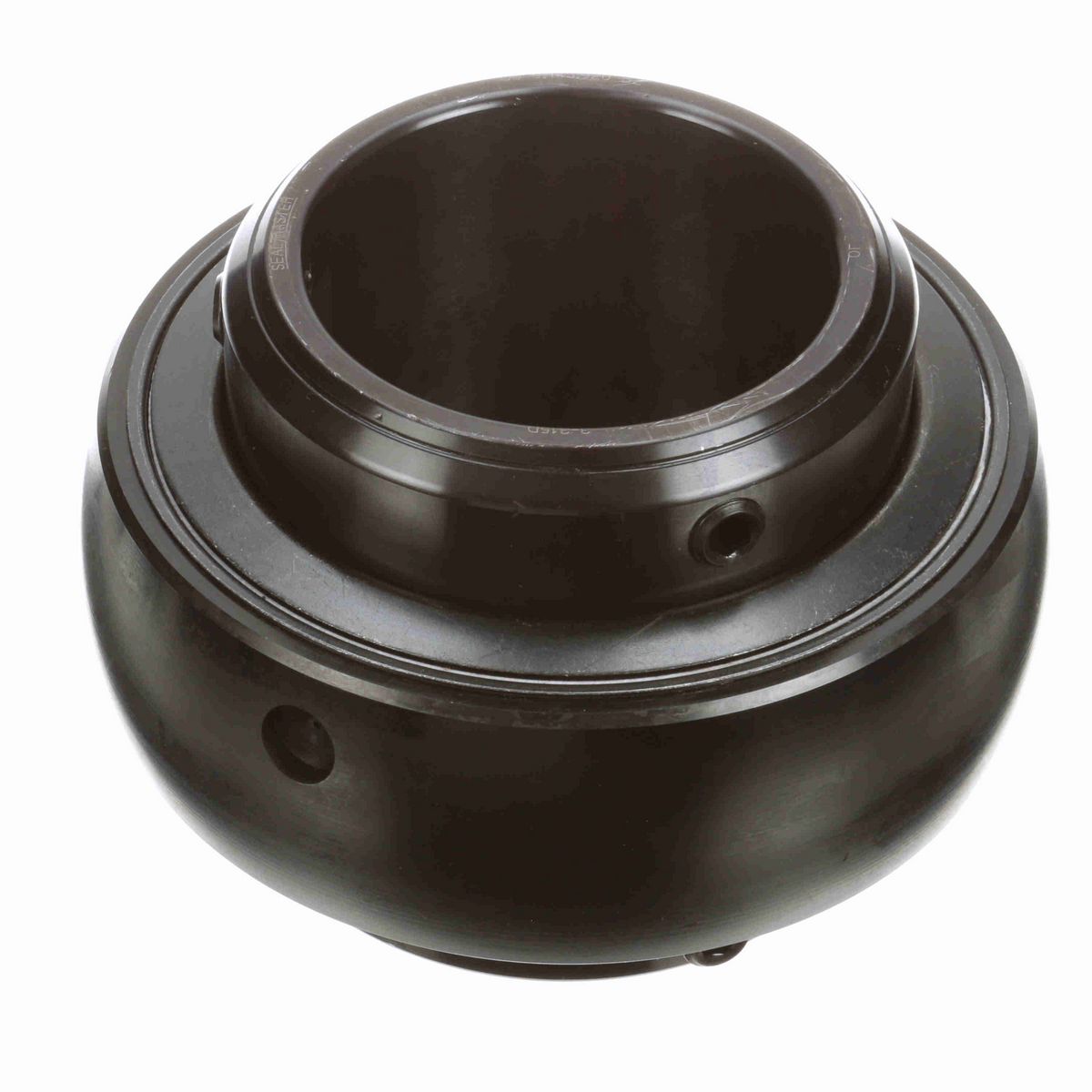

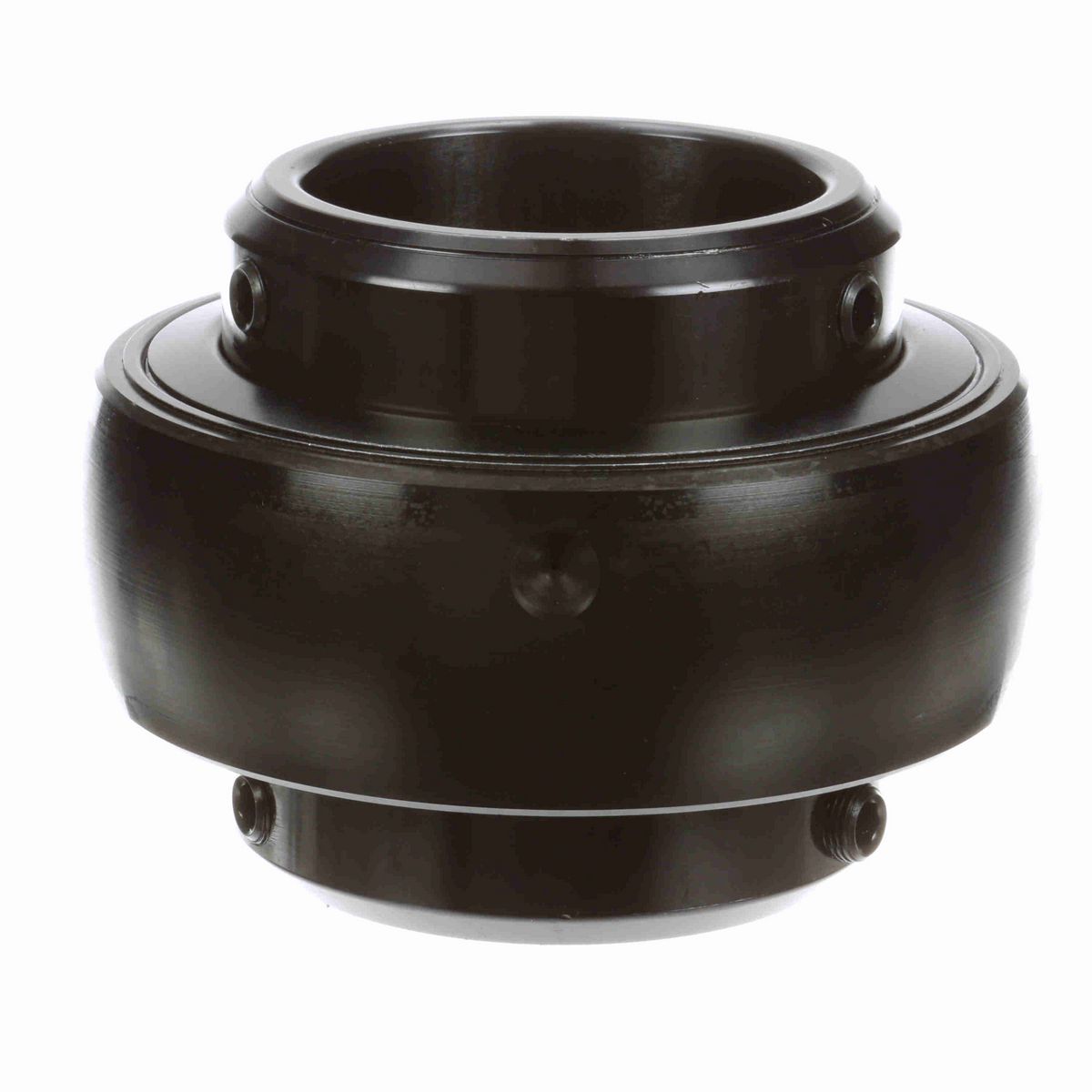

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	5.375 in
Bore Size (in)	3.9375 in
Inner Ring OD (in)	5.172 in
Inner Race Length (in)	5.375 in
Outer Race Width (in)	2.5 in
Outer Race OD (in)	7.48 in
Centerline to Front Face (in)	2.688 in

Technical Specifications

Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Set Screw Thread	5/8-18
Radius	0.12
Rolling Element	Ball Bearing
Radial Dynamic Load Capacity (lb)	17,412 lb
Speed (Max) (RPM)	2400 rpm
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	13,174 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Locking Type	Double Set Screw
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Duty/Series	Medium

General Specifications

UPC	662461015285
Weight	22.37 LB
Packaged Length	8.00 IN
Packaged Width	8.00 IN
Packaged Height	6.00 IN
HTC	8482.10.5056
Country of Origin	United States of America
