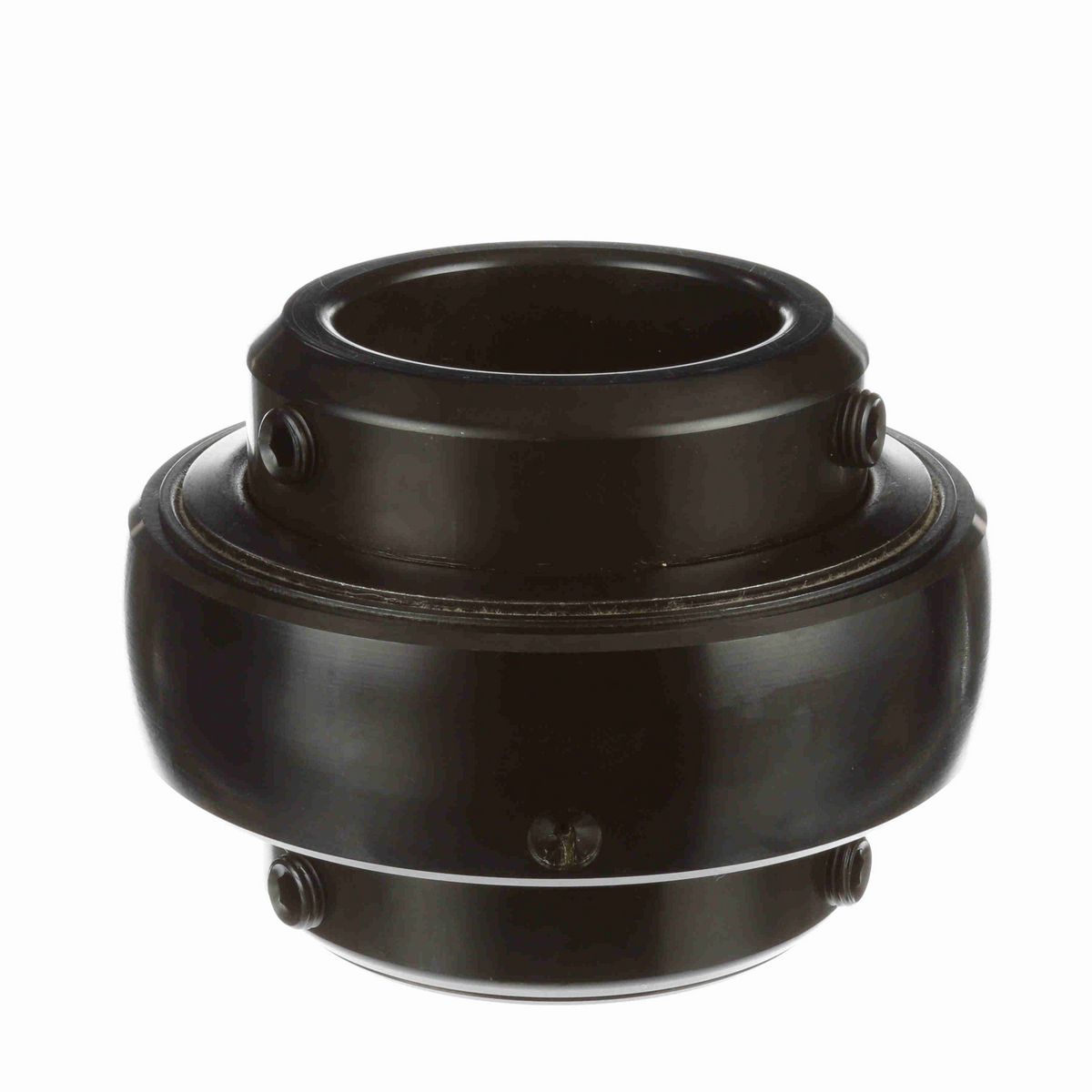

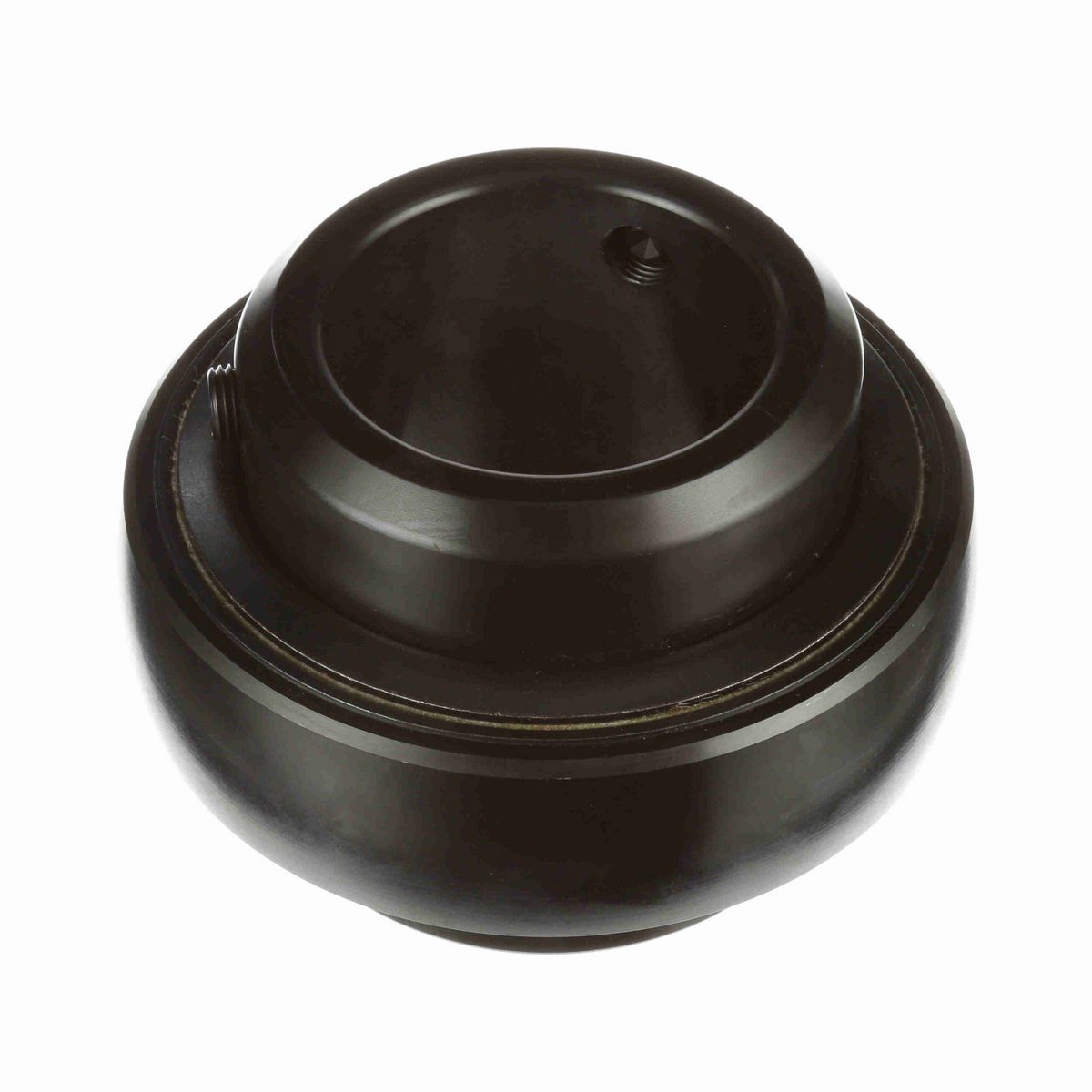

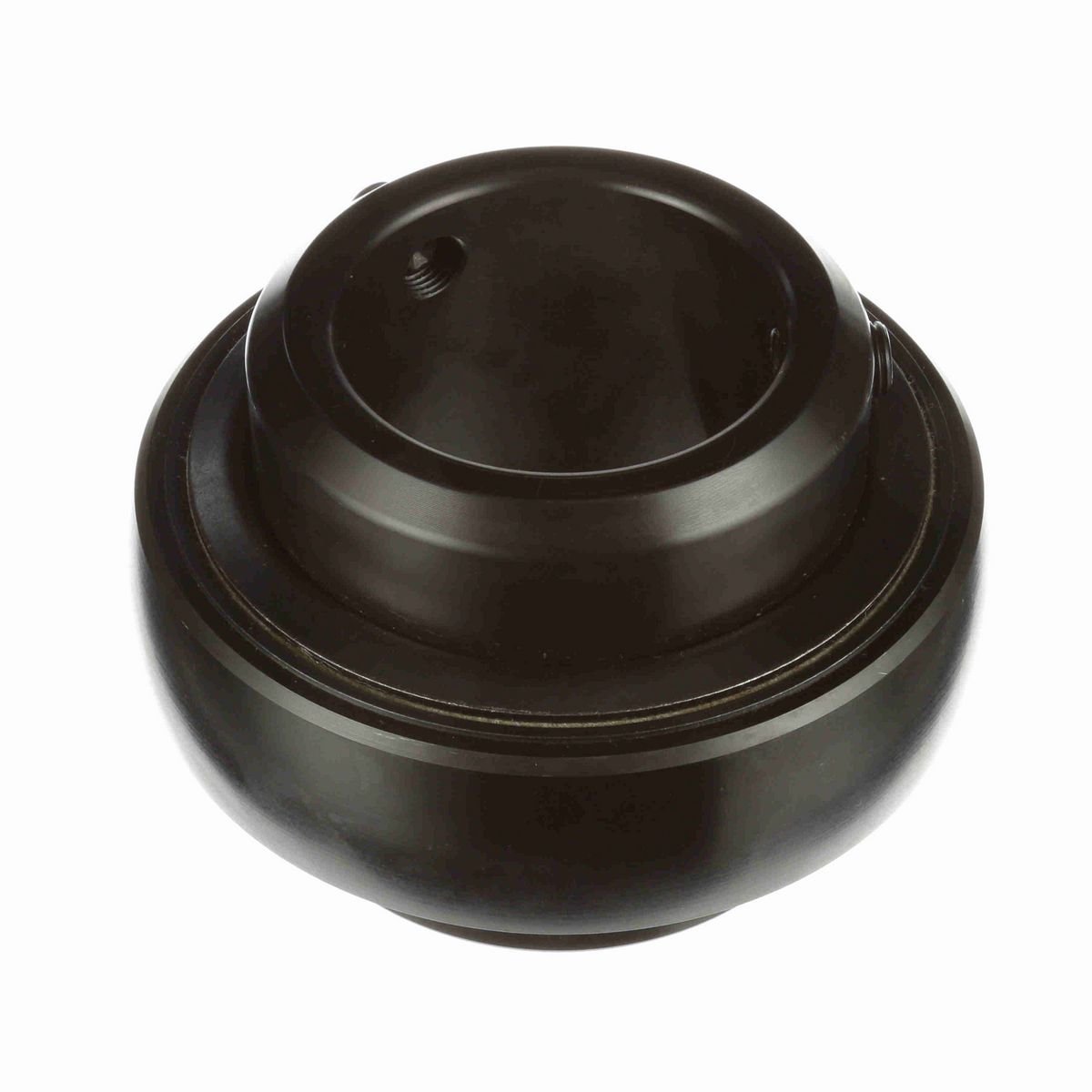

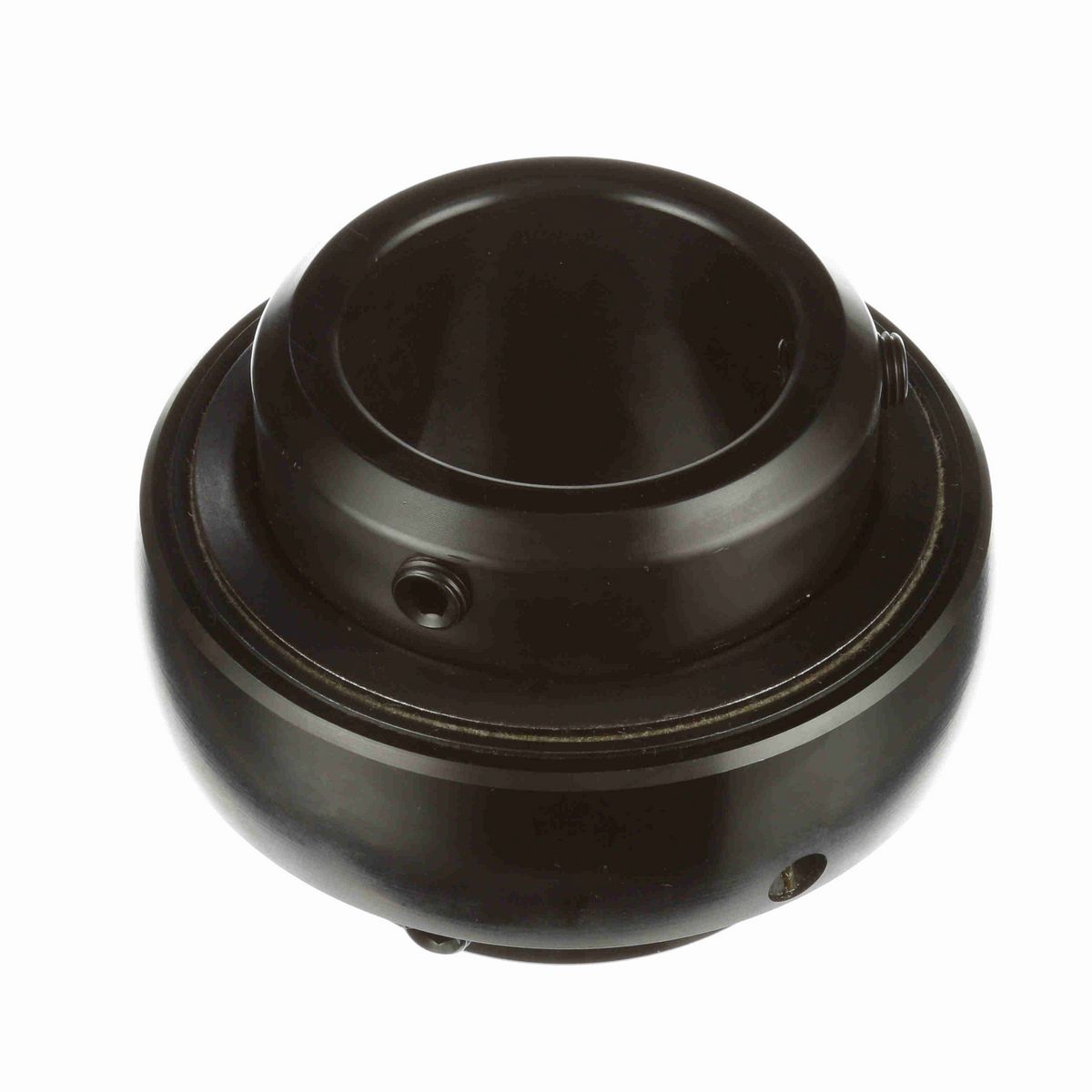

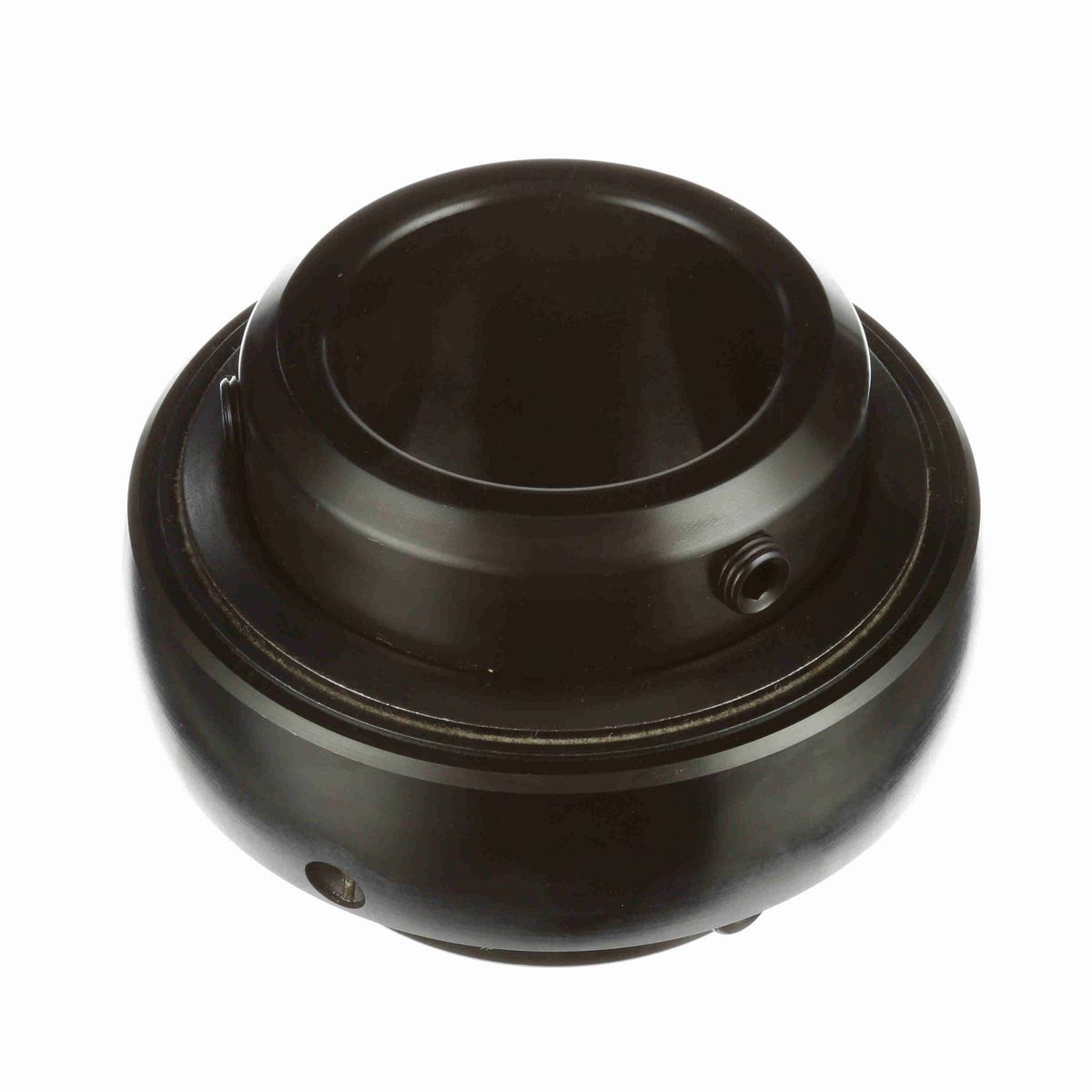

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.5 in
Bore Size (in)	2.4375 in
Centerline to Front Face (in)	1.75 in
Outer Race Width (in)	1.375 in
Inner Race Length (in)	3.5 in
Inner Ring OD (in)	3.438 in
Outer Race OD (in)	4.921 in

Technical Specifications

Measure Units	Inch
Rolling Element	Ball Bearing
Bore Shape	Straight
Set Screw Thread	7/16-20
Housing Type	Insert Only
Radius	0.08
Insert Material	52100 Bearing Steel, Black Oxided
Speed (Max) (RPM)	3600 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	13,971 lb
End Cap	No
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	10,063 lb
Precision Rating	ABEC 1
Cage Material	Brass
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Duty/Series	Medium
Fixed vs. Expansion	No
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Locking Type	Double Set Screw
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461015216
Weight	6.99 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8482.10.5056
Country of Origin	United States of America
