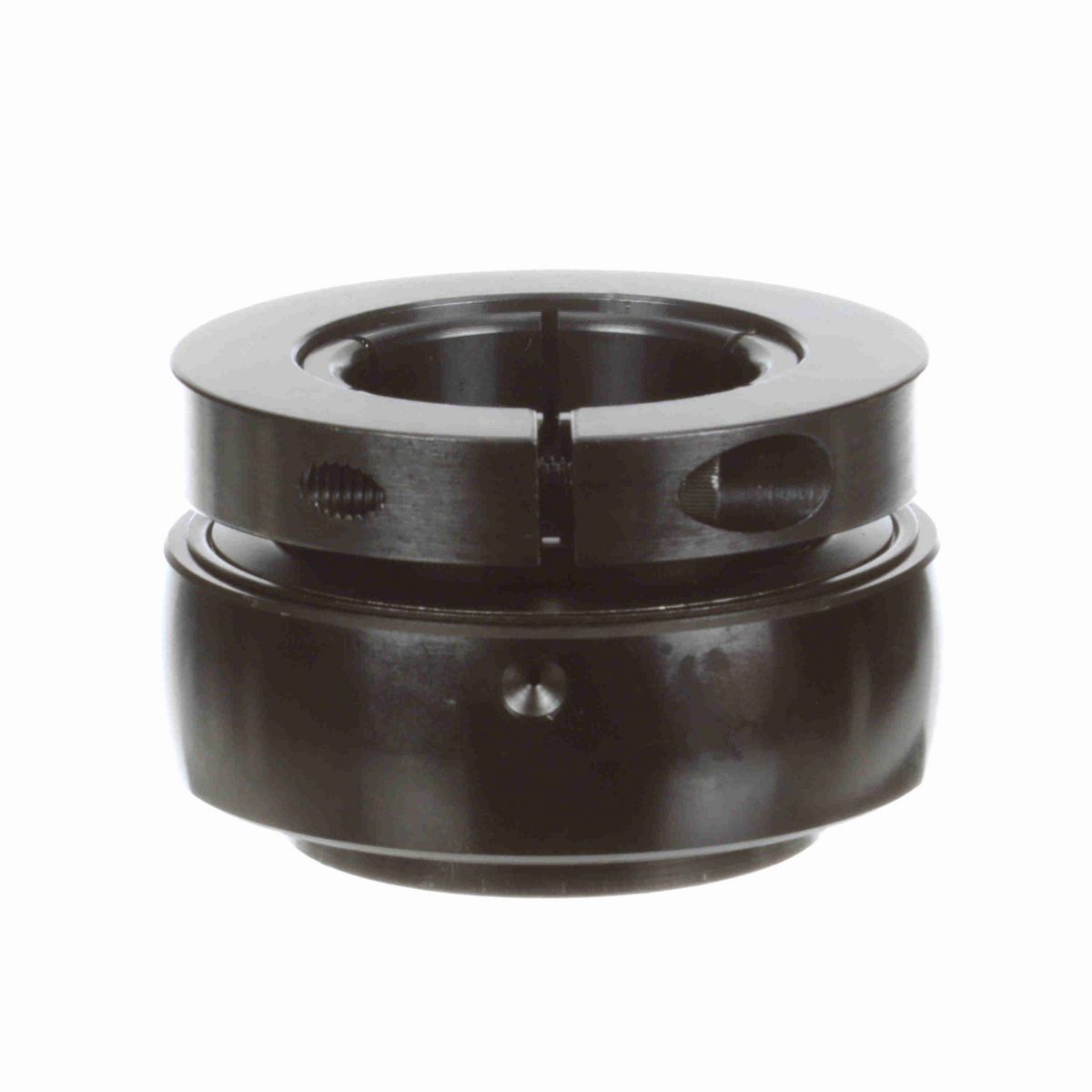

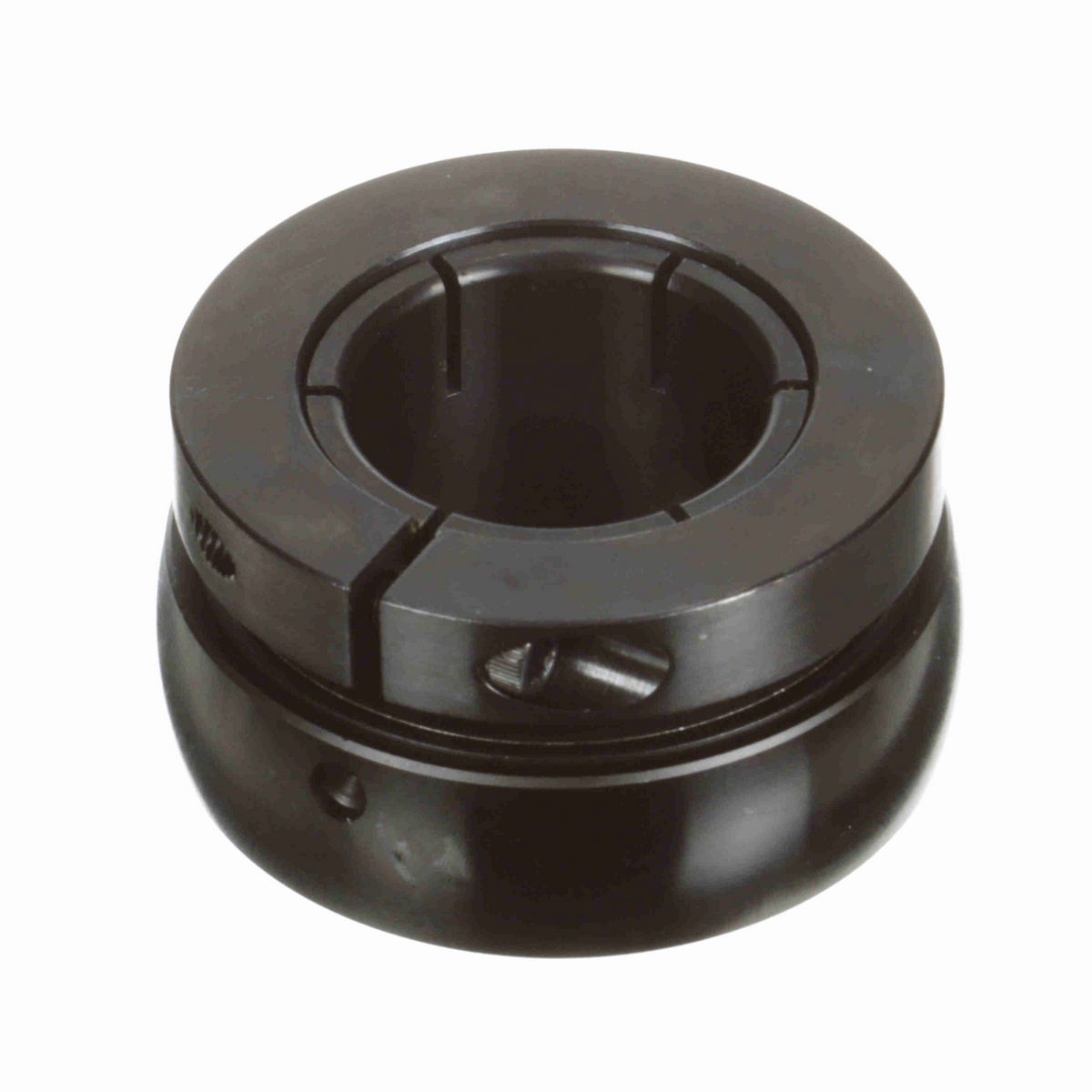

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.625 in
Bore Size (in)	2.1875 in
Collar OD (in)	4.063 in
Inner Ring OD (in)	4.063 in
Inner Race Length (in)	2.625 in
Outer Race OD (in)	4.331 in
Outer Race Width (in)	1.25 in
Centerline to Front Face (in)	1.563 in

Technical Specifications

Housing Type	Insert Only
Radius	0.08
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Torx Cap Screw	5/16-18 X 1
Measure Units	Inch
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	11,789 lb
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	4100 rpm
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	8,150 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Medium
Ability to Relubricate	Yes
Fixed vs. Expansion	No
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461029336
Weight	5.23 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
