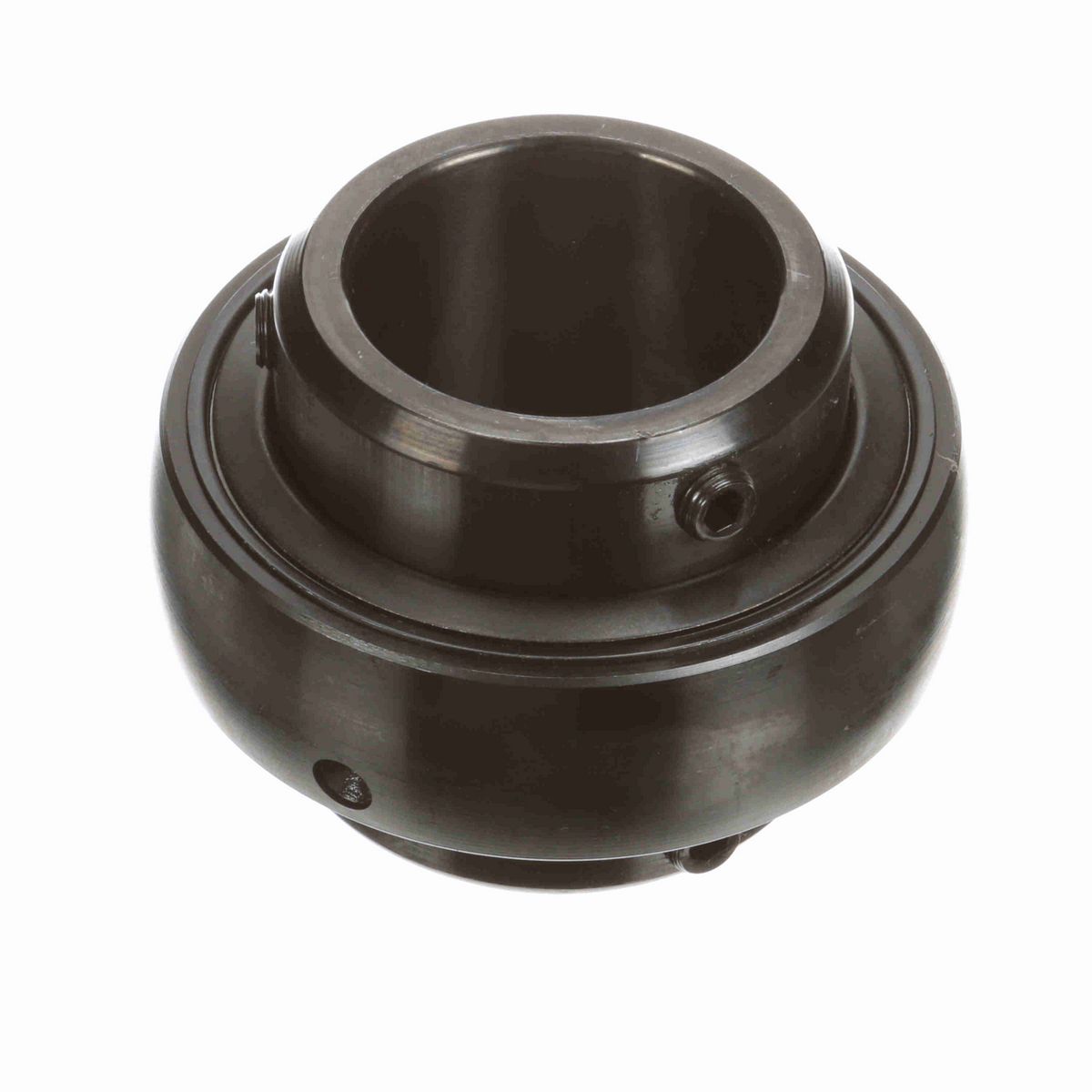

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only

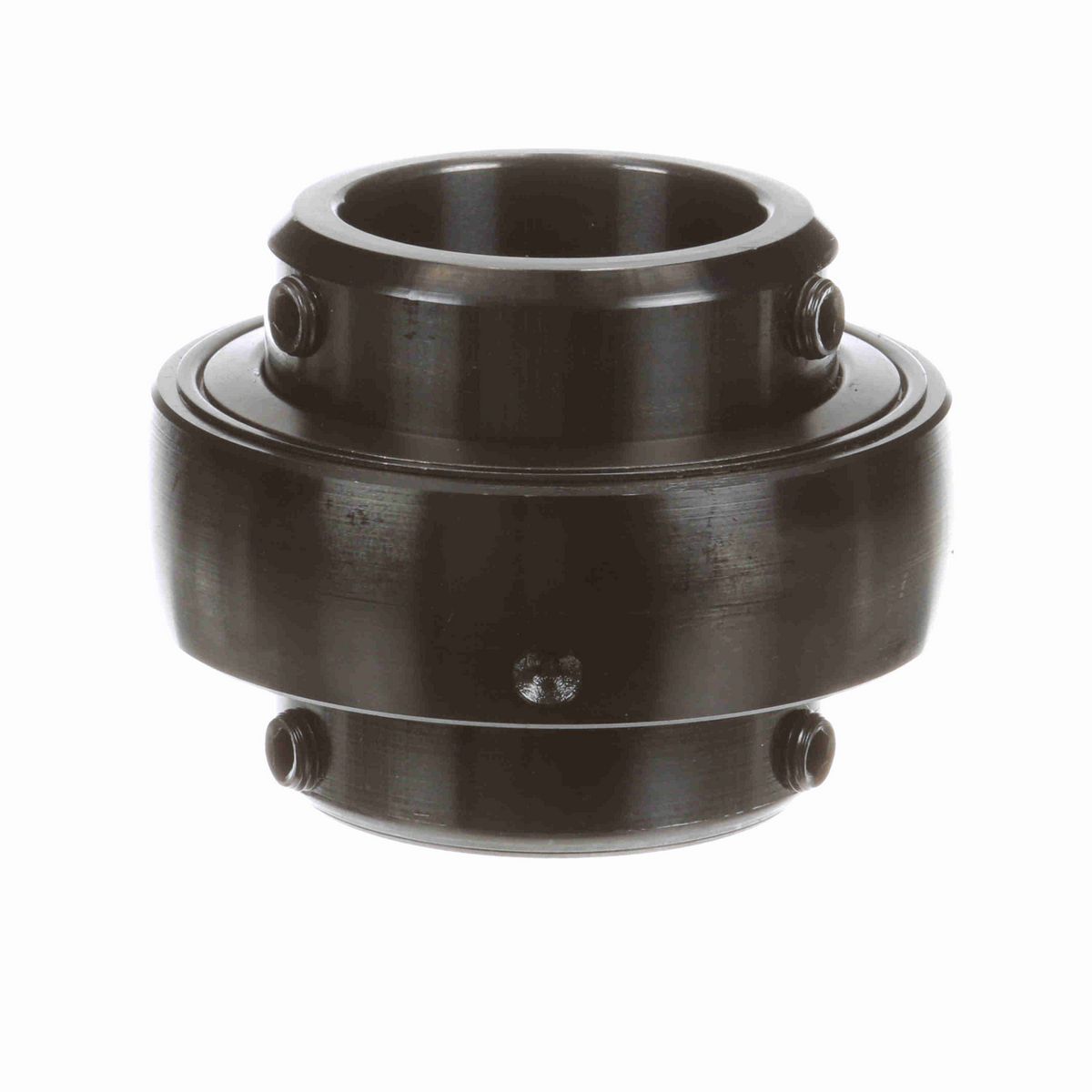

• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.123 in
Bore Size (in)	2.1875 in
Centerline to Front Face (in)	1.563 in
Outer Race OD (in)	4.33 in
Inner Race Length (in)	3.123 in
Inner Ring OD (in)	2.98 in
Outer Race Width (in)	1.25 in

Technical Specifications

Set Screw Thread	7/16-20
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.1
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	11,789 lb
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	4100 rpm
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	8,150 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Type of Seal	Felt Labyrinth Seal
Fixed vs. Expansion	No
Locking Type	Double Set Screw
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Medium
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461015209
Weight	4.60 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	Mexico
