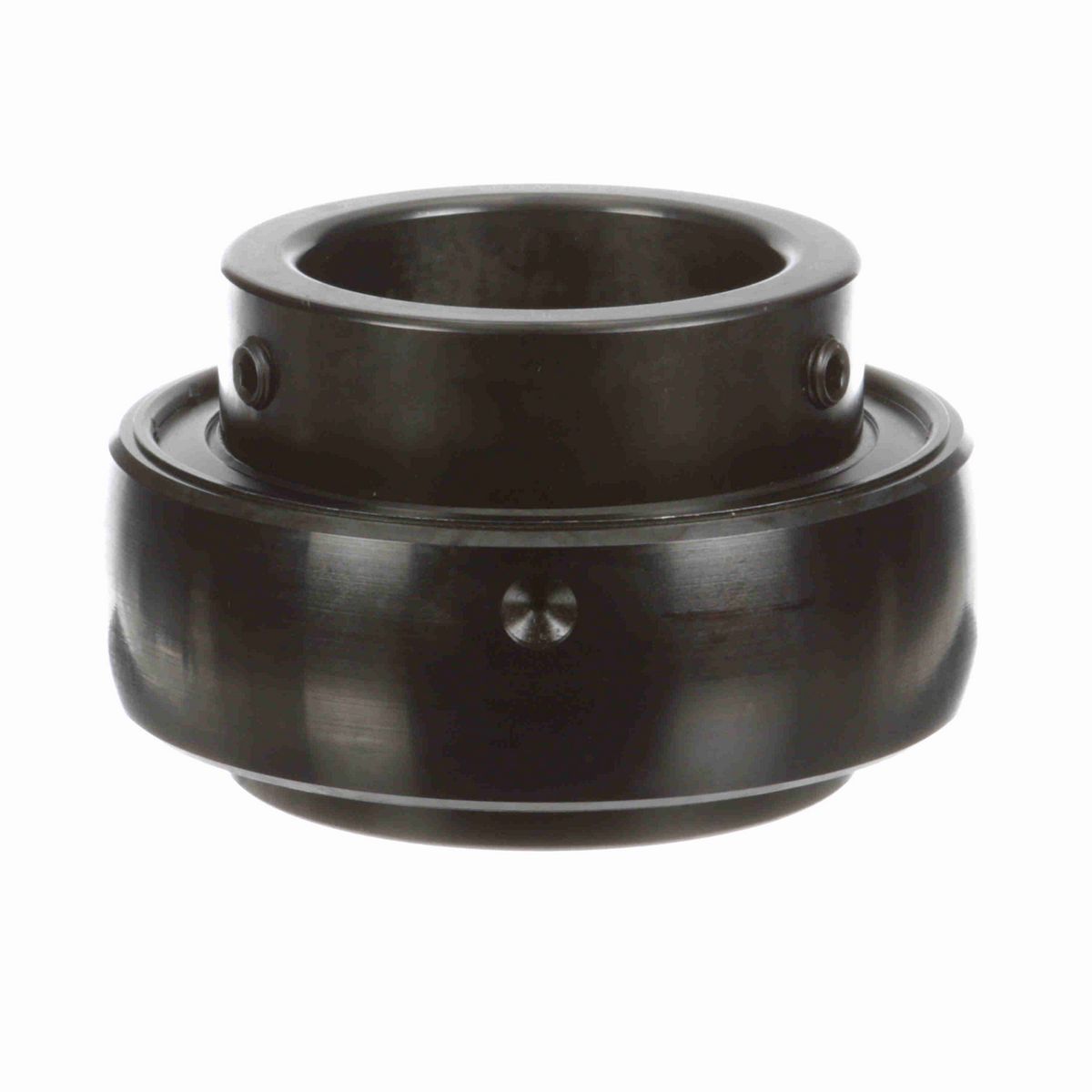

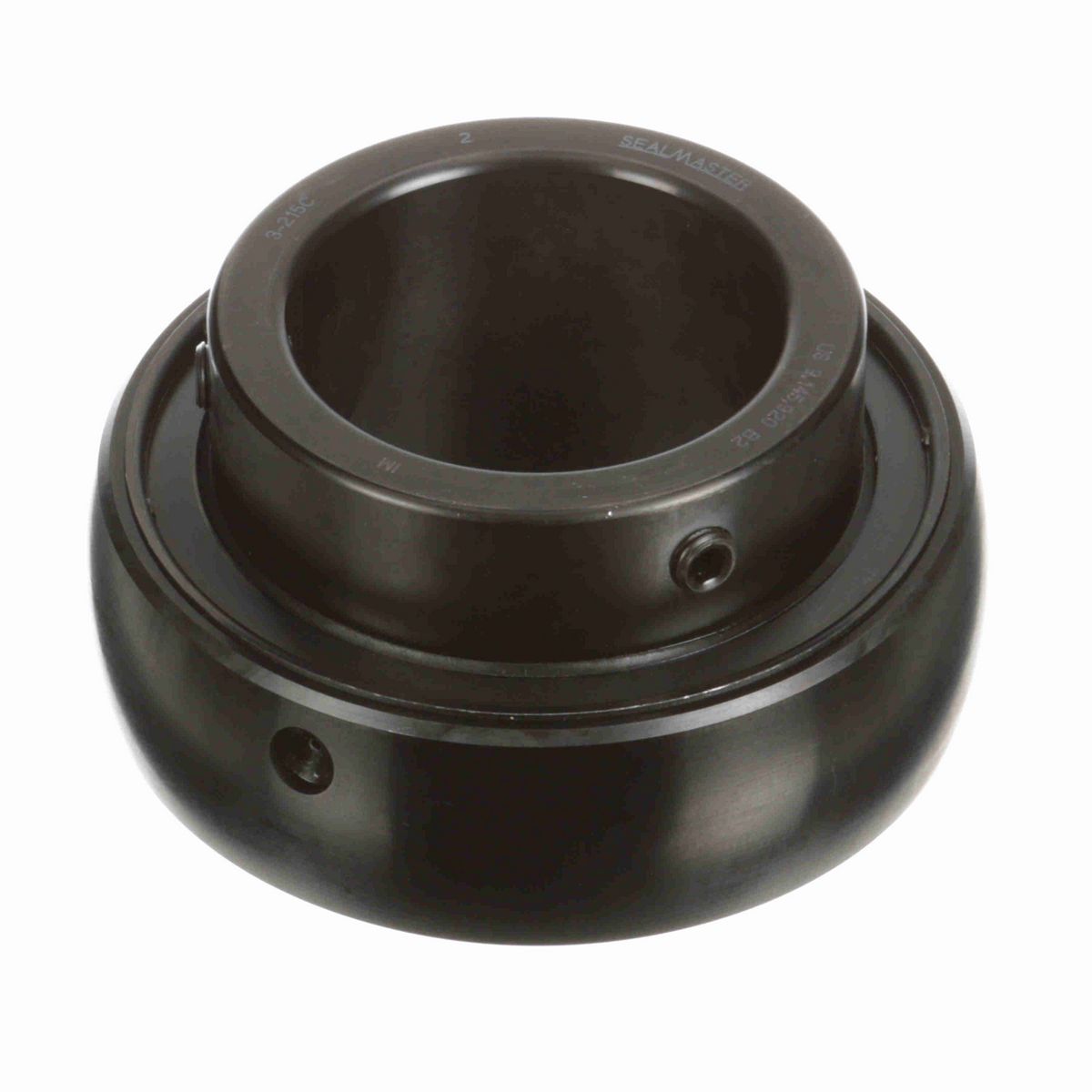

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.063 in
Bore Size (in)	2.9375 in
Outer Race Width (in)	1.688 in
Outer Race OD (in)	5.512 in
Inner Race Length (in)	3.25 in
Centerline to Front Face (in)	1.75 in
Inner Ring OD (in)	3.641 in

Technical Specifications

Housing Type	Insert Only
Radius	0.12
Measure Units	Inch
Bore Shape	Straight
Set Screw Thread	7/16-20
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	14,839 lb
Internal Clearance	Standard
Speed (Max) (RPM)	1950 rpm
Misalignment Type	Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	11,224 lb
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Medium
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Type of Seal	Single Lip Contact Seal

General Specifications

UPC	662461020142
Weight	8.30 LB
Packaged Length	5.75 IN
Packaged Width	5.63 IN
Packaged Height	3.63 IN
HTC	8482.10.5056
Country of Origin	United States of America
