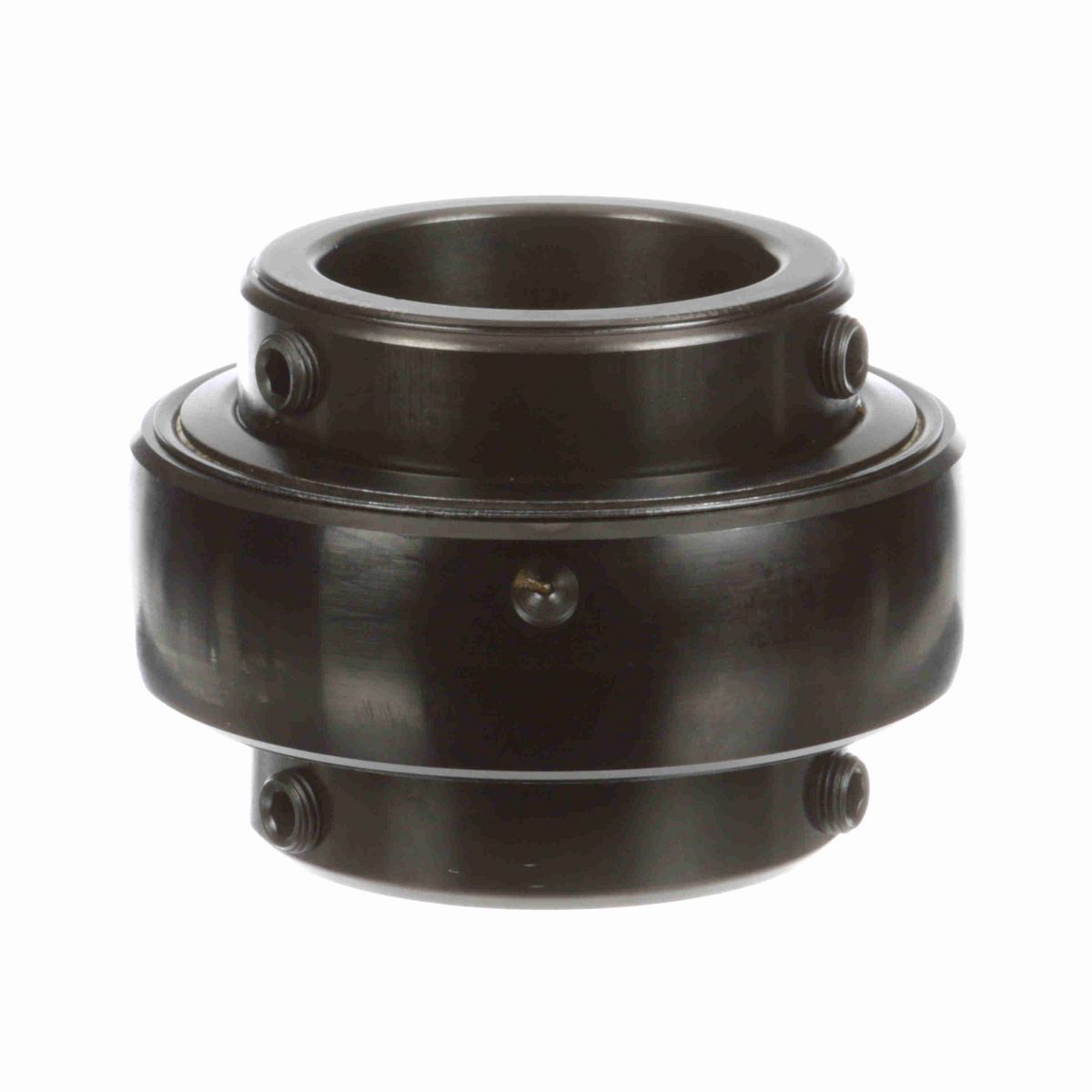

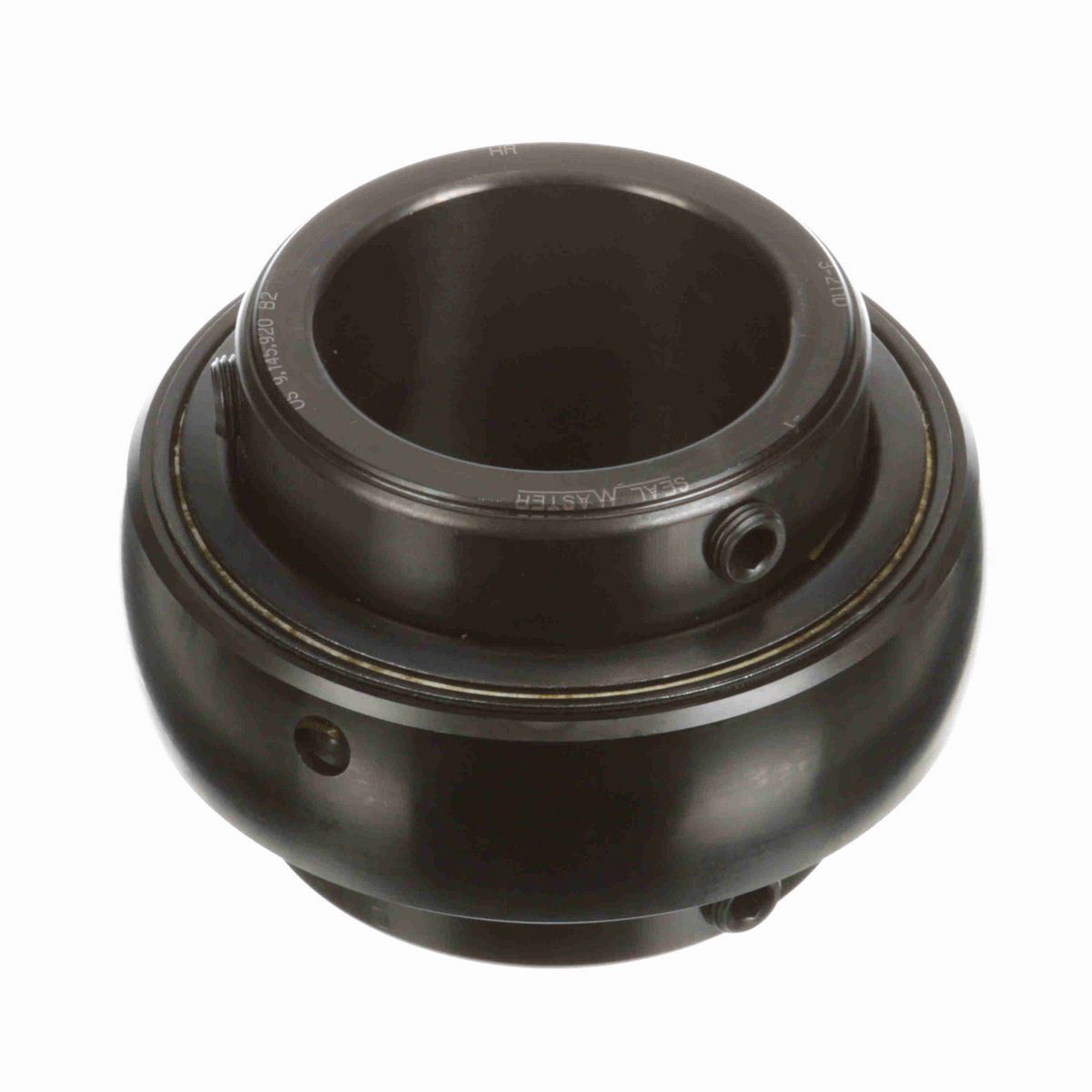

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.5 in
Bore Size (in)	2.6875 in
Inner Race Length (in)	3.5 in
Inner Ring OD (in)	3.641 in
Outer Race OD (in)	5.118 in
Outer Race Width (in)	1.5 in
Centerline to Front Face (in)	1.75 in

Technical Specifications

Radius	0.08
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Set Screw Thread	1/2-20
Housing Type	Insert Only
Measure Units	Inch
Bore Shape	Straight
Speed (Max) (RPM)	3600 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	14,839 lb
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Radial Static Load Capacity (lb)	11,224 lb
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Locking Type	Double Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Duty/Series	Medium
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461015230
Weight	7.49 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8482.10.5056
Country of Origin	United States of America
