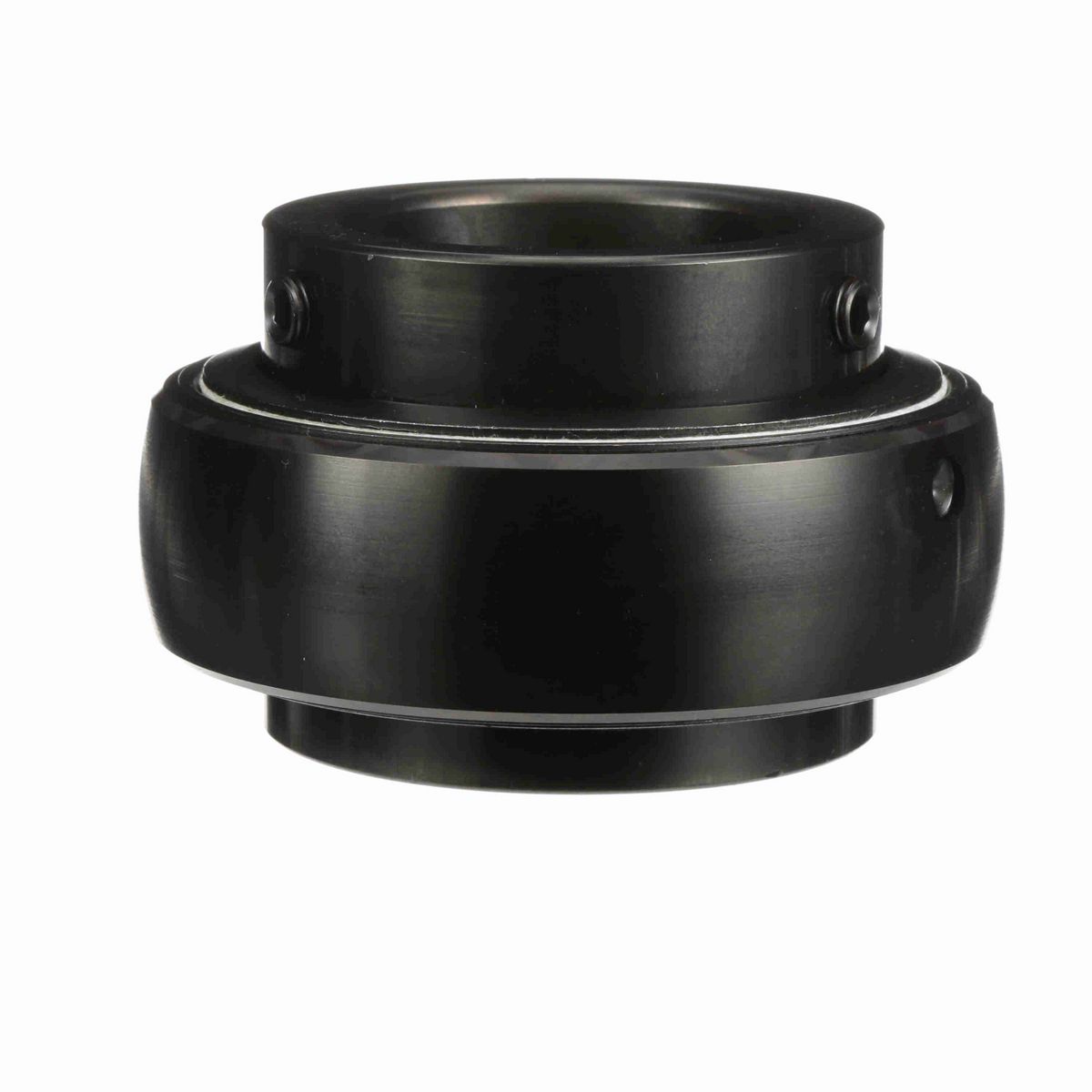

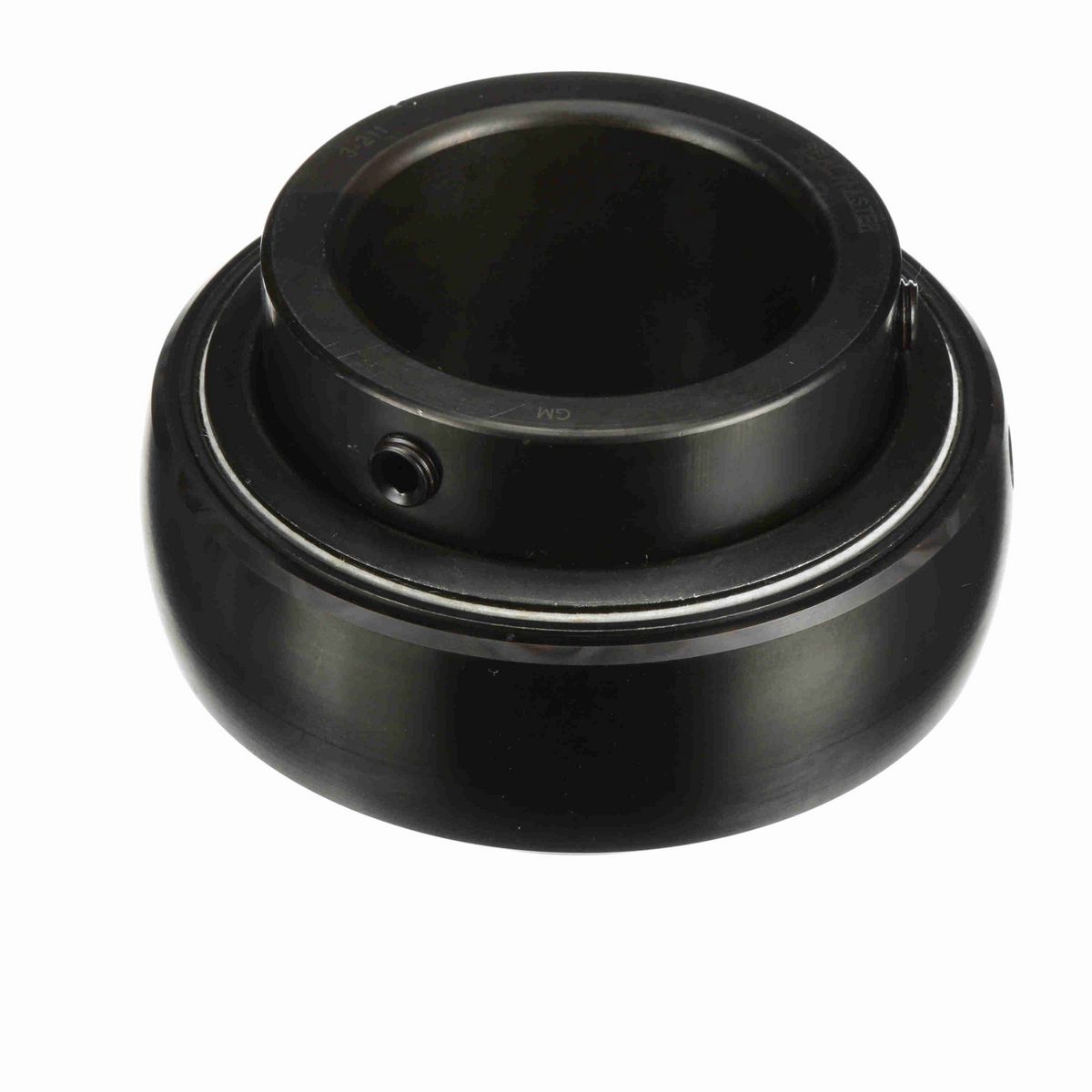

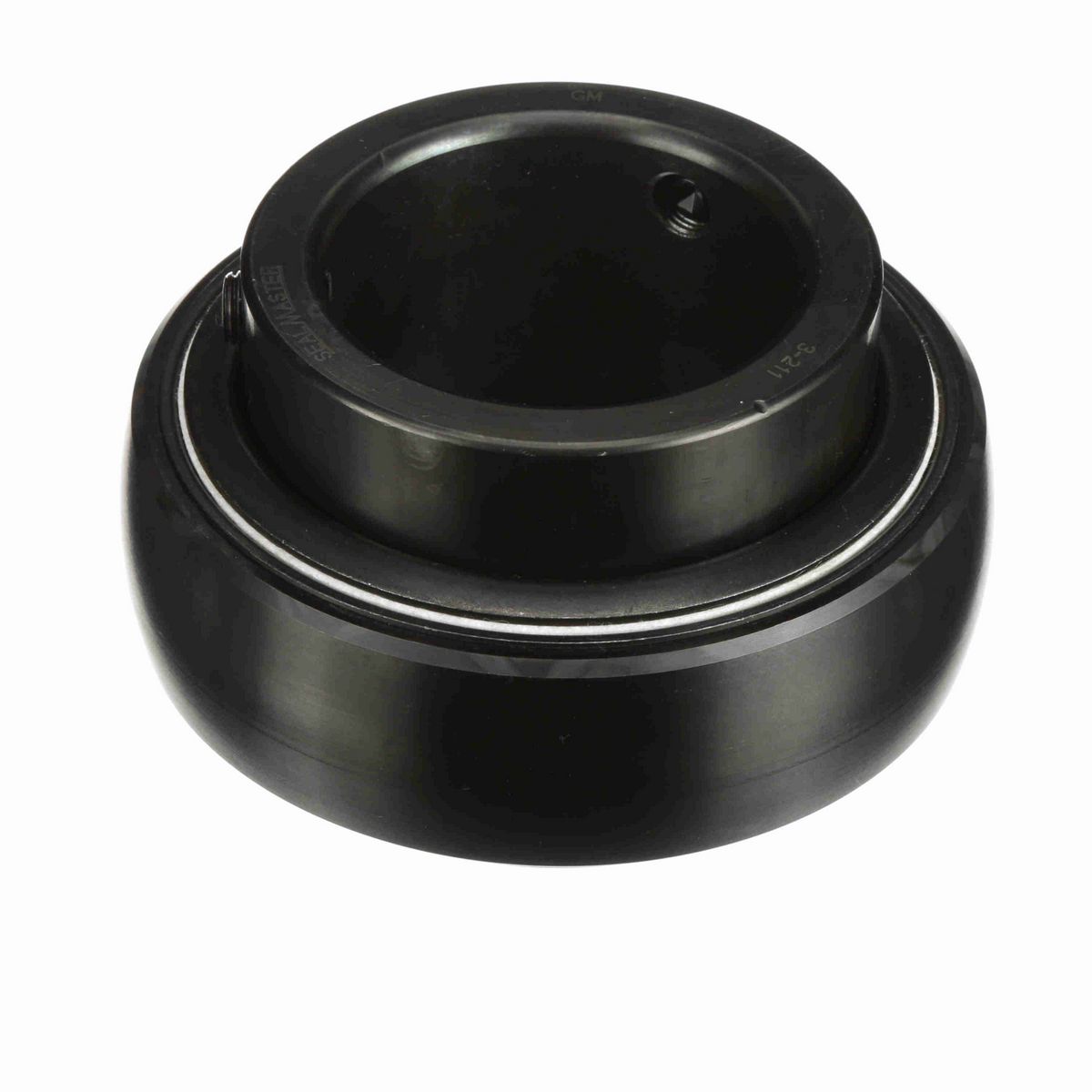

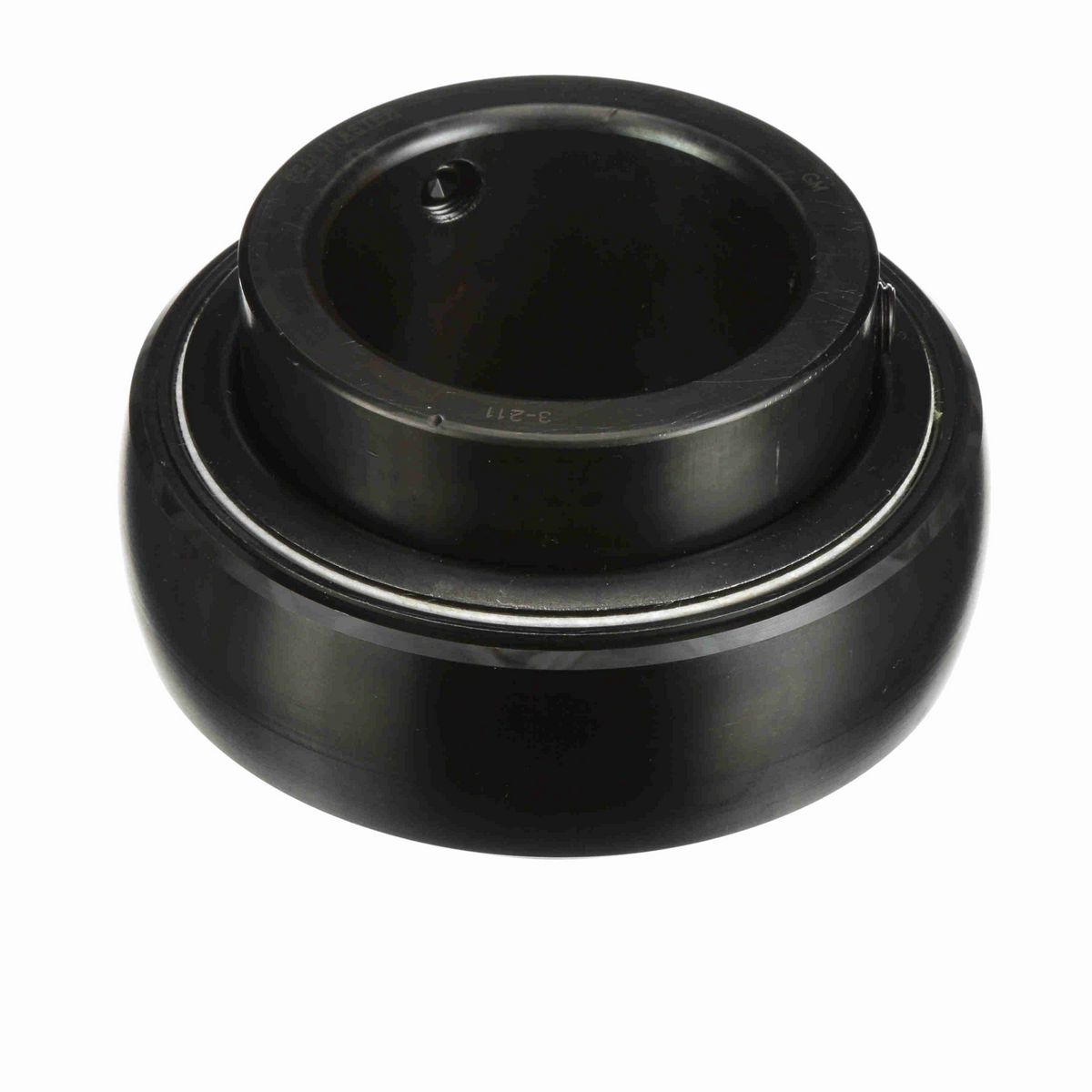

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.063 in
Bore Size (in)	2.6875 in
Outer Race Width (in)	1.5 in
Centerline to Front Face (in)	1.75 in
Outer Race OD (in)	5.118 in
Inner Ring OD (in)	3.641 in
Inner Race Length (in)	3.063 in

Technical Specifications

Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Set Screw Thread	7/16-20
Bore Shape	Straight
Housing Type	Insert Only
Measure Units	Inch
Radius	0.08
Internal Clearance	Standard
Speed (Max) (RPM)	2450 rpm
Radial Dynamic Load Capacity (lb)	14,839 lb
Misalignment	±2.0° Misalignment - Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	11,224 lb
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Medium
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461000793
Weight	6.87 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
