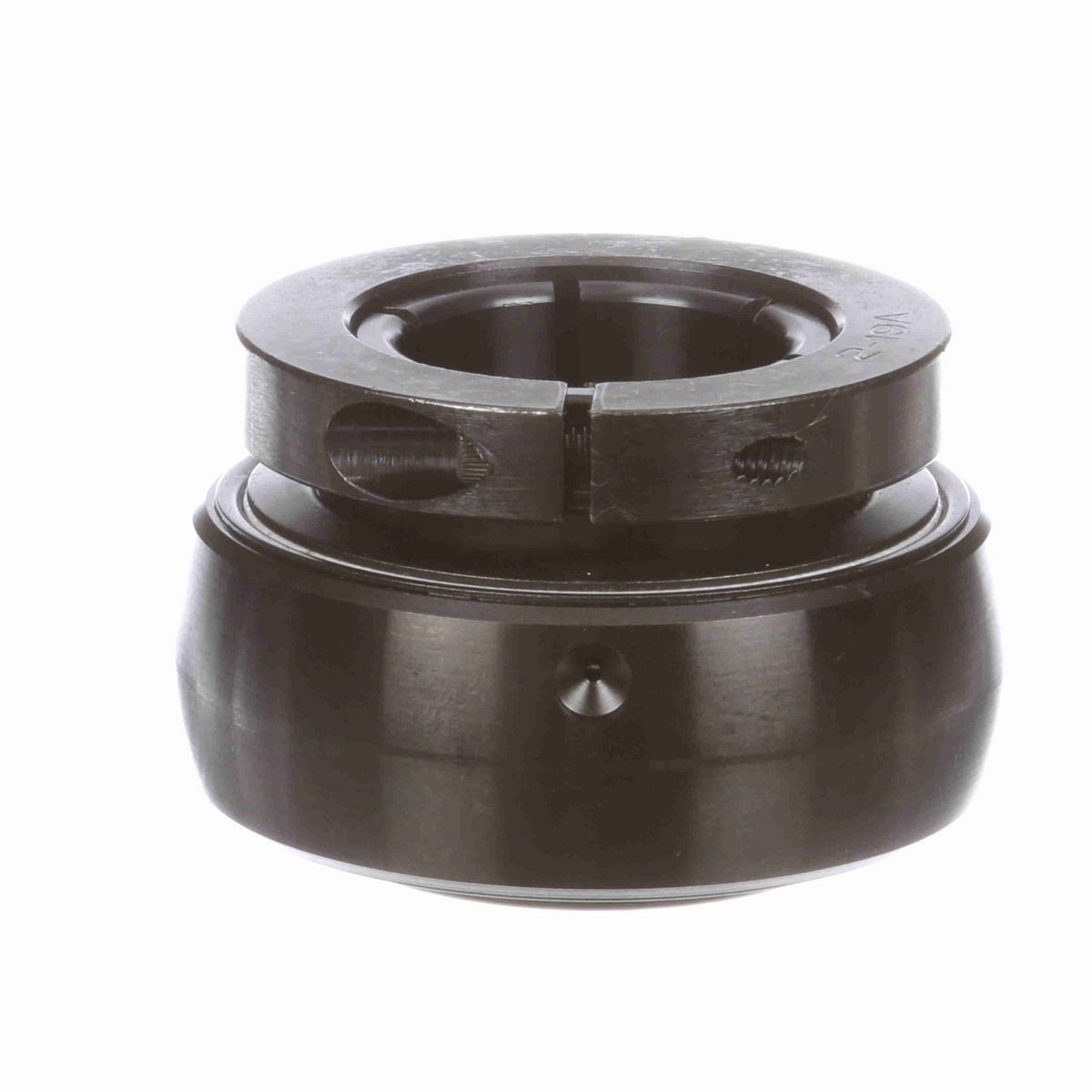

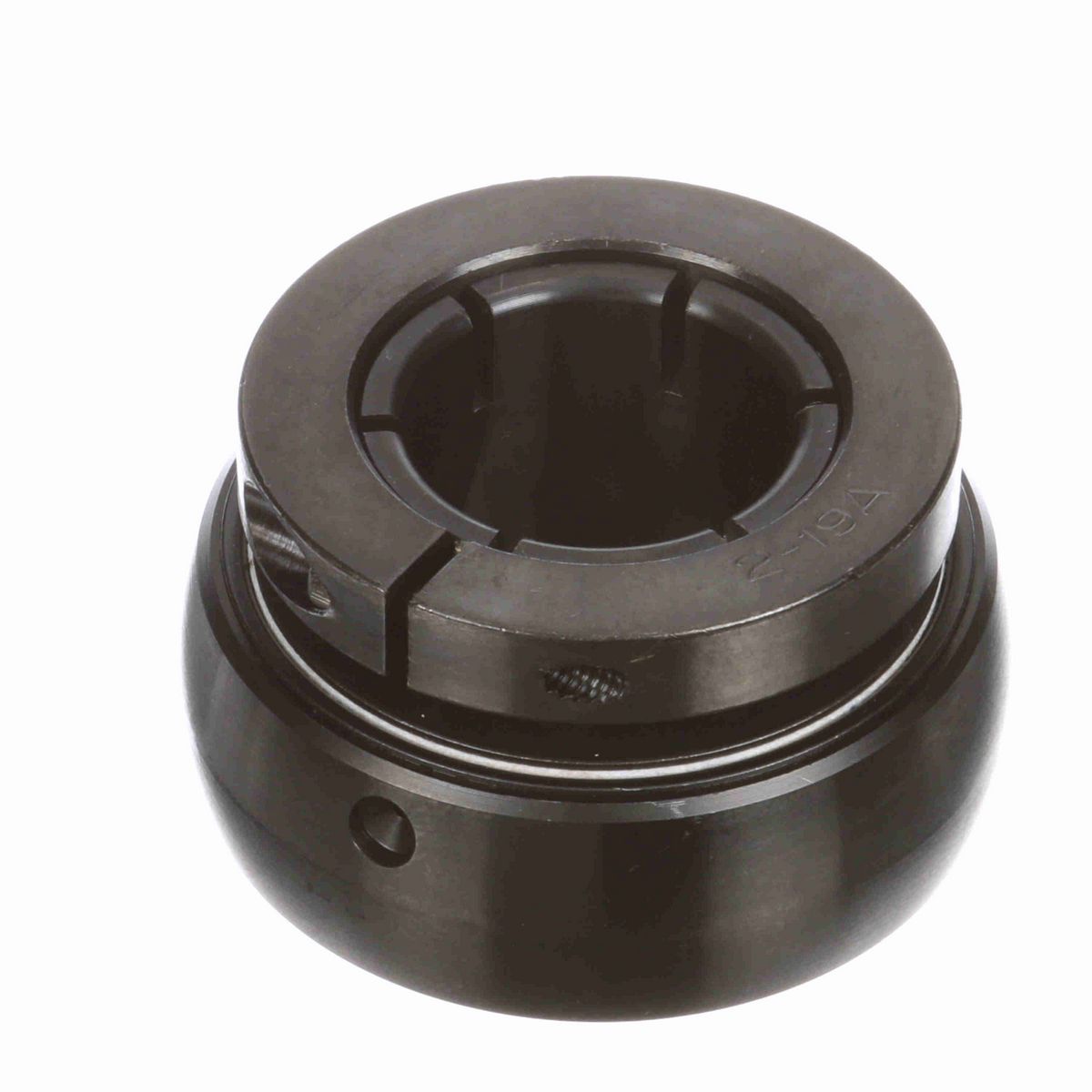

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2 in
Bore Size (in)	1.4375 in
Outer Race OD (in)	3.15 in
Collar OD (in)	2.688 in
Inner Race Length (in)	2.06 in
Outer Race Width (in)	1.094 in
Centerline to Front Face (in)	1.188 in
Inner Ring OD (in)	2.688 in

Technical Specifications

Torx Cap Screw	10-24 X 3/4
Radius	0.062
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Housing Type	Insert Only
Rolling Element	Ball Bearing
Measure Units	Inch
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,340 lb
Speed (Max) (RPM)	5850 rpm
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	4,467 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Locking Type	Concentric
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Duty/Series	Medium
Lubrication Type	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461029282
Weight	2.10 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
