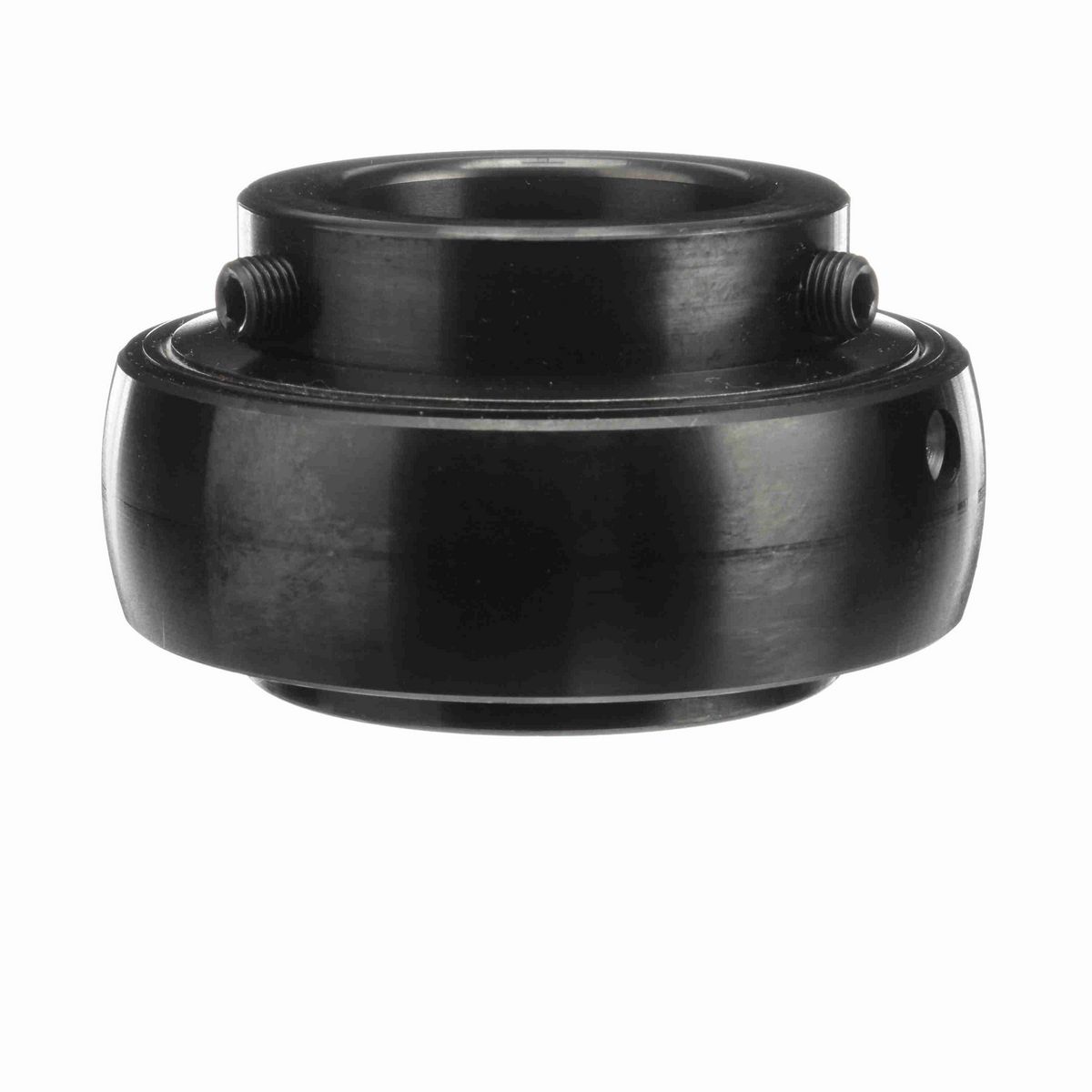

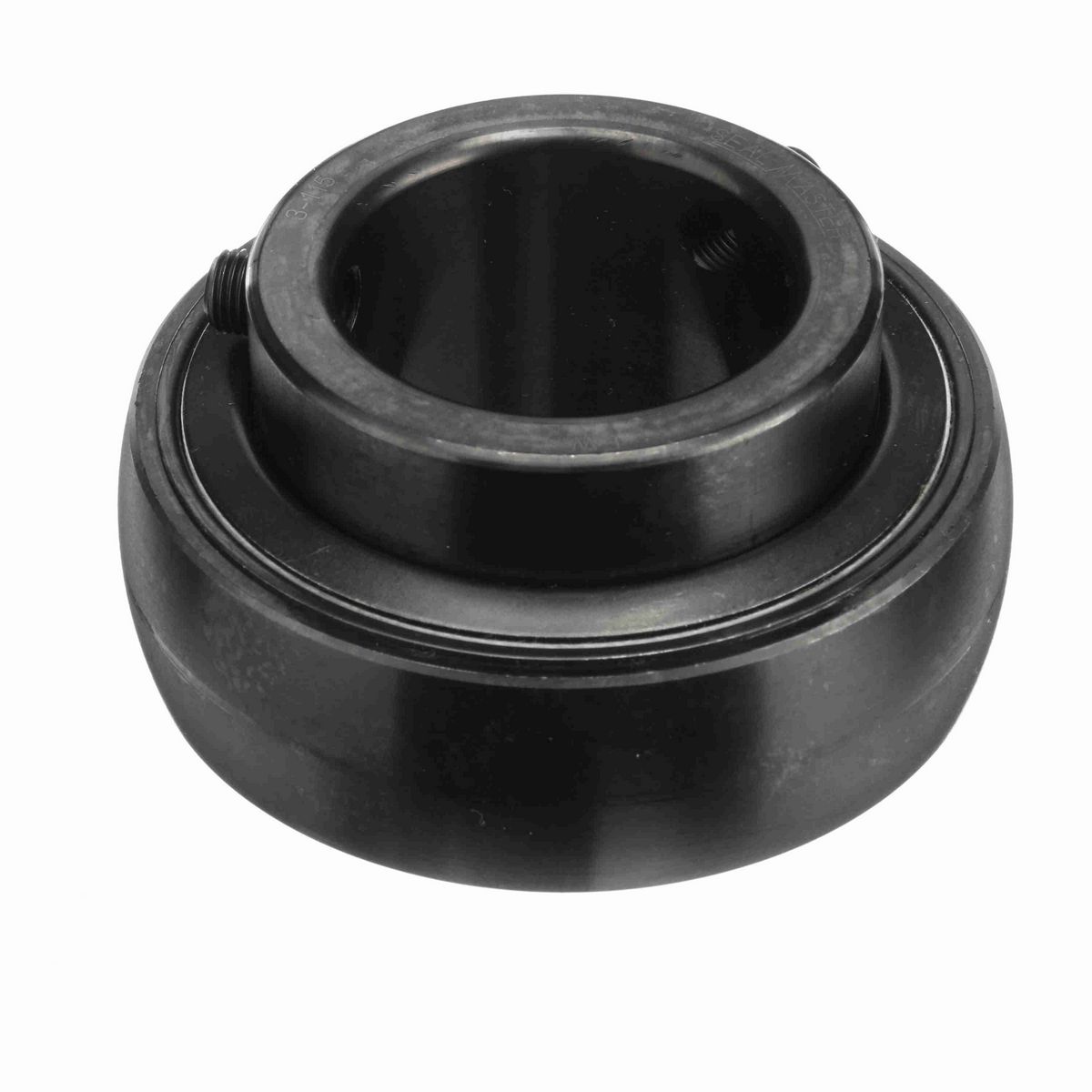

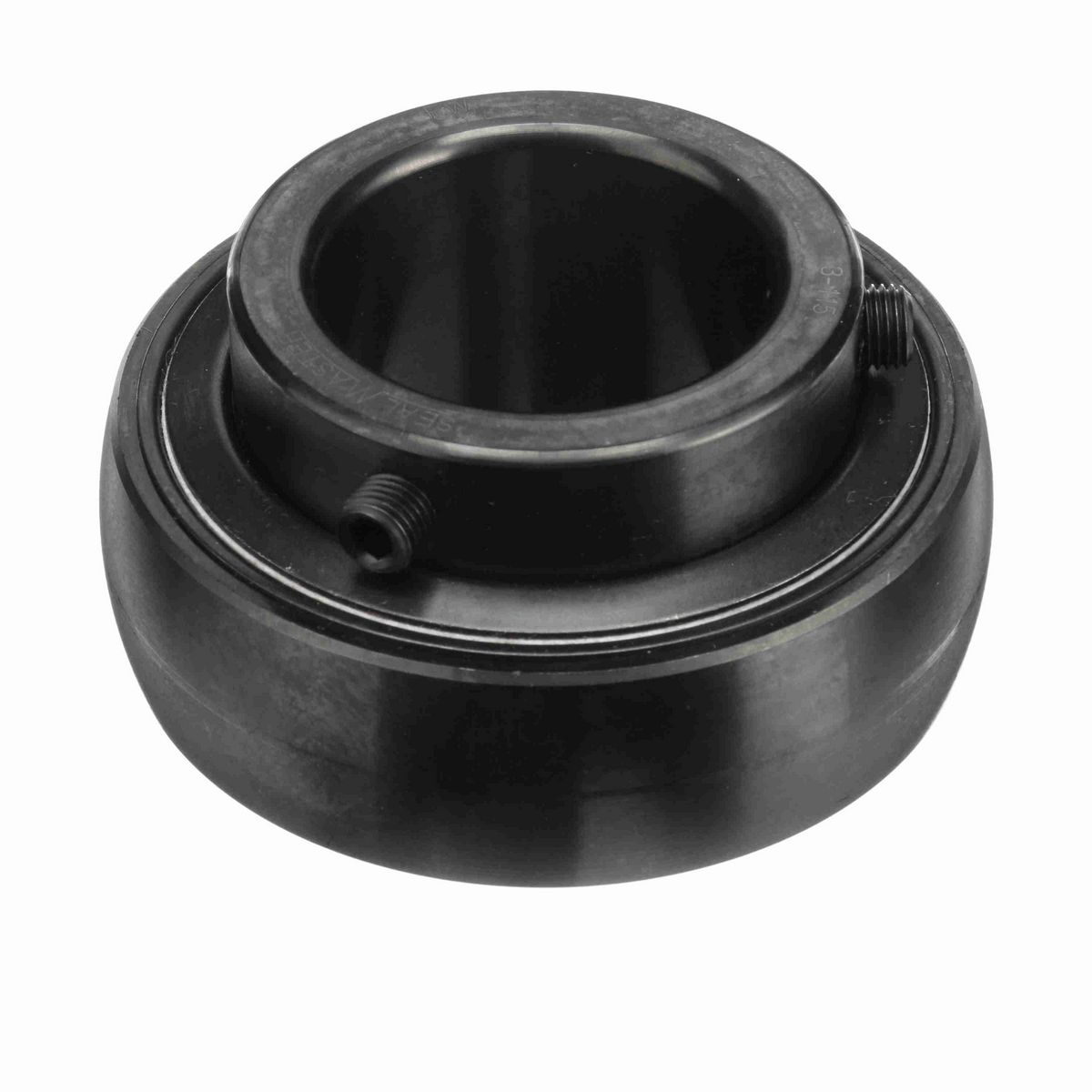

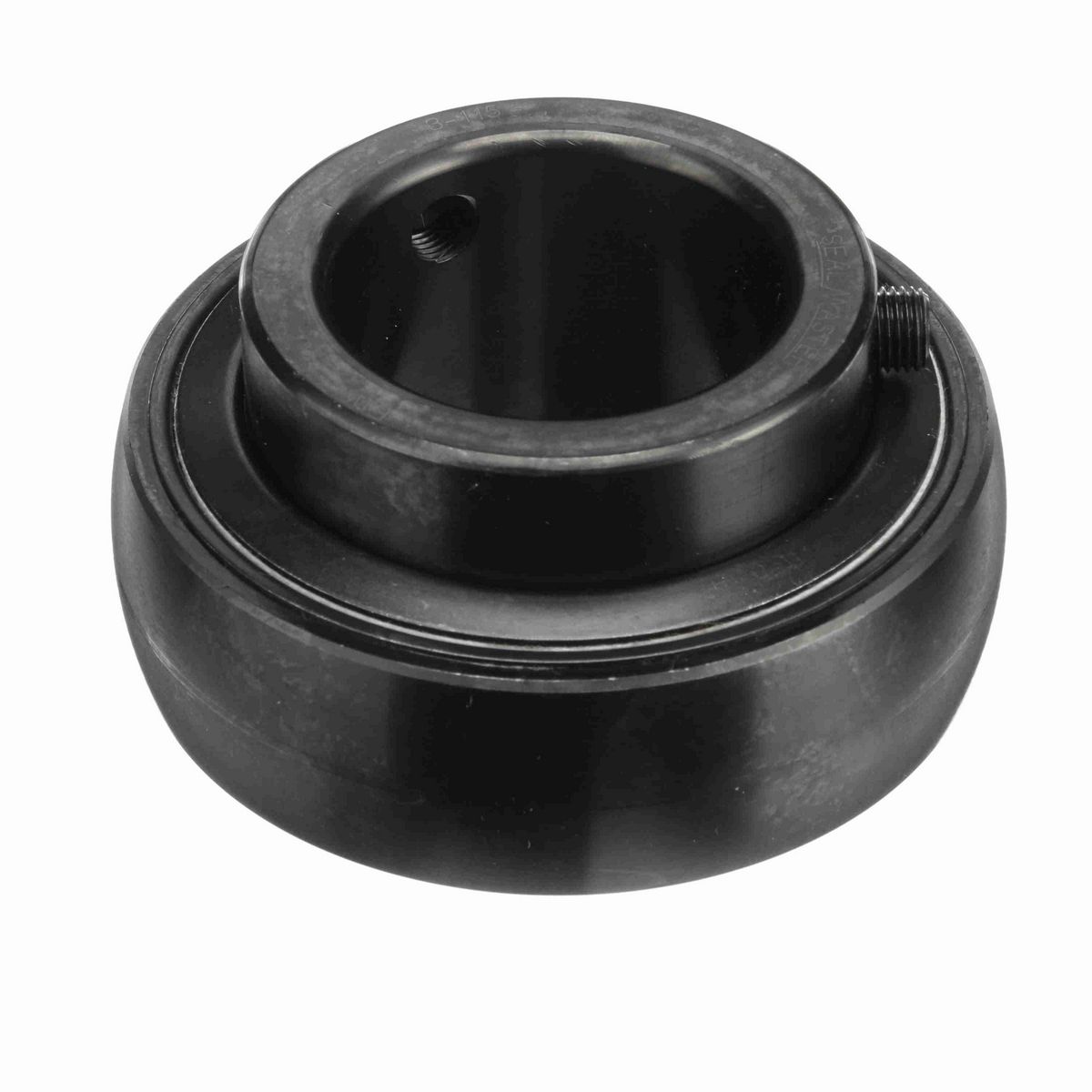

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.188 in
Bore Size (in)	1.9375 in
Outer Race Width (in)	1.188 in
Inner Ring OD (in)	2.719 in
Outer Race OD (in)	3.937 in
Inner Race Length (in)	2.188 in
Centerline to Front Face (in)	1.313 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert Only
Set Screw Thread	3/8-24
Rolling Element	Ball Bearing
Radius	0.08
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	9,752 lb
Speed (Max) (RPM)	3250 rpm
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	6,601 lb
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Medium
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461000717
Weight	3.14 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
