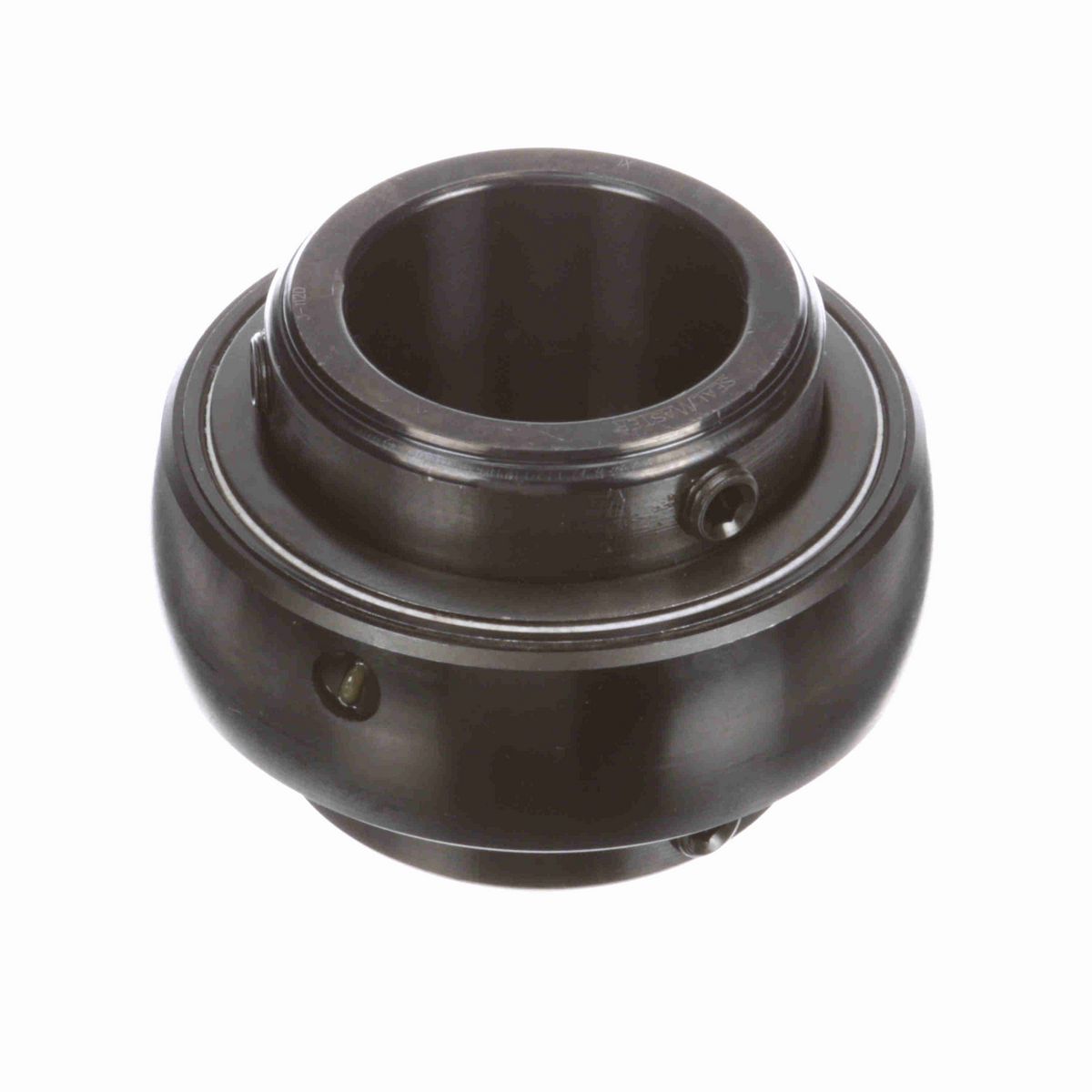

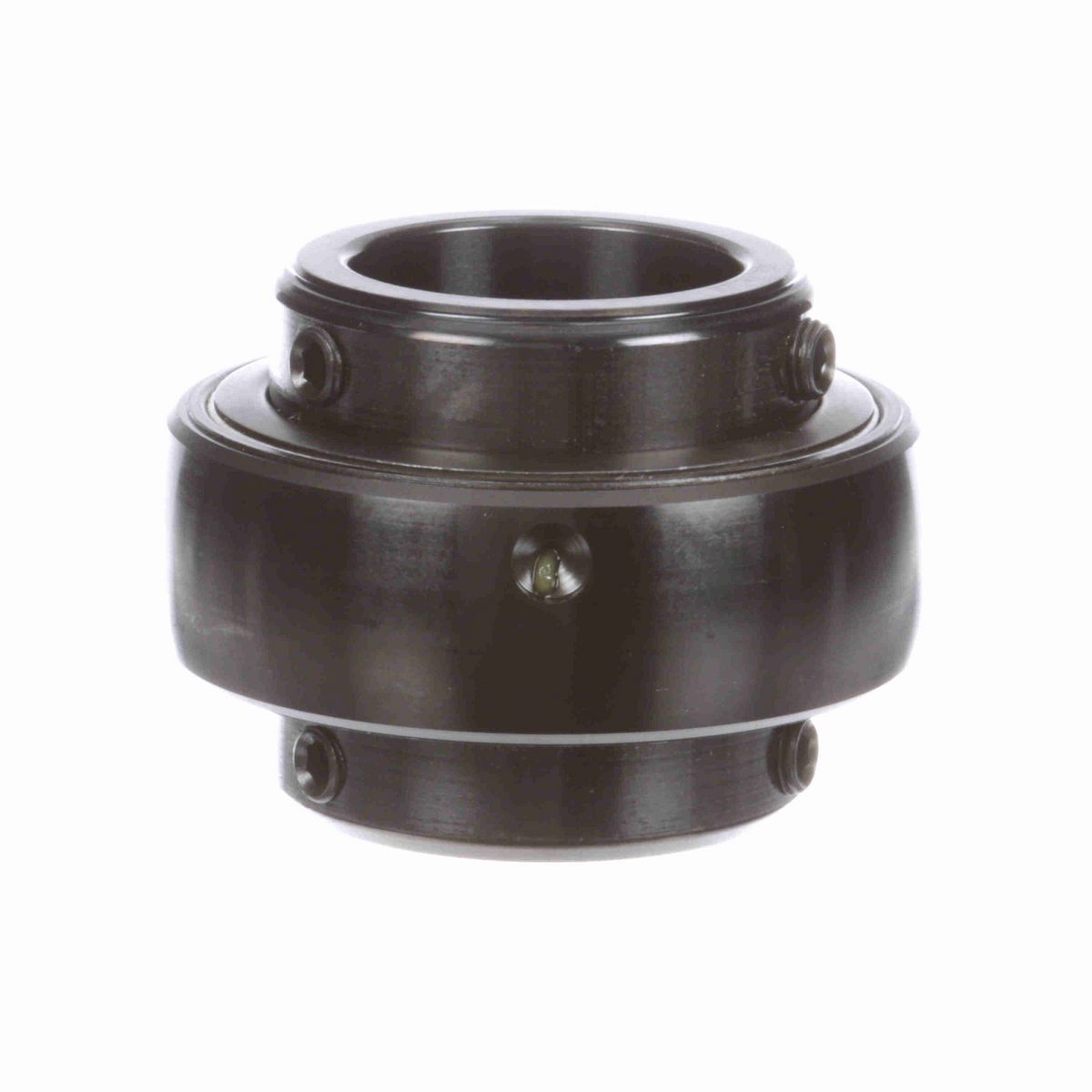

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.5 in
Bore Size (in)	1.7500 in
Outer Race OD (in)	3.543 in
Inner Race Length (in)	2.5 in
Centerline to Front Face (in)	1.25 in
Outer Race Width (in)	1.125 in
Inner Ring OD (in)	2.469 in

Technical Specifications

Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Set Screw Thread	3/8-24
Radius	0.062
Measure Units	Inch
Speed (Max) (RPM)	5000 rpm
Radial Dynamic Load Capacity (lb)	7,889 lb
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	5,216 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Locking Type	Double Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Medium
Fixed vs. Expansion	No

General Specifications

UPC	662461015186
Weight	3.11 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
