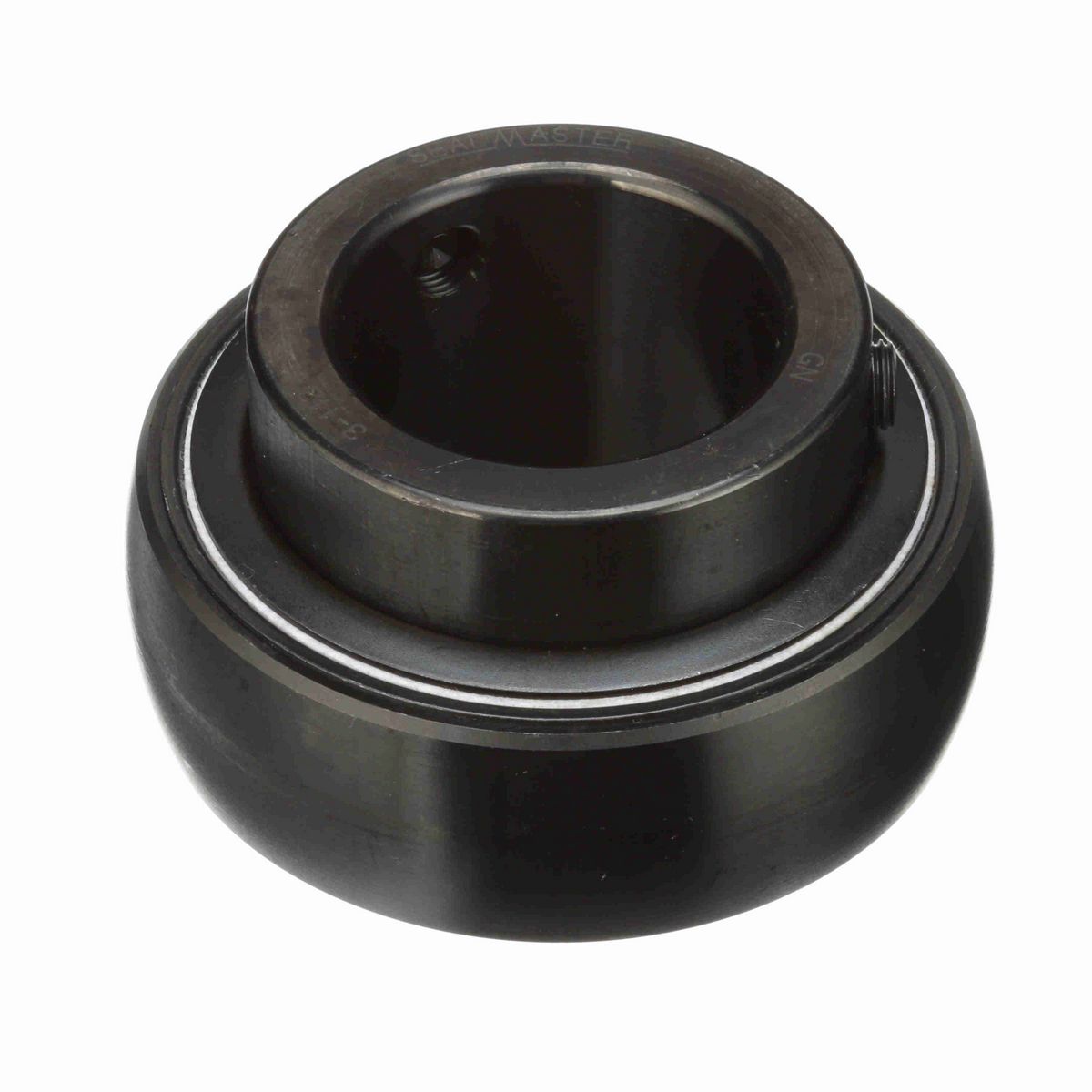

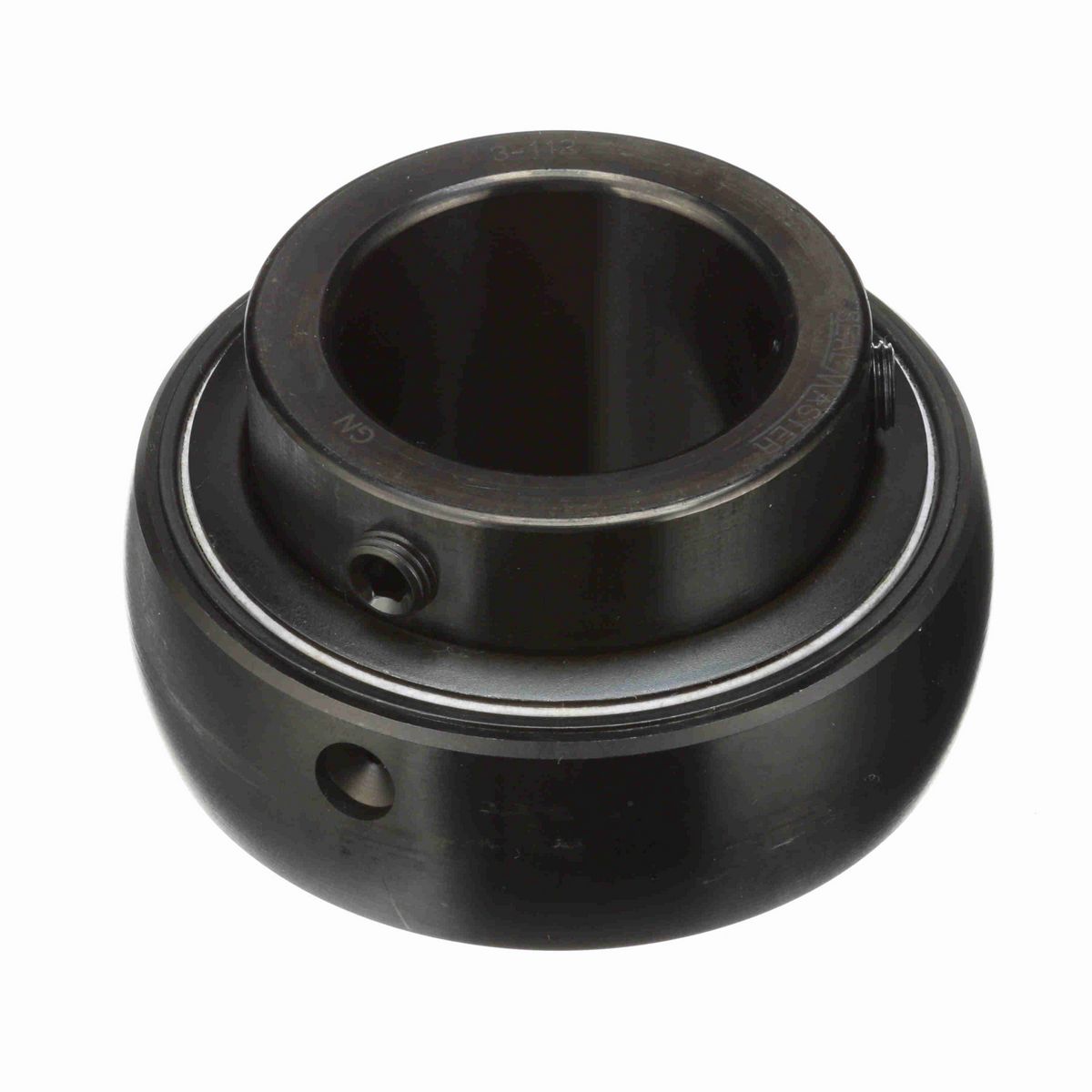

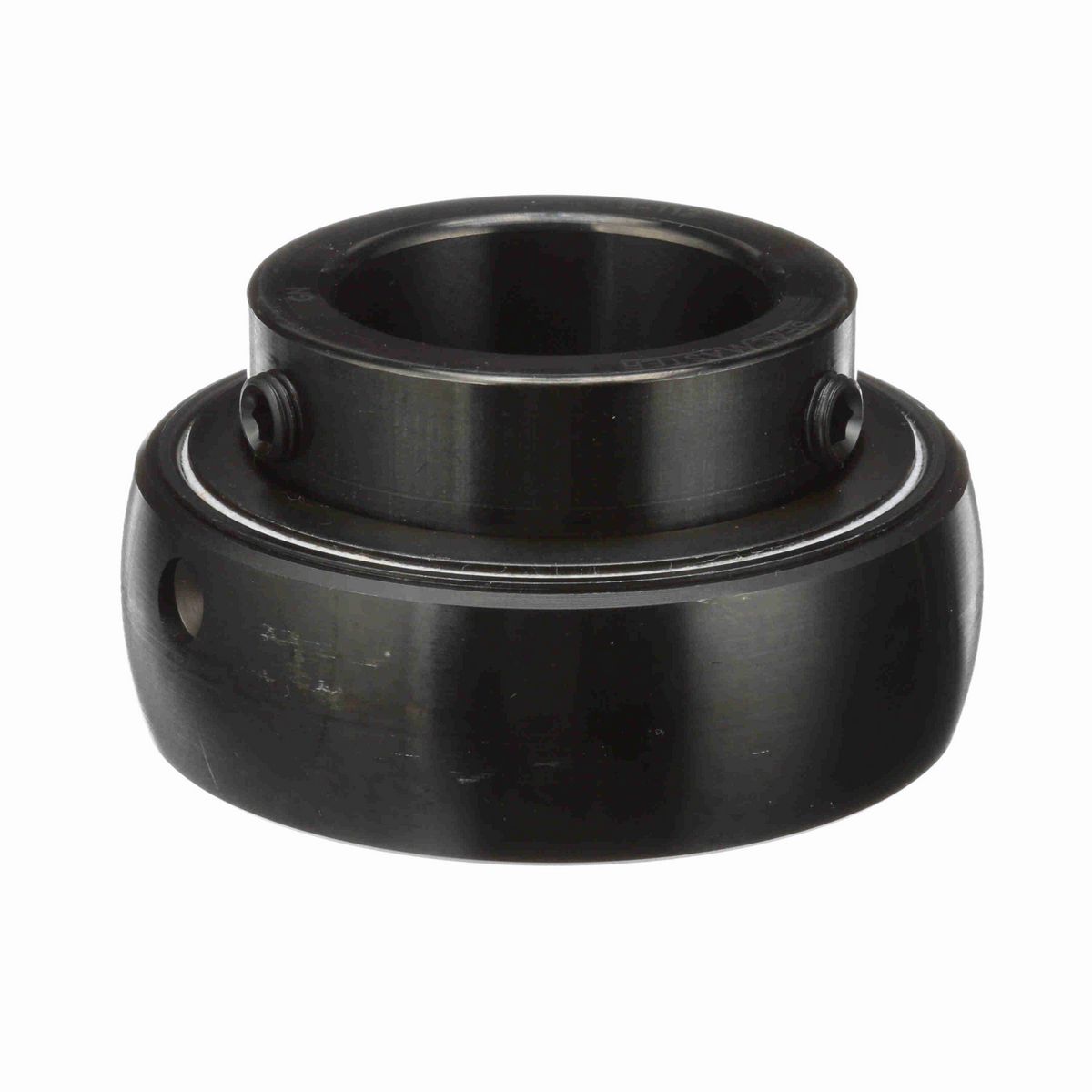

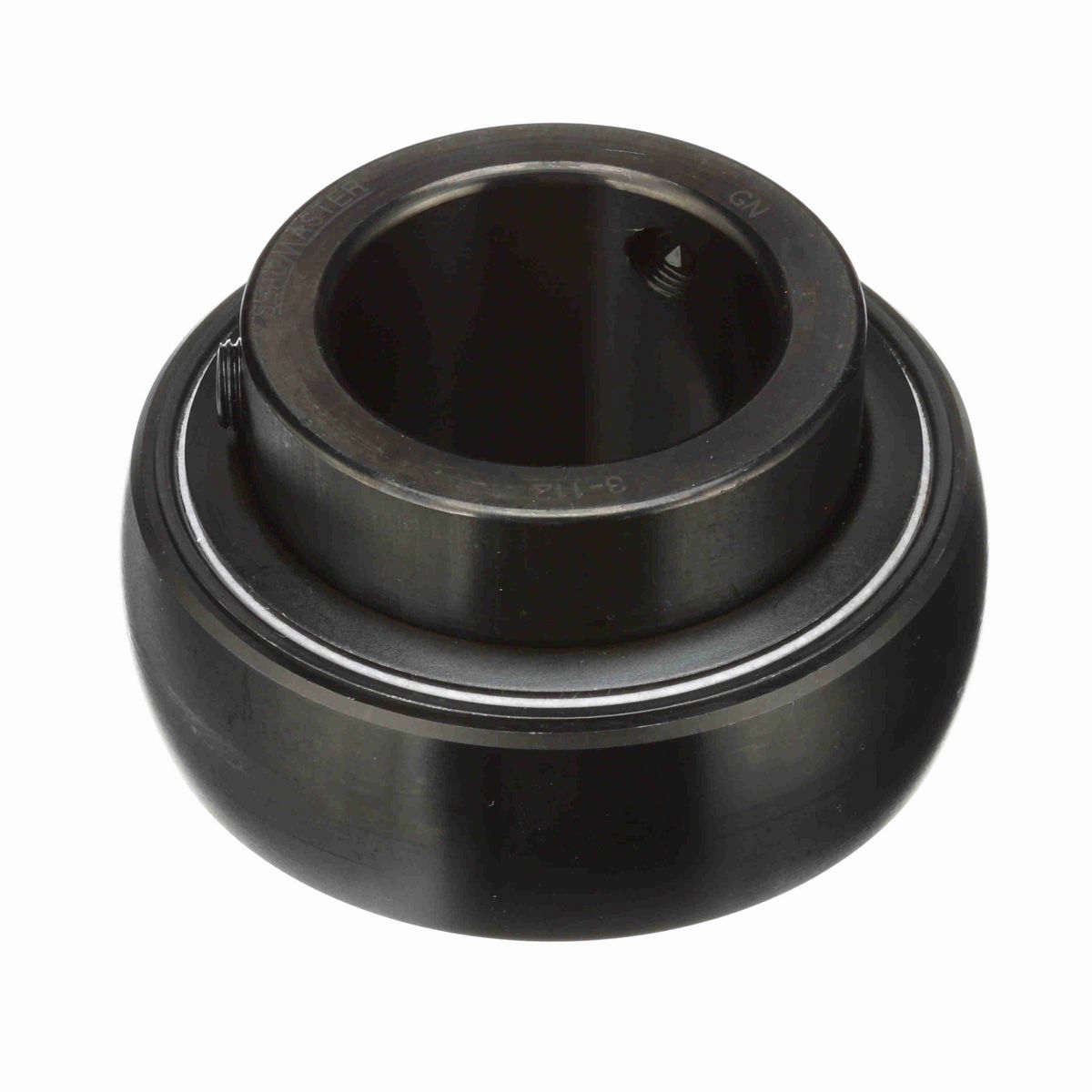

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.031 in
Bore Size (in)	1.7500 in
Inner Race Length (in)	2.031 in
Centerline to Front Face (in)	1.281 in
Outer Race OD (in)	3.543 in
Inner Ring OD (in)	2.469 in
Outer Race Width (in)	1.125 in

Technical Specifications

Measure Units	Inch
Bore Shape	Straight
Rolling Element	Ball Bearing
Set Screw Thread	3/8-24
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.062
Housing Type	Insert Only
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Speed (Max) (RPM)	3550 rpm
Radial Dynamic Load Capacity (lb)	7,889 lb
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	5,216 lb
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Ability to Relubricate	Yes
Duty/Series	Medium
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662461000694
Weight	2.39 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
